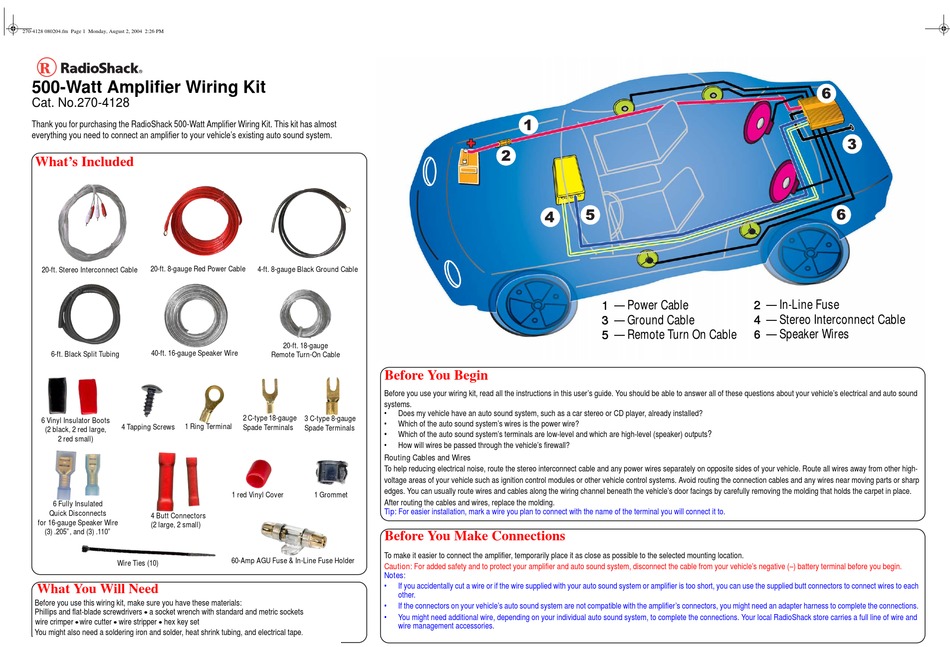

Radio Shack 270-4128 Connecting Manual

500-Watt Amplifier Wiring Kit
Cat. No.270-4128
Thank you for purchasing the RadioShack 500-Watt Amplifier Wiring Kit. This kit has almost
everything you need to connect an amplifier to your vehicle's existing auto sound system.
What's Included
20-ft. 8-gauge Red Power Cable
20-ft. Stereo Interconnect Cable
6-ft. Black Split Tubing 40-ft. 16-gauge Speaker Wire
6 Vinyl Insulator Boots
1 Ring Terminal
4 Tapping Screws
(2 black, 2 red large,
2 red small)
6 Fully Insulated
Quick Disconnects
4 Butt Connectors
for 16-gauge Speaker Wire
(2 large, 2 small)
(3) .205", and (3) .110"
Wire Ties (10)
What You Will Need
Before you use this wiring kit, make sure you have these materials:
Phillips and flat-blade screwdrivers a socket wrench with standard and metric sockets
×
wire crimper wire cutter wire stripper hex key set
× × ×
You might also need a soldering iron and solder, heat shrink tubing, and electrical tape
4-ft. 8-gauge Black Ground Cable
20-ft. 18-gauge
Remote Turn-On Cable

Before You Begin

Before you use your wiring kit, read all the instructions in this user's guide. You should be able to answer all of these questions about your vehicle's electrical and auto sound
systems.
• Does my vehicle have an auto sound system, such as a car stereo or CD player, already installed?
2 C-type 18-gauge 3 C-type 8-gauge
• Which of the auto sound system's wires is the power wire?
Spade Terminals
Spade Terminals
• Which of the auto sound system's terminals are low-level and which are high-level (speaker) outputs
• How will wires be passed through the vehicle's firewall?
Routing Cables and Wires
To help reducing electrical noise, route the stereo interconnect cable and any power wires separately on opposite sides of your vehicle. Route all wires away from other high-
voltage areas of your vehicle such as ignition control modules or other vehicle control systems. Avoid routing the connection cables and any wires near moving parts or sharp
edges. You can usually route wires and cables along the wiring channel beneath the vehicle's door facings by carefully removing the molding that holds the carpet in place.
1 red Vinyl Cover 1 Grommet
After routing the cables and wires, replace the molding.
Tip: For easier installation, mark a wire you plan to connect with the name of the terminal you will connect it to.
Before You Make Connections
To make it easier to connect the amplifier, temporarily place it as close as possible to the selected mounting location.
60-Amp AGU Fuse & In-Line Fuse Holder
Caution: For added safety and to protect your amplifier and auto sound system, disconnect the cable from your vehicle's negative (–) battery terminal before you begin.
Notes:
• If you accidentally cut a wire or if the wire supplied with your auto sound system or amplifier is too short, you can use the supplied butt connectors to connect wires to each
other.
• If the connectors on your vehicle's auto sound system are not compatible with the amplifier's connectors, you might need an adapter harness to complete the connections.
• You might need additional wire, depending on your individual auto sound system, to complete the connections. Your local RadioShack store carries a full line of wire and
wire management accessories.
.
2 — In-Line Fuse
1 — Power Cable
4 — Stereo Interconnect Cable
3 — Ground Cable
6 — Speaker Wires
5 — Remote Turn On Cable
?
