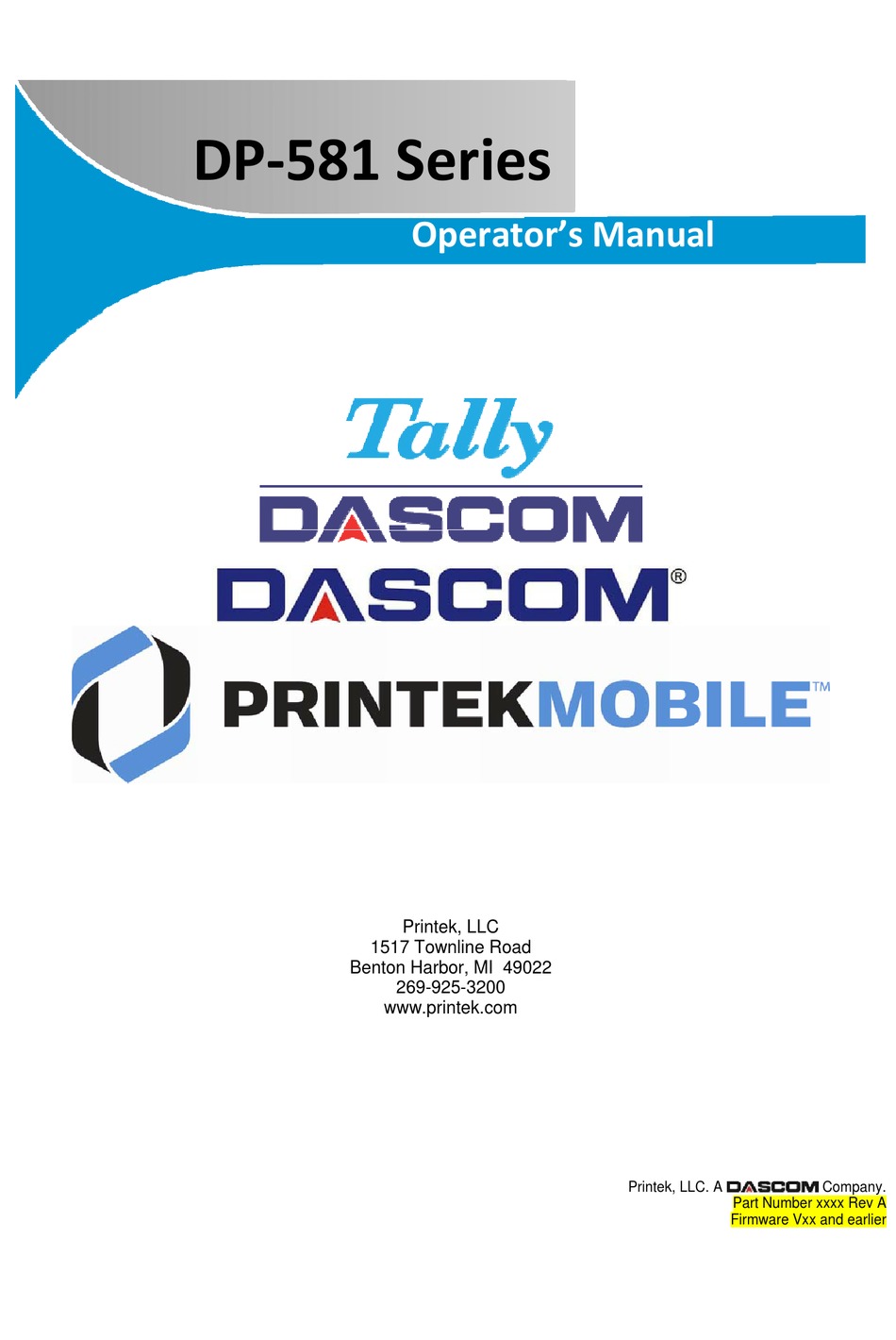

- Page 1 DP‐5 581 rator’s s Manu ual Printek, LL 517 Townline e Road Bent ton Harbor, M MI 49022 269-925-32 www.printek .com Printek k, LLC. A Comp pany. Part Number xxxx R Rev A Firmw ware Vxx and ea arlier...
-
Page 2: Fcc Part 15 Class B
This equipment complies with Canadian and FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Part 15.21 Caution: Changes or modifications not expressly approved by Printek, LLC could void the user’s authority to operate the equipment. - Page 3 For more i nformation vi isit www.rbrc .org. Acknowledg gments: Printek is a r registered trad demark of Prin ntek, LLC Zebra, CPCL L and ZPLare registered tra ademarks of Z ebra Technolo...
-
Page 4: Table Of Contents
A. Appendix A – FieldPro 581 Printer Specifications .................. 27 B. Appendix B – Supplies and Accessories ....................28 C. Appendix C – Media ..........................29 D. Appendix D – Mounting Options ......................29 _Toc464736772 Glossary of Terms ............................30 Index .................................. 32 www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 5: Introduction
Introduction Thank you for purchasing the Printek FieldPro 581 Series mobile thermal printer also referred to in this manual as the “DP-581”. The DP-581 series prints on special thermal media supplied in roll form up to 8 inches wide. All models are equipped with a USB port which supports cabled communications. -
Page 6: Printer Features
The latest in battery technology provides for full-shift printing in all modes Compatible with Windows, Windows Mobile, Apple iOS, and Android Emulations that allow the printer to be a drop-in replacement for nearly any mobile printer For detailed specifications reference Appendix A – FieldPro 581 Printer Specifications. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 7: Quick Start Instructions
Quick Start Instructions A. Paper Load ( Media 8.5’’) Tear paper towards back of printer Media 8’’ Before loading 8 inch media, users could install a pair of spacers into the compartment so as to secure the media. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... - Page 8 Hold the buckle and pull the strap as shown below until you achieve the desired length. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
-
Page 9: Battery Installation
LED on to indicate the printer is ready to print. When battery volume goes below 5%, the printer will shut down itself. When it’s below 10%, it will flash yello LED as an alarm of low battery. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 10: Control Panel
②Turn on the printer by holding both the feeding button and power button for five seconds. ③ With Power LED and Alert LED flashing, the printer enters into Configuration mode after 30 seconds. ④ You could upgrade the firmware via the web. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 11: Configuration
Open browser on your PC and type 169.254.200.1 into the address bar of the browser and hit Enter - A login box should appear: b. Type “0000” and hit Enter- you should now be at the home page for DP-581 Configuration. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 12: Connectivity Parameters
A. Connectivity Parameters This page allows you to setup the connection to your printer. Depending on the optional interface installed, you will see either WI-FI Config. In the detailed descriptions, an asterisk (*) indicates the factory default value. WI-FI Config: www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... - Page 13 Power and Alert LEDs light. Release both buttons, and the printer will restart in Personal Area Network mode. To exit Personal Area Network mode, press and hold the Power and Paper Feed buttons until the Power and Alert LEDs light. Release both buttons, and the printer will restart in normal Wi-Fi mode. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
- Page 14 Add/Edit Network Enter the SSID of a network connection. If authentication is used select the authentication type. Click Next. The following form will change depending on the authentication type: WPA-PSK Enter the password for the network connection. WPA-EAP or IEEE8021X www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
-
Page 15: Image Parameters
If your enterprise network uses digital certificates as another form of authentication, you can upload the certificates here. B. Image Parameters This page allows you to make selections about the image to be printed. Current Emulation: Possible Values: PRINTEK*, ZPL, CPCL, ESCPOS, IPL, AUTOIMAGE, PDF, POSTSCRIPT, IMAGE www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 16: Device Config
Chars Per Inch and Default Text Line Spacing: NOTE: These settings only function in Printek Emulation This determines how large the characters are and how many characters will print in a one inch space. The higher the number, the greater the number of lines per vertical inch of print. - Page 17 Possible values 0-100%. This displays the reflectivity or light transmission of the media, depending on the setting for Mark Seeking. This value is updated once per second. Note: Before adjusting black mark thresholds, set Mark Width to match the width of the black mark or label gap on your media. Front Paper Sensor Threshold www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
-
Page 18: Fonts
This timer will turn the printer off if it has not been used for the time set. Disable this feature by setting the time at 0. The printer will give a 1 minute warning before shutting off. D. Fonts www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 19: Graphics
Font Aliases Languages like ZPL and CPCL can use an uploaded Font Alias Table so legacy jobs can have their font names mapped to other uploaded fonts. Contact Printek Technical Support at (800) 368-4636 for more information. E. Graphics This menu will allow you to load a graphics file into printer memory for use in creating your output. For instance, logos can be stored for recall and use by your host program (see Integrator’s Guide for more details). -
Page 20: Update Printer Firmware, Upload Files To Printer Memory
You must set each of these values before selecting Upload Logo or the default values will be associated with your image. Current Logo Mapping Once uploaded into the printer memory, your image and settings will be displayed here. F. Update Printer Firmware, Upload Files to Printer Memory www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 21: Reset Printer Configuration To Factory Defaults (Safe Mode)
Printer Application Updates, OEM information and Manuals and more can be uploaded here. Contact Printek Technical Support at (800) 368-4636 for more information. G. Reset Printer Configuration to Factory Defaults (Safe Mode) Printer settings can be restored to factory configurations. -
Page 22: Printing Modes
This opens up the option to print job images from a variety of devices for which drivers or print utilities don’t exist, such as some tablets and smartphones. Please see the Integrator’s Guide or your system integrator for more details. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 23: Integrating The Printer Into Your Business Applications
The printer will appear in the “Unspecified” devices section. Right click on the icon. d) In the popup window, select the Hardware tab. Note the USB port number displayed. e) Using the “Add Printer” wizard, install the printer using the driver file obtained from Printek and the USB port number noted above. -
Page 24: Windows Tablets And Smartphones
C. Android Tablets & Smart phones I. Wi- Fi This feature and/or specific directions for use were not available as of this printing. D. Apple™ Tablets & Smartphones Wi-Fi This feature and/or specific directions for use were not available as of this printing. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 25: Media
Media A. Standard Media Printek offers a variety of media types. See Appendix C for detailed descriptions and ordering information. You may also visit our website or contact your PrintekMobile sales representative for a complete and up to date description of our consumables and accessory products. -
Page 26: Maintenance And Troubleshooting
Roller whenever you load new paper. To clean the printer areas as described below, use a Thermal Head Cleaning Pen and MCR Cleaning Card available from Printek, or you may use cotton swabs moistened with isopropyl alcohol. Turn the printer off. Open the Paper Door and remove the paper. - Page 27 e power ada apter may r remain conn nected to th he printer to o keep the b battery fully charged an will l not cause damage to the printer or battery. III. Addit tional Bat ttery and S Safety Info ormation ...
-
Page 28: Troubleshooting
When encountering problems, the cause may be the printer or may sometimes be due to other problems with your system. Please review the following tables to solve common problems you may encounter with your printer. You may also visit www.printek.com for additional “FAQ’s” that may assist you. -
Page 29: Obtaining Service
If service is required for your printer, please contact the company where you purchased your printer. If they are unable to assist you, contact Printek Customer Service at (800) 368-4636 to obtain a Return Authorization Number. Printers without Return Authorization will not be accepted. -
Page 30: Appendix
Zebra CPCL and ZPL, Extech, and Cart Mounting Systems ESC POS. Firmware can be upgraded Fixed Mounting Systems as new emulations become available. Supports direct printing of Postscript, PDF, PBM, JPG, PNG, BMP, SVG and TIFF files. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 31: Appendix B - Supplies And Accessories
FieldPro 581 Mounting Pole with Bracket Part # PRINTER ATTACHMENTS xxxxx FieldPro 581 Direct Mount Plate * xxxxx FieldPro 581 Printer Plate With Ball *For direct mounting. Not compatible with connecting arms or bases. Please contact your Printek sales representative for price and availability. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... -
Page 32: Glossary Of Terms
An area along any edge of a form where data may not be printed. Peer-to-Peer A network consisting of only stations (no access point or central server). Same as Ad-Hoc. reset Initialization of various operating features of the printer to the value or state assumed when the printer is powered on. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... - Page 33 Wired Equivalent Privacy. A security protocol for wireless LANs designed to provide data security similar to a wired LAN. Wi-Fi Refers to any of the IEEE 802.11 standards. WLAN Wireless Local Area Network. A LAN made up of wireless nodes. www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
-
Page 34: Index
Paired Mode, 8 Wifi Port, 10 Default Text Line Spacing, pairing code, 19 Windows, ii, 3, 18, 19, 20 Paper Energy Values, 14 WLAN, 31 Device Config, 13 Paper Feed Button, 6 ZPL, 12 DHCP, 30 Paper Load, 4 www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com... - Page 35 Troubleshooting www.printek.com | P: 888.211.3400 | F: 269. 222.1229 | E: info@printek.com...
