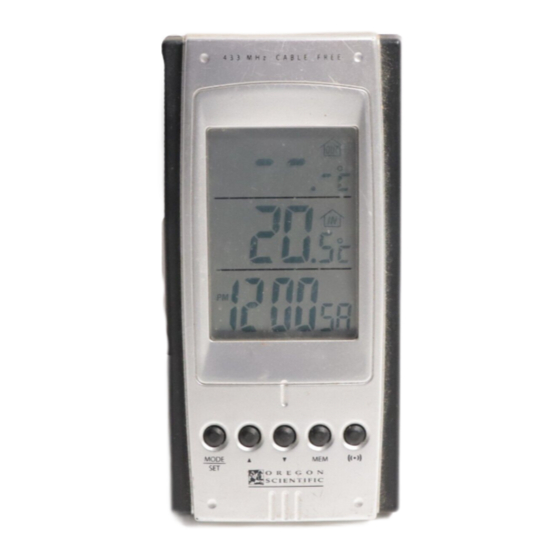

Oregon Scientific RAR232 User Manual

In-out thermometer with cable free, sensor and clock
Hide thumbs Also See for RAR232:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
In-Out Thermometer with Cable Free
Sensor and Clock
Model: RAR232
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Oregon Scientific RAR232

Summary of Contents for Oregon Scientific RAR232

  • Page 1 In-Out Thermometer with Cable Free Sensor and Clock Model: RAR232 User Manual...

  • Page 2: Table Of Contents

    About Oregon Scientific .......... 9 USER'S MANUAL Note on compliance ..........9 CONTENTS INTRODUCTION Congratulations on you purchase of the Oregon Scientific™ Introduction ............... 1 RAR232 Indoor and Outdoor Thermometer with 433MHz Product overview ............2 cable free sensor and calendar clock.

  • Page 3: Product Overview

    1. Three-line display PRODUCT OVERVIEW Facilitates easy reading of remote and indoors temperatures and calendar clock. MAIN UNIT 2. Down ( ) button FRONT VIEW BACK VIEW Decreases the value of a setting. 3. Up ( ) button 4 3 3 M H z C A B L E F R E E Increases the value of a setting.

  • Page 4: Remote Unit

    REMOTE UNIT 1. LED indicator Flashes when the remote unit transmits a reading. FRONT BACK 2. RESET button ° ° F switch Selects between degrees Centigrade (°C) and Fahrenheit (°F). 4. Battery compartment Accommodates 2 UM-3 (AA) 1.5V batteries. 5. Battery compartment cover RAR232A-E CP5.P65 10/4/05, 11:29 AM...
  • Page 5 2. Ensure that the base of the stand fits into the 2 small holes TABLE STAND AND WALL MOUNT at the bottom of the main unit. 3. To remove the stand from the battery cover, press your The main and remote units can either be positioned on a flat finger against the latch in the opening found at the bottom surface or mounted on a wall.

  • Page 6: Getting Started

    GETTING STARTED Once batteries are in place for the remote unit, temperature readings will be transmitted at 39-second intervals. The main unit will search for signals for approximately 4 minutes after the batteries have been installed. BATTERIES 1. Remove the remote unit battery compartment cover and insert batteries.

  • Page 7: Kinetic Wave Display

    KINETIC WAVE DISPLAY reception of temperature readings will resume once the interference recedes. The kinetic wave display shows the signal reception status of the main unit. There are three possible outcomes: Searching for signal. Signal is secure. No signals. For best results: •...

  • Page 8: Clock And Calendar Display Modes

    Repeat this step whenever you find that the temperature TIP: During setting, press and hold to rapidly . increase or decrease a value. displayed on the remote sensor is not the same as the outdoor temperature display on the main unit. NOTE The date is displayed in DAY-MONTH format.

  • Page 9: Indoor And Outdoor Temperature

    INDOOR AND OUTDOOR TEMPERATURE LOW BATTERY WARNING If no readings are received from the remote unit for more When it is time to replace the batteries, the respective low than 4 minutes, blanks, “ ” will be displayed until further battery indicator will appear on the indoor and outdoor readings have been successfully searched.

  • Page 10: Safety And Care

    Dimension SAFETY AND CARE Main unit: 113(L) x 54(W) x 62(T) mm This product is designed to give you years of service if handled properly. Observe the following guidelines: Remote sensing unit: 96(L) x 50(W) x 28(T) mm • Never immerse the unit in water. This can cause electrical shock and damage the unit.

  • Page 11: About Oregon Scientific

    Visit our website (www.oregonscientific.com) to learn more cause harmful interference to radio or television reception, about other Oregon Scientific TM products such as digital which can be determined by turning the equipment off and cameras, projection clocks, health and fitness gear, and on, the user is encouraged to try to correct the interference weather stations.
  • Page 12 Website address: www.oregonscientific.com. Name and model number of the product: Remote Thermometer RAR232 NOTE Changes or modifications not expressly approved by Oregon Scientific for compliance could void the warranty and your authority to use this equipment. RAR232A-E CP5.P65 10/4/05, 11:29 AM...
