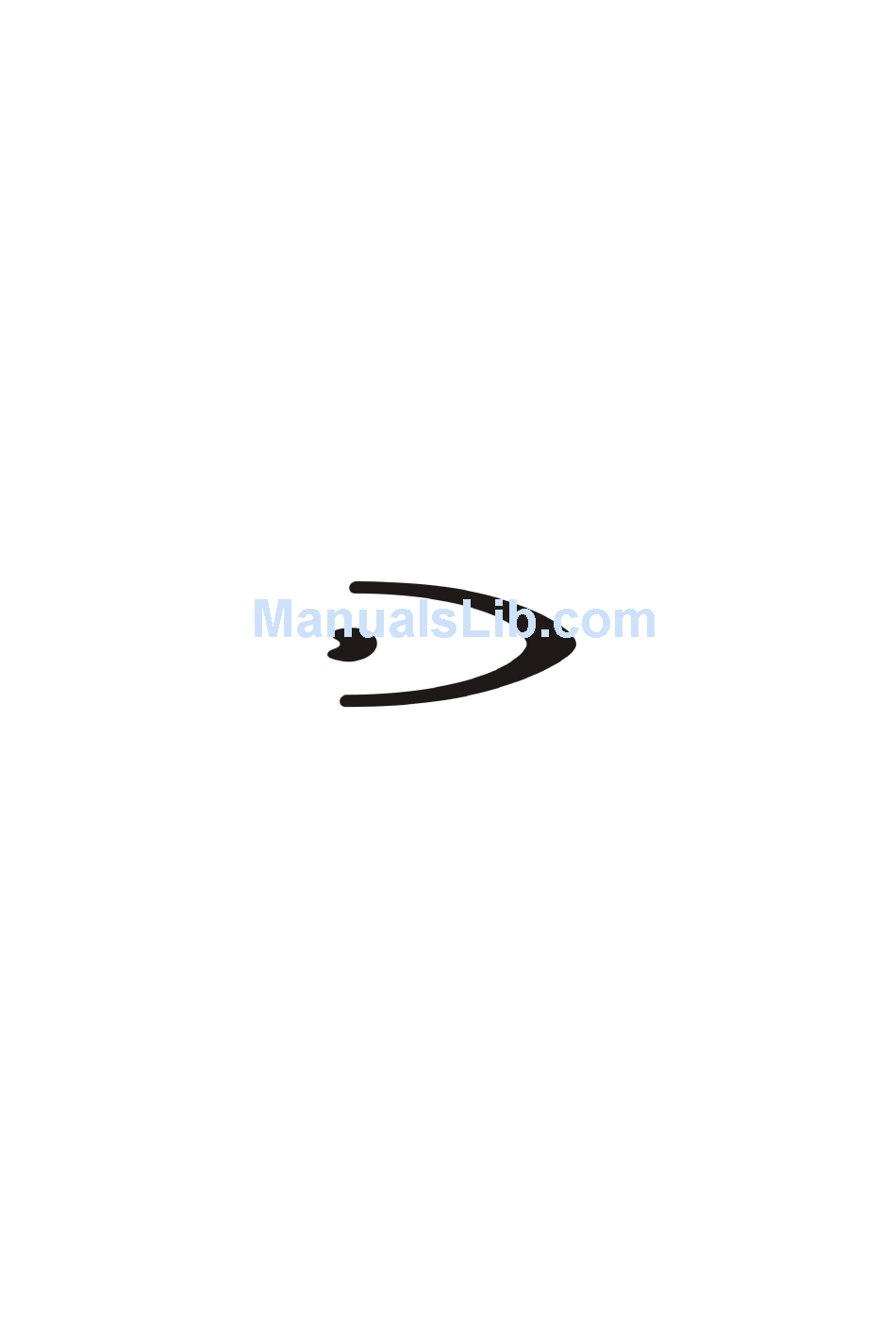

- Page 1 OM-GRYPHON™ SERIES QUICK REFERENCE...
- Page 2 Datalogic reserves the right to make modifications and improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material. Product names mentioned herein are for identification purposes only and may be trademarks and or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
CONTENTS Updates and Language Availability..............iv Using OM-GRYPHON™ Radio Cradle ............... 1 System Connections ................... 2 Connecting and Disconnecting the OM-GRYPHON™ Interface Cable ..... 2 OM-GRYPHON™ Configuration ................. 5 Interface Selection ....................5 USB Interface Configuration ................6 USB Interface Selection ..................7 USB Keyboard Nationality................... -
Page 4: Updates And Language Availability
The latest drivers and documentation updates for this product are available on Internet. Log on to : www.datalogic.com Su Internet sono disponibili le versioni aggiornate di driver e documentazione di questo prodotto. Questo manuale è disponibile anche nella versione italiana. -
Page 5: Using Om-Gryphon™ Radio Cradle

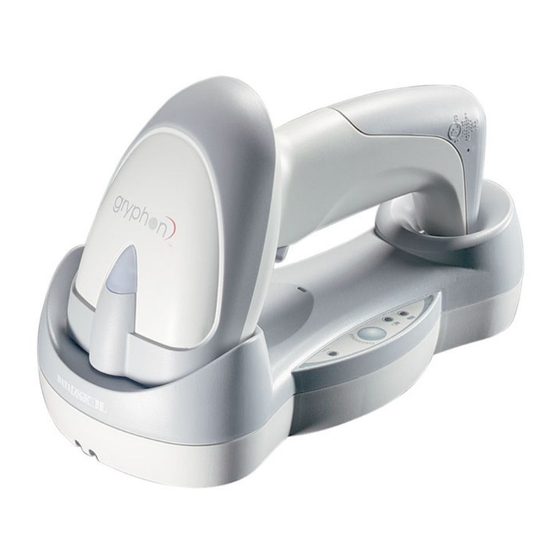

OM-GRYPHON™ USING OM-GRYPHON™ RADIO CRADLE The OM-GRYPHON™ cradle, paired with one Gryphon™ M series reader, builds a Cordless Reading System for the collection, decoding and transmission of barcoded data. USB multi-standard interface models can be connected to a Host PC through a USB, RS232, Wedge or Pen emulation cable. -
Page 6: System Connections
DATALOGIC SYSTEM CONNECTIONS Connections should always be made with power off! CAUTION You can connect the OM-GRYPHON™ cradle to the Host through the dedicated connector, using the cable corresponding to the desired interface type. CONNECTING DISCONNECTING OM-GRYPHON™ INTERFACE CABLE To connect the OM-GRYPHON™ : Connnect the OM-GRYPHON™... - Page 7 OM-GRYPHON™ RS232 CONNECTION USB CONNECTION IBM USB POS CONNECTION WEDGE CONNECTION...
- Page 8 DATALOGIC WEDGE CONNECTION PEN CONNECTION IBM 46XX TERMINALS – PORT 9B/PORT 5B CONNECTION...
-
Page 9: Om-Gryphon™ Configuration
OM-GRYPHON™ OM-GRYPHON™ CONFIGURATION The OM-GRYPHON™ configuration can be performed in two ways: either by sending configuration strings from the Host via the RS232 or USB-COM interface or by reading configuration barcodes with the Gryphon™ M reader. SERIAL/USB COM CONFIGURATION By connecting the OM-GRYPHON™ to a PC through an RS232 or USB interface cable it is possible to send configuration strings from the PC to OM- GRYPHON™. -
Page 10: Usb Interface Configuration
DATALOGIC USB INTERFACE CONFIGURATION The USB interface is compatible with: Windows 98 (and later) Mac SO 8.0 (and later) IBM POS for Windows 4690 Operating System START-UP As with all USB devices, upon connection, the Host performs several checks by communicating with the OM-GRYPHON™. -
Page 11: Usb Interface Selection
USB-KBD (default) Ì$+UA03$-:Î USB-KBD-ALT-MODE Ì$+UA04$-@Î USB-KBD-APPLE Ì$+UA05$-FÎ USB-COM* Ì$+UA02$-4Î USB-IBM-Table Top Ì$+UA00$-(Î USB-IBM-Hand Held Ì$+UA01$-.Î When configuring USB-COM, the relevant files and drivers must be installed from the USB Device Installation software which can be downloaded from the web site http://www.datalogic.com. -
Page 12: Usb Keyboard Nationality
DATALOGIC USB KEYBOARD NATIONALITY USB-KBD users should select following KEYBOARD NATIONALITY codes. Belge Ì$+FJ7$-8Î Deutsch Ì$+FJ3$-$Î English Ì$+FJ4$-)Î Español Ì$+FJ6$-3Î Français Ì$+FJ2$-ÊÎ Italiano Ì$+FJ1$-ÅÎ Japanese Ì$+FJ8$-.Î Svenskt Ì$+FJ5$-|Î Ì$+FJ0$-=Î... -
Page 13: Rs232 Interface Selection
OM-GRYPHON™ RS232 INTERFACE SELECTION Read the OM-GRYPHON™ restore default code, then read the interface selection code for your application: RESTORE OM-GRYPHON™ DEFAULT Ì$+RX0$-qÎ RS232 INTERFACE Standard Ì$+CP0$-$Î POS TERMINALS Nixdorf Mode A Ì$+CM2EC0$->Î Fujitsu Ì$+CM1$-ÈÎ ICL Mode Ì$+CM0$-ÃÎ... -
Page 14: Wedge Interface Selection
DATALOGIC WEDGE INTERFACE SELECTION Read the OM-GRYPHON™ restore default code, then read the interface selection code for your application: RESTORE OM-GRYPHON™ DEFAULT Ì$+RX0$-qÎ WEDGE INTERFACE IBM AT or PS/2 PCs Ì$+CP500$-aÎ IBM XT Ì$+CP503$-vÎ PC Notebook Ì$+CP505$-ÈÎ IBM SURE1 Ì$+CP506$-$Î... - Page 15 OM-GRYPHON™ WEDGE INTERFACE (CONTINUED) IBM Terminals 31xx, 32xx, 34xx, 37xx: To select the interface for these IBM Terminals, read the correct key transmission code. Select the keyboard type if necessary (default = advanced keyboard). KEY TRANSMISSION MODE make-only keyboard Ì$+CP502$-oÎ make-break keyboard Ì$+CP501$-hÎ...
- Page 16 DATALOGIC WEDGE INTERFACE (CONTINUED) WYSE TERMINALS ANSI Keyboard Ì$+CP509$-9Î PC Keyboard Ì$+CP510$-gÎ ASCII Keyboard Ì$+CP511$-nÎ VT220 style Keyboard Ì$+CP514$-ÇÎ DIGITAL TERMINALS VT2xx/VT3xx/VT4xx Ì$+CP512$-uÎ APPLE APPLE ADB Bus Ì$+CP513$-|Î...
-
Page 17: Wedge Keyboard Nationality
OM-GRYPHON™ WEDGE KEYBOARD NATIONALITY If you selected the Wedge interface, you should also read among the following codes the one that matches your Keyboard Nationality: Belge Ì$+FJ7$-8Î Deutsch Ì$+FJ3$-$Î English Ì$+FJ4$-)Î Español Ì$+FJ6$-3Î Français Ì$+FJ2$-ÊÎ Italiano Ì$+FJ1$-ÅÎ Svenskt Ì$+FJ5$-.Î Ì$+FJ0$-|Î The following Keyboard Nationality selection is only valid for IBM AT compatible PCs: Japanese... -
Page 18: Pen Interface Selection
DATALOGIC PEN INTERFACE SELECTION Read the OM-GRYPHON™ restore default code, then read the interface selection code for your application: RESTORE OM-GRYPHON™ DEFAULT Ì$+RX0$-qÎ PEN INTERFACE Ì$+CP6$-BÎ IBM 46xx TERMINAL INTERFACE SELECTION Read the OM-GRYPHON™ restore default code, then read the interface selection code for your application: RESTORE OM-GRYPHON™... -
Page 19: Ibm 46Xx Terminal Data Formatting
Since the reader allows a wider set of codes to be selected, the following formats are defined to offer the user all the reading possibilities of the Datalogic product. Conversion to Code 39 Format Data from any code selected may be transmitted. Each code is transmitted to the Host as Code 39. -
Page 20: Om-Gryphon™ Default Configuration
DATALOGIC OM-GRYPHON™ DEFAULT CONFIGURATION USB DEFAULT SETTINGS DATA FORMAT: code identifier disabled, code length not transmitted, character replacement disabled, address stamping disabled, address delimiter disabled. USB KEYBOARD: USA keyboard, inter-character and inter-code delays disabled. USB COM: handshaking disabled, delay disabled, rx timeout 5 sec., ack/nack disabled, FIFO enabled, serial trigger lock disabled. - Page 21 OM-GRYPHON™ WEDGE DEFAULT SETTINGS USA keyboard, caps lock off, caps lock auto-recognition enabled; num lock unchanged, inter-character and intercode delay disabled. DATA FORMAT: code identifier disabled, code length not transmitted, no header, terminator = ENTER, character replacement disabled, address stamping disabled, address delimiter disabled. PEN DEFAULT SETTINGS Interpret operating mode, minimum output pulse 600 µs, conversion to Code 39,, overflow medium, output level normal, idle level normal, interblock delay disabled.
-
Page 22: Operating Test
Interleaved 2 of 5 0 1 2 3 4 5 6 7 8 4 PDF417 DATALOGIC PDF417 Test Code YOUR SYSTEM IS NOW READY TO READ CODES AND TO SEND THE DATA TO THE HOST. To change the defaults refer to the "Gryphon™ Software Configuration Manual", part number 90ACC1780, or to the DL Sm@rtSet™... -
Page 23: Copy Configuration
OM-GRYPHON™ COPY CONFIGURATION This procedure allows using a previously configured Gryphon™ M reader (Master) to send its configuration directly to other devices of the same type (Slaves) by means of a single OM-GRYPHON™. Proceed as follows: With the master Gryphon™ M (correctly configured reader), read the Copy Configuration barcode below. -
Page 24: Battery Selection
DATALOGIC BATTERY SELECTION Battery selection is required only when the Gryphon™ M reader has an Alkaline battery and you want to use OM-GRYPHON™ either for serial configuration, software upgrades or to hold Gryphon™ M. Since this type of battery must not be charged it is necessary to disable the OM-GRYPHON™... -
Page 25: Technical Features
OM-GRYPHON™ TECHNICAL FEATURES OM-GRYPHON™ Electrical Features Supply voltage 9..28 Vdc Power consumption max. 8 W (charging) * LED Indicators Battery charging red Charge completed green Power / Data yellow Time of recharge From 3 to 5 hours Radio Features European Models USA Models Working Frequency 433.92 Mhz... -
Page 26: Warranty
24 months from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product, these provisions do not prolong the original warranty term. The warranty does not apply to any product that has been subject to misuse, accidental damage, unauthorized repair or tampering. - Page 27 FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
- Page 28 DATALOGIC S.p.A., Via Candini, 2 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el OM-GRYPHON, Base charger e tutti i suoi modelli and all its models et tous ses modèles...
