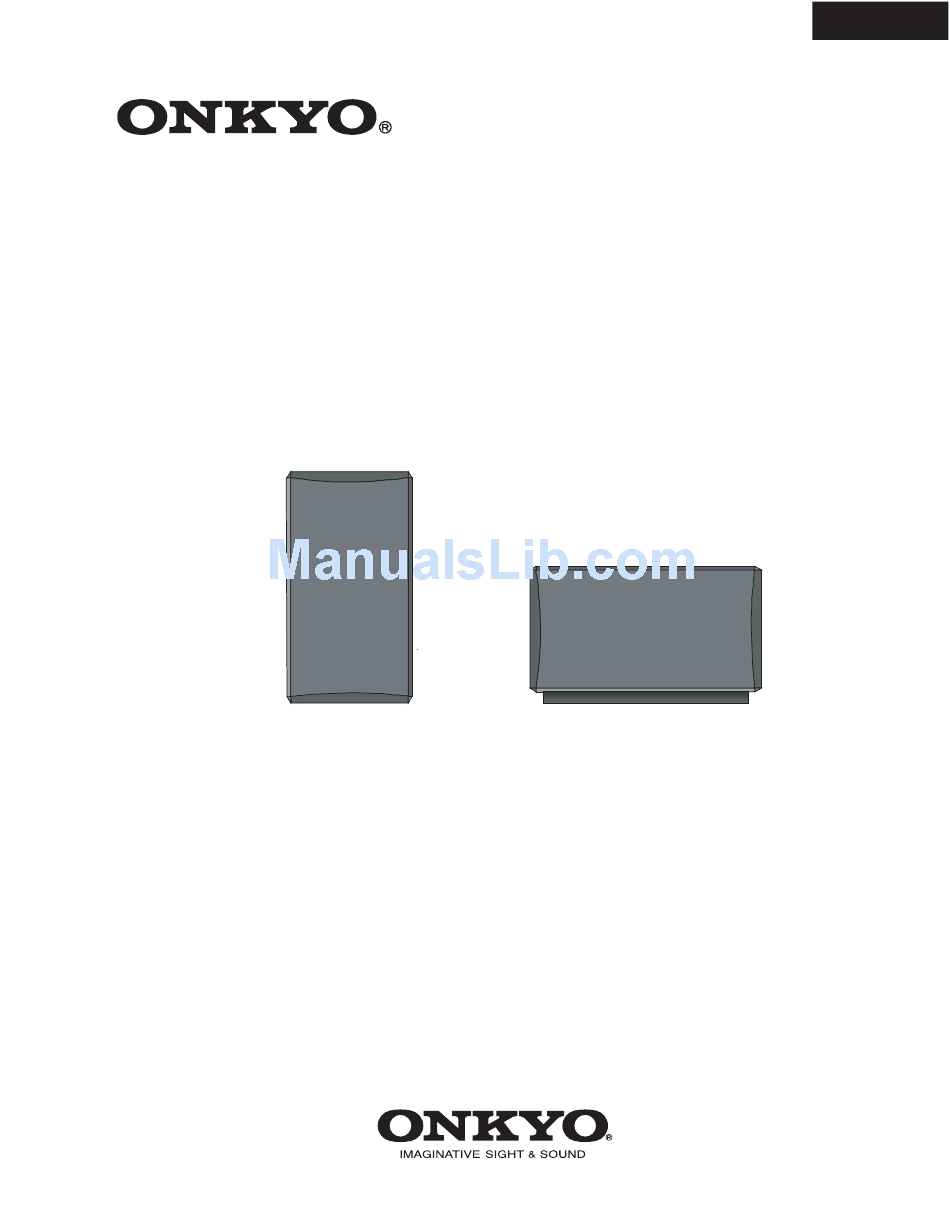

- Page 1 D-30PC5X Ref. No. SS0137 062001 SERVICE MANUAL SERVICE MANUAL SPEAKER SYSTEM D-30PC5X MODEL D-30 D-30C...
-
Page 2: Specifications
D-30PC5X SPECIFICATIONS D-30 Type : Full range , Bass Reflex Impedance : 6 ohm Maximum Input Power : 40W Output sound pressure level : 84dB/W/m Frequency Response : 100Hz - 20kHz Cabinet Capacity : 1.2 Litter Speaker : 9cm OMF Cone type (Full range... - Page 3 D-30PC5X CONNECTED DRAWING D-30 D-30 Front speaker Rch Front speaker Lch D-30C Center speaker SURROUND CENTER FRONT SPEAKERS SPEAKERS SPEAKER Amplifier D-30 D-30 Surround speaker Rch Surround speaker Lch Minus (-) side is indicated with a description or a white line.
- Page 4 D-30PC5X EXPLODED VIEW D-30 MODEL D-30 MAX.POWER HANDLING 40W (EIAJ) IMPEDANCE ONKYO CORPORATION INSPECTED AND AUTHORIZED BY ONKYO MANUFACTURED IN MALAYSIA SERIAL No. PARTS LIST Set ass'y AB092003-01 Net ass'y 99-092-003-01 Rating label 60-001-770-01 Full range unit PD9131A Notes Set ass'y (Cabinet+Full range unit+Net Ass'y+Duct+Absorbent+Terminal)
- Page 5 D-30PC5X CONSTITUTION VIEW D-30 D-30 MODEL MAX.POWER HANDLING 40W (EIAJ) IMPEDANCE ONKYO CORPORATION INSPECTED AND AUTHORIZED BY ONKYO MANUFACTURED IN MALAYSIA SERIAL No.
- Page 6 D-30PC5X EXPLODED VIEW D-30C D-30C MODEL MAX.POWER HANDLING 70W (EIAJ) IMPEDANCE ONKYO CORPORATION INSPECTED AND AUTHORIZED BY ONKYO MANUFACTURED IN MALAYSIA SERIAL No. PARTS LIST Set ass'y AB092004-01 Net ass'y 99-092-004-01 Rating label 60-001-771-01 Full range unit PD9131B Bracket 64-000-196-01...
- Page 7 D-30PC5X CONSTITUTION VIEW D-30 D-30 MODEL MAX.POWER HANDLING 40W (EIAJ) IMPEDANCE ONKYO CORPORATION INSPECTED AND AUTHORIZED BY ONKYO MANUFACTURED IN MALAYSIA SERIAL No.
-
Page 8: Packing View
D-30PC5X PACKING VIEW PARTS LIST Pad ass'y 80-000-441-01 Pad ass'y 80-000-442-01 Carton 84-001-922-01 Protection sheet (1t x 420 x 300) 85-000-354-61 Polybag (0.03t x 350 x 250) 85-000-198-01 Stand base 57-000-564-01 Bar code label 89-000-480-01 Instruction manual 87-000-954-01 Instruction manual 87-000-897-01 Supplied cord set (3.5m x1) - Page 9 D-30PC5X ONKYO CORPORATION Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 E-mail: onkyo@onkyousa.com HOMEPAGE http://www.onkyo.co.jp/...
