Summary of Contents for Q-See QT17DVR4C

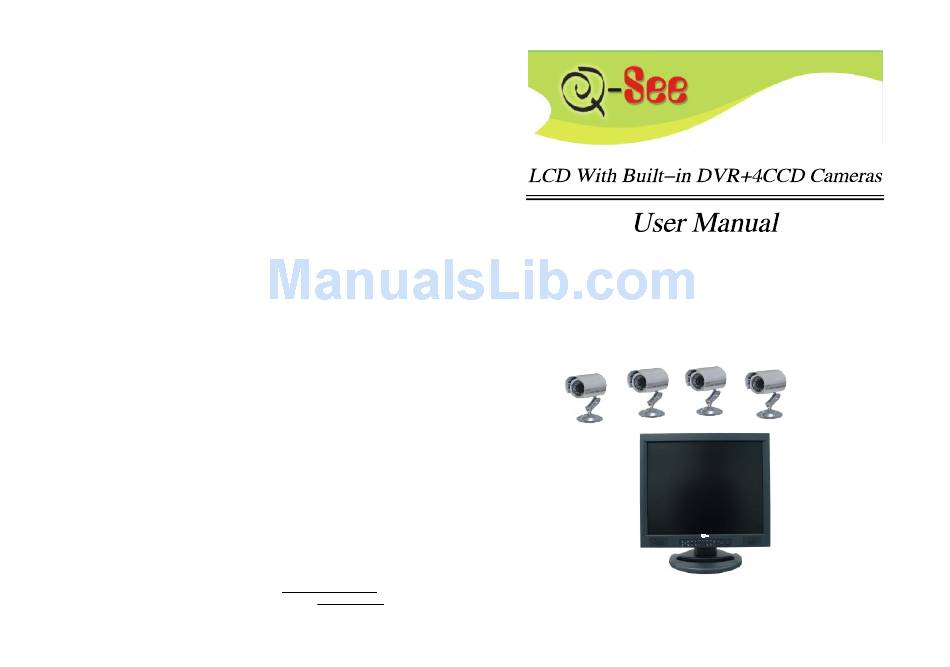

- Page 1 Digital Peripheral Solutions Inc 8015 Ecrystal Drive Anaheim, CA 92807 1-714-998-3440 PDF created with pdfFactory trial version www.pdffactory.com Q-SEE Tech Support IN USA MONITOR:9am-5pm PST TEL:1-899-998-3440 Email:ts@dpsi-usa.com Website:www.q-see.com MODEL QT17DVR4C...
-
Page 2: Table Of Contents
LCD WITH BUILT-IN DVR USER MANUAL 192 detecting areas can be set, and 16 levels sensitivity Motion Detection adjustable Four channels alarm（On/off value） input Alarm input independently Alarm Alarm input solutions Open/ close circuit optional One channel linkage alarm output，one channel power troubles alarm output，one channel other troubles alarm Alarm Output output Relay on/off value：1A 120VAC/24VDC，... -
Page 3: Camera Specification
LCD WITH BUILT-IN DVR USER MANUAL Camera Specification Camera Features 1/3" Color CCD Resolution 420 TV Lines Weatherproof 12 IRLEDS for Night vision -e1- PDF created with pdfFactory trial version www.pdffactory.com LCD WITH BUILT-IN DVR USER MANUAL Main specific ations for the system Tube 17 4:3 TFT/LCD Video Input... - Page 4 LCD WITH BUILT-IN DVR USER MANUAL HDD Status Status Capacity Video Record 160G Sleep 040G None 000G None 000G Return will enter into inquiry machine information interface, this interface will display current software version and MAC address information. Search Menu All Record Record Status HDD Status...
-
Page 5: Important Safeguards
LCD WITH BUILT-IN DVR USER MANUAL IMPORTANT SAFEGUARDS Caution This equipment is to be opened by ONLY a qualified serviceperson. There are no user serviceable parts inside. Opening this equipment may expose to dangerous voltage and other risks. Incorrect re-assembly of this equipment may result in electric shock. 1. -
Page 6: Chapter 1 Survey Of Products
LCD WITH BUILT-IN DVR USER MANUAL 4.2 Log Moving cursor to [LOG] item, and pressing [ENTER] key will enter into inquiry log interface Input date and type of the log Type: All Event Date : 2006--04--28--23--30 Start Return Format: includes all events recording mode, alarm mode, motion detection and operation mode; According to the need select check time and click start. - Page 7 LCD WITH BUILT-IN DVR USER MANUAL Manual Recording, time recording, alarm recording, motion detection recording saves the hard disc space ensuring effective usage of the hard drive space for longer periods of time. Motion detection recording function, can setup more than 192 detecting areas independently. The system supports pre-alarm recording and alarm prolong recording guarantees integrity...
-
Page 8: Chapter 2 System Installation
LCD WITH BUILT-IN DVR USER MANUAL CBR: Denotes fixed code flow's coding format, this coding format shows, image quality is invariable, but image quality can change according to moving object's scale inside, the larger the moving object occupied in image's scale, the worse the image quality Message Sound Switch: When setting is turn on, hard disk error and password input error, machine buzzer will sound. -
Page 9: Chapter 3 System Operating Manual
LCD WITH BUILT-IN DVR USER MANUAL Chapter 3 System Operating Manual 3. 1 Instructions for front panel and 3.1.1 Front Panel POWER H.D. ALA RM Buttons on front panel and their functions: ① Indicating light area NET：Indicating light for network When network connection is ok, it displays green, and when data is transferring it flashes. - Page 10 LCD WITH BUILT-IN DVR USER MANUAL LCD WITH BUILT-IN DVR USER MANUAL 3.3.5 Housing setting Moving cursor upon [Pan/Tilt setting] and pressing [ENTER] key can enter into quad channel Pan/Tilt port setting interface A. Channel: Denotes system's channel number. B. Protocol: Denotes the communication protocol between system and decoder. Moving cursor to this selection item and pressing [ENTER] key can make selection among different protocol (Pe1co-D/P/09-15/Dscp/FastDome/PIH1016-1017/JECFastD/RM110/Neocam) Selected protocol must match to the protocol of decoder, only can it control front equipment correctly.
- Page 11 LCD WITH BUILT-IN DVR USER MANUAL Other function buttons ⑤ 【POWER/ON】Button ：for turning on and off the machine（Standby and start）； 【LOG IN/LOCK】Button： get the operating rights, to type in the password and lock operation； 【PLAYBACK】Button： For reviewing the recording, log, state of hard disc,information of software edition and so on;...
- Page 12 LCD WITH BUILT-IN DVR USER MANUAL 3.3.2 CHANNEL SETU P Channel setup setting includes channel name, screen display, clock insert, TV screen cover, etc Channel Setup Title CH Name Time InSert Open Open Open Open Return Channel: Enter the channel number. If it has a X symbol in front of the channel number code, it indicates invalid channel.
-
Page 13: System On And Off
LCD WITH BUILT-IN DVR USER MANUAL 3.2.3 System On and Off When the system is under monitoring state, please press twice of the 【on/off】button in the control unit if you want to turn off the system， running state when it is off；If you want to restart the system, please press the 【on/off】button the remote control.
