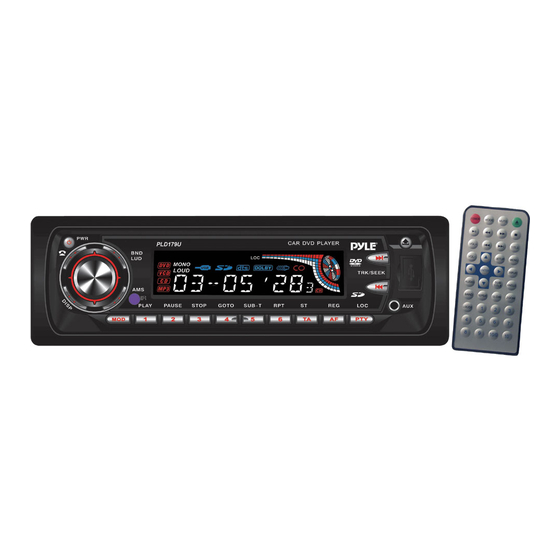

- Page 1 PLD179U Instruction Manual WWW.PYLEAUDIO.COM CAR VIDEO SYSTEM DVD/MPEG4 PLAYER AM/FM 2 Band Radio Anti-Shock Mechanism PLL Synthesizer Tuner PAL/NTSC Color System Flip Down Detachable Front Panel A/V Output & A/V Input Sub-woofer Function...
-
Page 2: Table Of Contents
CONTENTS Safety Information Installation Wiring Diagram Operation Location and Function of Keys Preparing The Remote Control Using The Detachable Front Panel General Operation Radio Operation DISC Operation Unique DISC Operation Data Disc Play Operation Memory Card Play Operation USB Play Operation AV In Operation Setup System Setup... -
Page 3: Safety Information
Safety Information CAUTION: Mobile DVD player is a class 1 laser product. However this mobile DVD player uses a visible/invisible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the mobile DVD player correctly as instructed. -
Page 4: Installation
Label side up Wipe the disc from center toward the outside edge Preparing New Discs with Rough Spots A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. - Page 5 (Fig.1) 1. Dashboard 2. Hoder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and ben them inwards to secure the holder in place. 3. Screw (Fig.2) 1. Dashboard 2. Nut (5mm) 3.
-
Page 6: Wiring Diagram
Wiring Diagram White to Rear Lch RCA output Red to Rear Rch RCA output Green to SUB-Woofer output Violet Rear Right + Violet/Black Rear Right - Grey Front Right + Grey/Black Front Right - White Front Left + Green Rear Left + Green/Black Rear Left - White/Black Front Left - Yellow to Battery B+... -
Page 7: Operation
Operation Location and Function of Keys Front panel : When you press button (7) and the front panel flip down:... -
Page 8: Preparing The Remote Control
Remote control: Preparing The Remote Control When using the Remote Control * Before you using the remote control, please take the transparent insulator slice off the bottom of remote control. * Point the remote control at the remote sensor (11) within 2 meters. * It may not be possible to operate the remote control if the remote control sensor is exposed to direct sunlight. -
Page 9: Using The Detachable Front Panel
Using The Detachable Front Panel Removing the front panel 1 Press the release down the front panel. 2 Take away the front panel 3 Keep front panel into the case INSTALLING THE FRONT PANEL Install the front panel back into its bracket and then push it back to the position for playing. - Page 10 desired item. Also press ◄/► button (30) to choose the desired item. Display/Adjust Time 1. Displaying time: Press DISP button (15) to show current information and time on the LCD Return to original status after 5 seconds. 2. Adjusting time: 1).
-
Page 11: Radio Operation
Radio Operation Selecting The Frequency Band Press BAND button (13) to select the desired band. The reception band will change between FM and AM Stereo/Mono Press (1) or MO/ST (23) on the remote control to select mono/stereo mode. Local/Distant Press ST/LOC (1) for several seconds or LO/DX (34) - Page 12 button (17) to fast reverse or fast forward. It return to normal mode when you release the button. Pause Playback Press button (20) to pause playback. Press it again to resume playback. Stopping playback Briefly press the button ( the unit playback hen the pressed and then press resume to the normal playback.
-
Page 13: Unique Disc Operation
Unique DISC Operation DISC Menu Operation Menu-driven playback is possible while playing back a DVD with menu-driven feature or VCD with the PBC (PlayBack Control). 1). Press TITLE/PBC (33) button, the title list or disc menu will appear on the monitor. - Page 14 - The function only works for discs having scenes recorded at different angles. On Screen Display Function Press the button (40) for several SUB-T seconds during playback to display the console information of the current disc on the screen. Press button (40) for several SUB-T seconds continually you will see the...
-
Page 15: Data Disc Play Operation
Use ▲/▼/◄/► cursor button to select the item that you want to program 1). The item you selected will become highlight 2). Input the track number that you want to program by numeric buttons (0-9) on the remote control 3). Press ▲/▼/◄/► cursor buttons to move to "PLAY"... -
Page 16: Memory Card Play Operation
Memory Card Play Operation This disc player offers you a memory card slot (42). Using the SD/MMC card: When you insert a SD/MMC card into the memory card slot (42), the DVD player will read the card automatically. SD MMC The unit gives first priority to the latter. -
Page 17: Setup
Setup In DVD mode, when the disc is playing or in stop mode, press SETUP enter setup menu. 1. When the cursor is on the topside, use ◄/► buttons to move between the different pages. 2. Press ▼ button to move the cursor to the setup page below and then you can ▲/▼... -
Page 18: Language Setup
Password Change the password locking or unlock- ing I . nputting numbers are dispalyed as "XXXX". T he default password Parental Control Use this function to restrict the viewing of movies to children of appropriate age levels only. 1) Press ▲/▼... -
Page 19: Specification
Specification 1. GENERAL Power Supply Requirements DC 12 Volts, Negative Ground Chassis Dimensions 178(W)x160(D)x 50(H) Tone Controls - Bass (at 100 Hz) - Treble (at 10 kHz) Maximum Output Power 4x60 watts Current Drain 15 Ampere (max.) 2. DVD PLAYER Signal to Noise Ratio >... - Page 20 No Sound Check audio connections. If using a HIFI amplifier, try another sound source. Distorted Sound from HIFI Amplifier Check to make sure that no audio connections are made to the amplifier phono input. The Player Does Not Respond To the Remote Control Aim the remote control directly at the sensor on the front of the player.
