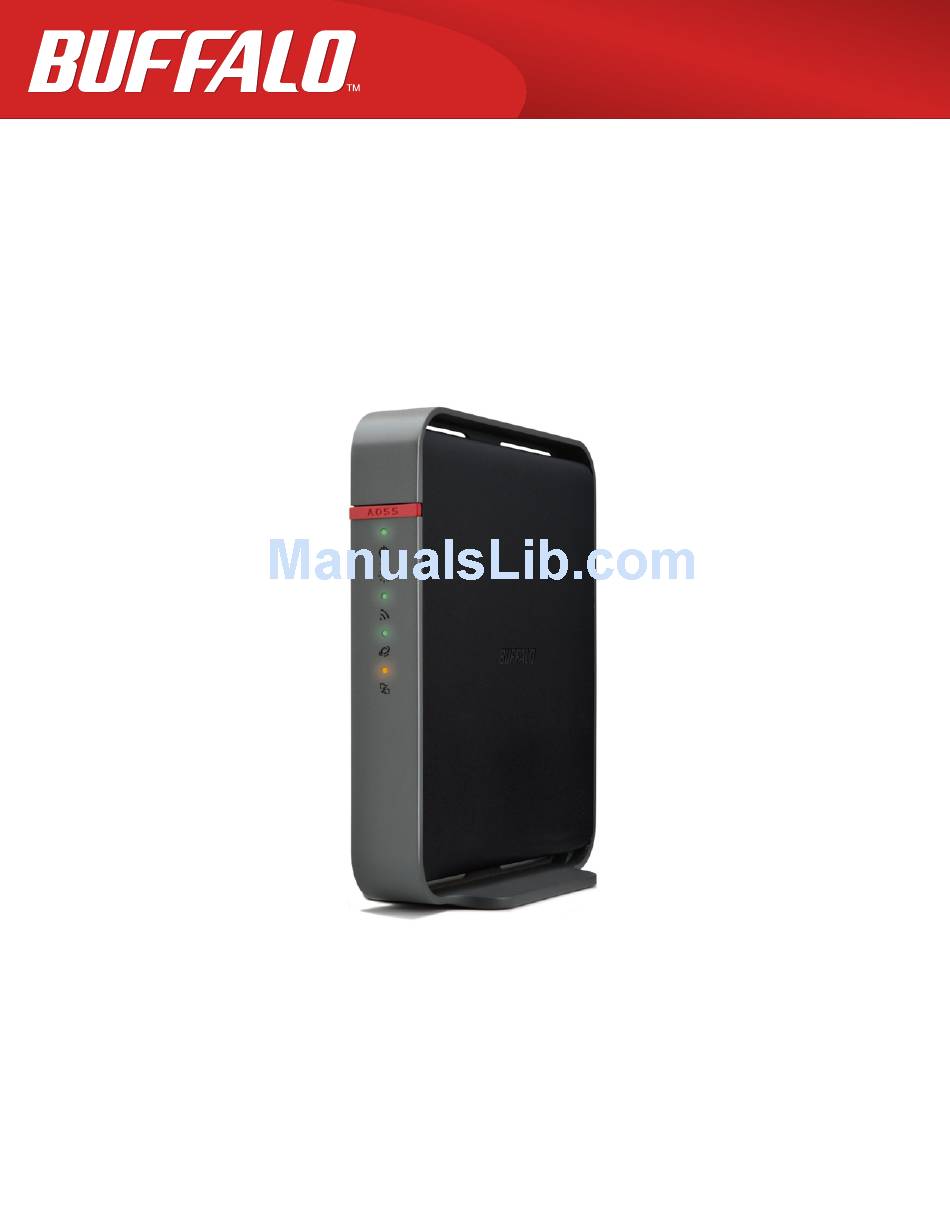

    AirStation WHR-1166D User Manual www.buffalotech.com 35020xxx-01...

  • Page 2: Chapter 1 - Product Overview

    Chapter 1 - Product Overview Package Contents The following items are included in your AirStation package. If any of the items are missing, please contact your vender. AirStation..........1 AirStation Setup Card......1 AC adapter..........1 Ethernet Cable........1 Quick Setup Guide........1 Warranty Statement......1 Diagrams and Layout Front Panel AOSS Button...
  • Page 3 Power / Diag LED (Green or Amber) On (Green): Power is on. Blinking (Green): Booting. Blinking (Amber): An error occurred. Off: Power is off. Wireless LED (Green or Amber) On (Green): Wireless LAN and security settings are enabled. Double blinks (Green): AirStation is waiting for an AOSS or WPS security key.

  • Page 4: Back Panel

    Back Panel Mode Switch This switch changes between router mode and bridge (access point) mode. Auto mode will enable or disable router functionality automatically. LAN Port Connect your computer, hub, or other Ethernet devices to these ports. This switching hub supports 10 Mbps and 100 Mbps connections.
  • Page 5 Bottom Setup Card Slot This is the slot where the AirStation setup card is stored. The initial settings for the username, password, SSID, and encryption type are provided on the card.

  • Page 6: Chapter 2 - Installation

    Chapter 2 - Installation Initial Setup To configure your AirStation, follow the procedure below. Verify that you can connect to the Internet without the AirStation, then turn off your modem and computer. Unplug the LAN cable which connects your computer and modem. Confirm that the mode switch is in the “Auto”...
  • Page 7 Turn on the AirStation and wait one minute. If using a wired LAN, connect the AirStation LAN port and computer using a LAN cable. If using a wireless LAN, connect the computer to the wireless LAN as described in Chapter 4. Once your computer has booted, the AirStation’s LEDs should be lit as described below: Power/Diag: Green LED on.

  • Page 8: Appendix A - Supplemental Information

    Appendix A - Supplemental Information Technical Specifications WHR-1166D Wireless LAN Interface Standard Compliance IEEE 802.11ac (Draft) / IEEE 802.11n / IEEE 802.11a / IEEE 802.11g / IEEE 802.11b Transmission Method Direct sequence spread spectrum (DSSS), OFDM, MIMO Frequency Range Available frequencies depend on the country of purchase. IEEE 802.11ac (Draft) 20 MHz BW <Long GI>: 156/130/117/104/78/52/39/26/13 Mbps (2 streams) 78/65/58.5/52/39/26/19.5/13/6.5 Mbps (1 stream)
  • Page 9 IEEE 802.11n 20 MHz BW <Long GI>: 130/117/104/78/52/39/26/13 Mbps (2 streams) 65/58.5/52/39/26/19.5/13/6.5 Mbps (1 stream) IEEE 802.11n 20 MHz BW <Short GI>: 144.4/130/115.6/86.7/57.8/43.3/28.9/14.4 Mbps (2 streams) 72.2/65/57.8/43.3/28.9/21.7/14.4/7.2 Mbps (1 stream) IEEE 802.11n 40 MHz BW <Long GI>: Transmission Rate 270/243/216/162/108/81/54/27 Mbps (2 streams) 802.11 n/a/b/g 135/121.5/108/81/54/40.5/27/13.5 Mbps (1 stream) IEEE 802.11n 40 MHz BW <Short GI>:...

  • Page 10: Environmental Information
