Asus ESC500 G4 SFF User Manual

Hide thumbs Also See for ESC500 G4 SFF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

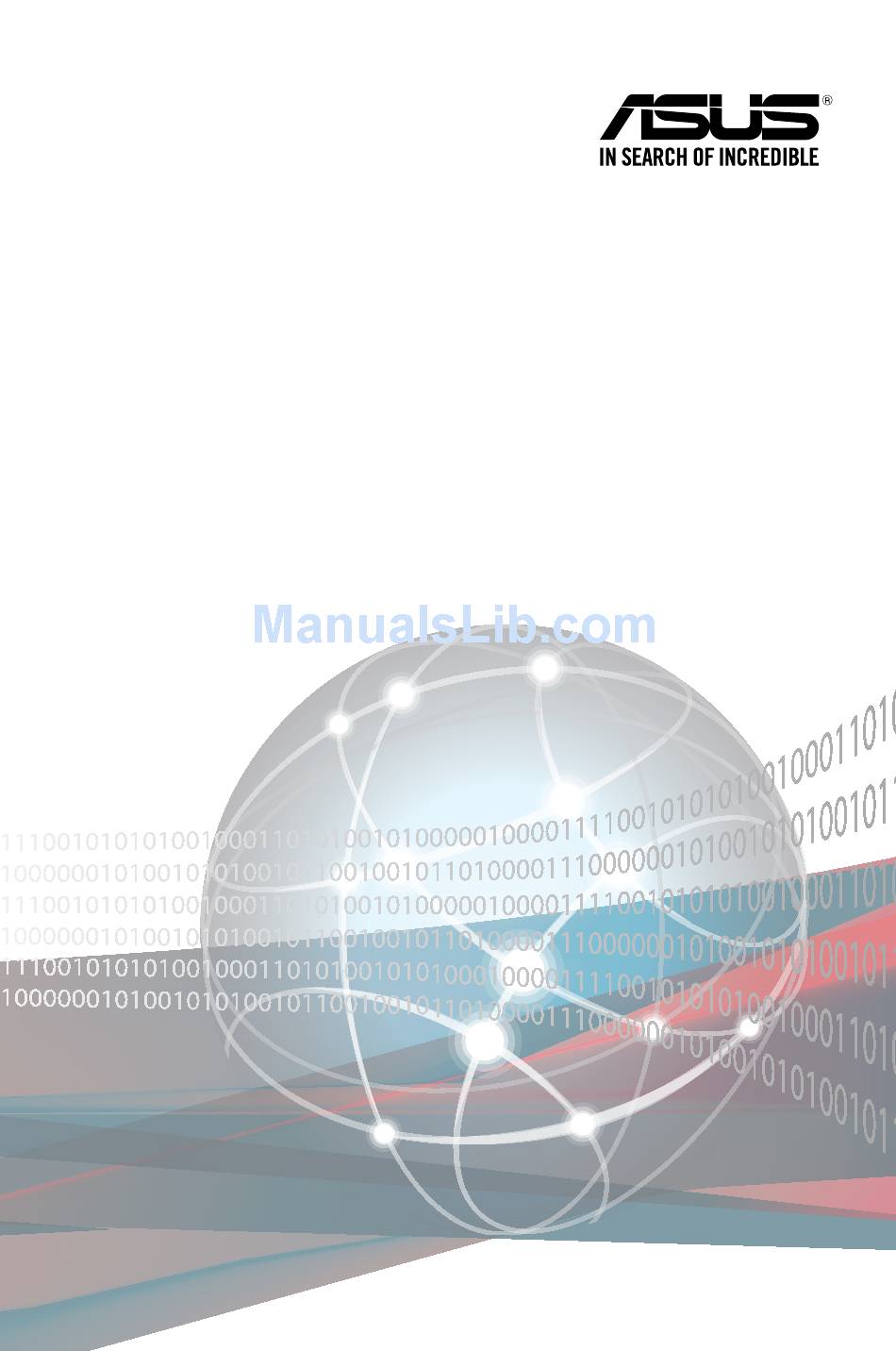

ESC500 G4 SFF
Workstation
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Asus ESC500 G4 SFF

Summary of Contents for Asus ESC500 G4 SFF

  • Page 1 ESC500 G4 SFF Workstation User Guide...
  • Page 2 ASUSTeK COMPUTER INC. (“ASUS”). ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no...

  • Page 3: Table Of Contents

    About this guide ......................ix Chapter 1: Product Introduction System package contents ................. 1-2 Serial number label ..................1-2 ESC500 G4 SFF specifications summary ..........1-3 Front panel features ................... 1-5 Rear panel features ..................1-5 Internal features ..................1-6 LED information ..................
  • Page 4 Onboard LEDs .................... 3-8 Internal connectors .................. 3-15 Chapter 4: BIOS Setup Managing and updating your BIOS ............4-2 4.1.1 ASUS CrashFree BIOS 3 utility........... 4-2 4.1.2 ASUS EzFlash Utility..............4-3 4.1.3 BUPDATER utility ............... 4-4 BIOS setup program .................. 4-6 4.2.1...
  • Page 5 Rapid Storage Technology enterprise (Windows) ...... 5-12 5.3.1 Creating a RAID set ..............5-13 5.3.2 Changing a Volume Type............5-15 5.3.3 Deleting a volume ..............5-16 5.3.4 Preferences ................5-17 Appendix P10S-M WS block diagram ..................A-2 ASUS contact information ..................A-3...

  • Page 6: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 7: Reach

    If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at https://www.asus.com/support...

  • Page 8: Safety Information

    Safety information Electrical Safety • Before installing or removing signal cables, ensure that the power cables for the system unit and all attached devices are unplugged. • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.

  • Page 9: About This Guide

    About this guide Audience This user guide is intended for system integrators, and experienced users with at least basic knowledge of configuring a server. Contents This guide contains the following parts: Chapter 1: Product Introduction This chapter describes the general features of the workstation, including sections on front panel and rear panel specifications.

  • Page 10: Conventions Used In This Guide

    Example: At DOS prompt, type the command line: format A:/S References Refer to the following sources for additional information, and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information for all ASUS hardware and software products. Refer to the ASUS contact information.

  • Page 11: Chapter 1: Product Introduction

    Chapter 1: Product Introduction Product Introduction This chapter describes the general features of the workstation, including sections on front panel and rear panel specifications.

  • Page 12: System Package Contents

    If any of the above items is damaged or missing, contact your retailer. Serial number label Before requesting support from the ASUS Technical Support team, you must take note of the product’s serial number containing 12 characters such as xxS0xxxxxxxx shown as the figure below.
  • Page 13 ESC500 G4 SFF specifications summary The ASUS ESC500 G4 SFF is a workstation featuring the ASUS P10S-M WS Workstation board. 1 x Socket LGA1151 ® ® Intel Xeon E3-1200 v5/v6 Processor Family ® Processor / System Bus Intel 7th/6th Generation Core™ i7/i5/i3 processors ®...

  • Page 14: Esc500 G4 Sff Specifications Summary

    1 x TPM header Windows 10 Windows 7 32bit/64bit OS Support * Refer to http://www.asus.com/ for the latest OS support. Dimension (HH x WW x 410 mm x 96 mm x 330 mm Net Weight Kg (CPU, DRAM & HDD not inclu...

  • Page 15: Front Panel Features

    Front panel features The ESC500 G4 SFF workstation features a simple yet stylish front panel design. The power and reset buttons, optical drive, and USB ports are all conveniently located at the front panel for easy access. Optical Drive (Optional)

  • Page 16: Internal Features

    Internal features The ASUS ESC500 G4 SFF Pedestal server system includes the basic components as shown: Power supply unit System fan ASUS P10S-M WS Workstation Board Expansion card locks Optical drive (Optional) Card readers (Optional) Front I/O board (hidden) 2 x 3.5-inch Internal HDD bays (hidden) Turn off the system power and detach the power supply before removing or replacing any system component.

  • Page 17: Led Information

    ACT/LINK LED SPEED LED BIOS SPEED LED ACT/LINK LED BIOS ACT/LINK LED SPEED LED Status Description Status Description No link 10 Mbps connection GREEN Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection ASUS ESC500 G4 SFF...
  • Page 18 Chapter 1: Product Introduction...

  • Page 19: Chapter 2: Hardware Setup

    Chapter 2: Hardware Setup Hardware Setup This chapter lists the hardware setup procedures that you have to perform when installing system components. It includes description of the jumpers and connectors on the motherboard.

  • Page 20: Chassis Cover

    Chassis cover 2.1.1 Removing the chassis cover • Ensure that you unplug the power cord before removing the chassis cover. • Take extra care when removing the chassis cover. Keep your fingers from components inside the chassis that can cause injury, such as the CPU fan, rear fan, and other sharp-edged parts. • The images of the workstation shown in this section are for reference purposes only and may not exactly match the model you purchase. To remove the chassis cover: Remove the four (4) screws that secure the chassis cover. Slightly pull the chassis cover toward the rear just enough to detach it from the chassis, then lift to remove the chassis cover.

  • Page 21: Cpu Installation

    Core™ i5 / Intel Core™ i3, Pentium , Celeron , and Intel ® ® ® ® ® ® Xeon E3-1200 v6/v5 processors. ® Ensure that you install the correct CPU designed for LGA1151 socket only. DO NOT install a CPU designed for other sockets on the LGA1151 socket. • Ensure that all power cables are unplugged before installing the CPU. • Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/ transit-related. • Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket. • The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap. ASUS ESC500 G4 SFF...
  • Page 22 Load lever Retention tab CPU notches Gold triangle Alignment mark Alignment Load plate Load lever Load lever Retention tab Retention lock Chapter 2: Hardware Setup...

  • Page 23: Cpu Heatsink And Fan Assembly Installation

    CPU heatsink and fan assembly installation Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan, if necessary. To install the CPU heatsink and fan assembly ASUS ESC500 G4 SFF...

  • Page 24: System Memory

    System memory The motherboard comes with four DDR 4 (Double Data Rate 4) Dual Inline Memory Modules (DIMM) slots. A DDR4 module is notched differently from a DDR, DDR2 or DDR3 module. DO NOT install a DDR, DDR2 or DDR3 memory module to the DDR4 slot. Recommended memory configurations Memory configurations You may install unbuffered DDR4 DIMMs into the DIMM sockets using the memory configurations in this section. UDIMM DIMM Slot DIMM Populated DIMM Type Speed Rank per DIMM Per Channel per Channel Unbuffered DDR4 up to 2400 Single Rank, Dual Rank Unbuffered DDR4 up to 2400 Single Rank, Dual Rank • Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor. •...

  • Page 25: Dimm Installation

    2.4.1 DIMM installation To remove a DIMM ASUS ESC500 G4 SFF...

  • Page 26: Assembly Module

    Assembly module Before you can install a 5.25-inch drive, card reader, and 3.5” HDD, you should first remove the front panel cover and assembly module. Ensure to unplug the power cable before installing or removing any system components. Failure to do so may cause damage to the motherboard and other system components! 2.5.1 Removing the assembly module To remove the assembly module: Locate the front panel cover latches and lift both latches gently to remove the front panel cover. Pull the assembly module lock towards the front (A) to release the assembly module from the chassis, then lift the assembly module to remove it (B).

  • Page 27: Replacing The Assembly Module And Front Cover

    Replacing the assembly module and front cover To replace the assembly module and front panel cover: Align the assembly module with the chassis and insert it into the chassis. Push the assembly module lock towards the rear ton secure the assembly module. Align the front panel cover to the chassis and replace the front panel cover. Ensure the front panel cover latches are secure. ASUS ESC500 G4 SFF...

  • Page 28: Inch Drive

    5.25-inch drive To install a 5.25-inch drive to the assembly module: Remove the assembly module from the chassis. Refer to 2.5.1 Removing the assembly module for more information. Insert and carefully push the drive into the bay until its screw holes align with the holes on the bay.

  • Page 29: Card Reader

    Secure the card reader with two (2) screws into the screw holes on the right side of the assembly module, and one (1) screw on the left side of the assembly module. Screw holes Connect the connector to the bundled USB 3.0 cable, then connect the USB 3.0 cable to the USB3_34 connector on the motherboard. Refer to section 3.4 Internal connectors for the location of the USB3_34 connector. ASUS ESC500 G4 SFF 2-11...

  • Page 30: Hard Disk Drives (Hdd)

    Hard disk drives (HDD) The server system supports two (2) 3.5-inch Serial ATA hard disk drives via the assembly module. To install a 3.5-inch Serial ATA hard disk drive to the right HDD bay: Remove the assembly module from the chassis. Refer to 2.5.1 Removing the assembly module for more information. Insert and carefully push the HDD into the bay until its screw holes align with the holes on the bay. Secure the HDD with two (2) screws into the screw holes on the right side of the assembly module.
  • Page 31 SATA connector of the drive. Connect a SATA power cable from the power supply to the power connector of the drive. Reinstall the assembly module and front panel cover. Refer to 2.5.2 Replacing the assembly module and front cover for more information. ASUS ESC500 G4 SFF 2-13...

  • Page 32: Expansion Slots

    Expansion slots Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components. Slot No. Slot Description PCIE 3.0 x1_1 slot PCIE 3.0 x16_1 slot PCIE 3.0 x8_1 slot (max at x4 mode) 2-14 Chapter 2: Hardware Setup...

  • Page 33: Installing An Expansion Card

    2.9.1 Installing an expansion card To install an expansion card: Remove the screw from the metal bracket lock. Metal bracket lock Push the metal bracket lock outwards (A), then remove the metal bracket (B). Align and insert the expansion card into the PCI-E slot, then secure it with a screw. Expansion card PCI-E slot Push the metal bracket lock back and secure it with the screw removed previously. ASUS ESC500 G4 SFF 2-15...

  • Page 34: Installing M.2 (Ngff) Cards

    2.9.2 Installing M.2 (NGFF) cards To install an M.2 card: Locate the M.2 connector (NGFF1) on the motherboard. Remove the screw on the stand screw. Prepare the M.2 card. Align and insert the M.2 card into the M.2 connector (NGFF1). Secure the M.2 card with the screw you removed in step 2. Screw NGFF1 Screw hole Stand screw • Please pay attention when removing the screw, the stand screw might be removed together with it. • Ensure that the M.2 card is positioned between the screw and the stand screw before securing it. 2-16 Chapter 2: Hardware Setup...

  • Page 35: System Fan

    To remove the system fan: Disconnect the system fan cable from the FRNT_FAN4 connector on the motherboard. Slide the system fan away from the power supply unit, then lift the system fan to remove it from the chassis. Power supply unit Follow the previous instructions in reverse order if you want to reinstall the system fan. ASUS ESC500 G4 SFF 2-17...

  • Page 36: Bios Update Utility

    • If the light flashes for five seconds and turns into a solid light, this means that the BIOS Flashback is not operating properly. This may be caused by improper installation of the USB storage device and filename/file format error. If this scenario happens, please restart the system to turn off the light. • Updating BIOS may have risks. If the BIOS program is damaged during the process and results to the system’s failure to boot up, please contact your local ASUS Service Center. 2-18 Chapter 2: Hardware Setup...

  • Page 37: Motherboard Rear And Audio Connection

    Rear panel connectors USB 2.0 ports 12 HDMI port USB 3.0 ports 56. Lower port supports DisplayPort USB BIOS Flashback function DVI-D port USB BIOS Flashback button Intel LAN port (LAN12)* Optical S/PDIF Out port ® Power-on Button Audio I/O ports** * and **: Refer to the tables on the next page for LAN port LEDs and audio port definitions. ASUS ESC500 G4 SFF 2-19...
  • Page 38 • The plugged USB 3.0 device may run on xHCI mode or EHCI mode, depending on the operating system’s setting. • USB 3.0 devices can only be used as data storage only. • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices. * LAN ports LED indications ACT/LINK SPEED Activity/Link LED Speed LED Status Description Status Description No link 10 Mbps connection GREEN Linked ORANGE 100 Mbps connection BLINKING Data activity GREEN 1 Gbps connection SPEED ACT/LINK ** Audio 2, 4, 6, or 8-channel configuration Port Headset 4-channel...

  • Page 39: Audio I/O Connection

    2.12.2 Audio I/O connection Audio I/O ports Connect to Headphone and Mic Connect to Stereo Speakers Connect to 2.1 channel Speakers ASUS ESC500 G4 SFF 2-21...
  • Page 40 Connect to 4.1 channel Speakers Connect to 5.1 channel Speakers Connect to 7.1 channel Speakers 2-22 Chapter 2: Hardware Setup...

  • Page 41: Starting Up For The First Time

    Description One short beep VGA detected Quick boot set to disabled No keyboard detected One continuous beep followed by two No memory detected short beeps then a pause (repeated) One continuous beep followed by three No VGA detected short beeps One continuous beep followed by four Hardware component failure short beeps At power on, hold down the <Delete> key to enter the BIOS Setup. Follow the instructions in Chapter 4. 2.14 Turning off the computer While the system is ON, press the power button for less than four seconds to put the system on sleep mode or soft-off mode, depending on the BIOS setting. Press the power switch for more than four seconds to let the system enter the soft-off mode regardless of the BIOS setting. ASUS ESC500 G4 SFF 2-23...
  • Page 42 2-24 Chapter 2: Hardware Setup...

  • Page 43: Chapter 3: Motherboard Information

    Chapter 3: Motherboard Information Motherboard Information This chapter includes the motherboard layout and brief descriptions of the jumpers and internal connectors.

  • Page 44: Motherboard Layout

    Motherboard layout Refer to 3.4 Internal connectors and 2.12.1 Rear I/O connection for more information about rear panel connectors and internal connectors. Chapter 3: Motherboard Information...
  • Page 45 21. Hard disk activity LED connector (4-pin HDLED1) 3-18 22. Q-Code LEDs (QCODE1) 3-10 23. Front panel audio connector (10-1 pin AAFP1) 3-17 24. Digital audio connector (4-1 pin SPDIF_OUT1) 3-15 25. LAN controller setting (3-pin LAN_SW1, LAN_SW2) 26. CPU sockets ASUS ESC500 G4...

  • Page 46: Jumpers

    Jumpers Clear RTC RAM (3-pin CLRTC1) This jumper allows you to clear the CMOS memory system setup parameters by erasing the CMOS Real Time Clock (RTC) RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 47 This jumper allows you to update the BIOS ME block. LAN controller setting (3-pin LAN_SW1, LAN_SW2) These jumpers allows you to enable or disable the onboard Intel I210 Gigabit LAN ® controllers. Set to pins 1-2 to activate the Gigabit LAN feature. ASUS ESC500 G4...
  • Page 48 ME firmware force recovery setting (3-pin ME_RCVR1) This jumper allows you to force Intel Management Engine (ME) boot from recovery mode when ME become corrupted. Smart Ride Through (SmaRT) setting (3-pin SMART_PSU1) This jumper allows you to enable or disable the Smart Ride Through (SmaRT) function. This feature is disabled by default.
  • Page 49 This jumper allows SATA5 and SATA6 to support SATADOM which do not need external power connections. Set to pins 2-3 to activate the SATA5 and SATA6 support feature. • DOM1_PWR1 activates SATA5 support feature. • DOM2_PWR2 activates SATA6 support feature. ASUS ESC500 G4...

  • Page 50: Onboard Leds

    Onboard LEDs Diagnosis LEDs The Diagnosis LEDs provide the status of these key components during POST (Power- On-Self Test): CPU, memory modules, VGA card, and hard disk drives. If an error is found, the critical component’s LED stays lit up until the problem is solved. CATT ERR LED (CATTERR1) The CATT LED indicates that the system has experienced a fatal or catastrophic error and cannot continue to operate.
  • Page 51 ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED. ASUS ESC500 G4...
  • Page 52 Q-Code LEDs (QCODE1) The Q-Code LED design provides you with a 2-digit error code that displays the system status. Refer to the Q-Code table on the next page for details. Chapter 3: Motherboard Information 3-10...
  • Page 53 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL) S3 Boot Script execution Video repost OS S3 wake vector call Reserved for future AMI progress codes E4 – E7 S3 Resume Failed (continued on the next page) ASUS ESC500 G4 3-11...
  • Page 54 Code Description S3 Resume PPI not Found S3 Resume Boot Script Error S3 OS Wake Error Reserved for future AMI error codes EC – EF Recovery condition triggered by firmware (Auto recovery) Recovery condition triggered by user (Forced recovery) Recovery process started Recovery firmware image is found Recovery firmware image is loaded F5 –...
  • Page 55 No Console Output Devices are found No Console Input Devices are found Invalid password Error loading Boot Option (LoadImage returned error) Boot Option is failed (StartImage returned error) Flash update is failed Reset protocol is not available ASUS ESC500 G4 3-13...
  • Page 56 ACPI/ASL Checkpoints (under OS) Code Description System is entering S3 sleep state System is entering S4 sleep state System is entering S5 sleep state System is waking up from the S3 sleep state System is waking up from the S4 sleep state System has transitioned into ACPI mode.

  • Page 57: Internal Connectors

    This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis. The S/PDIF module is purchased separately. ASUS ESC500 G4 3-15...
  • Page 58 Serial ATA 6.0 Gbps connectors (7-pin SATA 6Gbps_1-8 connectors [Gray]) Supported by the Intel C236 chipset, these connectors are for the Serial ATA signal ® cables for Serial ATA hard disk drives that allows up to 6Gb/s of data transfer rate. If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10, or RAID 5 configuration.
  • Page 59 This USB connector complies with USB 2.0 specification that supports up to 480 Mbps connection speed. DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! The USB 2.0 module is purchased separately. ASUS ESC500 G4 3-17...
  • Page 60 USB 3.0 connectors (20-1 pin USB3_12, USB3_34) These connectors allow you to connect a USB 3.0 module for additional USB 3.0 front or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of USB 3.0 including faster data transfer speeds of up to 5Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0.
  • Page 61 • These are not jumpers! DO NOT place jumper caps on the fan connectors! • All fans feature the ASUS Smart Fan technology. TPM connector (14-1 pin TPM1) This connector supports a Trusted Platform Module (TPM) system, which securely store keys, digital certificates, passwords and data. A TPM system also helps enhance network security, protect digital identities, and ensures platform integrity.
  • Page 62 ATX power connectors (24-pin EATXPWR1, 8-pin EATX12V1) These connectors are for the ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit. •...
  • Page 63 When you remove any chassis component, the sensor triggers and sends a high level signal to these leads to record a chassis intrusion event. The default setting is short CHASSIS# and GND pin by jumper cap to disable the function. ASUS ESC500 G4 3-21...
  • Page 64 System panel connector (20-1 pin PANEL1) This connector supports several chassis-mounted functions. System power LED (3-pin PLED) This 3-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
  • Page 65 Connect the Locator LED cables to these 2-pin connectors. The LEDs will light up when the Locator button is pressed. Locator Button/Switch (2-pin AUX_BMCLOCBTN) These connectors are for the locator button on the front panel. This button queries the state of the system locator. ASUS ESC500 G4 3-23...
  • Page 66 Power Supply SMBus connector (5-pin PSUSMB1) This connector allows you to connect SMBus (System Management Bus) to the PSU (power supply unit) to read PSU information. Devices communicate with an SMBus host and/or other SMBus devices using the SMBus interface. Chapter 3: Motherboard Information 3-24...

  • Page 67: Chapter 4: Bios Setup

    Chapter 4: BIOS Setup BIOS Setup This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

  • Page 68: Managing And Updating Your Bios

    BIOS in the future. Copy the original motherboard BIOS using the BUPDATER utility. 4.1.1 ASUS CrashFree BIOS 3 utility The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can update a corrupted BIOS file using a USB flash drive that contains the updated BIOS file.

  • Page 69: Asus Ezflash Utility

    ASUS EzFlash Utility The ASUS EzFlash Utility feature allows you to update the BIOS using a USB flash disk without having to use a DOS-based utility. Download the latest BIOS from the ASUS website at www.asus.com before using this utility. The succeeding BIOS screens are for reference only. The actual BIOS screen displays may not be the same as shown.

  • Page 70: Bupdater Utility

    The BUPDATER utility allows you to update the BIOS file in DOS environment using a bootable USB flash disk drive with the updated BIOS file. Updating the BIOS file To update the BIOS file using the BUPDATER utility: Visit the ASUS website at www.asus.com and download the latest BIOS file for the motherboard. Save the BIOS file to a bootable USB flash disk drive. Download the BUPDATER utility (BUPDATER.exe) from the ASUS support website at support.asus.com to the bootable USB flash disk drive you created earlier. Boot the system in DOS mode, then at the prompt, type: BUPDATER /i[filename].CAP where [filename] is the latest or the original BIOS file on the bootable USB flash disk drive, then press <Enter>. A:\>BUPDATER /i[file name]CAP...
  • Page 71 DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure! The utility returns to the DOS prompt after the BIOS update process is completed. Reboot the system from the hard disk drive. The BIOS update is finished! Please restart your system. C:\> ASUS ESC500 G4 SFF...

  • Page 72: Bios Setup Program

    Press <F5> and select Yes to load the BIOS default settings. • The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard. Chapter 4: BIOS Setup...

  • Page 73: Bios Menu Screen

    For displaying the system temperature, power status, and changing the fan settings Tool For configuring options for special functions Save & Exit For selecting the save & exit options Event Logs For changing the event log settings To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted. ASUS ESC500 G4 SFF...

  • Page 74: Menu Items

    4.2.3 Menu items The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items. The other items (Advanced, Security, Boot, Monitor, Tool, Save & Exit, and Event Logs) on the menu bar have their respective menu items. 4.2.4 Submenu items A solid triangle before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

  • Page 75: Main Menu

    4.3.1 System Date [Day xx/xx/xxxx] Allows you to set the system date. 4.3.2 System Time [xx:xx:xx] Allows you to set the system time. ASUS ESC500 G4 SFF...

  • Page 76: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Take caution when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 4.4.1 Trusted Computing Configuration Security Device Support [Enabled] Allows you to enable or disable the BIOS support for security device. Configuration options: [Disabled] [Enabled] 4.4.2 Runtime Error Logging Settings...

  • Page 77: Chipset Configuration

    The following items appear only when you set PCI/PCI Error Enabling to [Enabled]. Corrected Error Enable [Enabled] Configuration options: [Disabled] [Enabled] Uncorrected Error Enable [Enabled] Configuration options: [Disabled] [Enabled] Fatal Error Enable [Enabled] Configuration options: [Disabled] [Enabled] Enable SERR propagation [No] Configuration options: [Yes] [No] Enable PERR propagation [No] Configuration options: [Yes] [No] 4.4.3 Chipset Configuration ASUS ESC500 G4 SFF 4-11...

  • Page 78: Graphics Configuration

    System Agent (SA) Configuration Allows you to set System Agent (SA) parameters. VT-d [Enabled] Allows you to enable virtualization technology function on memory control hub. Configuration options: [Disabled] [Enabled] Above 4GB MMIO BIOS assignment [Disabled] Allows you to enable or disable above 4GB MemoryMappedIO BIOS assignment. When aperture size is set to 2048 MB, this is disabled automatically. Configuration options: [Enabled] [Disabled] Graphics Configuration Allows you to select a primary display from graphical devices.
  • Page 79 PAVP Enable [Enabled] This option allows you to enable or disable PAVP. Configuration options: [Enabled] [Disabled] Cdynmax Clamping Enable [Enabled] This option allows you to enable or disable Cdynmax Clamping. Configuration options: [Enabled] [Disabled] Cd Clock Frequency [675 Mhz] This option allows you to select the highest Cd Clock frequency supported by the platform. Configuration options: [337.5 Mhz] [450 Mhz] [540 Mhz] [675 Mhz] ASUS ESC500 G4 SFF 4-13...
  • Page 80 LCD Control Primary IGFX Boot Display [VBIOS Default] This option allows you to select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes ill be supported only on primary display.
  • Page 81 This item is for the control of the Active State Power Management on SA side of the DMI link. Configuration options: [Disabled] [L1] PEG Port Configuration PEG 0:1:0 Enable Root Port [Auto] Allows you to enable or disable the root port. Configuration options: [Disabled] [Enabled] [Auto] ASUS ESC500 G4 SFF 4-15...

  • Page 82: Memory Configuration

    Max Link speed [Auto] Allows you to configure PEG 0:1:0 Max Speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] Max Link Width [Auto] Allows you to force PEG link to retrain selected value. Configuration options: [Auto] [Force X1] [Force X2] [Force X4] [Force X8] Power Down Unused Lanes [Auto] Allows you to power down unused lanes. [Disabled] No power saving. [Auto] B IOS will power down unused lanes based in the max possible link width. ASPM [Auto] Allows you to configure the PCIE ASPM. Configuration options: [Disabled] [Auto] [ASPM L0s] [ASPM L1] [ASPM L0sL1] PEG0 Max Payload size [Auto] Allows you to set the PEG0 max payload size.

  • Page 83: Pci Express Configuration

    PCH-IO Configuration Allows you to set PCH-IO parameters. PCI Express Configuration PCI Express Clock Gating [Enabled] Allows you to enable or disable PCI Express Clock Gating for each root port. Configuration options: [Disabled] [Enabled] DMI Link ASPM Control [Enabled] Allows you to enable or disable the control of Active State Power Management on SA side of the DMI link. Configuration options: [Disabled] [Enabled] ASUS ESC500 G4 SFF 4-17...

  • Page 84: Usb Configuration

    USB Configuration USB Precondition [Disabled] Allows you to precondition work on USB host controller and root ports for faster enumeration. Configuration options: [Enabled] [Disabled] xDCI Support [Disabled] Allows you to enable or disable xDCI (USB OTG Device). Configuration options: [Disabled] [Enabled] USB Port Disable Override [Disabled] Allows you to enable or disable the corresponding USB port from reporting a Device Connection to the controller.
  • Page 85 Serial IRQ Mode [Continuous] Allows you to configure Serial IRQ mode. Configuration options: [Quiet] [Continuous] High Precision Timer [Enabled] Allows you to enable or disable the High Precision Event Timer. Configuration options: [Disabled] [Enabled] Intel Server Platform Services Intel TXT Information ASUS ESC500 G4 SFF 4-19...
  • Page 86 PCI/PCIE Subsystem Settings PCI Latency Timer [32 PCI Bus Clocks] Allows you to set the value to be programmed into PCI Latency Timer Register. Configuration options: [32 PCI Bus Clocks] [64 PCI Bus Clocks] [96 PCI Bus Clocks] [128 PCI Bus Clocks] [160 PCI Bus Clocks] [192 PCI Bus Clocks] [224 PCI Bus Clocks] [248 PCI Bus Clocks] PERR# Generation [Disabled] Allows you to enable or disable PCI Device tp generation PERR#. Configuration options: [Disabled] [Enabled] SERR# Generation [Disabled] Allows you to enable or disable PCI Device tp generation SERR#.

  • Page 87: Platform Configuration

    USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled. XHCI Hand-off [Disabled] This item is set to [Disabled] by default for the EHCI (enhanced host controller interface) support by XHCI drivers in operating systems. [Enabled] Support XHCI by BIOS for operating systems without XHCI support. [Disabled] Support XHCI by XHCI drivers for operating systems with XHCI support. ASUS ESC500 G4 SFF 4-21...
  • Page 88 USB Mass Storage Driver Support [Enabled] Allows you to enable or disable the USB Mass Storage driver support. Configuration options: [Disabled] [Enabled] Port 60/64 Emulation [Enabled] This allows you to enable the I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes. Configuration options: [Disabled] [Enabled] USB hardware delays and time-outs USB transfer time-out [20 sec]...
  • Page 89 Allows you to select the Intel LAN ROM type. Configuration options: [Disabled] [PXE] [iSCSI] Intel LAN2 Enable [Enabled] Allows you to enable or disable the Intel LAN. Configuration options: [Disabled] [Enabled] Intel LAN2 ROM Type [Disabled] Allows you to select the Intel LAN ROM type. Configuration options: [Disabled] [PXE] [iSCSI] Super IO Configuration ASUS ESC500 G4 SFF 4-23...
  • Page 90 Serial Port 1 Configuration Allows you to set the parameters of Serial Port 1. Serial Port [Enabled] Allows you to enable or disable Serial Port. Configuration options: [Disabled] [Enabled] The following item appears only when you set Serial Port to [Enabled]. Change Settings [Auto] Allows you to choose the setting for Super IO device.

  • Page 91: Console Redirection Settings

    A parity bit can be sent with the data bits to detect some transmission errors. [Mark] and [Space] parity do not allow for error detection. [None] None. [Even] parity bit is 0 if the num of 1’s in the data bits is even. [Odd] parity bit is 0 if num of 1’s in the data bits is odd. [Mark] parity bit is always 1. [Space] parity bit is always 0. Stop Bits [1] Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning.) The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. Configuration options: [1] [2] ASUS ESC500 G4 SFF 4-25...
  • Page 92 Flow Control [Hardware RTS/CTS] Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a “stop” signal can be sent to stop the data flow. Once the buffers are empty, a “start” signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals. Configuration options: [None] [Hardware RTS/CTS] VT-UTF8 Combo Key Support [Enabled] Allows you to enable the VT-UTF8 Combo Key Support for ANSI/VT100 terminals. Configuration options: [Disabled] [Enabled] Recorder Mode [Disabled] With this mode enabled only text will be sent. This is to capture Terminal data. Configuration options: [Disabled] [Enabled] Legacy OS Redirection Resolution [80x24] Allows you to set the number of rows and columns supported on the Legacy OS.

  • Page 93: Acpi Settings

    This option may be not be effective with some OS. ACPI Sleep State [S3 (Suspend to RAM)] Allows you to select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Configuration options: [Suspend Disabled] [S3 (Suspend to RAM)] ASUS ESC500 G4 SFF 4-27...
  • Page 94 Allows you to configure the Advance Power Management (APM) settings. Restore AC Power Loss [Last State] When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system will reboot after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power loss. Configuration options: [Power Off] [Power On] [Last State] Power On By PCIE [Disabled] [Disabled] Disables the PCIE devices to generate a wake event. [Enabled] Enables the PCIE devices to generate a wake event. Power On By Ring [Disabled] [Disabled] Disables the Ring devices to generate a wake event.

  • Page 95: Cpu Configuration

    Some items may not appear if your CPU does not support the related functions. Navigate to the second page of the screen to see the rest of items in this menu by pressing the Up or Down arrow keys. To quickly go to the last item of the second page, press the Page Down button. Press the Page Up button to go back to the first item in the first page. ASUS ESC500 G4 SFF 4-29...
  • Page 96 Hyper-threading [Enabled] This item allows a hyper-threading processor to appear as two logical processors, allowing the operating system to schedule two threads or processors simultaneously. Configuration options: [Disabled] [Enabled] Active Processor Cores [All] Allows you to select the number of CPU cores to activate in each processor package. Configuration options: [All] [1] [2] [3] Intel Virtualization Technology [Enabled] When set to [Enabled], a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Configuration options: [Disabled] [Enabled] Hardware Prefetcher [Enabled] Allows you to enable or disable the MLC streamer prefetcher.
  • Page 97 Package C state demotion [Enabled] Allows you to enable or disable the Package C state demotion. Configuration options: [Disabled] [Enabled] Package C state undemotion [Enabled] Allows you to enable or disable the Package C state undemotion. Configuration options: [Disabled] [Enabled] CState Pre-Wake [Enabled] Allows you to enable or disable the CState Pre-Wake. Selecting [Disabled] will set bit 30 of POWER_CTL MSR(0x1FC) to 1 to disable the CState Pre-Wake. Configuration options: [Disabled] [Enabled] Package C State limit [C8] Allows you set the Package C State limit. Configuration options: [C0/C1] [C2] [C3] C6] [C7] [C7s] [C8] [AUTO] CFG lock [Enabled] Allows you to configure MSR 0xE2[15], CFG lock bit. Configuration options: [Disabled] [Enabled] ASUS ESC500 G4 SFF 4-31...

  • Page 98: Sata Configuration

    4.4.6 SATA Configuration SATA Controller(s) [Enabled] Allows you to enable or disable the SATA Device. Configuration options: [Enabled] [Disabled] The following items appear only when you set SATA Controller(s) to [Enabled]. SATA Mode Selection [AHCI] This item allows you to set the SATA configuration. [AHCI] S et to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.
  • Page 99 Allows you to enable or disable the Intel Rapid Recovery Technology. Configuration options: [Disabled] [Enabled] OROM UI and BANNER [Enabled] [Disabled] N o OROM banner or information will be displayed if all disks and RAID volumes are Normal. [Enabled] OROM UI is shown. HDD Unlock [Enabled] Selecting [Enabled] will indicate that the HDD password unlock in the OS is enabled. Configuration options: [Disabled] [Enabled] LED Locate [Enabled] Selecting [Enabled] will indicate that the LED/SGPIO hardware is attached and ping to locate feature is enabled on the OS. Configuration options: [Disabled] [Enabled] ASUS ESC500 G4 SFF 4-33...
  • Page 100 IRRT Only on eSATA [Enabled] [Disabled] Any RAID volume can span internal and eSATA drives. [Enabled] Only IRRT volumes can span internal and eSATA drives. Smart Response Technology [Enabled] Allows you to enable or disable the Smart Response Technology. Configuration options: [Disabled] [Enabled] OROM UI Normal Delay [4 sec] Allows you to select the delay time of the OROM UI Splash Screen in a normal status. Configuration options: [2 sec] [4 sec] [6 sec] [8 sec] RST Force Form [Disabled] Allows you to enable or disable Form for Intel Rapid Storage Technology.

  • Page 101: Network Stack Configuration

    Enables or disables the Ipv6 PXE Boot Support. If disabled, Ipv6 PXE boot option will not be created. Configuration options: [Disable] [Enable] PXE boot wait time [0] Set the wait time to press ESC key to abort the PXE boot. Use the <+> or <-> to adjust the value. The values range from 0 to 5. Media detect count [1] Set the number of times presence of media will be checked. Use the <+> or <-> to adjust the value. The values range from 1 to 50. ASUS ESC500 G4 SFF 4-35...

  • Page 102: Csm Configuration

    4.4.8 CSM Configuration CSM Support [Enabled] This option allows you to enable or disable CSM Support. Configuration options: [Disabled] [Enabled] The following items appear only when you set the CSM Support to [Enabled]. GateA20 Active [Upon Request] This allows you to set the GA20 option. [Upon Request] GA20 can be disabled using BIOS services.

  • Page 103: Nvme Controller And Drive Information

    You may view the NVMe controller and Drive information if an NVMe device is connected. 4.4.10 iSCSI Configuration Allows you to configure the iSCSi parameters. Security Menu This menu allows a new password to be created or a current password to be changed. The menu also enables or disables the Secure Boot state and lets the user configure the System Mode state. ASUS ESC500 G4 SFF 4-37...

  • Page 104: Administrator Password

    Administrator Password To set an administrator password: Select the Administrator Password item and press <Enter>. From the Create New Password box, key in a password, then press <Enter>. Confirm the password when prompted. To change an administrator password: Select the Administrator Password item and press <Enter>. From the Enter Current Password box, key in the current password, then press <Enter>. From the Create New Password box, key in a new password, then press <Enter>. Confirm the password when prompted. To clear the administrator password, follow the same steps as in changing an administrator password, but press <Enter> when prompted to create/confirm the password.

  • Page 105: Key Management

    This item will ask you if you want to Install Factory Default secure variables. Select Yes if you want to load the default secure variables, otherwise select No. This option will change to Delete all Secure Boot variables once default keys are loaded, selecting this will then ask to delete all variables and reset the Platform to Setup Mode. The following item is only available when default secure variables are loaded. ASUS ESC500 G4 SFF 4-39...

  • Page 106: Boot Menu

    Save all Secure Boot variables Save the secure boot variables to a selected file system. Platform Key (PK) Configuration options: [Set New Key] [Delete Key] Key Exchange Keys / Authorized Signatures / Forbidden Signatures Configuration options: [Set New Key] [Delete Key] [Append Key] Authorized TimeStamps Configuration options: [Set New Key] [Append Key] OsRecovery Signatures Configuration options: [Set New Key] [Append Key] Boot Menu The Boot menu items allow you to change the system boot options. Bootup NumLock State [On] Allows you to select the power-on state for the NumLock.

  • Page 107: Boot Option Priorities

    These items appear only when you connect SATA ODD or hard drive to the SATA ports and allow you to set the booting order of the SATA devices. CD/DVD ROM Drive BBS Priorities This item allows you to set the booting from CD/DVD ROM Drive. Network Device BBS Priorities This item allows you to set the booting from network. ASUS ESC500 G4 SFF 4-41...

  • Page 108: Monitor Menu

    Configuration options: [Generic Mode] [High Speed Mode] [Full Speed Mode] [Manual Mode] Tool menu The Tool menu items allow you to configure options for special functions. Select an item then press <Enter> to display the submenu. Start EzFlash Allows you to run ASUS EZ Flash BIOS ROM Utility when you press <Enter>. Refer to the ASUS EzFlash Utility section for details. Chapter 4: BIOS Setup 4-42...

  • Page 109: Save & Exit Menu

    Restore/load default values for all the setup options. Boot Override These items displays the available devices. The device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device. Launch EFI Shell from filesystem device Attempts to launch EFI Shell application (Shell.efi) from one of the available filesystem devices. ASUS ESC500 G4 SFF 4-43...

  • Page 110: Event Logs Menu

    4.10 Event Logs menu The Event Logs menu items allow you to change the event log settings and view the system event logs. 4.10.1 Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log configuration. Enabling/Disabling Options Smbios Event Log [Enabled] Change this to enable or disable all features of Smbios Event Logging during boot. Configuration options: [Disabled] [Enabled] •...
  • Page 111 Allows you to enable or disable the logging of EFI Status Codes as OEM codes (if not already converted to legacy). Configuration options: [Disabled] [Enabled] Convert OEM Codes [Disabled] Allows you to enable or disable the converting of EFI Status Codes to Standard Smbios Types (not all may be translated). Configuration options: [Disabled] [Enabled] ASUS ESC500 G4 SFF 4-45...
  • Page 112 Chapter 4: BIOS Setup 4-46...

  • Page 113: Chapter 5: Raid Configuration

    Chapter 5: RAID Configuration RAID Configuration This chapter provides instructions for setting up, creating, and configuring RAID sets using the available utilities.

  • Page 114: Setting Up Raid

    Setting up RAID The motherboard comes with the Intel C236 controller that supports Intel Rapid Storage ® ® Technology enterprise Option ROM Utility with RAID 0, RAID 1, RAID 10, and RAID 5 support (for both Windows OS and Linux). ®...

  • Page 115: Installing Hard Disk Drives

    RAID controller. For example, use the Intel Rapid Storage Technology enterprise SATA Option ROM Utility if you installed Serial ATA hard disk drives on the ® Serial ATA connectors supported by the Intel C236 chipset. ASUS ESC500 G4 SFF...

  • Page 116: Intel

    Intel Rapid Storage Technology enterprise SATA ® Option ROM Utility The Intel Rapid Storage Technology enterprise SATA Option ROM utility allows you to create ® RAID 0, RAID 1, RAID 10 (RAID 1+0), and RAID 5 set from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge.

  • Page 117: Creating A Raid Set

    ]-Prev/Next [TAB]-(M)aster [SPACE]-(R)ecovery [ENTER]-Done Use the up/down arrow keys to move the selection bar then press <Space> to select a disk. A small triangle before the Port number marks the selected drive. Press <Enter> when you are done. ASUS ESC500 G4 SFF...
  • Page 118 Use the up/down arrow keys to select the stripe size for the RAID array (for RAID 0, 10 and 5 only) then press <Enter>. The available stripe size values range from 4 KB to 128 KB. The following are typical values: RAID 0: 128KB RAID 10: 64KB RAID 5: 64KB...

  • Page 119: Deleting A Raid Set

    <N> to return to the DELETE VOLUME menu. DELETE VOLUME VERIFICATION ALL DATA IN THE VOLUME WILL BE LOST! (This does not apply to Recovery volumes) Are you sure you want to delete volume “Volume0”? (Y/N): ASUS ESC500 G4 SFF...

  • Page 120: Resetting Disks To Non-Raid

    5.2.3 Resetting disks to Non-RAID Take caution before you reset a RAID volume hard disk drive to non-RAID. Resetting a RAID volume hard disk drive deletes all internal RAID structure on the drive. To reset a RAID set: From the utility main menu, select 3. Reset Disks to Non-RAID and press <Enter>. Press the up/down arrow keys to select the drive(s) or disks of the RAID set you want to reset, then press <Space>.

  • Page 121: Exiting The Intel ® Rapid Storage Technology Enterprise

    Select the port of destination disk for rebuilding (ESC to exit): Port Drive Model Serial # Size XXXXXXXXXXX XXXXXXXX XXX.GB ]-Previous/Next [ENTER]-Select [ESC]-Exit Select a destination disk with the same size as the original hard disk. ASUS ESC500 G4 SFF...
  • Page 122 The utility immediately starts rebuilding after the disk is selected. When done, the status of the degraded RAID volume is changed to “Rebuild”. Intel(R) Rapid Storage Technology enterprise - SATA Option ROM - 3.6.0.1023 Copyright(C) 2003-12 Intel Corporation. All Rights Reserved. MAIN MENU 1.

  • Page 123: Setting The Boot Array In The Bios Setup Utility

    Use up/down arrow keys to select the boot priority and press <Enter>. See the Boot menu section of Chapter 4 for more details. From the Exit menu, select Save Changes & Exit, then press <Enter>. When the confirmation window appears, select Yes, then press <Enter>. ASUS ESC500 G4 SFF 5-11...

  • Page 124: Intel ® Rapid Storage Technology Enterprise (Windows)

    Intel Rapid Storage Technology enterprise ® (Windows) The Intel Rapid Storage Technology enterprise allows you to create RAID 0, RAID 1, RAID ® 10 (RAID 1+0), and RAID 5 set(s) from Serial ATA hard disk drives that are connected to the Serial ATA connectors supported by the Southbridge.

  • Page 125: Creating A Raid Set

    Click Next. • If you do not want to keep the data on one of the selected disks, select NO when prompted. • If you want to Enable volume write-back cache or Initialize volume, click Advanced. ASUS ESC500 G4 SFF 5-13...
  • Page 126 Confirm the volume creation, then click Create Volume to continue. This process could take a while depending on the number and size of the disks. You can continue using other applications during this time. Wait until the process is completed, then click OK when prompted. You still need to partition your new volume using Windows Disk Management before adding any data.

  • Page 127: Changing A Volume Type

    RAID 0: 128KB RAID 10: 64KB RAID 5: 64KB We recommend a lower stripe size for server systems, and a higher stripe size for multimedia computer systems used mainly for audio and video editing. ASUS ESC500 G4 SFF 5-15...

  • Page 128: Deleting A Volume

    5.3.3 Deleting a volume Be cautious when deleting a volume. You will lose all data on the hard disk drives. Before you proceed, ensure that you back up all your important data from your hard drives. To delete a volume: From the Volumes field in the utility main menu, select the volume that you want to delete.

  • Page 129: Preferences

    Allow you to set to show the notification area icon and show system information, warning, or errors here. E-mail Preferences Allow you to set to sent e-mail of the following events: • Storage system information • Storage system warnings • Storage system errors ASUS ESC500 G4 SFF 5-17...
  • Page 130 Chapter 5: RAID Configuration 5-18...
