Summary of Contents for BBV TX1500

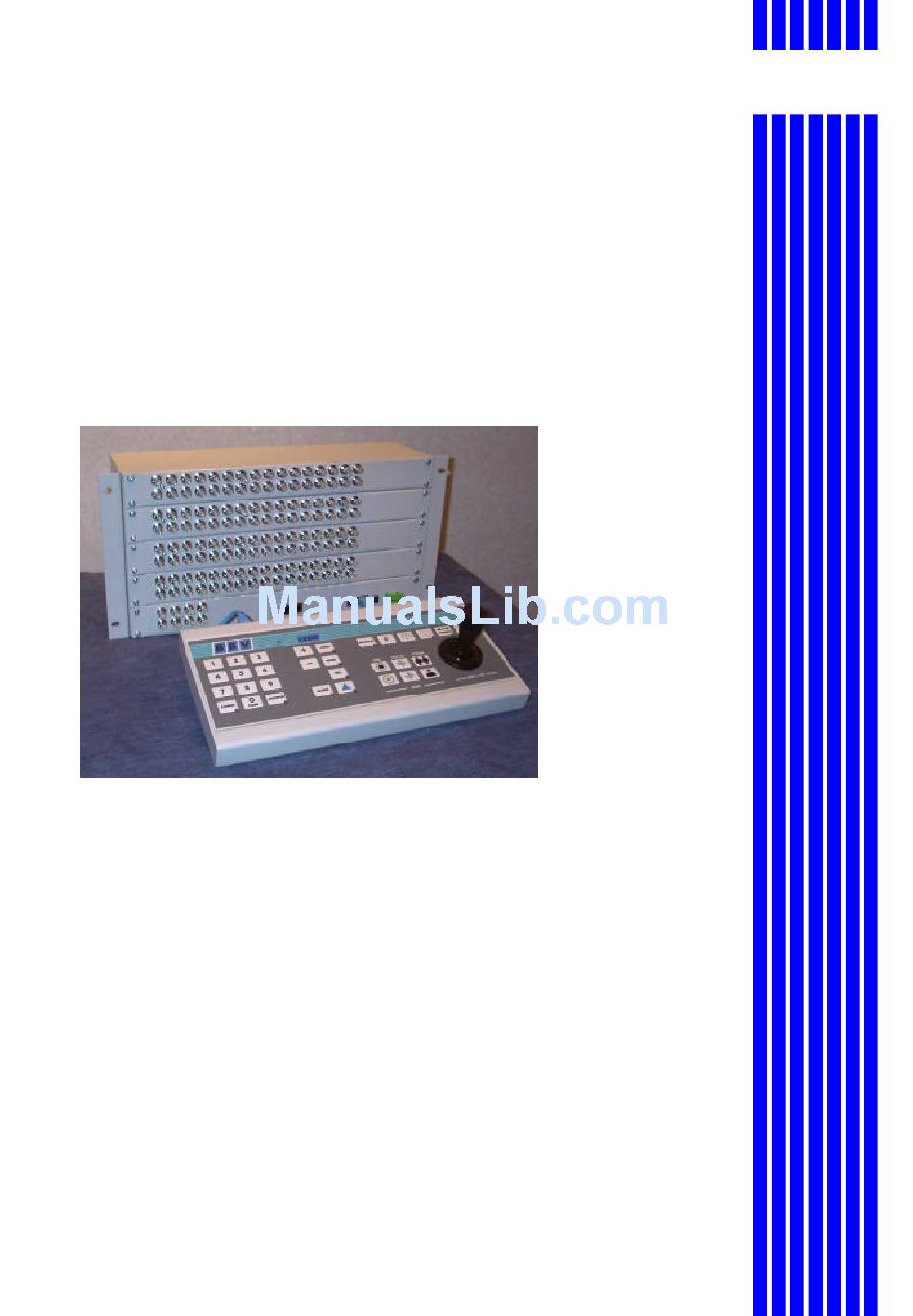

Page 1: Installation Guide
Page 27 Tx1500 keyboard Instaltion Interface (BBUS) Page 28 Interface allowing RS232/422/485 control from third party equipment Interface (BBUS) Page 29 Interface to connect Tx1500 keyboard remotely via fibre, RF link etc Building Block Video Ltd., 17 Apex Park Diplocks Industrial Estate, Hailsham, East Sussex, BN27 3JU UK.
Page 2: Table Of Contents
Moving a Camera Lens Keys Auxiliary Outputs Goto Preset Position Programming a Preset Position Starting a Preset Patrol Starting a Monitor Sequence Triangle/Relay Key Alarm Key Tx1500 Keyboard Tx1500 BBUS I/F 28/29 TX1500 Manual Combined 1Oct03 PSC Page 2 of 31 Matrix...
Page 3: Unpacking
2 * RJ45 breakout boxes with self adhesive mounting pad 2 * 9Vdc 500mA power supply (1 for the matrix and 1 for the keyboard) Fig 1. Picture showing a Tx1500/16/8 matrix with fitted optional 16 alarm inputs. Standard Tx1500/KBD...
Page 4: Description
DESCRIPTION The Tx1500 is a video matrix and telemetry control system offering control of up to 96 cameras from 4 control positions. 8 monitor outputs are provided as standard. Monitor 1,2,3 & 4 are control monitors with on screen display and monitors 5,6,7 & 8 are spot monitors.
Page 5: System Example
Expandable up to 96 cameras inputs. 4 control positions including remote control via RS232/485 B-BUS interface . Up to 96 alarm inputs using 16 input alarm modules. BBV up-the-coax and RS485 telemetry as standard. Protocol converters allow RS485 control of domes etc.
Page 6: Bbus Control Bus
B-BUS CONTROL BUS The Tx1500 ‘ talks’ with all keyboards, alarm card and control interfaces via a polled 4 wire multidrop RS422 control bus named B-BUS. All the units are equipped with standard RJ45 connectors allowing cat 5 patch cables to be used to connect over short distances.
Page 7: Rs485 Telemetry Port
Fig 7. TELEMETRY – RJ45 breakout box connector. This port provides telemetry control via BBV RS485. Again a cat 5e RJ45 patch cable and breakout box is used to connect the telemetry receivers via single twisted pair cable. It is possible to either wire the network in a daisy chained or star configuration using an optional RS485 star card.
Page 8 1 2 3 4 5 6 7 8 BBV Star Card Telem Conn StarCard SW3 must be set to 4 wire as shown. StarCard Star output Fig 9. Star Wired Configuration using the optional BBV StarCard Camera 1 Camera 2 Camera 3 Camera 4 Terminated Terminated...
Page 9: Video Input Card
VIDEO INPUT CARD The Video Input Card is used to connect 16 camera inputs to the Tx1500. Systems larger than 16 cameras will use multiple cards. A board mounted DIL switch is used to set the card’ s camera numbers.
Page 10: Monitor Output Card
If communication with a keyboard or alarm card fail or if the Tx1500 is configured incorrectly then the led will flash at a noticeably slower rate i.e. 2 flashes per second.
Page 11 Fig 18. Monitor output card ALARM00 input and TRIANGLE relay connections TX1500 Manual Combined 1Oct03 PSC Page 11 of 31 Matrix...
Page 12: 16 Alarm Input Card
B-BUS with the monitor output card. Power comes via either the B-BUS interface when the alarm card is mounted in the Tx1500 rack or via an external 9-12Vac/dc supply when mounted remotely. The power led is used as a status indica tion and shows the following: Mainly ON, flashing OFF when the MONITOR card polls it approx 2-3 times every second.
Page 13 Video Input Card Camera 65 - 80 Video Input Card Camera 81 - 96 Video Input Card Fig 23. Wiring and switch settings for Video Input card and Monitor Output card TX1500 Manual Combined 1Oct03 PSC Page 13 of 31 Matrix...
Page 14 Out of the box the Tx1500 is configured to control BBV coaxial telemetry on all cameras and all Keyboards can control monitors all the monitors. The allows the system to work “ out of the box” and any lockout can be added if required later.
Page 15: System Basics
Alarm number Number of Keyboards : It is possible to have four control points for the Tx1500. Each control point can be either a Tx1500 keyboard, Touch Screen T-Command keyboard or RS232 control from a PC or 3 party controller using a TX1500/BBUS - The Number of Keyboard value must be set to the correct number of control points.
Page 16: Access Tables
ACCESS TABLES One of the advanced features of the Tx1500 system is the ability to prevent specific cameras from being displayed on individual monitors and to prevent specific keyboards from moving cameras. The Access Table screen is used to program which monitor or monitors each keyboard can control. A setting of ‘...
Page 17: Alarm Menus
Input Action : Sets the action for the ALARM 00 input on the Tx1500 monitor board. Use +/- to cycle through the options. No Action – ALARM 00 is not used.
Page 18 TX1500 Manual Combined 1Oct03 PSC Page 18 of 31 Matrix...
Page 19: Sequences
SEQUENCES Each of the 8 monitor outputs of the Tx1500 can sequence between all or specific cameras. Each camera can be individually added or removed from each monitor sequence to create a system where say in a retail environment public store monitors are prevented from displaying sensitive areas of the store whilst monitors in the security office can sequence all cameras.
Page 20: Camera Types
Remember 250M of RG59 grade cable or 500M of CT125 grade cable. BBV 485 TP is used to drive the new advanced range of addressable BBV receivers that are controlled using two wire RS485. The RX457 is used when driving AC pan/tilt heads and the RX557 is used for high/variable speed 24Vdc heads.
Page 21: Set Password
Select the New Pin Number area and type the new PIN. Move to the Confirm Number area and retype the PIN. If the PIN is the same then the display shows the TX1500 Main Menu and the PIN number is then programmed.
Page 22 Display Line : This allows the Tx1500 status line to be moved up and down slightly on the screen to prevent the Tx1500 text from being overwritten by the text from say a VCR etc. Use +/- to cycle through values.
Page 23 Startup Actions – Monitors : When the Tx1500 is powered up it sometimes useful if monitors automatically sequence cameras. This option allows selected monitors to resume sequence should the system power fail and restore. Use +/ - to cycle options.
Page 24 UP-THE-COAX RECEIVER SPECIFIC PROGRAMMING To program specific features of BBV’ s range of up-the-coax receivers press and hold the ‘ #’ key and tap the PROGRAM key. The PROGRAM key must be enabled in the keyboard using SW1 switch 8 ON which is the factory default setting.
Page 25: Tx1500 User Guide
If the keyboard is not allowed to control this monitor then the current monitor will display ‘ locked’ and the keyboard will beep. Otherwise the keyboard can now control the camera displayed on the new monitor TX1500 Manual Combined 1Oct03 PSC Page 25 of 31 Matrix...
Page 26: Moving A Camera
Moving the joystick left or right will turn autopan off. The LIGHTS key is used to toggle any lights ON/OFF TX1500 Manual Combined 1Oct03 PSC Page 26 of 31 Matrix...
Page 27: Goto Preset Position
Use the number keys followed by the PRESET key. Preset positions are only available on moving cameras that are equipped for presets. Most will accept presets 1 – 16 although the Tx1500 supports preset positions up to 99. This should be checked with your installing company.
Page 28: Starting A Preset Patrol
To stop the sequence either press the SEQ key again to toggle the LED OFF or select another camera. TRIANGLE / RELAY KEY The TRIANGLE key is used to drive the TX1500 change over relay. The relay can be used for a variety of purposes. Your installation company will inform you of the specific function for your site.
Page 29 11. Calibration is then complete. Power down the keyboard for 30 seconds before powering up. Check that the TRIANGLE led is not flashing after power up if it is then power down again for 30 seconds. TX1500 Manual Combined 1Oct03 PSC Page 29 of 31...
Page 30 GREEN LD1 SW3/1 Select mode BBUS Mode - RS232 control Remote keyboard mode Flashes when the interface sends an LED status to the Running Tx1500 keyboard over a RF link, RS232 port. fibre or other network. 1 2 3 YELLOW LD2...
Page 31: Tx1500 Keyboard
BBUS I/F FOR REMOTE TX1500 KEYBOARD The BBUS Interface must be fitted with 02005V7 software or later. TX1500 MATRIX Standard RJ45 CAT5 patch cable Standard RJ45 CAT5 patch cable BBUS I/F RS232-9600,N,8,1 TX1500 KEYBOARD RF Link SW4 Setting 7 & 8 ON at MATRIX END...
