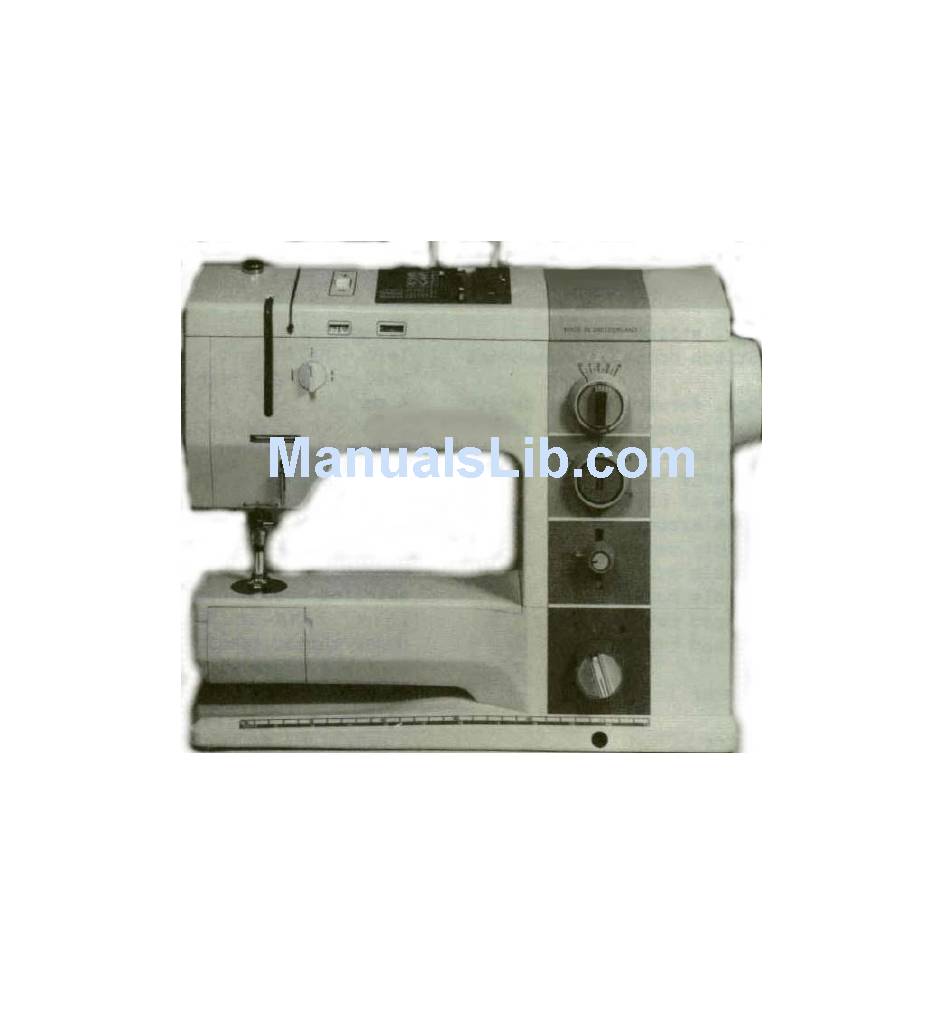

  • Page 1 Service Guide Model 930 Sewconsult.com 2002 Div. Sewing Educational Warehouse...
  • Page 2 2 – 4 Cleaning and lubrication page 5 – 6 Adjusting bobbin tension page 7 Adjusting top tension page 8 Hook timing page 9 – 10 930 service tips page 11 – 55 Troubleshooting guide page 56 – 60...
  • Page 5 Tuning up your machine There are three main points to a tune-up on a sewing machine. -Cleaning and oiling -Hook and feed timing -Internal tension adjustment Start by removing the covers on your machine. DO NOT START ANY REPAIRS WITH OUT UNPLUGGING THE MACHINE FROM THE WALL OUTLET...
  • Page 8 Cleaning and lubrication The best way to remove lint from the machine is with compressed air. Blow all the lint from the machine. Remove all lint from the gears and again from the bobbin area and feed dogs. When oiling your machine, make sure you use a good quality oiler and clear sewing machine oil.
  • Page 10 Adjusting Tensions To check the bobbin tension, insert a bobbin wound with medium weight thread into the bobbin case. Remove the hook from the machine. Snap the bobbin case onto the hook. Hold the hook and bobbin case by the bobbin thread and jerk the thread once or twice.
  • Page 11 Top Tension The top tension is controlled with the tension dial. Normal tension is when the indicator is centered. After the bobbin tension is set the tensions should balance in the center of the fabric as shown. If adjustment is required, sew a test and turn the top tension dial until the right tension is achieved.
  • Page 12 Hook Timing and Position With the hook in the race but the race cover not closed, set the needle position to the far left. Bring the needle to its lowest position. The tip of the hook should be 2.3 – 2.5mm to the left of the needle.
  • Page 13 Hook Timing and Position Continued Set your machine to far right needle position. From the lowest position bring the needle up until the hook and needle meet. The tip of the hook should be just above the eye of the needle.
  • Page 59 SEWING MACHINE TROUBLESHOOTING GUIDE In most cases poor sewing results and breakdowns are caused by three main factors: 1. The condition of the needle. 2. Threading and the quality of thread being used. 3. Mechanical breakdown or damaged parts. The condition of the needle is the most common problem. Bent or damaged needles will cause many different sewing problems.
  • Page 60 If you start with a new needle (inserted properly) and the machine is threaded as per instructions, sewing problems may be mechanical breakdown or damaged parts. For best results your machine should be serviced before every large project. This will increase the life of your machine and give you problem free results when sewing.
  • Page 61 4. Type of thread being used can cause problems. Always use good quality thread. When using heavy thread in the top you will have to use a larger needle. The groove in the needle must fit the thread. UPPER THREAD BREAKS 1.
  • Page 62 LOWER THREAD BREAKS 1. Make sure the bobbin is inserted correctly and the right bobbin for your machine is being used. Generic bobbins should not be used in your machine. 2. Check that the thread is in the bobbin tension and the tension is not too tight.
  • Page 63 pressure adjustment and should be ok. Some pressure adjustment can be done under the top cover. 3. Check for lint caught in the feed dogs. 4. Is the pressure foot tight on the pressure bar? Make sure the foot is pushed up all the way and tight. 5.
