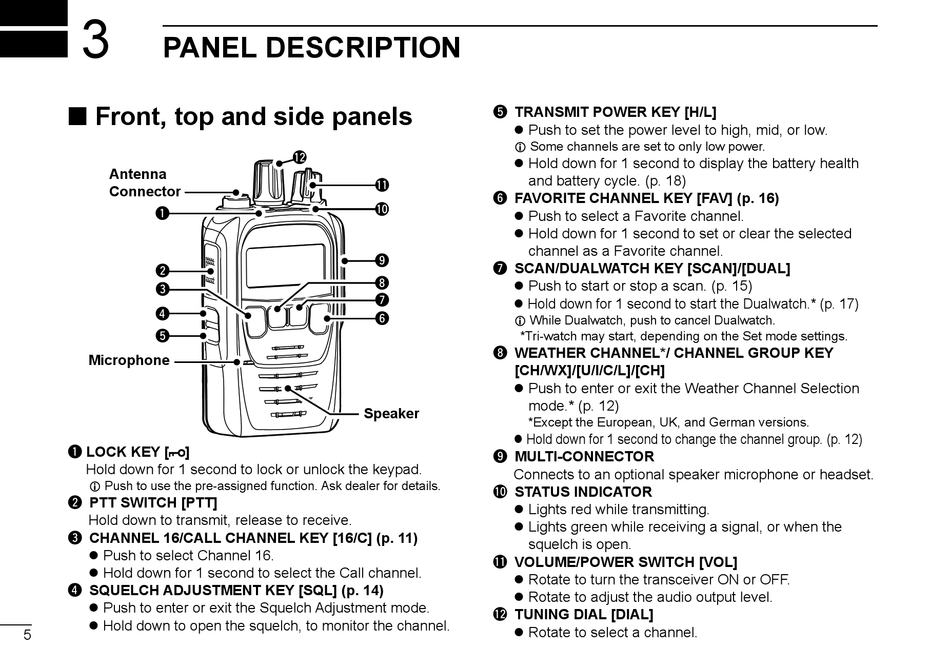

PANEL DESCRIPTION

■ Front, top and side panels
Antenna
Connector
q
w
e
r
t
Microphone
q LOCK KEY [ ]
Hold down for 1 second to lock or unlock the keypad.
L Push to use the pre-assigned function. Ask dealer for details.
w PTT SWITCH [PTT]
Hold down to transmit, release to receive.
e CHANNEL 16/CALL CHANNEL KEY [16/C] (p. 11)
z Push to select Channel 16.
z Hold down for 1 second to select the Call channel.
r SQUELCH ADJUSTMENT KEY [SQL] (p. 14)
z Push to enter or exit the Squelch Adjustment mode.
z Hold down to open the squelch, to monitor the channel.
5
!2
!1
!0
o
i
u
y
Speaker
t TRANSMIT POWER KEY [H/L]
z Push to set the power level to high, mid, or low.
L Some channels are set to only low power.
z Hold down for 1 second to display the battery health
and battery cycle. (p. 18)
y FAVORITE CHANNEL KEY [FAV] (p. 16)
z Push to select a Favorite channel.
z Hold down for 1 second to set or clear the selected
channel as a Favorite channel.
u SCAN/DUALWATCH KEY [SCAN]/[DUAL]
z Push to start or stop a scan. (p. 15)
z Hold down for 1 second to start the Dualwatch.* (p. 17)
L While Dualwatch, push to cancel Dualwatch.
*Tri-watch may start, depending on the Set mode settings.
i WEATHER CHANNEL*/ CHANNEL GROUP KEY
[CH/WX]/[U/I/C/L]/[CH]
z Push to enter or exit the Weather Channel Selection
mode.* (p. 12)
*Except the European, UK, and German versions.
z Hold down for 1 second to change the channel group. (p. 12)
o MULTI-CONNECTOR
Connects to an optional speaker microphone or headset.
!0 STATUS INDICATOR
z Lights red while transmitting.
z Lights green while receiving a signal, or when the
squelch is open.
!1 VOLUME/POWER SWITCH [VOL]
z Rotate to turn the transceiver ON or OFF.
z Rotate to adjust the audio output level.
!2 TUNING DIAL [DIAL]
z Rotate to select a channel.
