Icom IC-F52D Instructions Manual

OPTIONS
D BATTERY PACKS
• BP-290
l i-ion battery pack
Voltage: 7.2 V
Capacity: 1910 mAh (minimum), 2010 mAh (typical)
Battery life: Approximately 13 hours
• BP-291
battery case
Battery case for AA alkaline batteries.
D CHARGERS
• BC-226 + BC-228
desktop charger ac adapter
For rapidly charging battery packs.
Charging time: Approximately 2.7 hours
L A power adapter may be supplied, depending on the charger's
version.
• BC-214 -
multi charger
+ BC-157S , OPC-656
ac adapter dc power cable
For rapidly charging of up to 6 battery packs simultaneously.
Charging time: Approximately 2.8 hours
L The AD-132N may be needed, depending
charger adapter
on the charger's version.
L The BC-157S or OPC-656 must
ac adapter dc power cable
be purchased separately.
• BC-219N + BC-123S
desktop charger ac adapter
For rapidly charging of battery packs.
Charging time: Approximately 2.5 hours for the BP-290
L A power adapter may be supplied, depending on the charger's
version.
• BC-225 + BC-123S
intelligent desktop charger ac
+ RS-BC225
adapter reader software
For rapidly charging battery packs.
You can check the charging status using the RS-BC225.
Charging time: Approximately 2.5 hours for the BP-290
L A power adapter may be supplied, depending on the charger's
version.
L An USB (Micro-B) cable is required to connect the BC-225 and
a PC with the RS-BC225 installed.
D DC CABLES
• CP-23L
cigarette lighter cable
Used when charging battery packs through a 12 V
cigarette lighter socket. For use with the BC-219N.
• OPC-515L, OPC-656
dc power cables
Used when charging battery packs using a 13.8 V DC
power source instead of the power adapter.
OPC-515L: For the BC-219N
OPC-656: For the BC-214
D ANTENNAS
• FA-SC26VS, FA-SC27VS, FA-SC56VS, FA-SC57VS
FA-SC26US, FA-SC73US
stubby antennas
Shorter VHF or UHF antennas.
FA-SC26VS: 136 ~ 144 MHz FA-SC27VS: 142 ~ 150 MHz
FA-SC56VS: 150 ~ 162 MHz FA-SC57VS: 160 ~ 174 MHz
FA-SC26US: 400 ~ 450 MHz FA-SC73US: 450 ~ 490 MHz
• FA-SC25V, FA-SC28V, FA-SC29V,
FA-SC01U, FA-SC25U, FA-SC57U, FA-SC72U
flexible
antennas
VHF or UHF antennas.
FA-SC25V: 136 ~ 150 MHz FA-SC28V: 148 ~ 162 MHz
FA-SC29V: 160 ~ 174 MHz FA-SC01U: 350 ~ 400 MHz
FA-SC25U: 400 ~ 430 MHz FA-SC57U: 430 ~ 470 MHz
FA-SC72U: 470 ~ 520 MHz
• FA-SC61VC, FA-SC61UC
cut antennas
• FA-SC62V, FA-SC63V
high gain antennas
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
D BELT CLIPS and BELT HANGERS
• MB-136, MBB-3
belt clip
• MB-96F, MB-96FL, MB-96N
belt hangers
D OTHERS
• HM-222
speaker microphone
With an Emergency key.
The HM-222 meets IP68 requirements for waterproof
protection.
• HM-233GP
gps speaker microphone
The microphone with high-performance GPS receiver.
• HM-163MC
tiepin type microphone
+ EH-15B , SP-26 , SP-28
earphone tube earphone
hook type earphone
• SP-32
tube type earphone adapter
For use with EH-15B.
• SP-27 , SP-29
tube earphone ear hook type earphone
SP-40 + AD-135
earphone earphone adapter
AD-135: Used To connect an earphone to the transceiver's
multi-connector.
• AD-118
acc adapter
To connect an accessory. See the AD-118 instruction
sheet for details on recommended accessories.
CAUTION: The AD-118 does not have waterproof
protection. When it is connected, NEVER expose the
adaptor and the transceiver to rain, snow or any liquids.
• LC-187, LC-188*
carrying case
*Remove the LC-188 from the transceiver before charging.
• VS-5MC*
ptt switch cable
+ HS-94, HS-95, HS-97
headset
VS-5MC: Used to connect a headset to a transceiver.
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
* Non-waterproof.
• VS-3 Bluetooth ®
headset
The Bluetooth headset with a [PTT] switch.
• About the third party Bluetooth headsets:
Icom has checked the PTT operation with some 3M Peltor
headsets such as the WS Headset XP, WS ProTac XP and
WS Alert XP. (Compatibility not guaranteed.)
Some options may not be available in some countries.
Ask your dealer for details.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germa-
ny, France, Spain, Russia, Australia, New Zealand, and/or other countries.
The Bluetooth word mark and logos are registered trademarks owned by
the Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under
license. Other trademarks and trade names are those of their respective
owners.
All other products or brands are registered trademarks or trademarks of
their respective holders.
- 4 -
A-7397H-1EX Printed in Japan
© 2017 Icom Inc.

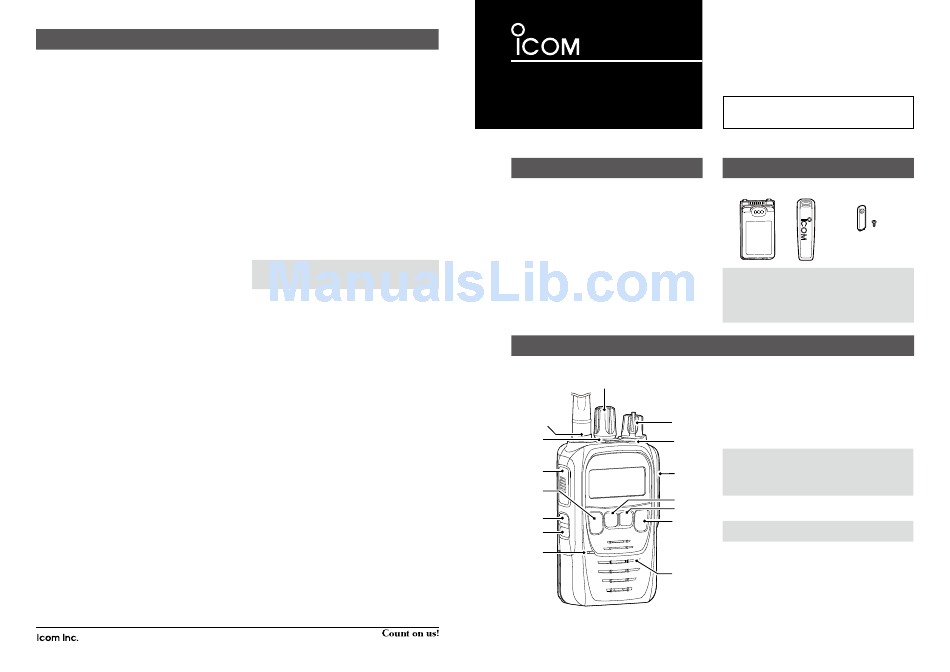

VHF/UHF DIGITAL TRANSCEIVERS
Iç-F52D
Iç-F62D
IMPORTANT
ear
This instruction sheet includes some functions that are
usable only when they are preset by your dealer. The
,
transceiver may have other functions and operations that
are not described in this instruction sheet. Ask your dealer
for preset function details.
[Rotary Encoder]
Antenna
Connector
[Emer]*
[PTT]
[OK]*
[F1]*
[F2]*
Micro-
phone
*Dealer assignable
INSTRUCTIONS
Thank you for choosing this Icom product.
READ ALL INSTRUCTIONS carefully and completely
before using this product.
SUPPLIED ACCESSORIES
Battery pack
NOTE:
• Some accessories are not supplied, or the shape is
different, depending on the transceiver version.
•  C onfirmbothbatteryslidinglocksarelockedinplace,
when attaching the battery to the transceiver. Both sliding
locks make a 'click' sound when locked.

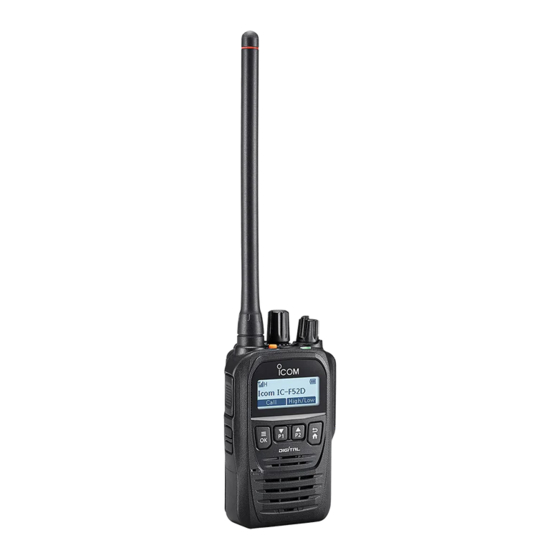

PANEL DESCRIPTION
D About the Status indicator
• Lights white, then blinks red, yellow, and green when
turning ON the transceiver.
• Lights red while transmitting.
• Lights green while receiving a signal, or when the squelch
is open.
[VOL]
D About the Multi-connector
Status
Connects to an optional speaker microphone or headset.
indicator
CAUTION: DO NOT use the transceiver without the
connector cover or the optional microphone attached.
Multi-
The transceiver meets IP67 requirements for dust-tight and
connector
waterproof protection only when the connector cover or the
optional microphone is attached.
[P1 (Down)]*
[P2 (Up)]*
D About the Software key functions
[Back]*
NOTE: Your dealers can assign the Software key
functions to the keys.
Speaker
- 1 -
Belt clip Connector cover
(with a screw)
