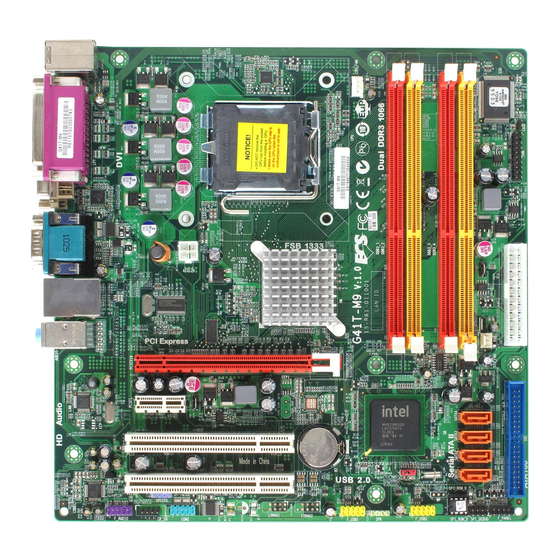

ECS G41T-M9 Manual

Hide thumbs Also See for G41T-M9:
Table of Contents

Advertisement

Quick Links

See also: Manual
Preface
This publication, including photographs, illustrations and software, is under the pro-
tection of international copyright laws, with all rights reserved.
The manufacturer makes no representations or warranties with respect to the con-
tents hereof and specifically disclaims any implied warranties of merchantability or
fitness for any particular purpose. The manufacturer reserves the right to revise this
publication and to make changes from time to time in the content. It has been
acknowledged that other brands or product names in this guide are trademarks or the
properties of their respective owners.

Static Electricity Precautions

1. Don't take this motherboard and components out of their original static-
proof package until you are ready to install them.
2. While installing, please wear a grounded wrist strap if possible. If you don't
have a wrist strap, discharge static electricity by touching the bare metal of
the system chassis.
3. Carefully hold this motherboard by its edges. Do not touch those compo-
nents unless it is absolutely necessary. Put this motherboard on the top of
static-protection package with component side facing up while installing.
Pre-Installation Inspection
1. Inspect this motherboard whether there are any damages to components and
connectors on the board.
2. If you suspect this motherboard has been damaged, do not connect power to
the system. Contact your motherboard vendor about those damages.
1

Advertisement

Table of Contents
loading

Related Manuals for ECS G41T-M9

Summary of Contents for ECS G41T-M9

  • Page 1: Static Electricity Precautions

    Preface This publication, including photographs, illustrations and software, is under the pro- tection of international copyright laws, with all rights reserved. The manufacturer makes no representations or warranties with respect to the con- tents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

  • Page 2: Motherboard Components

    Motherboard Components Table of Motherboard Components LABEL COMPONENTS ® 1. CPU Socket LGA1156 socket for Intel Lynnfield processor 2. CPU_FAN CPU cooling fan connector 3. DDR3_1~4 240-pin DDR3 SDRAM slots 4. CASE Chassis detect header 5. TPM TPM module header 6.

  • Page 3: Specifications

    Specifications • LGA775 socket for latest Intel ® Conroe/Presler/Wolfdale/ Yorkfield processors • Supports “Hyper-Threading” technology CPU Chipset • Intel ® G41 Northbridge (NB) and Intel ® ICH7 Southbridge (SB) chipsets Memory • Dual-channel DDR3 memory architecture • 4 x 240-pin DDR3 DIMM sockets support up to 8 GB •...

  • Page 4: Package Contents

    Package Contents Your motherboard package ships with the following items: The motherboard The Users’ Guide One IDE drive ribbon cable The Software support disk Note: Hardware specifications and software items are subject to change without notification. CPU Installation Procedure The following illustration shows CPU installation components. A.
  • Page 5 Installing Memory Modules This motherboard accommodates four memory modules. It can support four 240-pin DDR3 1066/800. The total memory capacity is 8 GB. DDR3 SDRAM memory module table Memory module Memory Bus DDR3 400 MHz DDR3 1066 533 MHz You must install at least one module in any of the four slots. Total memory capacity is 8 GB.

  • Page 6: Jumper Setting

    Jumper Setting Connecting two pins with a jumper cap is SHORT; removing a jumper cap from these pins, OPEN. CLR_CMOS: Clear CMOS Jumper You may need to clear the CMOS memory if the settings in the Setup Utility are incorrect and prevent your motherboard from operating. To clear the CMOS memory, disconnect all the power cables from the motherboard and then move the jumper cap into the CLEAR setting for a few seconds.
  • Page 7 If you have installed a Serial ATA hard SATA1~4 drive, you can connect the Serial ATA cables to the Serial ATA hard drive or the connector. CD_IN Use this connector CD_IN to connect the drive audio cable to the onboard sound system, if you have installed a CD-ROM or DVD-ROM drive.

  • Page 8: Bios Setup Utility

    1394A1~2 Connect this header to any device with TPA+ TPA1- IEEE 1394a interface. T P B + TPB- +12V +12V K E Y BIOS Setup Utility The BIOS Setup Utility records settings and information of your computer. If the system malfunction happens for incorrect Setup Utility configuration, you can use the clear CMOS jumper to clear the CMOS memory, or hold down the Page Up key while rebooting your computer.
