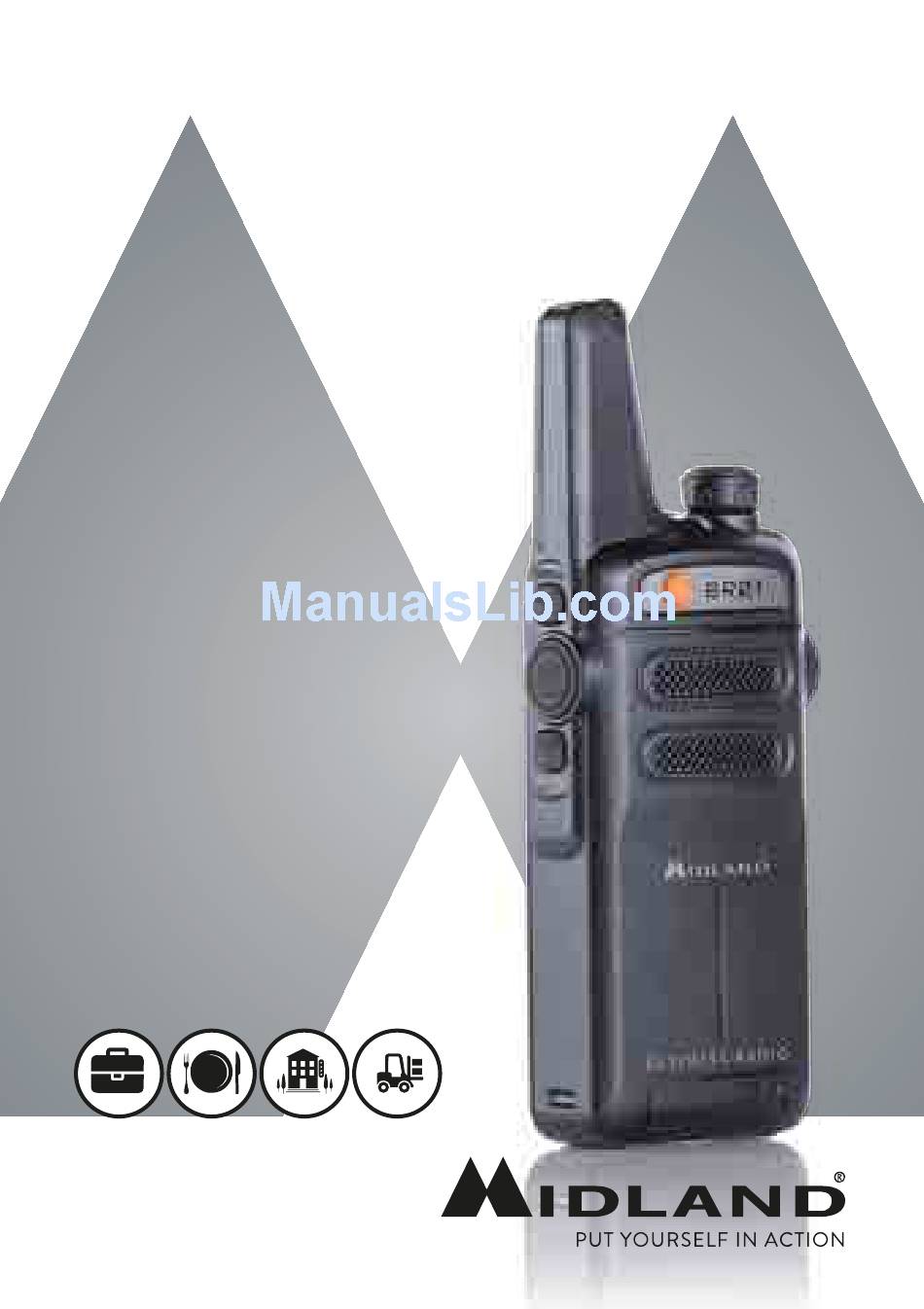

- Page 1 BR01 BUSINESS RADIO Instruction guide Suitable for: Business Restaurants Hospitality Warehousing...
- Page 3 Index Programming software (optional) Content Main characteristics Coverage/Range Main controls and parts of the radio Operations Power on/off and volume adjustment Transmission Monitor Squelch CTCSS/DCS tones Flashlight Battery recharge Maintenance Technical specifications Troubleshooting BR01 instruction guide...
-
Page 4: Programming Software (Optional)
Thanks for choosing Midland! BR01 is a portable transceiver that is free use in almost all European countries. For further information, we suggest you look at the “Restrictions on the use” chart. Programming software (optional) Thanks to Midland Programming software PRG10, it is possible to increase the per- formance of your radio or to reduce its functionality by disabling some of the default features (CTCSS, TOT...) -
Page 5: Content
Content • 1 BR01 transceiver • 1 belt clip • 1 2800mAh Li-ion rechargeable battery pack • 1 USB cable Main characteristics • PMR446 Transceiver • Output power: ≤ 500mW ERP • Channel spacing: 12.5KHz • Battery life up to 37 hours •... -
Page 6: Main Controls And Parts Of The Radio
Main controls and parts of the radio BR01 instruction guide... - Page 7 4 -> battery 100%; level 3 -> battery 75%; level 2 -> battery 50%; level 1 -> battery 25%. Volume button -: press to reduce the volume: Keep pressed to activate the Monitor function. External Speaker/Mic Jack- allows the connection with external devices such as headsets, microphones. BR01 instruction guide...
-
Page 8: Operations
CTCSS tones or DCS codes. Monitor The Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are too weak to keep the Squelch permanently opened. Hold down the Volume button - to enable such function. BR01 instruction guide... -
Page 9: Squelch
CTCSS/DCS tone. Undesired signals coming from other stations set on the same frequency but with different CTCSS/DCS tones won’t be received. Flashlight With BR01 turned on, shortly press the Power on button to turn on/off the flashlight at the top side of the radio. Battery recharge... -
Page 10: Maintenance
Maintenance Your BR01 was designed to fulfill any warranty obligations and to enjoy this product for many years. As for all the electronically devices, we recommend you to follow this few sugge- stions: • Do not attempt to open the unit. Non-expert handling of the unit may damage it and/or annul the warranty. -
Page 11: Technical Specifications
RF sensibility <0.4uV@20 dB SINAD Audio distortion ≤3% Audio response 300Hz ÷ 3KHz Adjacent channel selectivity Within European legal terms Intermodulation rejection Within European legal terms Spurious response Within European legal terms Blocking Within European legal terms BR01 instruction guide... -
Page 12: Troubleshooting
Reception is fragmented and/or disturbed Other parties are using the same ch The radio has been installed too clos interference (televisions, computers The autonomy of the battery pack is limited Commission time is too high. 10 | BR01 instruction guide... - Page 13 Check the traffic on the radio channel by means of the Monitor hannel feature and select another channel if required. se to equipment that causes Increase the distance between the radio and this equipment. s, etc.) Try reducing the transmission time and/or using a low power. BR01 instruction guide | 11...
- Page 14 If the product contains batteries: do not throw the battery into fire. To disperse after use, throw into the appropriate containers. Importado por: MIDLAND IBERIA, SA C/Cobalt, 48 - 08940 Cornellà de Llobregat (Barcelona - España) www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autorización administrativa.
