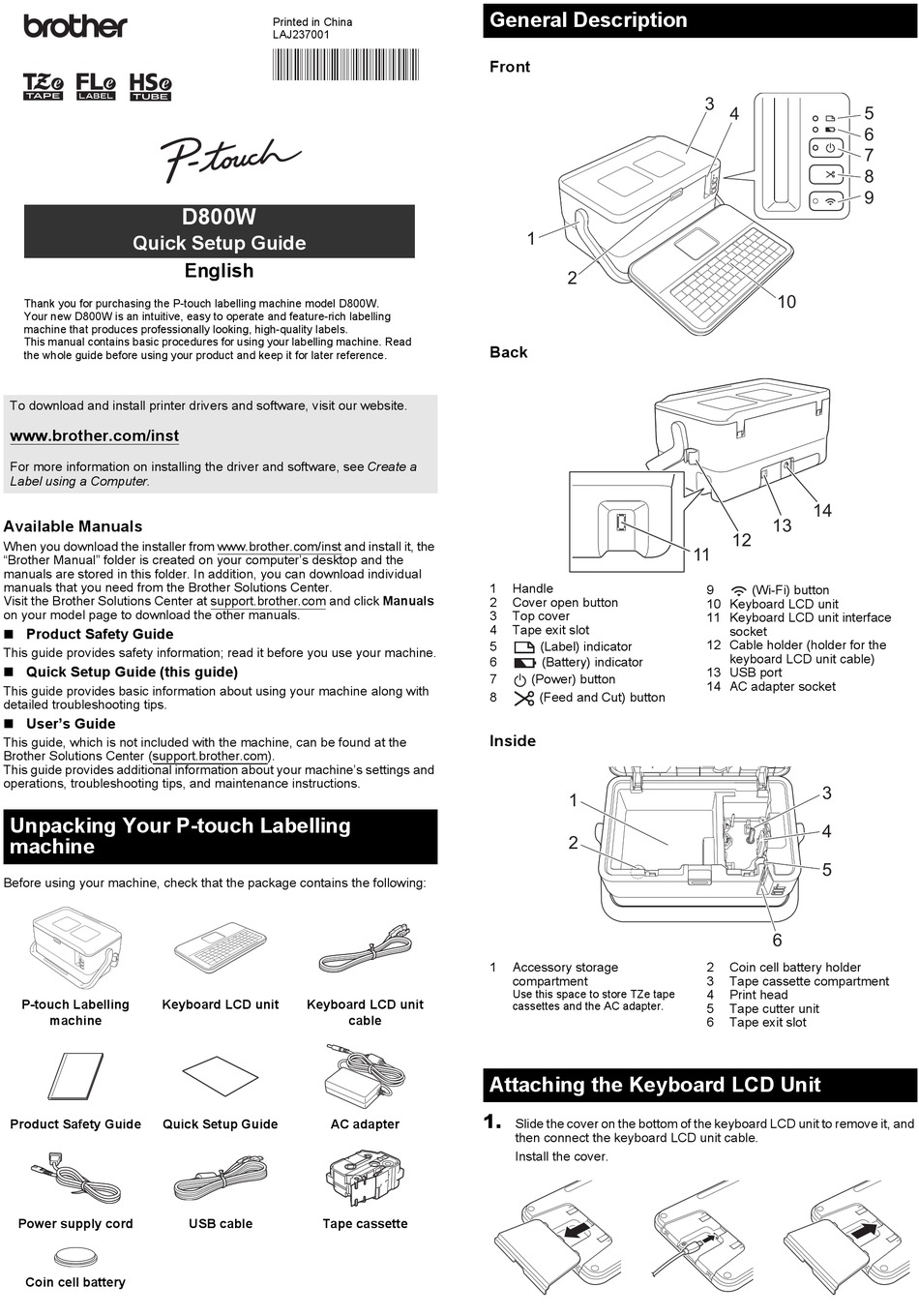

Brother p-touch D800W Quick Setup Manual

Quick Setup Guide
Thank you for purchasing the P-touch labelling machine model D800W.
Your new D800W is an intuitive, easy to operate and feature-rich labelling
machine that produces professionally looking, high-quality labels.
This manual contains basic procedures for using your labelling machine. Read
the whole guide before using your product and keep it for later reference.
To download and install printer drivers and software, visit our website.
www.brother.com/inst
For more information on installing the driver and software, see Create a
Label using a Computer.
Available Manuals
When you download the installer from www.brother.com/inst and install it, the
"Brother Manual" folder is created on your computer's desktop and the
manuals are stored in this folder. In addition, you can download individual
manuals that you need from the Brother Solutions Center.
Visit the Brother Solutions Center at support.brother.com and click Manuals
on your model page to download the other manuals.
 Product Safety Guide
This guide provides safety information; read it before you use your machine.
 Quick Setup Guide (this guide)
This guide provides basic information about using your machine along with
detailed troubleshooting tips.
 User's Guide
This guide, which is not included with the machine, can be found at the
Brother Solutions Center (support.brother.com).
This guide provides additional information about your machine's settings and
operations, troubleshooting tips, and maintenance instructions.
Unpacking Your P-touch Labelling
machine
Before using your machine, check that the package contains the following:
P-touch Labelling Keyboard LCD unit
machine
Product Safety Guide Quick Setup Guide
Power supply cord
Coin cell battery
Printed in China
LAJ237001
D800W
English
Keyboard LCD unit
cable
AC adapter
USB cable Tape cassette
General Description
Front
1
2
Back
1 Handle
2 Cover open button
3 Top cover
4 Tape exit slot
5 (Label) indicator
6 (Battery) indicator
7 (Power) button
8 (Feed and Cut) button
Inside
1
2
1 Accessory storage
compartment
Use this space to store TZe tape
cassettes and the AC adapter.
Attaching the Keyboard LCD Unit
1.
Slide the cover on the bottom of the keyboard LCD unit to remove it, and
then connect the keyboard LCD unit cable.
Install the cover.
3
5
4
6
7
8
9
10
14
13
12
11
9 (Wi-Fi) button
10 Keyboard LCD unit
11 Keyboard LCD unit interface
socket
12 Cable holder (holder for the
keyboard LCD unit cable)
13 USB port
14 AC adapter socket
3
4
5
6
2 Coin cell battery holder
3 Tape cassette compartment
4 Print head
5 Tape cutter unit
6 Tape exit slot
