Wiring Diagram - IKEA DATID Installation Instructions And Use & Care Manual

Junction Box
L N
GND
Junction Box
Chassis
YL
YL

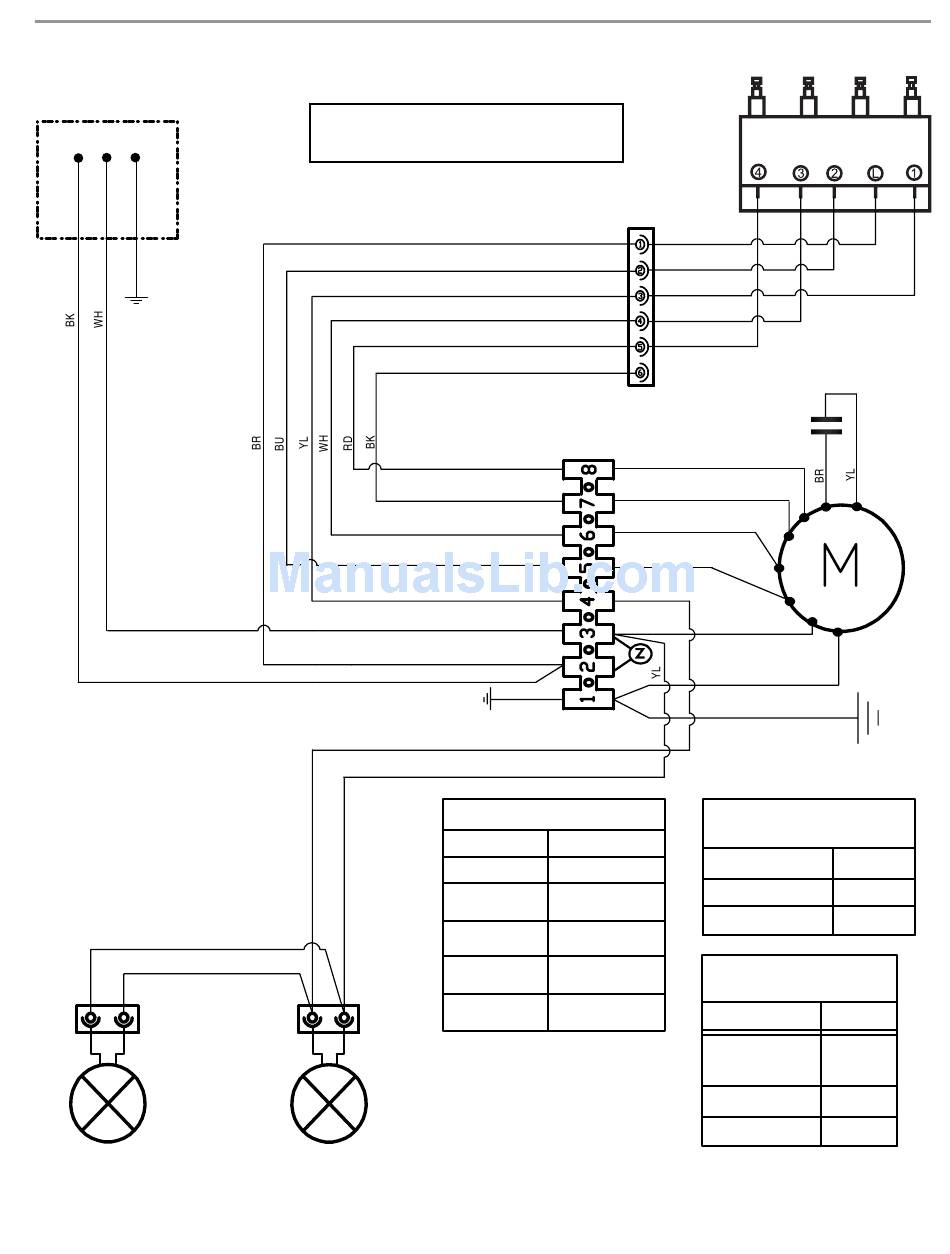

WIRING DIAGRAM

SEL0112656
SWITCH OPERATION
POSITION
Off
Lamps
Low Speed
Med Speed
High Speed
BR BR (Line)
YL (Min. V)
BU
GY (Lamps)
YL
RD (Med. V)
WH
BK (Max. V)
RD
BK
BK
RD
BK GY
RD
WH
BU WH
YL
YL
WH
BU
BR
BK
YL-GY
Electric Box
Chassis
FUNCTION
No Connection
Brown - Gray
(L - 1)
Brown - Yellow
(L - 2)
Brown - Red
(L - 3)
Brown - Black
(L - 4)
Mechanical Push Buttons
(4 buttons 3 speeds)
12.5 uF
Max. V
High V
Med. V
Min. V
S40
Common
YL-GY
YL-GY
Motor
Chassis
MOTOR
CHARACTERISTICS
Power Supply
120 VAC
Frequency 60 Hz
Power Absorption 240 Watts
MOTOR RESISTANCE
(Ohms)
Blue - Black
28.8
Blue - Gray 30.3
Blue - Red
37.7
Blue - White
45.1
Room Temp. 23°C
