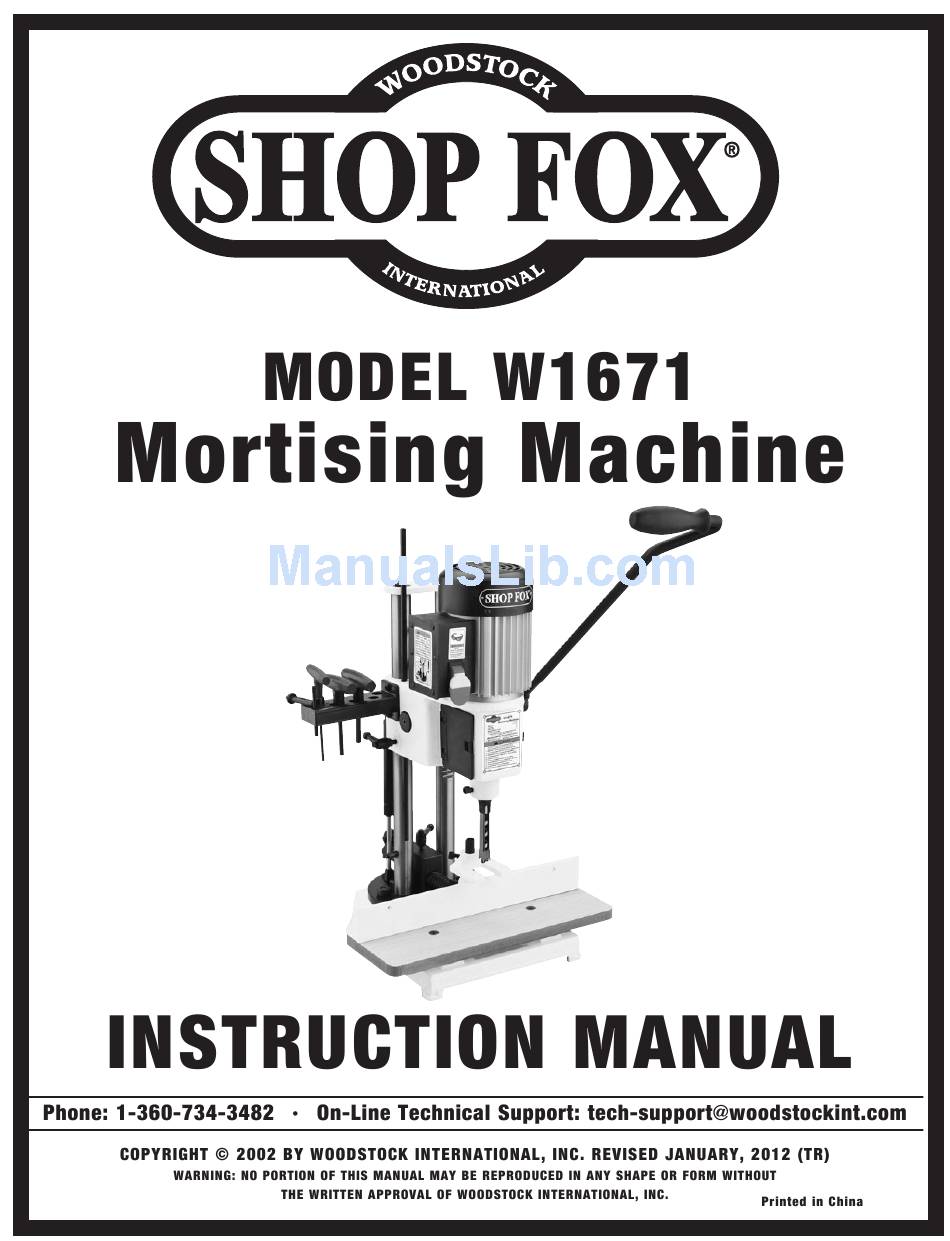

Summary of Contents for Shop fox W1671
- Page 18 The gas spring can be positioned in 1 of 3 loca- tions to allow clearance for different board thicknesses or to mortise a board on edge. To determine which setting to use, look at the chart in and find the board thickness that most closely fits your workpiece.
- Page 27 REF PART # DESCRIPTION REF PART # DESCRIPTION X1671001B MOTOR X1671043 HEX BOLT M10-1.5 X 25 X1671002B CHUCK JT MOUNT X1671044 FLAT WASHER 9⁄16" X1671003 CHUCK KEY X1671045 CAP SCREW M10-1.5 X 25 X1671004 HEAD CASTING X1671046 LOCK WASHER 8MM X1671005 LABEL X1671047...
