Page 1: Operation Guide

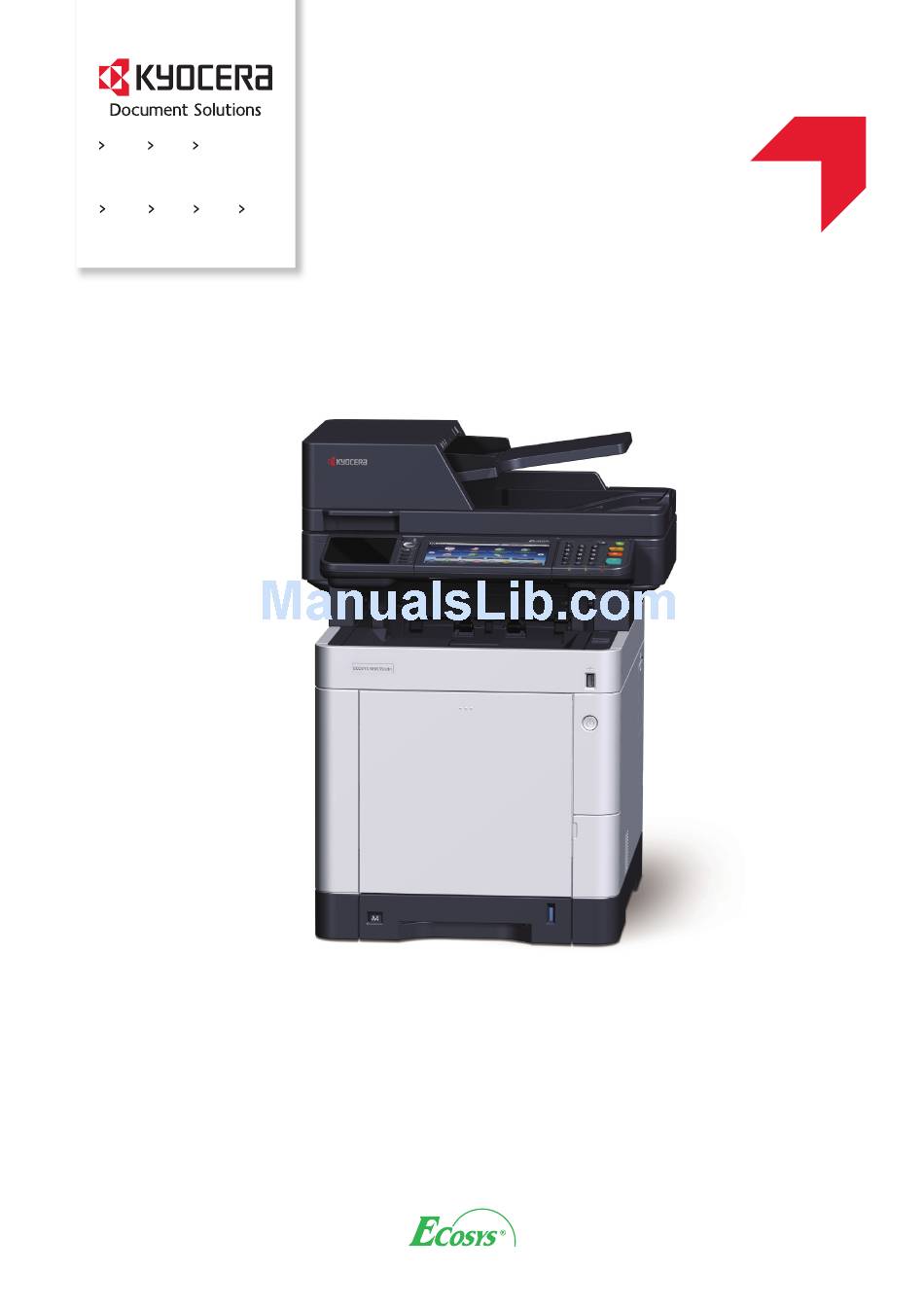

PRINT COPY SCAN ECOSYS M6035cidn OPERATION GUIDE PRINT COPY SCAN ECOSYS M6535cidn... -
Page 2: Table Of Contents
Preparation before Use This chapter explains the following operations. Loading Paper ..............................3-2 Precaution for Loading Paper ........................3-3 Loading in the Cassettes ......................... 3-4 Loading Paper in the Multi Purpose Tray ....................3-7 Specifying Paper Size and Media Type ....................3-10 Paper Stopper .............................. -
Page 3: Loading Paper
Preparation before Use > Loading Paper Loading Paper Load paper in the cassettes and multipurpose tray. For the paper load methods for each cassette, refer to the page below. Name Page Cassette 1 page 3-4 Cassette 2 page 3-4 Cassette 3 page 3-4 Cassette 4 page 3-4... -
Page 4: Precaution For Loading Paper
Preparation before Use > Loading Paper Precaution for Loading Paper When you open a new package of paper, fan the sheets to separate them slightly prior to loading in the following steps. Fan the paper, then tap it on a level surface. In addition, note the following points. -
Page 5: Loading In The Cassettes
Preparation before Use > Loading Paper Loading in the Cassettes The cassettes can hold plain paper, recycled paper or color paper. The number of sheets that can be loaded in each cassette is shown below. Cassette No. Sheets Cassette 1 250 sheets (Plain paper: 80 g/m Cassette 2 to 4 500 sheets (Plain paper: 80 g/m... - Page 6 Preparation before Use > Loading Paper Adjust the paper length guide to the paper size required. Press the paper length adjusting tab and slide the guides to the paper size required. Turn the size dial so that the size of the paper you are going to use appears in the paper size window.
-
Page 7: Operation Panel
Preparation before Use > Loading Paper IMPORTANT • Load the paper with the print side facing up. • After removing new paper from its packaging, fan the paper before loading it in the multi-purpose tray. Precaution for Loading Paper (page 3-3) •... -
Page 8: Loading Paper In The Multi Purpose Tray
Preparation before Use > Loading Paper Loading Paper in the Multi Purpose Tray The multi purpose tray will hold up to 100 sheets of plain paper (80 g/m For details of the supported paper sizes, refer to the following: Choosing the Appropriate Paper (page 11-15) For the paper type setting, refer to the following: Media Type Setting (page 8-14) Be sure to use the multi purpose tray when you print on any special paper. -
Page 9: The Operation Panel
Preparation before Use > Loading Paper Adjust the multi purpose tray size. Paper sizes are marked on the multi purpose tray. Load paper. Insert the paper along the paper width guides into the tray until it stops. After removing new paper from its packaging, fan the paper before loading it in the multi purpose tray. - Page 10 Preparation before Use > Loading Paper When you load envelopes or cardstock in the multi purpose tray Load the paper with the print side facing up. For the procedure for printing, refer to the following: Printer Driver User Guide Example: When printing the address. Open the flap Close the flap.
-
Page 11: Specifying Paper Size And Media Type
Preparation before Use > Loading Paper Specifying Paper Size and Media Type The default paper size setting for cassette 1, for the multi purpose tray and for the optional paper feeder (cassettes 2 to 4) is "A4" or "Letter", and the default media type setting is "Plain". To change the type of paper to be used in cassettes, specify the paper size and media type setting. - Page 12 Preparation before Use > Loading Paper Paper Size and Media Type for the Multi Purpose Tray (MP Tray Setting) Specify the paper size and media type of paper to be used in the multi purpose tray. Item Description Paper Size Metric Select from the Metric standard sizes.
-
Page 13: Paper Stopper
Preparation before Use > Paper Stopper Paper Stopper When using paper large than A4/Letter, open the paper stopper shown in the figure. 3-12... -
Page 14: Preparation For Sending A Document To A Shared Folder In A Pc
Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Preparation for Sending a Document to a Shared Folder in a PC Check the information that needs to be set on the machine and create a folder to receive the document on your computer. -
Page 15: Making A Note Of The User Name And Domain Name
Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Making a note of the user name and domain name Check the domain name and user name for logging onto Windows. Display the screen. From [Start] button on the Windows, select [All Programs] (or [Programs]), [Accessories] and then [Command Prompt]. -
Page 16: Creating A Shared Folder, Making A Note Of A Shared Folder
Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Creating a Shared Folder, Making a Note of a Shared Folder Create a shared folder to receive the document in the destination computer. NOTE If there is a workgroup in System Properties, configure the settings below to limit folder access to a specific user or group. - Page 17 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Right-click the "scannerdata" folder and click [Share] and [Advanced sharing]. Click the [Advanced Sharing] button. 1 Make sure that the [Sharing] tab is selected. In Windows XP, right-click the "scannerdata"...
- Page 18 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Specify the location. 1 If the computer name that you made a note of on page Making a note of the computer name and full computer name on page 3-13 is the same as the domain name: If the computer name is not shown in "From this location", click the [Locations] button,...
- Page 19 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Check the details set in the [Security] tab. 1 Select the [Security] tab. 2 Select the user you entered. If the user does not appear on "Group or user names", click [Edit] button to add user in a similar way of step 2 (Configure permission...
-
Page 20: Configuring Windows Firewall
Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Configuring Windows Firewall Permit sharing of files and printers and set the port used for SMB transmission. NOTE Log on to Windows with administrator privileges. Check file and printer sharing. - Page 21 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Select [Advanced settings]. Select [Inbound Rules]. Select [New Rules]. Select [Port]. 3-20...
- Page 22 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Select [TCP] as the port to apply the rule to. Then select [Specific local ports] and enter "445" then click [Next]. Select [Allow the connection] and click the [Next] button. Make sure all checkboxes are selected and click the [Next] button.
- Page 23 Preparation before Use > Preparation for Sending a Document to a Shared Folder in a PC Enter "Scan to SMB" in "Name" and click [Finish]. In Windows XP or Windows Vista In Windows XP, from [Start] button on the Windows, select [Control Panel], and then [Windows Firewall].
-
Page 24: Registering Destinations In The Address Book
Preparation before Use > Registering Destinations in the Address Book Registering Destinations in the Address Book Save frequently used destinations to the Address Book or One Touch Keys. The saved destinations can be changed. The destinations are available for Send as E-mail, Send to Folder, and Fax Transmission (Only on products with the fax function installed). - Page 25 Preparation before Use > Registering Destinations in the Address Book The Folder (SMB) Address [SMB] > [Host Name], [Path], [Port], [Login User Name] and [Login Password] > [OK] NOTE For the computer name, share name, domain name, and user name, enter the information that you noted when you created the shared folder.
- Page 26 Preparation before Use > Registering Destinations in the Address Book The Folder (FTP) Address [FTP] > [Host Name], [Path], [Port], [Login User Name] and [Login Password] > [OK] The table below explains the items to be entered. Max. No. of Item Descriptions Characters...
- Page 27 Preparation before Use > Registering Destinations in the Address Book Group (Up to 50) Compile two or more contacts into a group. Designations in the group can be added at the same time. NOTE To add a group, you need individually added destinations. Register one or more individual destinations as needed before proceeding.
-
Page 28: Editing And Deleting Address Book Entries
Preparation before Use > Registering Destinations in the Address Book Editing and Deleting Address Book Entries Edit and delete the destinations (contacts) you added to the Address Book. Display the screen. [System Menu/Counter] key > [Address Book/One Touch] > [Address Book] Edit or delete the destination. -
Page 29: Adding A Destination On One Touch Key (One Touch Key)
Preparation before Use > Registering Destinations in the Address Book Adding a Destination on One Touch Key (One Touch Key) Assign a new destination (contact or group) to an one touch key. A maximum of 100 destinations can be registered. NOTE •... -
Page 30: Editing And Deleting One Touch Key
Preparation before Use > Registering Destinations in the Address Book Editing and Deleting One Touch Key Edit and delete the destinations you added to One Touch Key. Display the screen. [System Menu/Counter] key > [Address Book/One Touch] > [One Touch Key] Select a One Touch Key number (001 to 100) to edit.
