NTP #:411-1333-923

Draft 01.03 November 2000

The CTR 28-08 MMIC (NTVG16BH) outdoor transceiver is a customer premise

transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx)

frequency bands. It is a Nortel Networks Reunion product that operates in con-

junction with base station products, as well as customer premise products. It is

compatible with Reunion's Release 1.2, 1.3 and 1.4 equipment.

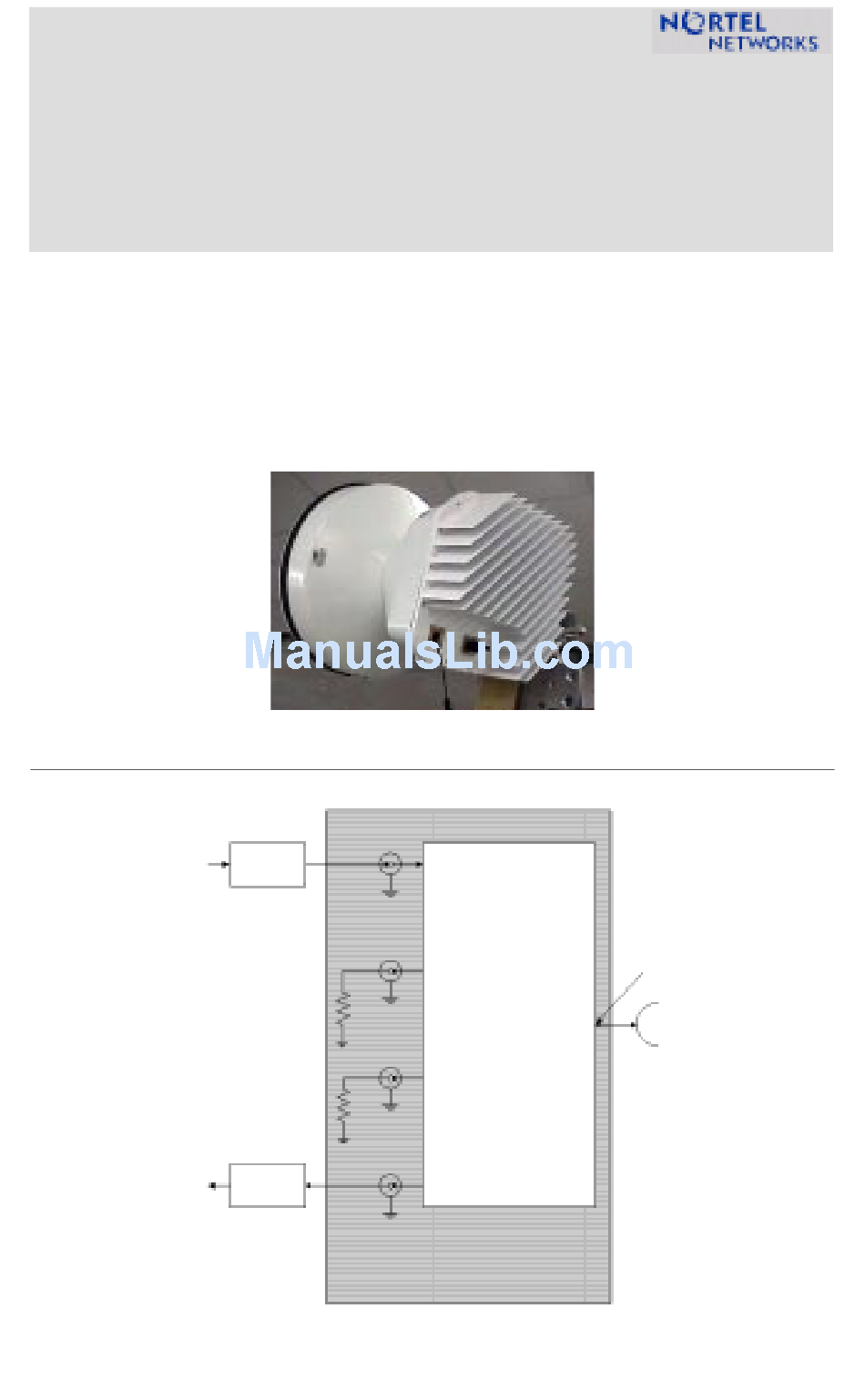

Figure 1: CTR 28M Block Diagram

CTR 28-08 GHz MMIC

Quick Reference Guide

Tx IF/DC Input

Lightning

Tx IF Input

Protector

Test Port

Rx IF

Output

Test Port

Rx IF Output

Lightning

Protector

CTR 28M Transceiver

Transceiver

Radio

Tx RF Output

Rx RF Input

Page 1: Quick Reference Guide
The CTR 28-08 MMIC (NTVG16BH) outdoor transceiver is a customer premise transceiver designed to operate in various Receiver (Rx) and Transmitter (Tx) frequency bands. It is a Nortel Networks Reunion product that operates in con- junction with base station products, as well as customer premise products. It is compatible with Reunion’s Release 1.2, 1.3 and 1.4 equipment.
Page 2 CTR 28-08 MMIC Specification Table 1: CTR 28-08M Technical Specifications IF Input RF Output Frequency Range 28-08M 500-650 MHz 27.85-28.00 GHz ≥ Output Level (P1 dB) 23 dBm, -40° to +55° C Output Level (IP3) > +31 dBm Input Impedance 50 Ohms Input/Output Connector N-Type Female...
Page 3 ETS 300 019 class 4.1 1120W/m , 50°C max. Mechanical Size (Length x Height x Width) 14" x 14" x 11" (35.6 x 35.6 x 27.9 cm) Weight without brackets 25 lbs. (11.41 KG) CTR 28-08 GHz MMIC Quick Reference Guide...
Page 4 Nortel Networks Broadband Wireless Access (BWA) provides 24-hour customer service and technical support to ensure your service operation is trouble-free. If you have questions or need technical support, contact Nortel Networks Broadband Wireless Access at the following telephone numbers: • In the USA and Canada, call 972-BWA-ETAS/972-292-3827 Information is subject to change without notice.
