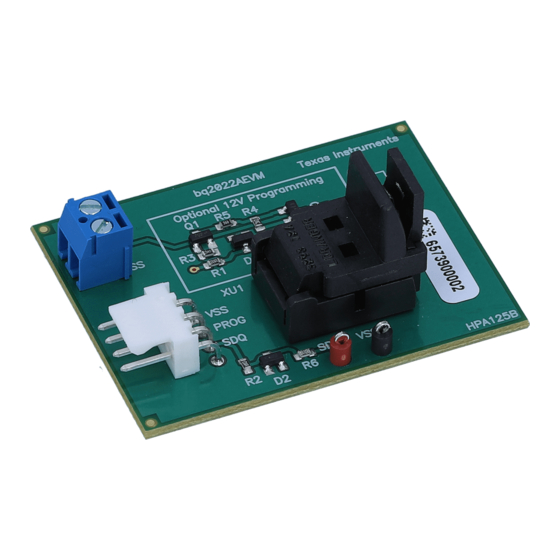

The bq2022A is a 1 K-bit serial EPROM containing a factory-programmed, unique 48-bit identification
number, 8-bit CRC generation, and an 8-bit family code. A 64-bit status register controls write protection
and page redirection.
The purpose of the evaluation software is to demonstrate the functionality of the bq2022A. The bq2022A
evaluation board can be used for one or two ICs.
The bq2022A is ideal for applications such as battery pack configuration parameters, record maintenance,
asset tracking, product revision status, and access-code security.
...................................................................................................................
1
2
3
4
5
bq2022A Circuit Module List of Materials
6
bq2022AEVM Circuit Module Performance Specification Summary
7
EVM Hardware and Software Setup
8
Software Operation
1
EVM Schematic
...................................................................................................................
2
3
4
5
6
ROM CMD Page
.................................................................................................................
7
DATA Page
....................................................................................................................
1
Test Points
2
List of Materials
3
4
Trademarks
Microsoft, Windows are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners.
SLUU258B - November 2007 - Revised July 2017
Submit Documentation Feedback
............................................................................................
.......................................................................................
...........................................................................................
.................................................................................
......................................................................................
........................................................................................................
List of Figures
..............................................................................................................
.........................................................................................................
..............................................................................................................
..............................................................................................................
...........................................................................................................
..............................................................................................................
.....................................................................................
.............................................................................................................
Copyright © 2007-2017, Texas Instruments Incorporated
SLUU258B - November 2007 - Revised July 2017
bq2022A Evaluation Software
Contents
..................................................
List of Tables
User's Guide
bq2022A Evaluation Software
2
2
3
4
8
8
8
10
3
4
5
6
7
11
12
2
8
8
9
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments bq2022A
Summary of Contents for Texas Instruments bq2022A
-
Page 1: Table Of Contents
8-bit CRC generation, and an 8-bit family code. A 64-bit status register controls write protection and page redirection. The purpose of the evaluation software is to demonstrate the functionality of the bq2022A. The bq2022A evaluation board can be used for one or two ICs. -
Page 2: Kit Contents
IC. The circuit module includes a 3-pin SOT23 dual socket, a bq2022A IC, a Zener diode for host protection during EPROM programming, and a programming circuit that generates a 12-V pulse when used with a power supply and a control signal. In a typical application, only the bq2022A IC and a pullup resistor is required. -
Page 3: Bq2022A Circuit Module Schematic
Circuit Module Schematic www.ti.com bq2022A Circuit Module Schematic The schematic shows the circuit for the bq2022AEVM implementation. Figure 1. EVM Schematic SLUU258B – November 2007 – Revised July 2017 bq2022A Evaluation Software Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated... -
Page 4: Circuit Module Physical Layouts
Circuit Module Physical Layouts This section contains the board layout and assembly drawings for the bq2022AEVM circuit module. Figure 2. Silk Screen bq2022A Evaluation Software SLUU258B – November 2007 – Revised July 2017 Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated... -
Page 5: Evm Top Assembly
Circuit Module Physical Layouts www.ti.com Figure 3. EVM Top Assembly SLUU258B – November 2007 – Revised July 2017 bq2022A Evaluation Software Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated... -
Page 6: Evm Layer One
Circuit Module Physical Layouts www.ti.com Figure 4. EVM Layer One bq2022A Evaluation Software SLUU258B – November 2007 – Revised July 2017 Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated... -
Page 7: Evm Layer Two
Circuit Module Physical Layouts www.ti.com Figure 5. EVM Layer Two SLUU258B – November 2007 – Revised July 2017 bq2022A Evaluation Software Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated... -
Page 8: Performance Specification Summary
This section describes how to install the bq2022AEVM PC software, and how to connect the different components of the EVM. Use the following steps to install the bq2022A evaluation software: 1. Insert the CD ROM into a CD ROM drive. -
Page 9: Wire Connection
To program EPROM registers, a 12-V pulse must be sent across the SDQ line after sending the code 0x5A during a write command. See the bq2022A data sheet (SLUS724) for a specific description of EPROM programming requirements. When programming EPROM registers, the following must be ensured: •... - Page 10 Sections Within the ROM CMD Page Application — This section determines the number of bq2022A devices that are on the SDQ bus. If only one device is used, then select Single Device. This option sends the SKIP ROM command before any communication attempt is made with the device.
- Page 11 Once the file is opened, the grid is filled in with the values contained in the data file. Click on the Write Memory button so that the values are programmed into the EPROM. SLUU258B – November 2007 – Revised July 2017 bq2022A Evaluation Software Submit Documentation Feedback Copyright © 2007–2017, Texas Instruments Incorporated...
- Page 12 8.3.2 Status Bytes This section allows the user to read or write the EPROM Status bytes of the bq2022A. The registers are programmed by clicking on the appropriate grid, entering the desired value, and pressing ENTER. Buttons are provided for the user to select specific pages for write protection. By selecting any of the Write Protection Bits button, register 0x00 of status registers is written automatically so that the corresponding bit is cleared.
