Poulan Pro 545014364 Parts List

PARTS LIST NO.
545014364
DATE
Replaces
2/10/09
545014364 --- 6/06/08
19
20
DANGER
STAND
CLEAR
50 FT
WARNING
All repairs, adjustments and
maintenance not described in
the Operator's Manual must be
performed by qualified service
personnel.
Ref. Part No. Description
1. 530015886 Screw
2. 530057983 Hsg.--Throttle right
3. 530016326 Screw--Cable Ret.
4. 530057984 Hsg.--Throttle left
5. 530058843 Assy--Wire
6. 530069572 Kit--Switch
7. 530059101 Assy--Handle
(Incl. 8,9,15)
8. 530059185 Clamp--Handle
9. 530016152 Wingnut
10. 530015805 Screw--Align
=
n NEW PART NUMBER FOR THIS IPL
PARAMOUNT

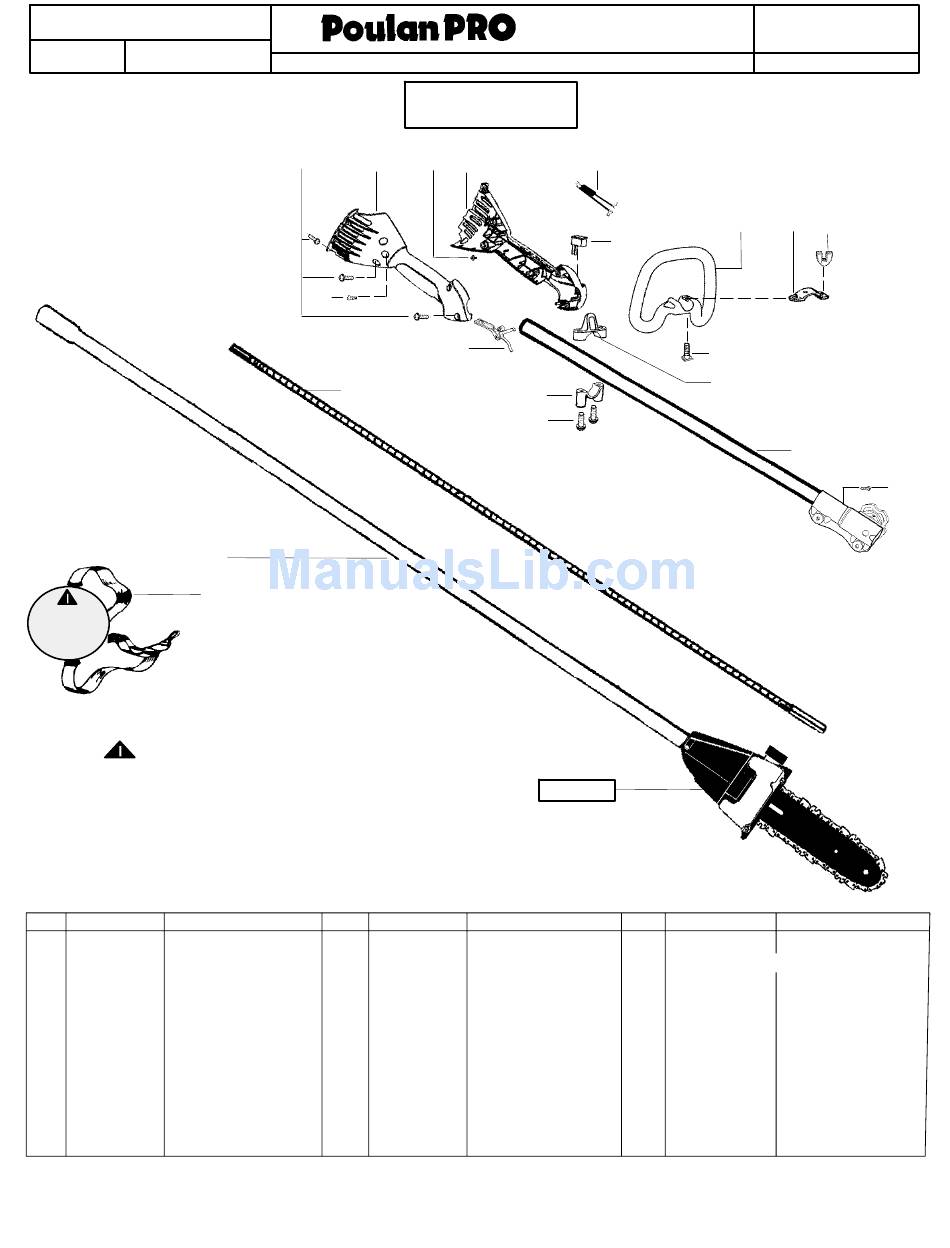

Note: Illustration may differ from actual model due to design changes
TYPE 1,2
1
2 3
4
10
11
12
Ref. Part No.
11 530058759 Trigger--Throttle
12. 530056570 Flex--Lower
13. 530057987 Clamp--Lower
14. 530015940 Screw
15. 530015820 Bolt
16. 530057986 Clamp--Upper
17. 530071936 Kit--Upper Shaft
18. 530016344 Screw
19. 545008090 Assy--Driveshaft
n
20. 530094408 Assy--Shoulder
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
R R
PARTS LIST
r
PARTS LIST
5
6
13
14
See Page 2
Description Ref.
n
n
Strap
MODEL(s)
PP446ET
PAGE NO.
8
7
9
15
16
17
Part No. Description
Not Shown
545186747 Manual
545003066 Decal--Warning
530150031 Att. -- Hanger
545167703 Decal--Upper Shaft
530031159 Wrench--Hex(5/32)
1
18
