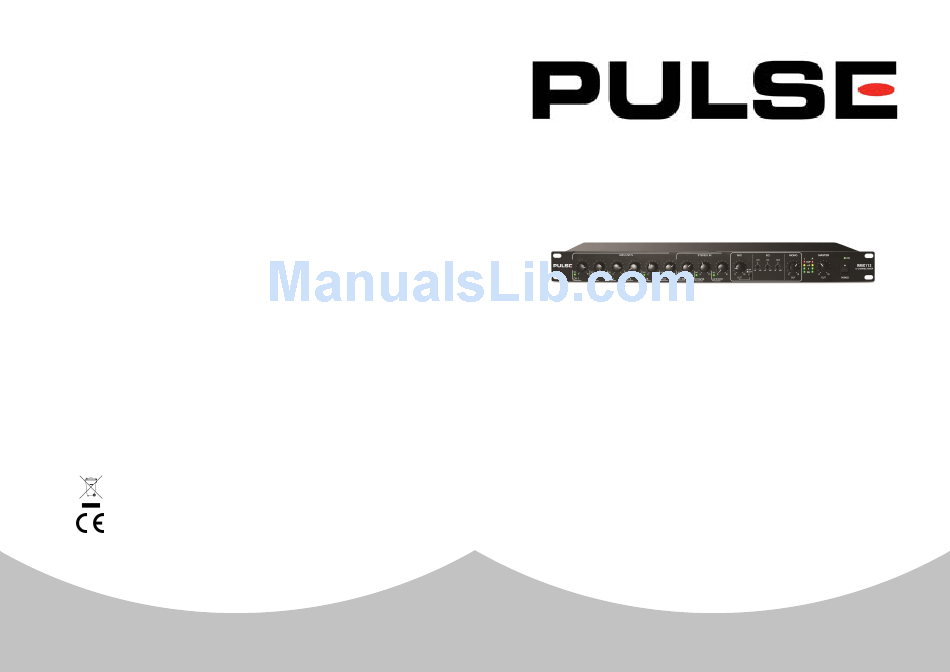

12 CHANNEL LINE MIXER
Model: RMX112
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &
ELECTRONIC EQUIPMENT. When this product has reached the end of its life it
must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE
marked products must not be mixed with general household waste, but kept
separate for the treatment, recovery and recycling of the materials used. Contact
your local authority for details of recycling schemes in your area.
Advertisement
Related Manuals for Pulse RMX112
Summary of Contents for Pulse RMX112
- Page 1 12 CHANNEL LINE MIXER Model: RMX112 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
-
Page 2: Table Of Contents
12 CHANNEL LINE MIXER TROUBLESHOOTING CONTENTS Symptom Likely Cause What to do SAFETY RELATED SYMBOLS Speaker not connected to Verify that the speaker is connected and that the circuit is on. active AC power No sound WARNING Power not switched on Switch on the power and verify that the power LED is on. -
Page 3: Safety Related Symbols
12 CHANNEL LINE MIXER SAFETY RELATED SYMBOLS Unplug this apparatus during lightning storms or when unused for long periods of time. Microphone Input 1.4k Ohms CAUTION RISK OF ELECTRIC SHOCK External Connection All Other Input 10k Ohms or greater DO NOT OPEN Impedance The external wiring connected to the All Other Outputs... -
Page 4: Important Safety Information
12 CHANNEL LINE MIXER TECHNICAL SPECIFICATIONS Don't use any chemicals, abrasives or solvents this appliance in the immediate such as benzol, alcohol, or other fluids with very surroundings of a bath, a shower or a swimming strong volatility and flammability for cleaning the pool. -
Page 5: Introduction
PA installations. The RMX112 12 Channel Line Mixer is easy to operate, but we advise you to go through each section of this manual carefully in order to get the best out of the RMX112. - Page 6 Ring 4. EQUALIZER Sleeve The RMX112 is equipped with 3-band mid sweep EQ: LOW, MID & HIGH. - LOW This is the bass control. It is used to boost male voice, kick-drum or bass guitar. Your system will To Processor Output sound much bigger than what it is.
- Page 7 12 CHANNEL LINE MIXER Some Final Tips on Wiring Configuration -MID You can connect unbalanced equipment to balanced inputs and outputs. Simply follow these schematics. This is the midrange control. It provides -12dB to +12dB boost or cut with a centre frequency of 2.5kHz.
- Page 8 Application Example (2)..Lecture Hall/ Conference Room The RMX112 preamplifier can also operate using 24V DC power supply. When both the AC and DC source is connected, it shall operate using AC main, whereas the DC supply shall only be consumed whenever the former fails.
-
