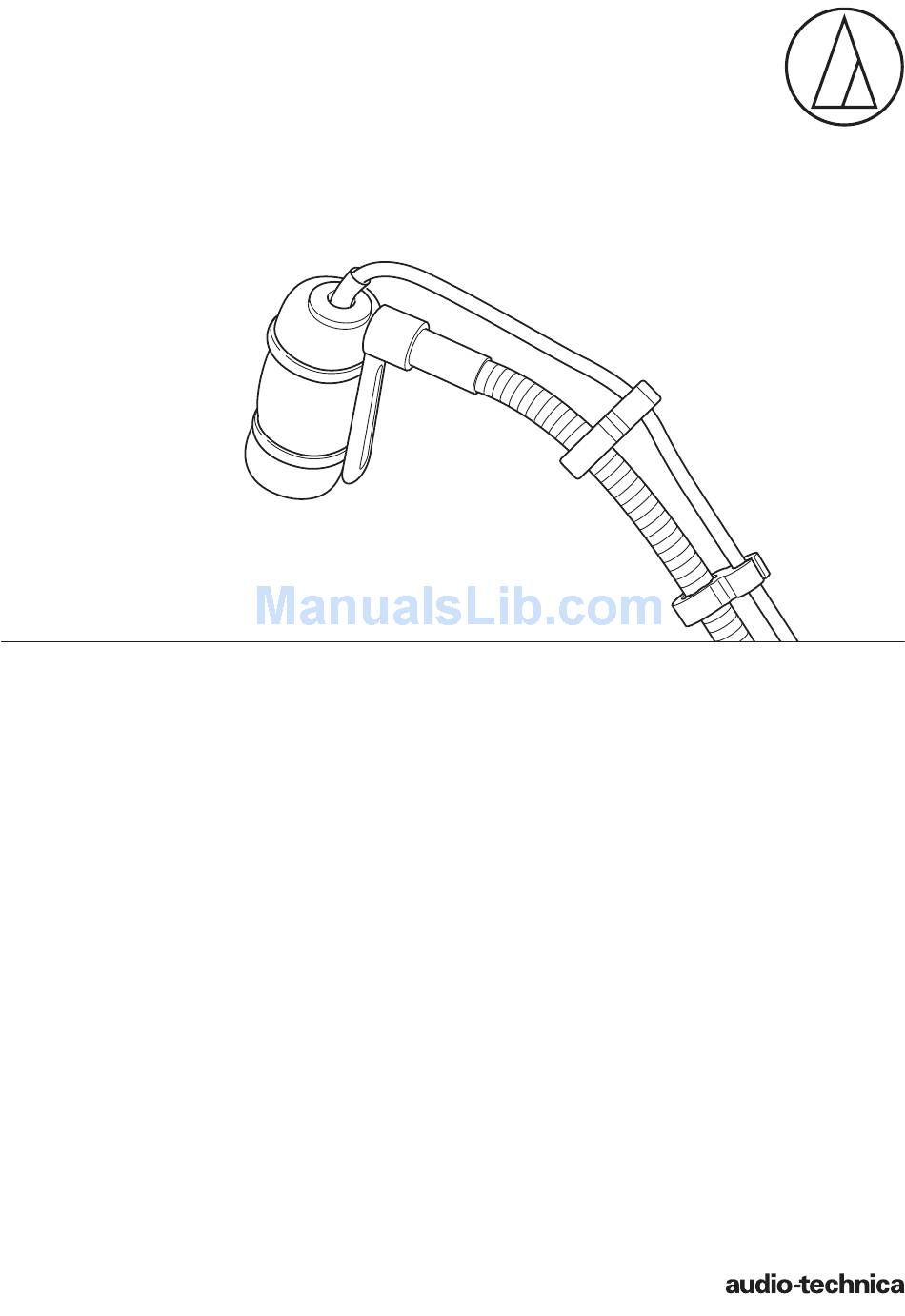

ATM350a
User Manual / Cardioid Condenser Instrument Microphone
Packages
ATM350U :
ATM350a, AT8490, AT8491U, AT8543, AT8468, hard shell carry case
ATM350UL :
ATM350a, AT8490L, AT8491U, AT8543, AT8468, hard shell carry case
ATM350PL :
ATM350a, AT8490L, AT8491P , AT8543, AT8468, hard shell carry case
ATM350W :
ATM350a, AT8490, AT8491W, AT8543, AT8468, hard shell carry case
ATM350D :
ATM350a, AT8490, AT8491D, AT8543, AT8468, hard shell carry case
ATM350UcW :
ATM350acW, AT8490, AT8491U, AT8468, hard shell carry case
Thank you for purchasing this product. Before using the product, read through the user manual to ensure that you
will use the product correctly. Please keep this manual for future reference.

Advertisement

loading

Related Manuals for Audio Technica ATM350a

Summary of Contents for Audio Technica ATM350a

  • Page 1 ATM350a, AT8490, AT8491U, AT8543, AT8468, hard shell carry case ATM350UL : ATM350a, AT8490L, AT8491U, AT8543, AT8468, hard shell carry case ATM350PL : ATM350a, AT8490L, AT8491P , AT8543, AT8468, hard shell carry case ATM350W : ATM350a, AT8490, AT8491W, AT8543, AT8468, hard shell carry case ATM350D :...
  • Page 2 ATM350a Description AT8490/AT8490L Description The ATM350a is a fixed-charge condenser microphone with a cardioid The AT8490/AT8490L flexible gooseneck permits aiming the microphone polar pattern. It is designed for use in professional live-sound and studio applications.

  • Page 3: Specifications

    Specifications Element Fixed-charge back plate, permanently polarized condenser Polar pattern Cardioid Frequency response 40 to 20,000 Hz Low frequency roll-o * 80 Hz, 12 dB/octave Open circuit sensitivity -49 dB (3.5mV) (0dB=1V/Pa, 1 kHz) Impedance 200 ohms Maximum input sound level 159 dB SPL (1 kHz THD 1%) Dynamic range 130 dB (1 kHz at Max SPL)

  • Page 4: Mounting The Microphone

    Mounting the microphone AT8490/AT8490L Gooseneck (standard/long) Fixing the gooseneck on the mounts The gooseneck can be fixed at every 90° angle. 1. Insert the gooseneck until it reaches the bottom of the hole on the mount. Firmly tighten the screw on the mount to secure it. 2.
  • Page 5 Setting the mounts on instruments AT8491W Woodwind mount Adjust the position of the microphone by rotating the top of the mount.
  • Page 6 Setting the mounts on instruments AT8491D Drum mount The top bolt rotates freely to allow tuning when the microphone is mounted.
  • Page 7 Setting the mounts on instruments AT8491P Piano mount The mount should be fixed on a metal surface. Keep mobile phones, analog clocks and magnetic cards etc. away from the magnet in the bottom of the mount to prevent content from being damaged or erased. AT8491U Universal clip-on mount...
  • Page 8 Setting the mounts on instruments AT8468 Violin mount Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan © 2017 Audio-Technica Corporation Global Support Contact: www.at-globalsupport.com MADE IN JAPAN ver.1 2016.04.15 142315290-01-02 ver.2 2017.09.15 0305-0862-00-EN...
