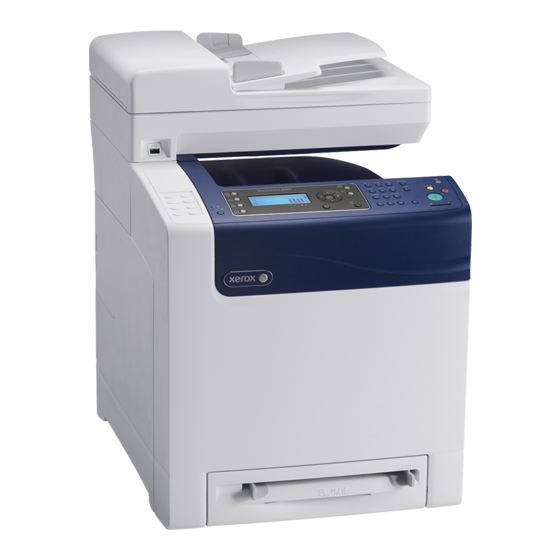

Xerox WorkCentre 6505
Color Multifunction Printer
Xerox WorkCentre 6505
® ®
Installation Guide
4
Remove Packing Material
EN
4.1
4.3
6
Choose Printer Connection
USB
A/B USB
1
Windows users, follow Product Setup
EN
1.1 1.2
Pull
4.2
8X
When connected using USB you can:
• Scan an image to a folder on the
computer.
• Scan an image from the
computer.
Xerox ® WorkCentre ® 6505 2
Choose Location
Software and Documentation Software and Documentation
EN
1 2 3
5
Load Paper Tray
EN
Ethernet
RJ-11 RG-6
Use Ethernet hub and
RJ-45
category 5 cables
3
Unpack Printer
EN
27.5 cm
(12.50 in.)
54.9 cm
(25.4 in.)
10.0 cm
(3.9 in.)
120.7 cm
(47.5 in.) 25.0 cm
60.0 cm
(9.8 in.)
(23.6 in.)
10.0 cm
(3.9 in.)
77.5 cm
(30.5 in.)
3.2
30 kg
66.1 lb.
5.1 5.2
5.3 5.4
When connected using Ethernet you can:
• Scan to a computer on the
network
• Scan to an FTP server
• Scan to email
3.1
3.3
5.5
7
