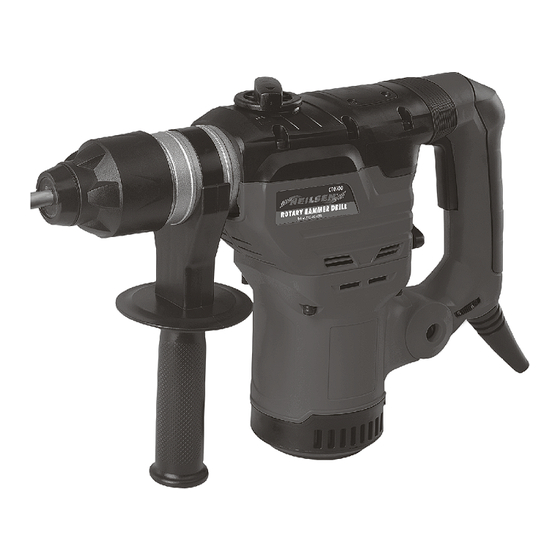

Rotary Hammer Drill Model CT0700 - CT0701
Ref no. Z1C-DS-32TS
INSTRUCTION MANUAL
CAUTION:
Before using this
electric drill or any of
its accessories, read
this manual and follow
all its Safety Rules and
.
Operating Instructions
SAVE THESE INSTRUCTIONS FOR REFERENCE
•
Safety
Instructions
•
Assembly
•
Operation
•
Maintenance
•
Parts List
Advertisement
Table of Contents
Related Manuals for Neilsen CT0700
Summary of Contents for Neilsen CT0700
- Page 1 Rotary Hammer Drill Model CT0700 - CT0701 Ref no. Z1C-DS-32TS INSTRUCTION MANUAL CAUTION: • Safety Before using this Instructions electric drill or any of • Assembly its accessories, read • Operation this manual and follow • Maintenance all its Safety Rules and •...
-
Page 2: Table Of Contents
Declare that the design and construction of the following machine, in the form supplied by us, comply with the requirements of the appropriate EC directives. Product description: 230V ROTARY HAMMER DRILL Model: CT0700 Ref no. Z1C-DS-32TS 110V ROTARY HAMMER DRILL Model: CT0701 Ref no. -
Page 3: Product Specifications
SPECIFICATIONS DRILL CT0700 230v 50Hz SDS Chuck………………. SDS fitting Voltage 230v 50Hz No Load Speed …………. 0-850 rpm No. of strokes, 0-4200Bpm under load Input power 1200 w Drilling capacity in Steel mm Wood mm Weight kg Level of sound pressure... -
Page 4: Power Tool Safety
POWER TOOL SAFETY GENERAL SAFETY RULES When operating a power tool outdoors, use an extension cord suitable for WARNING outdoor use. Use of a cord suitable for Read all instructions Failure to follow all outdoor use reduces the risk of electric shock instructions listed below may result in electric PERSONAL SAFETY shock, fire and/or serious injury. - Page 5 POWER TOOL SAFETY POWER TOOL USE AND CARE SERVICE Do not force the power tool. Use the Tool service must be performed only by correct power tool for your application. qualified personnel. Service or maintenance The correct power tool will do the job better performed by unqualified personnel could result in and safer at the rate for which it was risk of injury.
-
Page 6: Drill Safety
POWER TOOL SAFETY SPECIFIC SAFETY RULES – cont’d kilograms bars TO AVOID INJURY from accidental pascals starting, always remove the Plug from Hours the electrical socket before installing or minutes removing a drill bit, saw blade, sandpaper, accessory or attachment. seconds No load speed DRILL SAFETY... -
Page 7: Know Your Electric Drill
KNOW YOUR ELECTRIC DRILL Hammer/drill switch SDS Chuck Trigger Handle Drill switch Model 0700 230v cable Model 0701 110v cable Variable speed dial Motor Housing... -
Page 8: Accessories
ACCESSORIES & CARTON CONTENTS AVAILABLE ACCESSORIES CARTON CONTENTS – cont’d WARNING Drill no CT0700/0701 DESCRIPTION Use only accessories recommended for Rotary Hammer Drill this Rotary hammer drill. Follow instructions that accompany accessories. SDS Chisels Use of improper accessories may cause injury to the operator or damage to the cordless drill. - Page 9 CARTON CONTENTS Model 0700 CT0701 Shown...
-
Page 10: Assembly & Operation
ASSEMBLY & OPERATION Fitting a drill bit, chisel bit and keyed WARNING chuck into the SDS housing. The bits have slots in the shank; these locate Always make sure the power tool is with tabs in the drill. Grip and pull back the isolated from the power supply before black shrouding see (Fig 3) and insert the bit fitting any attachment... - Page 11 ASSEMBLY & OPERATION Hammer action for drilling masonry To use the drill for wood and metal Inserting drill bit see (fig 3) when using a Insert the drill into the chuck and tighten and masonry drill for impact drilling hammer turn the large dial on top of the drill to the left action, turn the large dial on the top of the hammer and drill symbol...
- Page 12 ASSEMBLY & OPERATION NOTE: Drilling at a slow drilling speed for The work piece to be drilled should be an extended period of time may cause the secured in a vise or with clamps to keep it drill motor to overheat. If the drill gets hot, from turning as the drill bit rotates (see fig 11) stop drilling and allow it to cool for at least 15 minutes.
-
Page 13: Maintenance
ASSEMBLY & OPERATION MAINTENANCE GENERAL When drilling metals, use light oil on the drill WARNING bit to keep it from overheating. The oil will prolong the life of the drill bit and improve the When servicing, use only identical drill cutting action. If the bit jams in the replacement parts. -
Page 14: Drawing And Parts List
PARTS DIAGRAM... - Page 15 PARTS LIST WARNING When servicing, use only identical replacement parts. Use of any other parts may create a HAZARD or cause damage to your power tool. Any attempt to repair or replace electrical parts on this power tool may create a hazard unless repair is performed by a qualified technician.
