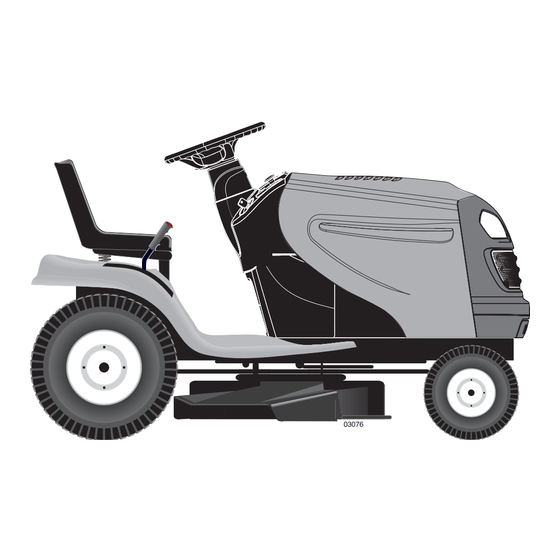

IMPORTANT MANUAL OPERATOR'S MANUAL MODEL: PB19546LT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 413437 Rev 3 09.26.08 SBW Do Not Throw Away 03076 WARNING: Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so can re sult in serious in ju ry.
Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac ci - den tal starting when setting up, trans- port ing, ad just ing or making repairs, al ways dis con nect spark plug wire...
Page 3
Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier.
Page 7
INSTALL SEAT (See Figs. 2 and 3) • Remove bolt and flat washer se cur ing seat to cardboard packing and set aside for as sem bly of seat to tractor. Remove the cardboard packing and discard. • Connect switch to seat. •...
Page 8
CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown on tires. CHECK DECK LEVELNESS For best cutting results, mower housing should be properly leveled.
These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL REVERSE ENGINE ON ENGINE OFF OPERATION SYSTEM (ROS) OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED LIGHTS ON FREE WHEEL...
Page 10
KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. THROTTLE/CHOKE THROTTLE/CHOKE CONTROL CONTROL...
Page 11
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spec- tacles or stan dard safety glasses.
Page 12
FIG. 9 • Start tractor with clutch/brake pedal depressed and gearshift lever in neutral position. • Move gearshift lever to desired po si tion. • Slowly release clutch/brake pedal to start ment. IMPORTANT: Bring tractor to a complete stop before shifting or changing gears.
TO OPERATE MOWER Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to prevent the engine from hesitat- ing or cutting off when operating your equipment on rough, rolling terrain or hills.
TO START ENGINE (See Fig. 5) When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine. • Sit on seat in operating position, depress clutch/brake pedal and set parking brake.
TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. TIRES •...
TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to “leak” power. • Disconnect BLACK battery cable first then RED bat- tery cable and remove battery from tractor. • Rinse the battery with plain water and dry. •...
Page 18
IN-LINE FUEL FILTER (See Fig. 20) The fuel filter should be replaced once each season. If fuel filter becomes clogged, ob struct ing fuel flow to car bu re tor, re place ment is re quired. • With engine cool, remove filter and plug fuel line sec- tions.
SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUST- MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •...
SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO CHASSIS - Position hole in arm over pin (B) on outside of tractor chassis and secure with retainer spring. • Repeat on opposite side of tractor. FIG. 22 • ATTACH REAR LIFT LINKS (C) - Lift rear corner of mower and position slot in link assembly over pin (D) on rear mower bracket and secure with washer and...
Page 21
SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.
SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 31) The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake. BELT REMOVAL - • Remove mower from tractor (See “TO REMOVE MOW ER”...
Page 23
SERVICE AND ADJUSTMENTS • Loosen adjustment bolt in front of the right rear wheel. • Position the gear shift lever in the neutral position. • Tighten adjustment bolt securely. NOTE: If additional clearance is needed to get to ad just ment bolt, move mower deck height to the lowest position.
SERVICE AND ADJUSTMENTS • Lift seat pan to raised position. • Disconnect BLACK battery cable first then RED battery cable and carefully remove battery from tractor. • Install new battery with terminals in same position as old battery. • First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown.
Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark.
TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.
Page 27
TROUBLESHOOTING POINTS PROBLEM CAUSE Engine dies when Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade.
