IMPORTANT MANUAL
OPERATOR'S MANUAL
MODEL:
PB19546LT

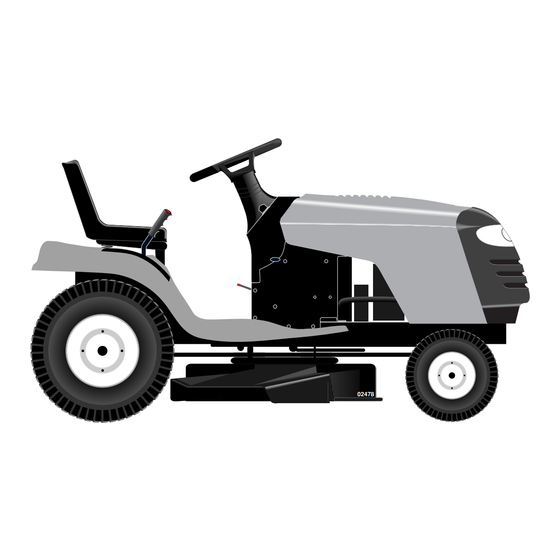

LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
411229 Rev. 6 04.28.08 SBW/TH
Do Not Throw Away
02478
WARNING:
Read this Man u al and follow all Warnings
and Safety Instructions. Fail ure to do so can
re sult in serious in ju ry.
Printed in the U.S.A.

Advertisement

Table of Contents
loading

Summary of Contents for Poulan Pro Poulan Pro 960 42 00-35

  • Page 1 IMPORTANT MANUAL OPERATOR'S MANUAL MODEL: PB19546LT LAWN TRACTOR ALWAYS WEAR EYE PROTECTION DURING OPERATION Visit our website: www.poulan-pro.com 411229 Rev. 6 04.28.08 SBW/TH Do Not Throw Away 02478 WARNING: Read this Man u al and follow all Warnings and Safety Instructions. Fail ure to do so can re sult in serious in ju ry.
  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac ci - den tal starting when setting up, trans- port ing, ad just ing or making repairs, al ways dis con nect spark plug wire...
  • Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...
  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS Gasoline Capacity 1.50 Gallons and Type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) Oil Capacity: W/Filter: W/O Filter: 48 oz. Spark Plug: Champion RC12YC (Gap: .030") Ground Speed (MPH): Forward: Reverse: Charging System: 3 Amps Battery 5 Amps Headlights Battery:...
  • Page 5: Contents Of Hardware Pack

    CONTENTS OF HARDWARE PACK (2) Keys (2) Keys Insert Steering Wheel Steering Steering Boot Boot Washer (1) Oil Drain Tube (1) Oil Drain Tube (1) Hex Bolt Steering Steering Extension Extension Shaft Shaft Lock Washer Steering Steering Extension Extension Shaft Shaft Steering Wheel Steering Wheel...
  • Page 6: Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier.
  • Page 7 • Push down on seat to engage pads in slots and pull seat towards rear of tractor. • Raise seat and tighten bolt securely. • Remove tape and discard. • Lower seat into operating position and sit on seat. Press clutch/brake pedal all the way down. If operating position is not comfortable, adjust seat.
  • Page 8: Assembly

    CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown on tires. CHECK DECK LEVELNESS For best cutting results, mower housing should be properly leveled.
  • Page 9: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. REVERSE NEUTRAL REVERSE ENGINE ON ENGINE OFF OPERATION SYSTEM (ROS) OIL PRESSURE FUEL OVER TEMP LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED LIGHTS ON FREE WHEEL...
  • Page 10 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. THROTTLE/CHOKE CONTROL PARKING BRAKE...
  • Page 11: How To Use Your Tractor

    The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.
  • Page 12 REVERSE OPERATION SYSTEM (ROS) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse direction with the attachment clutch engaged will shut off the engine unless ignition key is placed in the ROS "ON" position.
  • Page 13: Before Starting The Engine

    TO OPERATE ON HILLS WARNING: Do not drive up or down hills with slopes great er than 15° and do not drive across any slope. • Choose the slowest speed before starting up or down hills. • Avoid stopping or changing speed on hills. •...
  • Page 14 COLD WEATHER STARTING ( 50° F and below) • When engine starts, allow engine to run with the throttle control in the choke ( ) position until the engine runs roughly, then move throttle control to fast position. This may require an engine warm-up period from several seconds to several minutes, depending on the tem- per a ture.
  • Page 15: Maintenance Schedule

    MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check Mower Levelness Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) Clean Air Filter...
  • Page 16: Maintenance

    TRACTOR Always observe safety rules when per form ing any main- te nance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. (See “TO ADJUST BRAKE”...
  • Page 17 • Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground. If blade is balanced, it should remain in a horizontal position. If either end of the blade moves downward, sharpen the heavy end until the blade is balanced.
  • Page 18: Clean Air Screen

    CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine dam age from overheating. Clean with a wire brush or com pressed air to re move dirt and stubborn dried gum fibers. AIR FILTER Your engine will not run properly using a dirty air filter.
  • Page 19: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUST- MENTS: • Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. •...
  • Page 20 SERVICE AND ADJUSTMENTS FIG. 16 • ATTACH REAR LIFT LINKS (C) - Lift rear corner of mower and position slot in link assembly over pin (D) on rear mower bracket and secure with washer and retainer spring. FIG. 17 • ATTACH FRONT LINK (E) - Work from left side of trac- tor.
  • Page 21 SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.
  • Page 22: To Replace Motion Drive Belt

    SERVICE AND ADJUSTMENTS To Replace Mower Drive Belt (See Fig. 24) MOWER DRIVE BELT REMOVAL 1. Park tractor on a level surface. En gage parking brake. 2. Lower attachment lift lever to its lowest position. 4. Remove any dirt or grass clippings which may have accumulated around mandrels and entire upper deck surface.
  • Page 23 SERVICE AND ADJUSTMENTS TRANSAXLE GEAR SHIFT LEVER NEU TRAL- ADJUSTMENT (See Fig. 26) The transaxle should be in neutral when the gear shift lever is in neutral (N) (lock gate) position. The adjustment is preset at the factory; however, if adjustment is needed, proceed as follows: •...
  • Page 24: Interlocks And Relays

    SERVICE AND ADJUSTMENTS REPLACING BATTERY ( See Figs. 29 and 30 WARNING: Do not short battery ter mi nals by allowing a wrench or any other object to contact both terminals at the same time. Before connect- ing battery, remove metal bracelets, wristwatch bands, rings, etc.
  • Page 25: Storage

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark.
  • Page 26: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.
  • Page 27: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Engine dies when Reverse operation system tractor is shifted (ROS) is not "ON" while into reverse mower or other attachment is engaged. Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade.
  • Page 28: Repair Parts

    TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 PART DESCRIPTION 402015 Decal Oper 408834 Decal Eng. H.P . 186164 Decal Hood LH 408794 Decal Side Panel Logo 411174 Decal Lwr Dash 170563 Decal Warning, Keep Hand Away 411142 Decal Replacement Parts 172740...
  • Page 29 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 SCHEMATIC AMMETER (OPTIONAL) IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 B+A1 RUN/OVERRIDE B+A1 L+A2 START B + S + A1 BATTERY FUSE WHITE CLUTCH / BRAKE (PEDAL UP) BLACK BLACK GRAY REVERSE SWITCH...
  • Page 30 REPAIR PARTS TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 ELECTRICAL T02S With 12V Outlet Option With Service Minder Option...
  • Page 31 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 ELECTRICAL NOTE: All component dimensions given in U.S. inches PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20 unc x 3/4 193228 Box Battery 176138 Switch Interlock 183759 Harness Socket Light 4152J Bulb, Light # 1156...
  • Page 32 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 CHASSIS chassis-tex_52-elite sv pro_r1...
  • Page 33 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 CHASSIS PART DESCRIPTION 194263 Drawbar 197783X428 Dash 183393X428 Hood 183834X599 Lens Grille LH 183828 Grille 183835X599 Lens Grille RH 17060512 Screw 5/16-18 x 3/4 193218X428 Fender 17490508 Screw Thdrol 5/16-18 x 1/2 191611 Screw 10 x 3/4 Single Lead-Hex 184921...
  • Page 34 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 DRIVE 205 33...
  • Page 35 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 DRIVE PART DESCRIPTION - - - - - - Transaxle, Peerless 206-565 (See Transaxle Breakdown) 123583X Key Square 19131316 Washer 13/32 x 13/16 x 16 Ga. 197297 Spring, Brake 197660 Rod Shift 409154x421...
  • Page 36 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 ENGINE OPTIONAL EQUIPMENT Spark Arrester PART DESCRIPTION - - - - - - Engine B&S Model No. 31P677 137352 Muffler 194319 Keeper Belt Engine 405140 Pulley Engine 407545 Tank Fuel 1.50 197725 Cap Asm...
  • Page 37 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 STEERING steering-tex_7-lt PART DESCRIPTION 186093X428 Wheel, Steering 184706 Axle Asm., Front 403087 Spindle Asm., LH 403088 Spindle Asm., RH 6266H Bearing, Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga. 12000029 Ring, Klip #T5304-75 121232X...
  • Page 38 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 SEAT seat-tex_7-vgt PART DESCRIPTION 197514 Seat 180166 Bracket Pivot Fender 140675 Strap, Asm Fender 73800600 Nut, Lock w/Ins. 3/8-16 unc 124181X Spring, Seat Cprsn 171877 Bolt 5/16-18 unc x 3/4 w/Sems 196977 Pan, Seat 171852...
  • Page 39: Mower Lift

    TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 MOWER LIFT PART DESCRIPTION 195223 Shaft Asm., Lift 195231 Lever Asm., Lift RH 196492X421 Grip, Lever 196314 Spring Torsion 194209 Pin Cotter 7/16 Bow Tie Lock 195303 Spring Lift Assist 19191912 Washer Clear Zinc 194208...
  • Page 40: Mower Deck

    TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 MOWER DECK 46_man-Tex_lt_5...
  • Page 41 TRACTOR - - MODEL NUMBER PB19546LT (96042003500), PRODUCT NO. 960 42 00-35 MOWER DECK PART DESCRIPTION 405050x421 Mower Housing 195186 Arm Suspension 191611 Screw 10 x 3/4 Single Hex 193003 Bolt/Washer asm 7/16-20 unf 405380 Blade, 46" Hi-Lift (For bagging or discharge) 192872 Shaft Assembly, Mandrel 187281...
  • Page 43: Warranties

    In the event you have a claim under this Warranty, you must return the product to an authorized service dealer. Should you have any unanswered questions concerning this Warranty, please contact: Poulan Pro Outdoor Products Customer Service Dept. 1030 Stevens Creek Road...
  • Page 44: Warranties

    POLICY ¨ Issued January 1980 Revised January 1991 NEW PEERLESS GEAR POWER TRAIN COMPONENTS Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below, will,at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DEFECTIVE...
