Toyota CAMRY HYBRID 2017 Quick Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CAMRY HYBRID
2 0 1 7
QUICK REFERENCE GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Toyota CAMRY HYBRID 2017

Summary of Contents for Toyota CAMRY HYBRID 2017

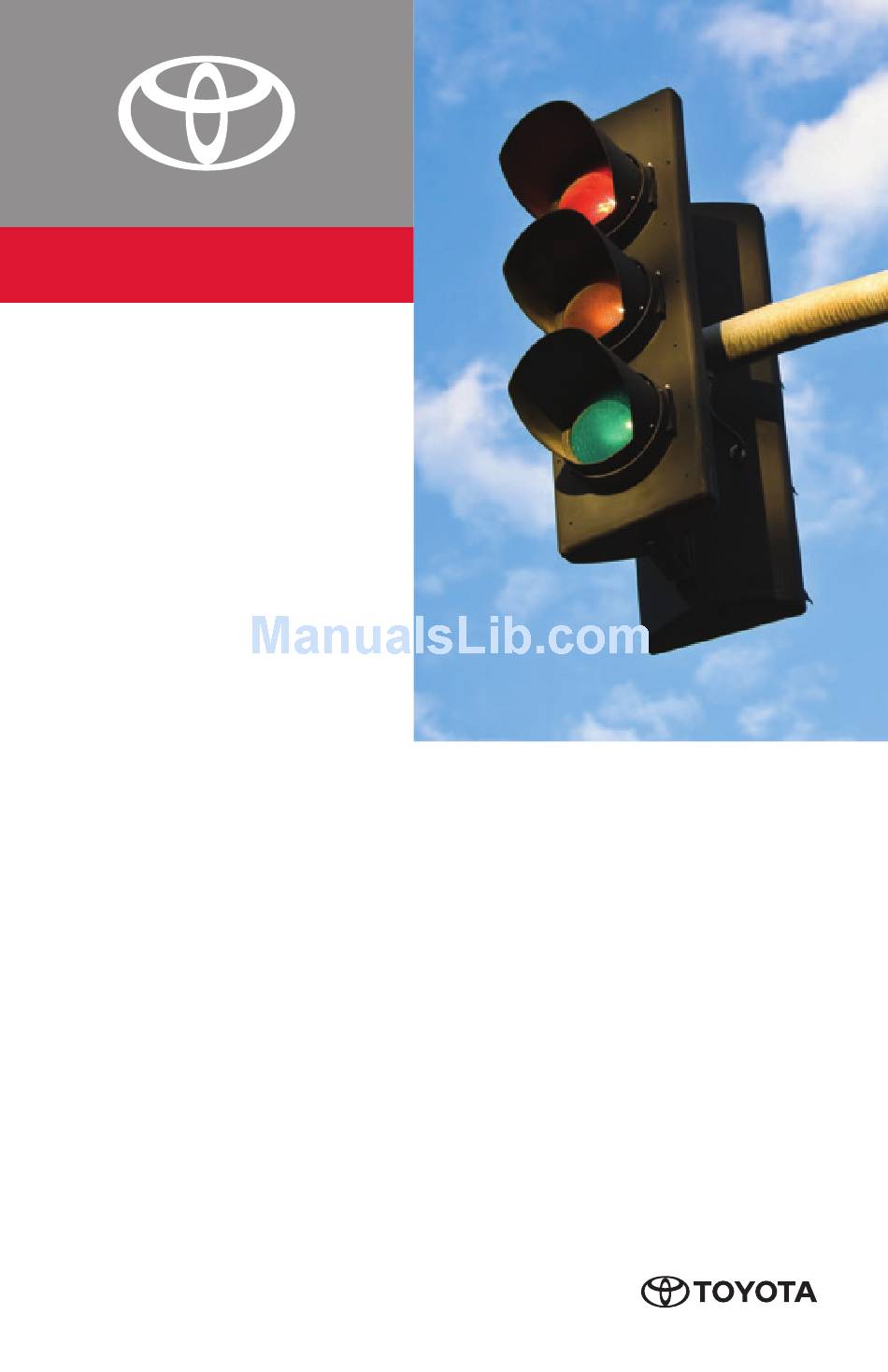

  • Page 1 CAMRY HYBRID 2 0 1 7 QUICK REFERENCE GUIDE...
  • Page 2 Owner’s Manual. Each box contains safe operating instructions to help you avoid injury or equipment malfunction. All information in this Quick Reference Guide is current at the time of printing. Toyota reserves the right to make changes at any time without notice.

  • Page 3: Table Of Contents

    Steering lock release Steering wheel controls (Audio & telephone Bluetooth ® Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink is a registered trademark of Gentex Corporation.

  • Page 4: Instrument Panel

    OVERVIEW Instrument panel Steering wheel Meter control switches audio controls Telephone controls Voice command button Dynamic radar cruise control (DRCC) Vehicle-to-vehicle distance button Cruise control Steering wheel controls Emergency flasher button Audio system /Navigation system Headlight/turn signal/front Wiper and washer controls Daytime Running Light (DRL) controls “ENGINE START STOP”...
  • Page 5 Air conditioning controls Outside rearview mirror/Rear window defogger button Tire Pressure Monitoring (warning) System (TPMS) reset switch Type A Eco drive mode EV drive mode switch switch Type B Seat heater controls If equipped. For vehicles with Entune Premium Audio or Entune Audio Plus, refer to the “Navigation System Owner’s Manual”...

  • Page 6: Instrument Cluster

    If indicator does not turn off within a few seconds of starting the Hybrid System, there may be a malfunction. Have vehicle inspected by your Toyota dealer. If this light flashes, refer to “Cruise control,” Section 4-5, 2017 Owner’s Manual.
  • Page 7 Lane Departure Alert (LDA) indicator Passenger Air Bag ON/OFF indicator Pre-Collision System (PCS) Airbag SRS warning warning light Slip indicator Low Tire Pressure Warning Vehicle Stability Control OFF indicator Electric power steering system warning Headlight low/high beam Theft deterrent/ Engine Immobilizer indicators system indicator Automatic High Beam indicator...
  • Page 8 OVERVIEW Keyless entry (and remote entry) LOCKING OPERATION Carry remote Type C Smart key feature All-door lock Push Touch UNLOCKING OPERATION Carry remote Type C Smart key feature Driver door unlock* Push ONCE: Driver door Grasp TWICE: All doors NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for safety.

  • Page 9: Fuel Tank Door Release And Cap

    Smart key system START FUNCTION Carry remote Depress to start brake pedal Push NOTE: Gear shift lever must be in Park and brake pedal depressed. POWER (WITHOUT STARTING HYBRID SYSTEM) Without depressing the brake pedal, pressing the “POWER” button will change the operation mode in succession from: Accessories such as the audio will operate.

  • Page 10: Engine Maintenance

    OVERVIEW Hood release Pull Pull up latch and raise hood Engine maintenance Engine oil level dipstick Engine oil filler cap Windshield washer fluid tank Engine coolant reservoir NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer to the “Warranty Maintenance Guide.”...

  • Page 11: Hybrid Synergy Drive System

    FEATURES AND OPERATIONS Hybrid Synergy Drive System The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine and electric motor to provide the most efficient combination of power for the vehicle. To conserve energy, when the brakes are applied the braking force generates electricity which is then sent to the traction battery.

  • Page 12: Steering Lock Release

    FEATURES AND OPERATIONS Auto lock/unlock Automatic door locks can be programmed to operate in two different modes, or turned OFF. - Doors lock when shifting from Park. - Doors lock when the vehicle speed is approximately 12 mph or higher. - Doors unlock when shifting into Park.

  • Page 13: Parking Brake

    Tilt and telescopic steering wheel Angle Lock release lever Length Hold wheel, push lever down, set angle and length, and return lever NOTE: Do not attempt to adjust while the vehicle is in motion. Parking brake Set: Depress Release: Depress again Windows - Power Driver side Window lock switch...

  • Page 14: Moon Roof

    FEATURES AND OPERATIONS Moon roof (if equipped) SLIDING OPERATION Push once to open partway; again to open completely. Open Close Recommended driving position to minimize wind noise. TILTING OPERATION Tilt Close Push once to open; moon roof will automatically stop at the recommended position. Push again to open completely.

  • Page 15: Seat Adjustments-Front

    Seat adjustments - Front MANUAL SEAT Height crank (driver side only) Seatback angle Seat position (forward/backward) POWER SEAT (IF EQUIPPED) Seat position (forward/backward) Seatback angle Lumbar support (driver side only) Seat cushion angle Height crank (driver side only) Seat adjustments-Rear Pull Tip: To fold rear seats, the release button is located in the...

  • Page 16: Power Outlets-12V Dc

    FEATURES AND OPERATIONS Windshield wipers & washers Mist Adjust frequency* Interval wipe Slow Pull to wash and wipe Fast Rotate to increase/decrease * Intermittent windshield wiper frequency adjustment wipe frequency. Power outlets-12V DC Front console Center console The “POWER” switch/ignition switch must be set at “ACCESSORY” or “ON” position for use.
  • Page 17 Lights & turn signals HEADLIGHTS Headlights Parking lights DRL OFF Low beam High beam flasher High beam Automatically turns on the headlights at a -Daytime Running Light system (DRL) reduced intensity. Automatically turns lights off after 30-second -Automatic light cut off system delay, or lock switch on remote may be pushed after locking.

  • Page 18: Cruise Control

    3-5. Other interior features FEATURES AND OPERATIONS ® Garage door opener (HomeLink (if equipped) Garage door openers manufactured under license from HomeLink * can be ® programmed to operate garage doors, estate gates, security lighting, etc. Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more details.

  • Page 19: Dynamic Radar Cruise Control (Drcc)

    Dynamic Radar Cruise Control (DRCC) (if equipped) Refer to the Owner’s Manual for more details and complete safety precautions before attempting to use “Dynamic Radar Cruise Control.” FIXED SPEED MODE (2) Push and hold Indicator (1) Push System ON/OFF To set, cancel and resume a speed Refer to “Summary of Functions” in the Cruise Control section, and to the Owner’s Manual for more details.

  • Page 20: Blind Spot Monitor (Bsm)

    FEATURES AND OPERATIONS Blind Spot Monitor (BSM) (if equipped) Rear Cross Traffic Alert buzzer System ON/OFF The Blind Spot Monitor is a system that has two functions: - The Blind Spot Monitor function (assists the driver in decision-making when changing lanes) - The Rear Cross Traffic Alert function (assists the driver when backing up) The Blind Spot Monitor function uses radar sensors to detect vehicles that are traveling in an adjacent lane in the area that is not reflected in the outside rear...

  • Page 21: Air Conditioning/Heating

    Clock To find your system, refer to Audio section of this guide. For Entune™ Audio Push “SETUP” button next to the screen then select “General” in the touch screen to access clock setting. For Entune™ Audio Plus and Entune™ Premium Audio Push “APPS”...

  • Page 22: Bottle Holders/Cup Holders

    FEATURES AND OPERATIONS Seat heaters (if equipped) Driver seat Front passenger seat Bottle holders/Cup holders Front Rear Wireless Charging (if equipped) Push A mobile device can be charged wirelessly on the tray. Open the lid and press the wireless charger switch. Place a mobile device on the tray as shown in the illustration.

  • Page 23: Audio

    Audio (if equipped) Entune Audio ™ Eject CD Touch screen display Turn to tune radio Push to turn stations manually or ON/OFF select tracks or files AUDIO Button Seek station/ Push to display CD track select audio screen or access audio Push to display functions.
  • Page 24 FEATURES AND OPERATIONS Steering wheel controls (Audio & telephone: Bluetooth ® Start call End call “ ” Use to search within the selected audio medium (radio, CD, etc.). Volume “MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio OFF.

  • Page 25: Multi-Information Display (Mid) 1

    Multi-Information Display (MID) Push “meter control switches” to change information in the following: (1) Drive information (2) Navigation system linked display (3) Audio system linked display (4) Dynamic Radar Cruise Control (DRCC)* (5) Lane Departure Alert (LDA) status* (6) Warning messages (7) Settings display (8) Tire Pressure Monitoring (warning) System (TPMS)* * If equipped...

  • Page 26: Lane Departure Alert (Lda)

    FEATURES AND OPERATIONS Lane Departure Alert (LDA) (if equipped) The Lane Departure Alert recognizes the visible lane markers using a camera as a sensor and alerts the driver with beeping and flashing indicators when the vehicle deviates from its lane. Press the LDA switch to activate the system. Refer to the Owner‘s Manual for limitations and more details on this system before attempting to use it.

  • Page 27: Safety & Emergency Features Door Locks

    SAFETY AND EMERGENCY FEATURES Door locks Lock Unlock Doors - Child safety locks Rear door Unlock Lock Moving the lever downward will allow the door to be opened only from the outside. Seat belts Take up slack Too high Keep as low on hips as possible NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly, the Automatic Locking Retractor (ALR) will prevent it from being re-extended...

  • Page 28: Safety Connect

    Safety Connect is a subscription-based telematics service that uses Global Positioning System (GPS) data and embedded cellular technology to provide safety and security features to subscribers. Safety Connect is supported by Toyota’s designated response center, which operates 24 hours per day, 7 days per week.

  • Page 29: Spare Tire & Tools

    Spare tire & tools TOOL LOCATION Luggage floor cover Jack Wheel nut wrench Jack handle Spare tire REMOVING THE SPARE TIRE (2) Loosen the center fastener that (1) Remove the tool tray. secures the spare tire. Refer to the Owner’s Manual for tire changing and jack positioning procedures. Trunk-Internal release Pull up...

  • Page 30: Star Safety System

    Traction Control helps maintain traction on loose gravel and wet, icy, or uneven surfaces by applying brake force to the spinning wheel(s). Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC limits Hybrid System output and applies the brakes to the spinning wheel.

  • Page 31: Floor Mat Installation

    Floor mat installation There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has model-specific floor mats. Installation is easy. To keep your floor mat properly positioned, follow these steps: •...

  • Page 32: Pairing Section

    BLUETOOTH DEVICE PAIRING ® SECTION Do not attempt the Bluetooth Pairing process while driving. ®...
  • Page 33 Entune touch screen system Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Android mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 34 Bluetooth on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system. STEP 6 STEP 7 STEP 8 On your Toyota Vehicle Entune Select BLUETOOTH. Select ADD, to add your Multimedia Head Unit, Select phone device.
  • Page 35 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 36 Pairing process while driving.** ® Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 37 Bluetooth on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system. STEP 6 STEP 7 STEP 8 On your Toyota Vehicle Entune Select BLUETOOTH. Select ADD, to add your Multimedia Head Unit, Select phone device.
  • Page 38 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 39 Pairing process while driving.** ® Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Windows Phone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 40 ® to pair your Bluetooth enabled phone to your Entune system. STEP 6 STEP 7 STEP 8 On your Toyota Vehicle Entune Select BLUETOOTH. Select ADD, to add your Multimedia Head Unit, Select phone device. Image shown is a sample SETUP BUTTON on the Home image, features may vary.
  • Page 41 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 42 NOTES...
  • Page 43 NOTES...
  • Page 44 CUSTOMER EXPERIENCE CENTER 1-800-331-4331 Printed in U.S.A. 5/16 16-MKG-09466 00505QRG17CAMH...
