Com-Net Ericsson PANTHER 300P Operator's Manual

Hide thumbs Also See for PANTHER 300P:
Table of Contents

Advertisement

Quick Links

Download this manual

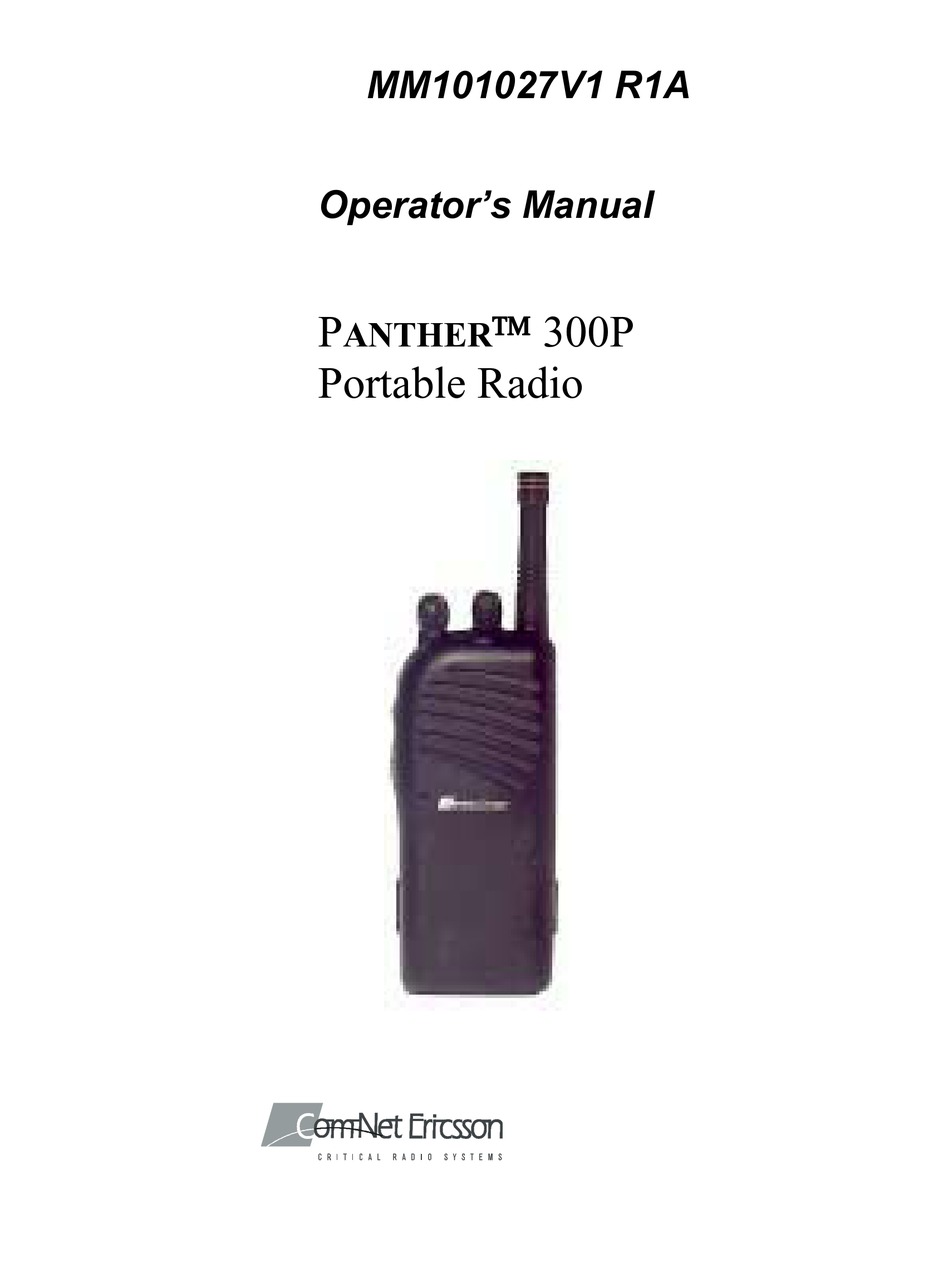

MM101027V1 R1A
Operator's Manual
    300P
P
ANTHER
Portable Radio

Advertisement

Table of Contents
loading

Related Manuals for Com-Net Ericsson PANTHER 300P

Summary of Contents for Com-Net Ericsson PANTHER 300P

  • Page 1 MM101027V1 R1A Operator’s Manual     300P ANTHER Portable Radio...

  • Page 2: Table Of Contents

    The software contained in this device is copyrighted by Com-Net Ericsson Critical Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. This manual is published by Com-Net Ericsson Critical Radio Systems, Inc., without warranty.

  • Page 3: Safety Training Information

    SAFETY TRAINING INFORMATION Your Com-Net Ericsson radio generates electromagnetic WARNING energy during transmit mode. This radio is designed for and classified as “Occupational Only” meaning it must be used only during course employment individuals aware of the hazards and the ways to minimize such hazards.
  • Page 4 • FCC OET Bulletin 65 Edition 97-01 Supplement Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
  • Page 5 • DO NOT operate the radio without proper antenna attached, as this may damage the radio and may also cause exceed exposure limits. A proper antenna antenna supplied with this radio by Com-Net Ericsson antenna specifically authorized Com-Net Ericsson for use with this radio.
  • Page 6 • ALWAYS keep the device and its antenna at least 2.0 cm (0.8 inch) away from the body and 5 cm (2 inches) from the face when transmitting ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at a distance of 1.3 cm from the body and 4.0...
  • Page 7 Electromagnetic Interference/Compatibility During transmissions, your Com- Net Ericsson radio generates RF energy that can possibly cause interference with other devices or systems. avoid such interference, turn off the radio in areas where signs are posted to do operate transmitter areas that sensitive electromagnetic...

  • Page 8: Safe Practice Information

    SAFE PRACTICE INFORMATION The operator of any land mobile radio should be aware of certain hazards common to the operation of radio transmitters. A list of several possible hazards given: Explosive Atmospheres Areas with potentially explosive atmosphere often, but not always, clearly marked.
  • Page 9 Electronics Systems - RF energy from your portable radio affect some electronic equipment. Most modern electronic equipment in cars, hospitals, homes, etc. are shielded from RF energy. However, areas that instruct you to turn off two- way radio equipment, always observe the rules.
  • Page 10 damaged or missing antenna. A minor burn may result if a damaged antenna comes into contact with skin. Replace a damaged antenna immediately. missing antenna could damage your radio. Use only the supplied approved antenna. Unauthorized antennas, modifications, or attachments could damage the radio unit violate regulations.
  • Page 11 • When talking from moving vehicle unavoidable, drive in the slower lane. Keep conversations brief. • If a conversation requires taking notes or complex thought, stop the vehicle in a safe place and continue the call. • Whenever using a radio, exercise caution.

  • Page 12: Operating Rules And Regulations

    OPERATING RULES AND REGULATIONS Two-way FM radio systems must be operated in accordance with the rules and regulations of the local, regional, or national government. United States,  300P portable radio ANTHER must be operated in accordance with the rules and regulations of Federal Communications Commission (FCC).
  • Page 13 emergency message - such as reporting a fire or asking for help in an accident - KEEP OFF THE AIR! profane obscene language prohibited by Federal law. It is against the law to send false call letters or false distress emergency messages.
  • Page 14 rules that apply your particular type of operation for the proper procedure. No changes or adjustments shall made equipment except authorized certified electronic technician. IMPORTANT Under U.S. law, operation of an unlicensed radio transmitter within the jurisdiction of the United States punishable by a fine of up to $10,000, imprisonment for up to...

  • Page 15: Operating Tips

    OPERATING TIPS Antenna location and condition is important when operating portable radio. Operating the radio in low areas or terrain, under power lines or bridges, inside of a vehicle or in a metal or steel framed building can severely reduce the range of the unit.
  • Page 16 For efficient radio operation, hold the front of the portable radio approximately two inches from your mouth speak into microphone at a normal voice level. Keep the antenna in a vertical position when receiving transmitting a message. Do not hold the antenna when receiving a message and, especially, do not hold when...

  • Page 17: Introduction

    INTRODUCTION This manual describes operation of the Com-Net Ericsson ™ 300P portable radio. ANTHER The P 300P portable radio ANTHER is a high performance FM portable radio providing reliable two-way communication in a Conventional Radio System. The P 300P portable radio...

  • Page 18: Controls And Indicators

    CONTROLS AND INDICATORS Figure 1 – Panther 300P Radio Top View...
  • Page 19 Figure 2 – P 300P Radio ANTHER Side View Monitor/Clear Button Function This section describes functionality Monitor/Clear button.
  • Page 20 Monitor/Clear Monitor/Clear function monitors the channel for activity. While Monitor/Clear pressed, squelch, the Channel Guard decoder, and the Type 99 decoder are disabled. If the channel is clear, squelch noise will be heard. If the channel is busy, traffic will be heard. When the Monitor/Clear button is released, squelch, Channel Guard, and Type 99 are re-enabled.
  • Page 21 Table 1: Programmed Functions States Function 1 Short 2 Short High High Tone Tones High/Low High Power Power Power Local/Dista Local Distant nt Squelch Type 99 Disabled No function is assigned to the Option button. When pressed, the radio will emit a Denied Alert Tone. High/Low Power High/Low Power...
  • Page 22 increases the number of received transmissions. Type 99 ON/OFF The Type 99 function toggles the state of the Type 99 Decoder between “ON” and “OFF”. Type 99 mutes receive audio until a valid Type 99 call is received. “ON” indicates the radio is operating in Selective Call mode.

  • Page 23: Panther 300P Radio Indicators

    PANTHER 300P RADIO INDICATORS The Light Emitting Diode (LED) and tones indicate the state of the radio. Table 2: Radio Indicators ] flashing LED Indicators: continuous Indicator Tones: High Tone Function 3 mid Power-up tones complete 1 mid tone Low battery...
  • Page 24 ] flashing LED Indicators: continuous Indicator Tones: High Tone Function 1 short Programmed high tone function toggled 2 short Programmed high tones function toggled ] green 1 short Receiving Type tone 99 Individual Call ] green 2 short Receiving Type tones 99 Group Call ] green...

  • Page 25: Basic Operation

    BASIC OPERATION Selecting A Channel Rotate Channel Knob clockwise or counterclockwise until the raised rib aligns with the desired channel number. Transmitting A Basic Call Power ON the radio. Select a channel. Ensure there is no activity on the channel by: •...

  • Page 26: Channel Guard

    Channel Guard Channel Guard is a method of reducing "channel chatter" equipping receivers with tone- responsive devices, which only allow calls with the correct sub- audible tones to be heard by the user. Channel Guard options and parameters are defined in the radio personality.
  • Page 27 Channel Guard Monitor Function The radio can be programmed, on a per-channel basis to transmit with or without Channel Guard tones. STE can optionally be enabled on a per-channel basis. Ensure there is no activity on the channel by: • checking the TX/RX LED.

  • Page 28: Selective Signaling

    SELECTIVE SIGNALING Selective signaling controls the muting and unmuting of the receive audio. This allows a user or dispatcher to selectively call an individual radio or group of radios. The P 300P portable radio ANTHER supports selective signaling Type 99 decode format. selective signaling environment, the P...
  • Page 29 TX/RX LED. Monitor mode Without Carrier Monitor mode With Carrier Type 99 Operation Type 99 is Com-Net Ericsson’s proprietary method for in-band, two-tone sequential signaling. Type 99 is a conventional signaling protocol that controls the muting and unmuting of a radio.
  • Page 30 Individual, Group and Supergroup Type 99 calls. See Table 2 for radio indicator information for each of these types of calls. Resetting Type 99 After A Call After decoding a Type 99 call, the radio operates in Monitor mode and all traffic on the channel is audible.

  • Page 31: Programmable Ptt Functions

    PROGRAMMABLE PTT FUNCTIONS Channel Busy Lockout The radio may be programmed with the Channel Busy Lockout feature, which denies the use of the transmitter when the channel is busy with traffic. If the PTT button is pressed while the TX/RX LED is ON, the radio will emit an alert tone until the PTT is released.
  • Page 32 Type 99 Disable After PTT The radio may be programmed with the Type 99 Disable After PTT feature, which automatically disables the Type 99 decoder after a transmission. Use one of the methods outlined in the “Resetting Type 99 After A Call”...

  • Page 33: Cloning

    CLONING CopyCat Technology, a cloning feature, allows supervisor radios to duplicate radio personalities into subordinate radios on-site without a technician or PC. For more information about the CopyCat Technology and configuration refer Panther Series Maintenance manuals, the On-Line Help in ProGrammer, or contact your system administrator.

  • Page 34: Battery Operation

    BATTERY OPERATION Removing The Battery Make sure the power to the radio is turned OFF. Press the latch at the bottom of the battery pack. Lift the battery pack from the bottom. Remove the battery pack from the radio.

  • Page 35: Attaching The Battery

    Attaching The Battery Make sure the power to the radio is turned OFF. Align the tab on the top of the battery pack with the slot at the top of the battery cavity. Push the battery pack down to attach the battery to the radio. The user should hear a “click”...
  • Page 36 Low Battery Detection And Operation The P 300P portable radio ANTHER constantly monitors the charge- state of the battery. The radio will emit a Low Battery Alert Tone when the battery capacity is low and the TX/RX LED will flash red. When this occurs, recharge the battery.

  • Page 37: Recharging The Battery

    Recharging The Battery Recharge the battery when the radio TX/RX LED exhibits a Low Battery indicator. When charging a battery pack that is attached to a radio, always turn the power to the radio OFF to ensure a full charge. For specific instructions, refer to the applicable charger Operator's Manual.
  • Page 38 (Charging the battery in a Com-Net Ericsson charger and then discharging the battery pack with the radio until low battery is indicated is considered one cycle.) Battery Care &...
  • Page 39 • When the radio is not in use, turn the power to the radio OFF. Do not over discharge the battery. This will reduce battery capacity and battery life. • overcharge battery. A battery should not be kept in a charger for over hours.
  • Page 40 Battery Recycling The product that you have purchased contains recharge- able, recyclable battery. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into municipal waste stream. Check with your local solid waste officials for details in your area for recycling...
  • Page 41 WARRANTY Com-Net Ericsson Critical Radio Systems, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that Equipment manufactured by Seller shall be free from defects in material, workmanship and title, and shall conform to its published specifications. With respect to...
  • Page 42 perform warranty service will be provided at no charge during the warranty period only for the Equipment covered under Paragraph B.3. To be eligible for no-charge labor, service must be performed by an Authorized Service Center (ASC) or other Servicer approved for these purposes either at its place of business during normal business hours, for mobile or personal equipment, or at the Buyer's...
  • Page 43 NICKEL-CADMIUM BATTERY WARRANTY Com-Net Ericsson Critical Radio Systems, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that nickel-cadmium batteries supplied by Seller shall be free from defects in material and workmanship, and shall conform to its published specifications for a period of twelve (12) months from the date of purchase.
  • Page 44 The preceding paragraphs set forth the exclusive remedies for claims (except as to title) based upon defects in or non-conformity of any battery, whether the claim is in contract, warranty, tort (including negligence), strict liability or otherwise, and however instituted. Upon the expiration of the warranty period, all such liability shall terminate.
  • Page 45 NOTES...
  • Page 46 NOTES...
  • Page 47 NOTES...
  • Page 48 Com-Net Ericsson Critical Radio Systems, Inc. P.O. Box 2000 Lynchburg, Virginia 24501 Phone: 1-800-528-7711 or Outside USA, 1-804-239-3028) www.com-netericsson.com Printed in U.S.A.
