Com-Net Ericsson JAGUAR 700P Operator's Manual

System/scan portable radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

AE/LZT 123 5271/1 R1A
Operator's Manual
J
700P
AGUAR
System/Scan Portable
Radio

Advertisement

Table of Contents
loading

Related Manuals for Com-Net Ericsson JAGUAR 700P

Summary of Contents for Com-Net Ericsson JAGUAR 700P

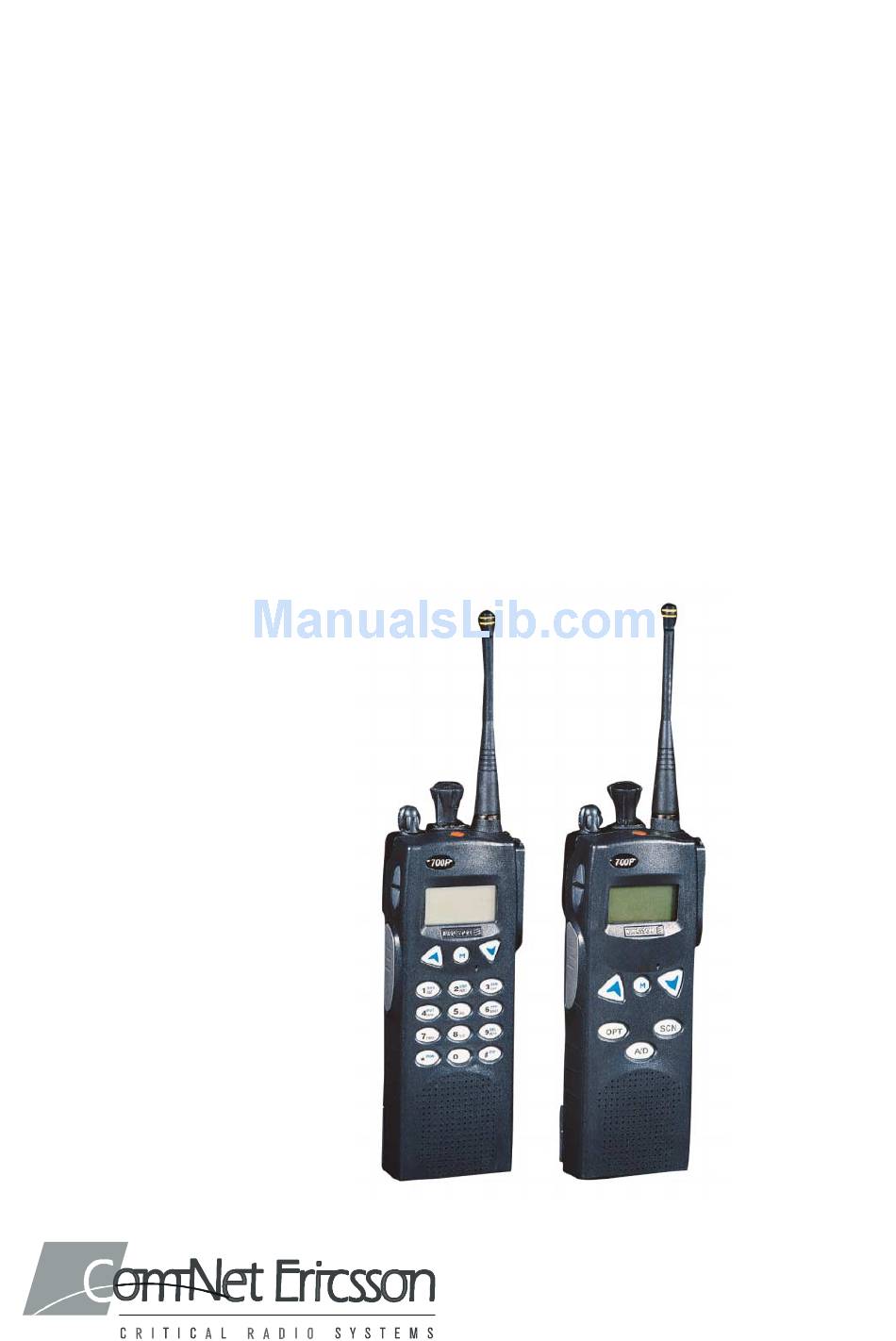

  • Page 1 AE/LZT 123 5271/1 R1A Operator’s Manual 700P AGUAR System/Scan Portable Radio...

  • Page 2: Table Of Contents

    No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Ericsson Inc. Copyright © 2000 Com-Net Ericsson Critical Radio Systems, Inc. All rights reserved.

  • Page 3: Safety Training Information

    This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, your Com-Net Ericsson radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: •...
  • Page 4 To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following C AU TIO N guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits.
  • Page 5 FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Com-Net Ericsson radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.

  • Page 6: Operating Rules And Regulations

    OPERATING RULES AND REGULATIONS Two-way FM radio systems must be operated in accordance with the rules and regulations of the Federal Communications Commission (FCC). As an operator of two-way radio equipment, you must be thoroughly familiar with the rules that apply to your particular type of radio operation.

  • Page 7: Operating Tips

    The FCC requires that conversations be brief and confined to business. To save time, use coded messages whenever possible. Using the radio to send personal messages (except in an emergency) is a violation of FCC rules. Send only those messages essential for the business operation. It is against the Federal law to repeat or otherwise make known anything overheard on the radio.

  • Page 8: User Interface

    User Interface This manual describes the basic functions and operation of the 700P System/Scan portable radio. For detailed information about the features and operation refer to the appropriate 700P Maintenance Manual or contact your System Administrator. Figure 1: Top View...
  • Page 9 Figure 2: Side View...
  • Page 10 Figure 3: 700P System Keypad...
  • Page 11 Figure 4: 700P Scan Keypad...
  • Page 12 Three Line Display Icon Descriptions ON – transmitting or ON – special call mode receiving (individual or telephone) Flashing – call queued ON – during all radio ON – transmit at low transmissions power Off – transmit at high power On –...

  • Page 13: Basic Operation

    Basic Operation System Select – Method 1 (System) Press to access system list. Enter system id number from keypad. " Press to select desired system. System Select – Method 2 Rotate System/Group/Channel knob. If this knob is not programmed for systems: Press the buttons to change systems.

  • Page 14: Channel Select

    Channel Select Rotate System/Group/Channel knob. If this knob is not programmed for channels: Press the buttons to change channels. Modify Scan List (System) & Press to toggle scan OFF and verify is not displayed.. Select group or channel. Press once to remove group or channel from list. Press once to add as a normal group or channel.
  • Page 15 Modify Scan List (Scan) Press to toggle scan OFF and verify is not displayed. Select group or channel. Press once to remove group or channel from the list. Press once to add as a normal group or channel. Press twice to add as a Priority 2 group. Press three times to add as a Priority 1 group.

  • Page 16: Contrast Adjust

    Contrast Adjust " Press to access the menu. Press scroll through menu until “CONTRAST” appears. " Press to select Contrast menu. Press to adjust contrast setting from 1 - 4. " Press to select new contrast setting. Declaring An Emergency Press and hold the red Emergency/Home button (the length of time is programmable;...

  • Page 17: Transmitting A Call In Trunked Mode

    Transmitting A Call In Trunked Mode Group Call Select desired group. Press Push-To-Talk button. icons will appear. Individual Call (System) Press to access the individual call list. icon will appear. Press to scroll through individual call list or Enter LID from keypad. When the desired ID appears in the display press the Push-To-Talk button.

  • Page 18: Receiving A Call In Trunked Mode

    Receiving A Call In Trunked Mode Group Call Select a group or Turn scan ON and make sure group is in scan list. The group name or “GR xxxxx” will appear to indicate a call. Phone Calls When the call is received, the receive audio sounds and the display reads: *PHONE* Respond by pressing PTT.

  • Page 19: Conventional Operation

    Conventional Operation Receiving A Call Select desired conventional system and channel or Turn scan ON and make sure desired channel is in scan list. When the radio receives a call, the radio will unmute and the channel name will appear in the display. Sending A Call Select desired system and channel.

  • Page 20: Alert Tones

    Alert Tones Name Tone Description Call one short OK to talk after pressing the push- Originate mid- to-talk button pitched Call one high- call in a queue for processing Queued pitched Autokey one mid- queued call received channel pitched assignment System three low- system...

  • Page 21: Changing The Battery Pack

    Changing The Battery Pack Removing The Battery Pack Make sure the power to the radio is turned OFF. Press the latch at the bottom of the battery pack. Lift the battery pack from the bottom. Remove the battery pack from the radio.

  • Page 22: Attaching The Battery Pack

    Attaching The Battery Pack Make sure the power to the radio is turned OFF. Align the tab on the top of the battery pack with the slot at the top of the battery cavity. Push the battery pack down to attach the battery to the radio.
  • Page 23 NICKEL-CADMIUM BATTERY WARRANTY A. Com-Net Ericsson Critical Radio Systems, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that nickel-cadmium batteries sup-plied by Seller shall be free from defects in material and workmanship, and shall conform to its published specifications for a period of twelve (12) months from the date of purchase.
  • Page 24 WARRANTY A. Com-Net Ericsson Critical Radio Systems, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that Equipment manufactured by Seller shall be free from defects in material, workmanship and title, and shall conform to its published specifications. With respect to any Equipment not manufactured by Seller (except for integral parts of Seller’s Equipment...
  • Page 25 NOTES...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 Com-Net Ericsson Critical Radio Systems, Inc. P.O. Box 2000 Lynchburg, Virginia 24501 AE/LZT 123 5271/1 R1A 1-800-528-7711 (Outside USA, 804-592-7711) Printed in U.S.A.
