DSL Gateway/Router — User Manual 1.OVERVIEW 1.1 ABOUT ADSL ADSL2+ 4PORT 802.11N Router is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other.

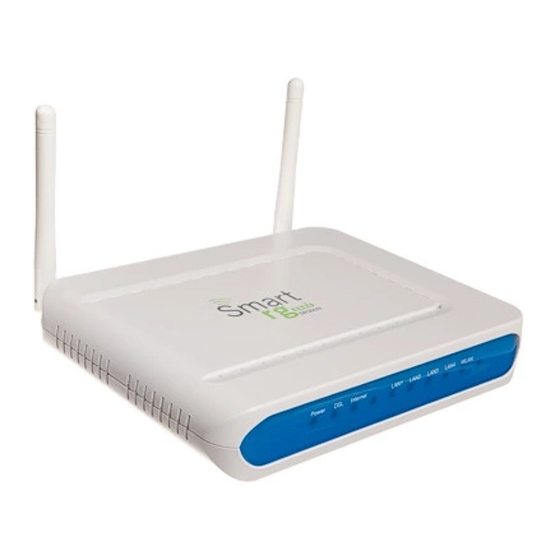

DSL Gateway/Router — User Manual 2 SPECIFICATION 2.1 INTERFACE INTRODUCTION 2.1.1 INDICATOR AND INTERFACE Table 2.1 ITEM Name State introduction POWER A steady Green light means the power connection works properly Green, shows DSL line status. Indicator INTERNET Green, Flashing means the Modem is transmitting or receiving data LAN1-LAN4 Green, Flashing means the ethernet is transmitting or receiving data WLAN...
DSL Gateway/Router — User Manual 2.2 HARDWARE CONNECTION Introduction: 1、 Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the phone jack) on the wall. 2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL Modem.
DSL Gateway/Router — User Manual 3. CONFIGURATION 3.1 DEFAULT CONFIGURATION ADSL MODEM has pre-configured with the VCI/VPI which is in common use. 3.2 COMPUTER CONFIGURATION The default IP address for ADSL MODEM is: 192.168.1.1; The Subnet Mask is:255.255.255.0. Users can configure ADSL MODEM through an Internet browser.
DSL Gateway/Router — User Manual FCC INFORMATION This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.
