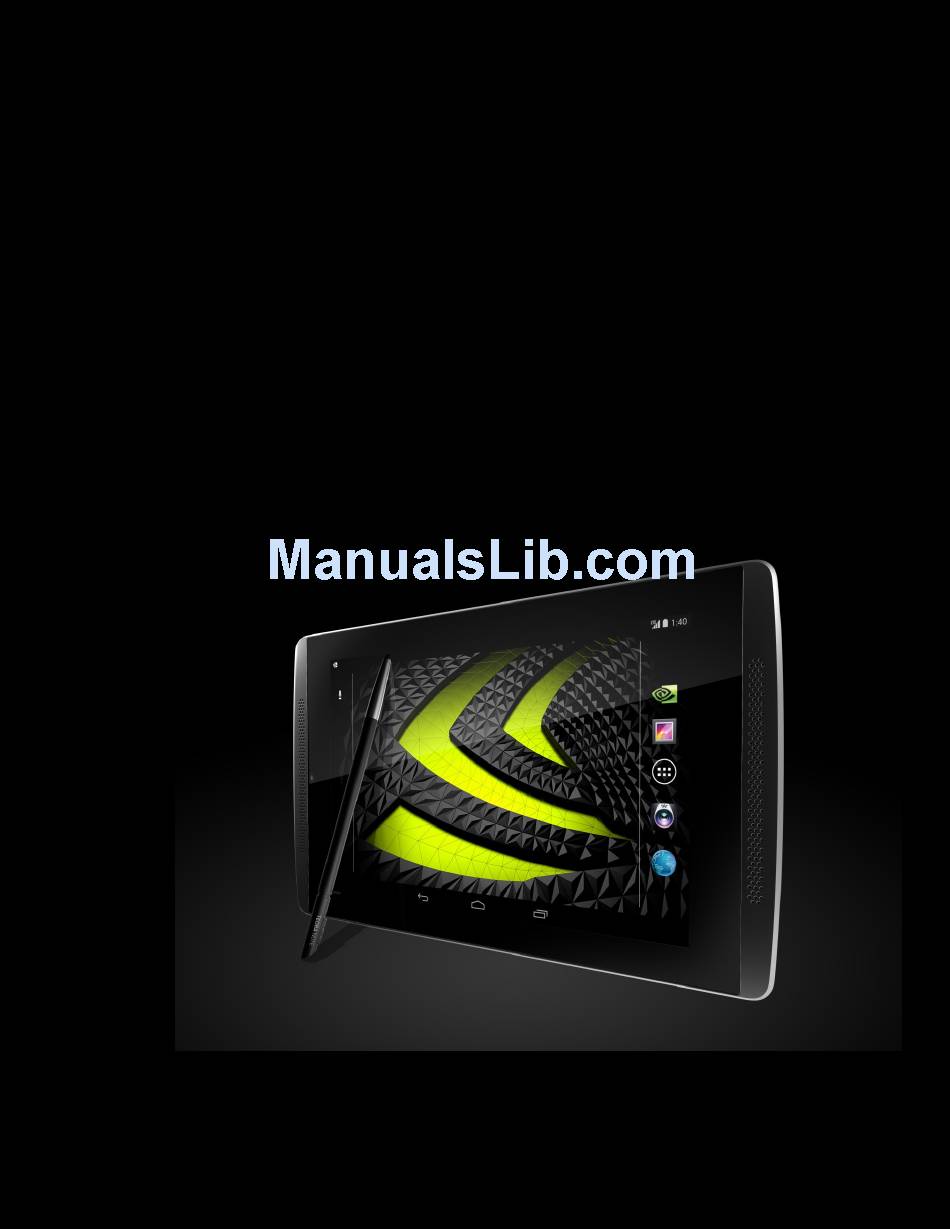

  • Page 1 Tegra NOTE™ 7 User Guide...

  • Page 2: Table Of Contents

    Contents About Tegra NOTE 7 LTE ............................4 What’s in the Box ............................... 5 Buttons and Connectors ............................. 6 Charging the Battery ............................7 Inserting an SD/SIM Card ............................ 8 Micro SD Card ..............................8 SIM Card ................................. 8 Get Started ................................9 Power On ................................
  • Page 3 Mobile Networks ............................32 Mobile Network Settings ..........................33 Device ................................34 Controller ..............................34 Sound ................................35 Display ................................35 NVIDIA DirectStylus™........................... 36 HDMI ................................36 Storage ................................37 Battery ................................37 Power Saving ..............................38 Apps ................................38 Users ................................39 Personal ................................

  • Page 4: About Tegra Note 7 Lte

    NOTE 7 to surf the web, video chat with friends, take pictures, play games, make phone calls through any third- party app, and much more. The new Tegra NOTE 7 LTE provides a slot for your SIM card, which allows you to take your connected experience anywhere.

  • Page 5: What's In The Box

    About Tegra NOTE 7 LTE What’s in the Box Tegra NOTE 7 with Stylus Power Adapter – Hong Kong, UK Quick Start Guide Power Adapter – China, Japan, US USB-to-Micro USB cable Power Adapter – Europe...

  • Page 6: Buttons And Connectors

    About Tegra NOTE 7 LTE Buttons and Connectors Stylus in Housing Micro USB Volume Up/Down Base Reflux Port Micro SD Card Slot Cover Spine (slide out to install cover) Rear Camera Dual Speakers Power/Sleep Button Front Camera (behind glass) 3.5 MM Audio Port...

  • Page 7: Charging The Battery

    About Tegra NOTE 7 LTE Charging the Battery ™ The battery in your new Tegra NOTE 7 is partially charged. It is recommended that you fully charge your device as soon as possible. To charge your Tegra NOTE 7, use the included AC adapter and the USB cable. Plug the micro USB end of the cable into the Tegra NOTE 7 and the other standard USB end into the power adapter.

  • Page 8: Inserting An Sd/Sim Card

    No SIM card displays on the tablet’s lock screen. Tegra Note 7 LTE SIM card slot requires the Micro SIM card size. If you have regular size SIM you should exchange it for the Micro SIM size card.

  • Page 9: Get Started

    Get Started Power On Your new Tegra NOTE 7 tablet is loaded with the Google Android operating system. When you power on your tablet, you are going to be guided through the standard Android setup. To turn on your Tegra NOTE 7, press the Power button on the right side of the tablet for a few seconds and then release.

  • Page 10: Let Your Fingers (Or Stylus) Do The Work

    Get Started A Google Account does provide the ability to organize and access personal information from any computer or mobile device that is also using your Google account. A Google Account lets you organize and access your personal information from any computer or mobile device: Use Google Play.

  • Page 11: About The Nvidia® Directstylus

    Get Started About the NVIDIA® DirectStylus™ Your Tegra NOTE 7 has a built-in stylus that launches specified apps when pulled from its Tegra NOTE 7 housing. Wherever you can control the tablet with your finger, you can also use the stylus to tap, swipe, or draw. The DirectStylus gives you fine point control that makes it much easier to write, draw, and activate small buttons or browser hot spots.

  • Page 12: Home Screens

    Home Screens Your Tegra NOTE 7 supports multiple screens that can be configured with various apps and widgets. The center screen is the default home screen that is displayed every time you press the Home icon. To move between screens, swipe left or right. A suggestion would be to place your most used app/widget icons on the Home page.

  • Page 13: Favorites Icon Tray

    Home Screens Favorites Icon Tray At the bottom of every Home screen is an area called Favorites Tray. This area is for you to place your favorite and most used apps or short-cut icons for faster access. To replace an icon, simply press and hold your finger on the desired icon and move it to the Favorites Tray over an icon you wish to replace.

  • Page 14: Quick-Access Tray

    Home Screens Quick-Access Tray Swipe down from the top of the screen to display a quick-access tray with commonly used controls and settings. This saves you from having to navigate through the settings menus. Swipe down from the top of the tablet screen to display the Quick Access Tray.

  • Page 15: Status Icons

    Home Screens Dismiss all notifications Status Icons Along the top right of each screen is the status area. Here is where you will see battery status, Wi-Fi connection status, and Bluetooth status. The time is also displayed. Tablet is connected to a computer Airplane mode.

  • Page 16: Organize Home Screens

    Home Screens Organize Home Screens Add Widget/App Icon to Home Screen To add an app or widget icon to a Home screen: Go to the Home screen where you want to place the widget/app. Touch the All Apps icon. Swipe through the widget/app to find the widget you are looking for. Touch and hold the widget/app until the Home screen displays, slide it into place, and lift your finger.

  • Page 17: Making Folders

    Home Screens Making Folders To combine two icons in a folder, slide one over the other. To rename a folder, touch its name. The keyboard displays for you to type a new name To open a folder, touch it. To add icons to a folder, drag them to the folder and let go.

  • Page 18: Using The Keyboard

    Using the Keyboard The nice thing about owning a tablet is you are not constrained to typing on a tiny thumb keyboard (as is the case with phones). You can use the virtual keyboard that displays whenever you touch an area that requires input or you can connect an external standard keyboard via Bluetooth.

  • Page 19: Basic Keyboard Usage

    Using the Keyboard Basic Keyboard Usage Text input methods include voice (where you speak your message), tap (where you tap every letter and the space bar), and gesture typing. Try using your stylus for controlling the keyboard! You will have better control for hitting the letters you want and your hand does not need to travel as much so you can enter text even faster.
  • Page 20 Using the Keyboard Select text: Touch and hold or double-tap within the text. The nearest word highlights, with a tab at each end of the selection. Drag the tabs to change the selection. The tab disappears after a few moments. To make it reappear, touch the text again.

  • Page 21: Tegra Note 7 Software Apps

    Camera Awesome NVIDIA DirectStylus™ launcher Tegra NOTE 7 Draw NVIDIA Lasso Capture tool Write by Stylus labs Write by Stylus Labs is a word processor for handwriting. In addition to all the usual features of a vector drawing application, it provides a unique set of tools for editing and navigating handwritten documents.

  • Page 22: Camera Awesome

    Tegra NOTE 7 Software Apps Camera Awesome Camera Awesome is a powerful, intuitive camera application designed to take full advantage of Tegra computational camera capabilities like Always-On HDR, Tap-to-Track, slow-motion video and a variety of photo-editing features. Camera Awesome lets you easily apply special effects to pictures right on your tablet.

  • Page 23: Camera Icons

    Tegra NOTE 7 Software Apps Camera Icons There is a full range of icons that help you take the best pictures you can. When Camera Awesome is launched, you see controls displayed along the side or bottom of your screen. Displayed along the side/bottom of screen Touch the...

  • Page 24: Focus, Exposure, Zoom, And Tap To Track Gestures

    Tegra NOTE 7 Software Apps Panoramic mode. Allows you to take a 180-degree panorama shot by panning from left to right. The camera will tell you if you are panning too quickly. When done, the Tegra 4 processor will stitch the image together in record time. Switch between camera mode and video mode Video mode.

  • Page 25: Video Capture And Slow Motion

    Alternatively, you can go to the pen settings part of the Android Settings tool, and change them so the NVIDIA DirectStylus Launcher does not show up at all, or a particular app is opened at the removal of the pen rather than the launcher.

  • Page 26: Tegra Note 7 Draw

    Color pallet. Touch to select pen color. Hold for 2 seconds to set background color. NVIDIA Lasso Capture Tool NVIDIA provides a convenient and unique way to capture and share a tablet experience with co-workers, friends, and family. The Tegra NOTE 7 provides the user with standard full-screen and rectangular region capturing ability.
  • Page 27 When you first select Tegra Zone or select from the top ribbon, The Get Started screen displays. The Selection bar across the top of the NVIDIA TEGRAZONE screen lists Spotlight, Games, and News. displays the current featured games and the featured news about games.
  • Page 28 Selecting a game displays a brief description of the game, its star rating, and where you can get it (Google play in this case). displays all the news pertaining to NVIDIA, the games, and special events.

  • Page 29: Settings

    Settings Use the Settings menu to customize a wide variety of features and get the most out of your Tegra NOTE 7, To get to Settings no matter what screen you are on, swipe down your Notifications from the top of any screen and touch the small Settings icon near the top.

  • Page 30: Bluetooth

    Settings Miracast is a wireless technology that allows you to stream the contents of your screen to a Miracast receiver that is connected to an HDTV. Miracast is like a wireless version of HDMI, so it is easy to enjoy movies or share pictures and browsing by showing them on a big screen.

  • Page 31: Airplane Mode

    Settings Airplane Mode Settings More… Airplane Mode When Airplane mode is ON, the tablet turns off all external connections such as Wi-Fi and Bluetooth. This allows you to play games and use any other functions of your Tegra NOTE 7 while on an airplane. Tapping Airplane mode turns it off and on ( indicates Airplane mode is On).

  • Page 32: Vpn

    You may need to obtain specific format and settings information from your workplace; such as: PPTP (Point-to-Point Tunneling Protocol) L2TP (Layer 2 Tunneling Protocol) Mobile Networks There are two versions of the Tegra NOTE 7 LTE: Americas Version Rest of World Version LTE Support...

  • Page 33: Mobile Network Settings

    Settings The following table has a list of carriers that operate networks compatible with Tegra Note 7 LTE. Country Carrier Country Carrier Angola Movicel, Unitel Malaysia Celcom, DiGi, Maxis Antigua Digicel Mauritius Orange Argentina Personal, Claro Mexico Movistar, Telcel Australia...

  • Page 34: Device

    XBOX controller, you can set up the buttons to act the same way. Predefined gamepad mappings can be downloaded automatically from NVIDIA servers. These settings are based on feedback from the gaming community for ideal settings of the buttons.

  • Page 35: Sound

    Settings Sound Tapping Sound displays configurable slides to adjust the volume for music, videos, games, and other media. It also allows you to specify the volume of incoming notifications and alarms. Under the Sound topic, you can specify the default system notification sound, the sound made when the screen locks, and when you touch an icon.

  • Page 36: Nvidia Directstylus

    The native setting overrides standard sRGB and uses the settings that are preprogrammed for the display. NVIDIA DirectStylus™ DirectStylus uses the processing power of the Tegra 4 processor and is the most innovative feature of Tegra Note 7. DirectStylus can recognize the difference between a finger and a stylus to allow control of everything you do with your tablet.

  • Page 37: Storage

    Settings Storage It is a good idea to check your current storage space to ensure that you do not overload your device. To check, go to Settings Storage. From here, you can monitor the storage on your tablet as well as the installed SD card. Used space is color-coded with the type of data stored.

  • Page 38: Power Saving

    Tegra PRISM PRISM is an NVIDIA patented innovation that decreases the power used by the backlight during video playback without perceptibly degrading the visual experience. This feature can save up to 40% of the power used by the screen backlight, so it is on by default.

  • Page 39: Users

    Settings Cache Allows you to clear any cached information associated with the application. This can also help unstick an application without getting rid of all the stored data the app may be using. Launch by default Permissions A full list of permissions granted to an app is listed here. This is particularly useful for understanding what system resources an app may have and what personal data it may take advantage of.

  • Page 40: Personal

    Settings Personal Personal settings allow you to control the following: Location access Security Language & input Backup and reset Location Access The Location Access screen has a toggle to turn access on or off for all apps. One mode allows you to opt for high accuracy that uses all location information to determine your location but uses more power.

  • Page 41: Language And Input

    Settings SIM CARD LOCK Set up SIM card lock,so that if someone takes your SIM, they can only use it if they enter your password. Passwords Make passwords visible is a toggle that ensures that passwords are never displayed when you enter them, even if the application provides a setting to display passwords.

  • Page 42: Backup And Reset

    Settings Keyboard and Input Methods Android supports a wide variety of languages that may require different keyboards. Use this setting to select the keyboard you prefer. Third-party keyboard applications are enable using this setting. If you have a handwriting recognition application, select it instead of using a keyboard. Speech •...

  • Page 43: Accounts

    Send feedback to NVIDIA This is a handy way to let NVIDIA know what you like or dislike about your Tegra Note. If you find a bug, let us know how to reproduce it so we can fix it in a future OTA.

  • Page 44: How To

    How To… This section goes through the common How to instructions. Included in this section are: How to use the Calendar How to use Email How to text How to use Voice actions How to use Google Play Bookmarks While browsing the Internet, you may come to locations you want to revisit. Tap the Star icon in the upper right corner of the top ribbon to save a bookmark to that location.

  • Page 45: How To Create An All-In-One Calendar

    How To… How to Create an All-in-One Calendar Your Tegra NOTE 7 comes with a full-featured web-based Google Calendar app. You can use this app to manage personal, shared, and public events all on one calendar. You will need a Google account to register for Google calendar. If you did not set up a Google account at start-up, you will need to do so before using the calendar.

  • Page 46: Setting Personal Options

    How To… Setting Personal Options Tap the Gmail icon Settings. Tap your Gmail account and adjust the settings options. How to Use the Clock To open the Clock, touch the Clock icon from a Home or All Apps screen. How to Set an Alarm Touch the Alarm Clock icon in the lower left corner of the screen.

  • Page 47: Compliance

    Compliance The Tegra NOTE 7 is compliant with the regulations listed in this section. UNITED STATES This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and Federal Communications (2) this device must accept any interference received, including any interference that may Commission (FCC)
  • Page 48 This is a universal recycling symbol indicating that the product cannot be disposed of in the trash and must be recycled according to the regulations and/or ordnances of the local community. Designed by NVIDIA, Made in China...

  • Page 49: Health And Safety

    Health and Safety Important Safety Information Tegra NOTE 7 is designed to operate safely when installed and used according to the product instructions and general safety practices. The guidelines included in this document explain the potential risks associated with equipment operation and provide important safety practices designed to minimize these risks. By carefully following the information contained in this document, you can protect yourself from hazards and create a safer environment.

  • Page 50: Symbols On Equipment

    Health and Safety To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the safety labels included on the equipment. Symbols on Equipment This symbol in conjunction with any of the following symbols indicates the presence of a potential hazard.
  • Page 51 Health and Safety Never attempt to repair Tegra NOTE 7 yourself. This device does not contain any user-serviceable parts. Do not attempt to open, disassemble, or remove the battery. You run the risk of electric shock. To clean the display, use a soft, lint-free cloth. If necessary, breathe upon the display surface and wipe off immediately and softly.
  • Page 52 NVIDIA product can reasonably be expected to result in personal injury, death or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.
