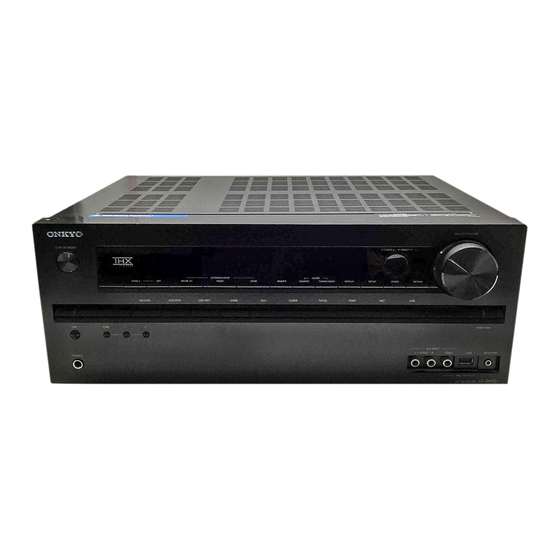

Onkyo HTR-990 Service Manual

Hide thumbs Also See for HTR-990:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
AV RECEIVER
HT-R990(B)
MODEL
North American models ---> "DIMMER"
European models ---> "RT/TPY/TP"
HT-R990 for HT-S9400THX Black model
B MDC
120V AC, 60Hz
HT-R990 for HT-S9405THX Black model
B MPP
230V AC, 50Hz
HT-R990
Ref. No. 4285
052011
RC-801M

Advertisement

Table of Contents
loading

Related Manuals for Onkyo HTR-990

Summary of Contents for Onkyo HTR-990

  • Page 1 HT-R990 Ref. No. 4285 052011 AV RECEIVER HT-R990(B) MODEL North American models ---> “DIMMER” European models ---> “RT/TPY/TP” RC-801M HT-R990 for HT-S9400THX Black model B MDC 120V AC, 60Hz HT-R990 for HT-S9405THX Black model B MPP 230V AC, 50Hz...
  • Page 2 HT-R990 P4900 EXPLODED VIEWS-1 U0041 A340 P901 A342 A360 x 9 pcs. A105 U0040 A056 A069 P2801 x 28 pcs. U003 A103 P2800 x 5 pcs. A101 A071 A109 A044 A017 x 2 pcs. P2001 U010 U0021 A270 x 4 pcs. A021 P101 x 2 pcs.

  • Page 3: Exploded Views

    HT-R990 EXPLODED VIEWS-2 P701 P703 A271 L=70mm P3101 A264 A242 A225 U0016 x 22 pcs. A273 A201 x 2 pcs. U0020 A260 x 2 pcs. A219 A221 U0022 A216 A202 A207 A213 A321 A217 A211 A215 A260 x 2 pcs. A212 A214 x 2 pcs.

  • Page 4: Schematic Diagram/ Block Diagram

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-1 BLOCK DIAGRAM AUDIO SECTION PART-1 BADIS-0662 2/4 HT-R690/HT-R990 BLOCK DIAGRAM AUDIO Section ( PART-1 ) BADIS-0662 1/4 AUX IN Q4001 R2A15218FP (FRONT IN) HEADPHONES TONE (FR) FRONT BOARD MIC AMP POWER AMPLIFIER SPEAKER TERMINALS Q7401 (FR)
  • Page 5 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-2 Model No. TX-SR309/509/609/TX-SA509/609/HT-R290/390/548/590/690/990/HT-RC330/360/DTR-20.3/30.3 SCHEMATIC DIAGRAM (PART-2) BLOCK DIAGRAM(VIDEO) BLOCK DIAGRAM VIDEO SECTION TX-SR309, TX-SR509, HT-R290, HT-R390, HT-R548, HT-R590, HT-RC330 JAPAN Model TX-SR609, HT-R690, HT-R990, TX-SA609, HT-RC360, DTR-20.3, DTR-30.3 PART-2 TX-SR609, TX-SA609, DTR-30.3 Q8661 TMDS TMDS...

  • Page 6: Schematic Diagram (Part

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-3 AUDIO INPUT SECTION PART-3 MODEL NO. TX-NR509/ TX-NR579/ TX-NA579/ HT-R590/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM (PART-3) AUDIO INPUT U0010 BAAF-0621 TO BAVD-0656(PART-7) TO BAVD-0664(PART-7) 7P wire FROM BADG-0639(PART-6) FROM BADG-0643(PART-6) FROM BADG-0639(PART-6) 9P wire FROM BADG-0643(PART-6)
  • Page 7 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-4 AMP. SECTION PART-4 NOTICE Q6001, Q6002, Q6003 and the surrounding parts have been changed as follows in the middle of production. Change C6120, C6121 and C6122 at the same time when Q6001 is changed. How to identify the IC Change C6123 and C6124 at the same time when Q6002 is changed.
  • Page 8 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-6 DIGITAL IN/ DAC/ MPU SECTION PART-6 TX-NR579/TX-NA579/TX-NR609/TX-NA609/DTR-20.3/DTR-30.3/HT-R690/HT-R990/HT-RC360 DIGITAL IN/DAC/MPU SECTION Schematic Diagram (Part-6) Rear Front FROM HDMI PWB FROM HDMI PWB FROM HDMI PWB FROM BAHDM-0684(PART-18) TO BAETC-0645(PART-12) BOTTOM---------------TOP FOR UPGRADE FROM BAHDM-0684(PART-18)
  • Page 9 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-7 VIDEO SECTION MODEL No. TX-NR509/ TX-NA509/ HT-R590/ HT-R690/ HT-R990/TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 SCHEMATIC DIAGRAM(Part-7) VIDEO SECTION PART-7 U0021 BAVD-0664 U0022 BAVD-0672 FrontUSB EXCEPT T3, H3, H54, H33, H5, T5 need parts R2602 R2603 R2604...
  • Page 10 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-9 Model No. TX-NR509/609/HT-R690/990/HT-RC360 Schematic Diagram (Part-9) Display Section DISPLAY SECTION PART-9 U0020 BADIS-0663 Q7002 16-BT-165GINK FLDCLK FLDSDO FLDCS KEYINT0 FLDRST KEYINT1 FLAC1 C7010 REMIN 223K +3.3S FLAC2 C7011 223K C7012 223K KEY3 VOLA R7007 220 R7008...

  • Page 11: Schematic Diagram

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-10 POWER SUPPLY SECTION PART-10 Model No. TX-NR509/609/HT-R690/990/HT-RC360 Schematic Diagram (Part-10) PS Section U0024 T5 D/A57/A6(A/C/D/J): UDZS4.7B D933 A/B: 200mm wire T5 M/690 D-990 D/609 D/360 D(B/E/G/K): UDZS5.1B C-L: 450mm wire BAPS-0667 990 M/609 M/360 M(F/H/L/M): UDZS5.6B KDS4148U D935 D934...

  • Page 12: 1 Model No. Tx-Nr(A)579,Tx-Nr(A)609,Ht-Rc360,Dtr-20.3,Dtr-30.3

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM-14 VMPU/ POWER SECTION PART-14 POWER SUPPLY Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 POFF2 D8904 KDS4148U Schematic Diagram (Part-14) VMPU/POWER SUPPLY Section D8902 KDS4148U R8906 2.7K R8911 D8903 KDS4148U U0030 BAHDM-0684 6.8K ABBY 2pcs HDMI OUT 1OUT 2OUTS OERXTH3 BUS_THR OERXTH2...

  • Page 13: U0030 Bahdm

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-15 HDMI INPUT SWITCH SECTION PART-15 Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 HDMI INPUT SWITCH SECTION SCHEMATIC DIAGRAM (PART-15) U0030 BAHDM-0684 TX-NR(A)609 HT-RC360 C8652 102K DTR-30.3 DTR-20.3 HPD_IN5 HP DET +5V_IN5 DSDA_IN5 DDC DATA DSCL_IN5 DDC CLK...
  • Page 14 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-16 HDMI SECTION PART-16 Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 Schematic Diagram (Part-16) HDMI Section U0030 BAHDM-0684 DSUB(PC) PART PART-21 HT-R690 P4900B NSCT-11P2474 TX-NR(A)609 R8287 1KF HT-RC360 R8253 1KF DTR-20.3 +3.3V_RAM C8314 104K DTR-30.3 GNDV_AUX C8315 105K...
  • Page 15 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-17 VIDEO PROCESSOR SECTION PART-17 Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 SCHEMATIC DIAGRAM (PART-17) VIDEO PROCESSOR SECTION U0030 BAHDM-0684 VREF_DDR3 1V5_DDR3 1V5_DDR3 MADD7 NO USE R8010 1V5_TNR 1V5_DDR3 R8038 NC_1K DQS0n MADD9 51X4 +3.3VHD OTP_AVDD_2V5...

  • Page 16: Video Processor Part

    TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-18 DSP AUDIO SECTION Model No. DIR/DAC/MPU PART TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3,HT-R690,HT-R990 PART-18 PART-6 SCHEMATIC DIAGRAM (Part-18) DSP AUDIO SECTION P8001B P8002B P8003B P8004 U0040 BAHDM-0684 GNDHD NET/USB PART Control signal Audio signal PART-20 Video signal DIGSDI DIGSDO DIGCLK...
  • Page 17 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-19 DSP MEMORY SECTION Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 SCHEMATIC DIAGRAM (PART-19) DSP Memory Section PART-19 U0030 BAHDM-0684 GND_ARM +3.3VHD GND_ARM GNDHD VDD_MPU3.3V PA_12 MB_A12 +3.3V C3001 105K R3009 L3001 PBA_0 MB_BA0 BLM18PG121SN1D PA_0 MB_A0 GND_ARM PA_1 MB_A1...
  • Page 18 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-20 Model No. TX-NR(A)579,TX-NR(A)609,HT-RC360,DTR-20.3,DTR-30.3 SCHEMATIC DIAGRAM (PART-20) NET/USB Power Section NET/ USB POWER SECTION for Debugging Boot Opt. NAND UART1 SPI0 BOOT7 +5.2VHD PART-20 BOOT1 +5.2V R3115 or R3116 BOOT2 for HS ESD TPD2E001DRLR BOOT0 BOOT3...
  • Page 19 TX-NR579/ TX-NA579/ HT-R690/ HT-R990 SCHEMATIC DIAGRAM/ BLOCK DIAGRAM-21 D-SUB (PC) SECTION PART-21 Model No. TX-NR609/TX-NA609/DTR-20.3/DTR-30.3/HT-R690/HT-R990 Schematic Diagram (PART-21) DSUB(PC) Section U0041 BAETC-0646 VGASDA A_HS A_VS VGASCL A_BLUE A_GREEN A_RED P4901 MDS-15P-VO2(DSUB15)
  • Page 20 TX-NR509/ TX-NR579/ TX-NA579/ HT-R590/ HT-R690/ HT-R990 PRINTED CIRCUIT BOARD VIEWS-1 U001 BAAF-0621 (U0010 to U0017) U0014 U0016 WIRING POWER SUPPLY A-side view CIRCUIT PC BOARD CIRCUIT PC BOARD BAETC-0625 BAETC-0627 U0017 U0012 PART FIXTURE THERMAL SENSOR PC BOARD CIRCUIT PC BOARD U0013 BAETC-0764 BAETC-0623...
  • Page 21 TX-NR509/ TX-NR579/ TX-NA579/ HT-R590/ HT-R690/ HT-R990 PRINTED CIRCUIT BOARD VIEWS-1A QPWBCAF0621B1 25140624 QPWBCAF0621B1 25140624 JL953B QPWBCAF0621B1 BCETC-0624 BCETC-0624 U001 QPWBCDIS0621B1 BCETC-0627 25140627 25140764 C961 BCETC-0764 P5509A QPWBCAF0621B1 BAAF-0621 JL954A JL952A JL951A BCETC-0625 25140625 (U0010 to U0017) R951 P961 P950 P960 P959 P958 P957...
  • Page 22 TX-NR509/ TX-NR579/ TX-NA579/ HT-R590/ HT-R690/ HT-R990 PRINTED CIRCUIT BOARD VIEWS-1B 25140624 25140624 25140627 U001 QPWBCAF0621B1 QPWBCAF0621B1 QPWBCAF0621B1 25140625 QPWBCAF0621B1 C6631 QPWBCDIS0621B1 BAAF-0621 25140764 (U0010 to U0017) TP6004 TP631 C6630 B-side view TP6001 TP6002 TP6003 C4018 R4058 R4075 R4060 C4031 C4030 R4071 R4070 R4009...
  • Page 23 TX-NR509/ TX-NR579/ TX-NA579/ TX-NR609/ TX-NA609/ HT-R690/ HT-R990/ HT-RC360 PRINTED CIRCUIT BOARD VIEWS-2 U002 BADIS-0663 (U0020 to U0024) A-side view U0020 DISPLAY CIRCUIT PC BOARD BADIS-0663 U0023 HEADPHONES CIRCUIT PC BOARD BAETC-0666 U0021 VIDEO INPUT TERMINALS CIRCUIT PC BOARD BAVD-0664 U0022 STANDBY ETC.
  • Page 24 TX-NR509/ TX-NR579/ TX-NA579/ TX-NR609/ TX-NA609/ HT-R690/ HT-R990/ HT-RC360 PRINTED CIRCUIT BOARD VIEWS-2A U002 & BADIS-0663 (U0020 to U0024) D7002 C7015 C7008 Q7002 TUN UP C7019 S7150 A-side view R7011 VOL-LED R7008 VOL-LED D7158 S7002 D7157 C7012 PRESET DOWN PRESET UP (NO USE) C7010 S7156...
  • Page 25 TX-NR509/ TX-NR579/ TX-NA579/ TX-NR609/ TX-NA609/ HT-R690/ HT-R990/ HT-RC360 PRINTED CIRCUIT BOARD VIEWS-2B U002 BADIS-0663 (U0020 to U0024) D7002 B-side view R7011 R7008 C7012 C7010 R7157 C7031 C7009 R7160 C7042 R7128 R7115 R7116 R7117 R7118 R7119 R7120 R7114 R7041 R7106 R7107 R7108 R7109 R7110...
  • Page 26 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-3 U003 HDMI CIRCUIT PC BOARD BAHDM-0684 A-side view U0031 FRONT HDMI TERMINAL PC BOARD BAHDM-0685 U0030 HDMI CIRCUIT PC BOARD BAHDM-0684...
  • Page 27 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-3A U003 HDMI CIRCUIT PC BOARD BAHDM-0684 A-side view A-side pattern B-side pattern QPWBCHDM0684A1 BCHDM-0684 25140685 P8662 BCHDM-0685 FOR WRITING VMPU JL801B 25140684A P2801B P2800B R8942 R8941 R8945 QPWBCHDM0684A1 R8952 R8944...
  • Page 28 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-3B U003 HDMI CIRCUIT PC BOARD BAHDM-0684 B-side view A-side pattern B-side pattern QPWBCHDM0684A1 25140685 25140684A R8725 QPWBCHDM0684A1 R8707 C8677 C8680 C3152 R8708 C3150 C8664 C8675 C8663 C8676 C8666 C8672 C8665...
  • Page 29 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-4 U004 BADG-0643 (U0040 to U0043) A-side view U0042 USB TERMINAL CIRCUIT PC BOARD BAETC-0644 U0040 DIGITAL INPUT TERMINAL/ MAIN CPU/ DAC CIRCUIT PC BOARD BADG-0643 U0041 D-SUB INPUT TERMINAL CIRCUIT PC BOARD BAETC-0646 U0043 U0043...
  • Page 30 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-4A QPWBCDG0643A1 BCDG-0643 JL501B 25140643A U004 BADG-0643 P8001A P8002A P8003A (U0040 to U0043) P701A P703B Q753 Q754 Q756 Q755 C145 BCETC-0644 A-side view R302 P751A L306 JL610B R312 R336 L732 C506...
  • Page 31 TX-NR579/ TX-NA579/ HT-R690/ HT-R990/ TX-NR609/ TX-NA609/ HT-RC360/ DTR-20.3/ DTR-30.3 PRINTED CIRCUIT BOARD VIEWS-4B QPWBCDG0643A1 MPOWER GNDDG D110 R800 C710 25140643A U004 BADG-0643 C800 C629 C801 FLTXD POFF2 1.AUX_R (U0040 to U0043) 2.GNDA_AUX FLRXD 3.MICOUT 4.AUX_L RESET 5.-15V Q601 C551 6.MICMUT R682 C705 FLMD0...

  • Page 32: Exploded View Parts List

    1/83 PAGE HT-R990 <Note> Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. NOTE : THE COMPONENTS IDENTIFIED BY THE MARK <Notes> ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART <MDC>...
  • Page 33 2/83 PAGE A056 BUSHING S-RELIEF #2271 27300750 A060 WIRE TIE BSK-1 260208 A069 SCREW 3TTB+8B(3BC) 838430088GR A071 LABEL (SP)590 29391418 <MDC, MPP> A080 IB CUSHION W15*3t TAPE 28141585 A090 CUSHION (BUTYL) 28141748 A101 REAR PANEL HTR990DC 27124247B N <MDC> A101 REAR PANEL HTR990PP 27124248C...
  • Page 34 (B) (Bent) 28210087A A340 COVER (B) (Not Bent) 28210087AZ A342 SCREW 3TTB+8B(3BC) 838430088GR A360 LABEL (COVER) 29390767 A362 LABEL HOOKUP-ONKYO 29363194 <MDC> [TRANS COIL] T901 P TRANS NPT-1604D 2302012 ! <MDC> T901 P TRANS NPT-1604P 2302013 ! <MPP> [SW TRM] F6901...
  • Page 35 4/83 PAGE U001 BAAF-0621-1H * 1B258521-1H N <MPP> U0010 Power Amp / Audio Input Terminals PC board ass'y BAAF-0621-1G 1B2585621-1G <MDC> U0010 BAAF-0621-1H 1B2585621-1H N <MPP> U0011 Center Speaker Terminal PC board ass'y BATRM-0622-1G 1B2585622-1G N <MDC> U0011 BATRM-0622-1H 1B2585622-1H N <MPP>...
  • Page 36 5/83 PAGE U010 TUNER UNIT KST-MW004MS1-S89S 240171 <MDC> U010 TUNER UNIT KST-MW104MS1-S89 240172 <MPP> HT-R990 PACKING PROCEDURES PARTS LIST REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [PACKING] A601 PAD AS (AS)HTR690 L & R (29092594A) A601A 29092595A A601B 29092596A A605...
  • Page 37 3010194 <MDC, MPP> A861 or BATTERY R6/AA(UM-3) ( 2) 3010054 <MDC, MPP> A885 WRNTY CARD (ONKYO) 29365135 <MDC> HT-R990 PC BOARD PARTS LIST U001 U001 U001 U0010 + U0011 + U0012 + U0013 + U0014 + U0015 + U0016 U001...
  • Page 38 7/83 PAGE D4172 ZENER D MTZJ6.8B 224470682T U001 D4208 C-DIODE DA2J10100 223303R2 U001 D4208 or C-DIODE 1SS352 ( 1) 223234R2 U001 D4208 or C-DIODE 1SS355 ( 1) 223269R2 U001 D4208 or C-DIODE MA2J111 ( 1) 223279R2 U001 D4208 or C-DIODE KDS4148U ( 1) 223283R2...
  • Page 39 8/83 PAGE D6022 or C-DIODE KDS4148U ( 1) 223283R2 U001 D6023 C-DIODE DA2J10100 223303R2 U001 D6023 or C-DIODE 1SS352 ( 1) 223234R2 U001 D6023 or C-DIODE 1SS355 ( 1) 223269R2 U001 D6023 or C-DIODE MA2J111 ( 1) 223279R2 U001 D6023 or C-DIODE KDS4148U ( 1)
  • Page 40 9/83 PAGE D6609 or C-DIODE 1SS352 ( 1) 223234R2 <MDC, MPP> U001 D6609 or C-DIODE 1SS355 ( 1) 223269R2 <MDC, MPP> U001 D6609 or C-DIODE MA2J111 ( 1) 223279R2 <MDC, MPP> U001 D6609 or C-DIODE KDS4148U ( 1) 223283R2 <MDC, MPP> U001 D6704 ZENER D...
  • Page 41 10/83 PAGE Q4102 RN1441 2215410R2 U001 Q4103 RN1441 2215410R2 U001 Q4104 RN1441 2215410R2 U001 Q4105 RN1441 2215410R2 U001 Q4106 RN1441 2215410R2 U001 Q4107 RN1441 2215410R2 U001 Q4108 RN1441 2215410R2 <MDC, MPP> U001 Q4109 RN1441 2215410R2 <MDC, MPP> U001 Q4117 RN1441 2215410R2 U001 Q4130...
  • Page 42 11/83 PAGE ↓ U001 C-CERA C CC725CH1H-561J1 342105614R1 AFTER U001 C6124 C-CERA C CC725CH1H-561J1 342105614R1 BEFORE U001 ↓ U001 C-CERA C CC725CH1H-561J1 342105614R1 AFTER U001 Change C6125 and C6126 at the same time when Q6003 is changed. U001 Q6003 STK-442-730-E 222150 N BEFORE U001...
  • Page 43 12/83 PAGE Q6708 or 2SC2712-GR ( 1) 2213145R2 U001 Q960 2SC2235-Y(TPE6_F) 2211654T U001 Q960 or 2SC2235-O(TPE6_F) ( 1) 2211653T U001 U001 [TRANS COIL] L6000 S COIL SC-0.8X6.0X29.5T-4RV-C 231394AS U001 L6001 S COIL SC-0.8X6.0X29.5T-4RV-C 231394AS U001 L6002 S COIL SC-0.8X6.0X29.5T-4RV-C 231394AS U001 L6003 S COIL...
  • Page 44 13/83 PAGE C4064 TF C ECQ-V50V-223J 374722234T U001 C4065 TF C ECQ-V50V-474J 374724744T U001 C4066 TF C ECQ-V50V-823J 374728234T U001 C4067 TF C ECQ-V50V-223J 374722234T U001 C4070 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4071 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C4072 UTSP C CE04W50V 47M(UTSP)
  • Page 45 14/83 PAGE C4204 C-CERA C CC725CH1H-102J1 342101024R1 U001 C4205 C-CERA C CC725CH1H-102J1 342101024R1 U001 C4206 C-CERA C CC725CH1H-102J1 342101024R1 <MDC, MPP> U001 C4208 C-CERA C CC725CH1H-102J1 342101024R1 <MDC, MPP> U001 C4209 UTSP C CE04W25V-47M(UTSP) 397554707T U001 C4210 UTSP C CE04W25V-47M(UTSP) 397554707T U001 C4300...
  • Page 46 15/83 PAGE C6024 UPZ C 2AUPZTF471JE 376334714T U001 C6025 UPZ C 2AUPZTF471JE 376334714T <MDC, MPP> U001 C6026 UPZ C 2AUPZTF471JE 376334714T <MDC, MPP> U001 C6030 UTSP C CE04W25V-220M(UTSP) 397552217T U001 C6031 UTSP C CE04W25V-220M(UTSP) 397552217T U001 C6032 UTSP C CE04W25V-220M(UTSP) 397552217T U001 C6033...
  • Page 47 16/83 PAGE C6094 C-CERA C CK725F1E-104Z1 332161040R1 U001 C6101 UTSP C CE04W63V-100M(UTSP) 397571017T U001 C6102 UTSP C CE04W63V-100M(UTSP) 397571017T U001 C6103 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C6104 UTSP C CE04W63V-100M(UTSP) 397571017T <MDC, MPP> U001 C6105 UTSP C CE04W63V-100M(UTSP) 397571017T <MDC, MPP>...
  • Page 48 17/83 PAGE C950 TF C ECQ-V50V-104J 374721044T U001 C960 VR C CE04W63V-220M(VR) 394672217T U001 C960 or JAMICON CE04W63V-220M ( 1) 398572217T U001 C961 UTSP C CE04W50V 47M(UTSP) 397584707T U001 C962 TF C ECQ-V50V-104J 374721044T U001 C963 UTSP C CE04W50V 47M(UTSP) 397584707T U001 [RESISTOR]...
  • Page 49 18/83 PAGE R4079 C-CARBON R RN72K1J-473JE 435034734R1 U001 R4080 C-CARBON R RN72K1J-104JE 435031044R1 <MDC, MPP> U001 R4081 C-CARBON R RN72K1J-104JE 435031044R1 <MDC, MPP> U001 R4082 C-CARBON R RN72K1J-104JE 435031044R1 U001 R4083 C-CARBON R RN72K1J-000JE 435030004R1 U001 R4084 C-CARBON R RN72K1J-000JE 435030004R1 U001 R4085...
  • Page 50 19/83 PAGE R4118 C-CARBON R RN72K1J-222JE 435032224R1 <MDC, MPP> U001 R4119 C-CARBON R RN72K1J-222JE 435032224R1 <MDC, MPP> U001 R4125 C-CARBON R RN72K1J-000JE 435030004R1 <MDC, MPP> U001 R4126 C-CARBON R RN72K1J-000JE 435030004R1 <MDC, MPP> U001 R4127 C-CARBON R RN72K1J-101JE 435031014R1 U001 R4130 C-CARBON R RN72K1J-221JE...
  • Page 51 20/83 PAGE R4401 C-CARBON R RN72K1J-223JE 435032234R1 <MDC, MPP> U001 R4402 C-CARBON R RN72K1J-333JE 435033334R1 <MDC, MPP> U001 R4403 C-CARBON R RN72K1J-333JE 435033334R1 <MDC, MPP> U001 R4404 C-CARBON R RN72K1J-223JE 435032234R1 <MDC, MPP> U001 R4405 C-CARBON R RN72K1J-223JE 435032234R1 <MDC, MPP> U001 R4406 C-CARBON R...
  • Page 52 21/83 PAGE R6041 CARBON R R16J-120K 417341244T U001 R6042 CARBON R R16J-120K 417341244T U001 R6043 CARBON R R16J-120K 417341244T U001 R6044 CARBON R R16J-120K 417341244T U001 R6045 CARBON R R16J-120K 417341244T <MDC, MPP> U001 R6046 CARBON R R16J-120K 417341244T <MDC, MPP> U001 R6050 CARBON R...
  • Page 53 22/83 PAGE R6085 C-CARBON R RN72K1J-123JE 435031234R1 <MDC, MPP> U001 R6086 C-CARBON R RN72K1J-123JE 435031234R1 <MDC, MPP> U001 R6100 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6101 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6102 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6103 C-CARBON R RN72K1J-333JE 435033334R1 U001 R6104...
  • Page 54 23/83 PAGE R6203 METAL O R RS1WBJ-100 443621014T U001 R6204 METAL O R RS1WBJ-100 443621014T U001 R6205 METAL O R RS1/2WBJ-56K 443525634T <MDC, MPP> U001 R6206 METAL O R RS1WBJ-100 443621014T <MDC, MPP> U001 R6207 METAL O R RS1WBJ-100 443621014T <MDC, MPP>...
  • Page 55 24/83 PAGE F6902B FUSE HOL NSCT-1P2031 25052133T U001 JL501A WIRE HOL NSCT-3P874 25051087 U001 JL502A WIRE HOL NSCT-5P876 25051089 <MDC, MPP> U001 JL503A WIRE HOL NSCT-9P880 25051093 <MDC, MPP> U001 JL600A WIRE HOL NSCT-7P898 25051111 U001 JL600B WIRE HOL NSCT-7P898 25051111 U001 JL603A...
  • Page 56 25/83 PAGE P6906 WS CLAMP CB-71683(L=50) 260261 U001 P6908 WS CLAMP CB-71683(L=50) 260261 U001 P6909 WS CLAMP CB-71683(L=50) 260261 U001 P6911A RETAINER (BUS-D)TX-SR606 27142100 U001 RL660 RELAY NRL-2P5A-DC24-129 25065563A U001 RL660 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590 U001 RL660 or RELAY NRL-2P5A-DC24-193 ( 1)
  • Page 57 26/83 PAGE D2110 or C-DIODE 1SS352 ( 1) 223234R2 <MPP, MDC> U002 D2110 or C-DIODE 1SS355 ( 1) 223269R2 <MPP, MDC> U002 D2110 or C-DIODE MA2J111 ( 1) 223279R2 <MPP, MDC> U002 D2110 or C-DIODE KDS4148U ( 1) 223283R2 <MPP, MDC> U002 D2201 C-DIODE...
  • Page 58 27/83 PAGE D7501 or C-DIODE MA2J111 ( 1) 223279R2 U002 D7501 or C-DIODE KDS4148U ( 1) 223283R2 U002 D7502 C-DIODE DA2J10100 223303R2 U002 D7502 or C-DIODE 1SS352 ( 1) 223234R2 U002 D7502 or C-DIODE 1SS355 ( 1) 223269R2 U002 D7502 or C-DIODE MA2J111 ( 1)
  • Page 59 28/83 PAGE D912 or C-DIODE 1SS355 ( 1) 223269R2 U002 D912 or C-DIODE MA2J111 ( 1) 223279R2 U002 D912 or C-DIODE KDS4148U ( 1) 223283R2 U002 D921 C-DIODE DA2J10100 223303R2 U002 D921 or C-DIODE 1SS352 ( 1) 223234R2 U002 D921 or C-DIODE 1SS355 ( 1)
  • Page 60 29/83 PAGE D933 or C-DIODE 1SS352 ( 1) 223234R2 U002 D933 or C-DIODE 1SS355 ( 1) 223269R2 U002 D933 or C-DIODE MA2J111 ( 1) 223279R2 U002 D933 or C-DIODE KDS4148U ( 1) 223283R2 U002 D934 ZENER D DZ2J051M0L 224760510R2 <MDC> U002 D934 or ZENER D...
  • Page 61 30/83 PAGE L2304 CORE BLM18PG181SN1D 2350005R1 U002 L2305 EMIFIL BK1608LM182-T 230958R1 U002 L2306 EMIFIL BK1608LM182-T 230958R1 U002 L2307 EMIFIL BK1608LM182-T 230958R1 U002 L2308 EMIFIL BK1608LM182-T 230958R1 U002 L2309 EMIFIL BK1608LM182-T 230958R1 U002 L2310 EMIFIL BK1608LM182-T 230958R1 U002 L2311 EMIFIL BK1608LM182-T 230958R1 U002 L2312...
  • Page 62 31/83 PAGE C2004 C-CERA C CK725F1E-104Z1 332161040R1 U002 C2005 VR C CE04W6.3V-470M(VR) 394624717T U002 C2005 or JAMICON CE04W6.3V-470M ( 1) 398524717T U002 C2006 C-CERA C CC725CH1H-470J1 342104704R1 U002 C2007 C-CERA C CK725F1E-104Z1 332161040R1 U002 C2008 C-CERA C CK725F1A-105Z1 332181050R1 U002 C2009 C-CERA C CK725F1A-105Z1...
  • Page 63 32/83 PAGE C2114 or JAMICON CE04W50V-2.2M ( 1) 398580227T U002 C2115 VR C CE04W50V-2.2M(VR) 394680227T U002 C2115 or JAMICON CE04W50V-2.2M ( 1) 398580227T U002 C2116 VR C CE04W50V-2.2M(VR) 394680227T U002 C2116 or JAMICON CE04W50V-2.2M ( 1) 398580227T U002 C2117 C-CERA C CK725F1E-104Z1 332161040R1 <MPP, MDC>...
  • Page 64 33/83 PAGE C2384 C-CERA C CK725F1A-105Z1 332181050R1 U002 C2385 C-CERA C CK725F1A-105Z1 332181050R1 U002 C2388 C-CERA C CK725F1E-104Z1 332161040R1 U002 C2389 C-CERA C CK725F1E-104Z1 332161040R1 U002 C2391 C-CERA C CK725F1A-105Z1 332181050R1 U002 C2392 C-CERA C CK725F1A-105Z1 332181050R1 U002 C2393 C-CERA C CC725CH1H-471J1 342104714R1 U002...
  • Page 65 34/83 PAGE C7031 C-CERA C CK725B1H-223K1 332102235R1 U002 C7032 C-CERA C CK725B1H-223K1 332102235R1 U002 C7033 ELECT C CE04W16V-10M(S) 353741009T U002 C7041 ELECT C CE04W16V-10M(S) 353741009T U002 C7042 C-CERA C CC725CH1H-102J1 342101024R1 U002 C7043 C-CERA C CC725CH1H-102J1 342101024R1 U002 C7201 C-CERA C CC725CH1H-102J1 342101024R1 U002...
  • Page 66 35/83 PAGE C9027 C-CERA C CK725F1E-104Z1 332161040R1 U002 C9028 C-CERA C CK725F1E-104Z1 332161040R1 U002 C9029 C-CERA C CK725F1E-104Z1 332161040R1 U002 C9030 C-CERA C CK725F1E-104Z1 332161040R1 U002 C9031 C-CERA C CK725F1E-104Z1 332161040R1 U002 C911 C-CERA C CC725CH1H-102J1 342101024R1 <MPP, MDC> U002 C921 C-CERA C CK725B1H-223K1...
  • Page 67 36/83 PAGE R2116 C-CARBON R RN72K1J-750JE 435037504R1 U002 R2117 C-CARBON R RN72K1J-682JE 435036824R1 <MPP, MDC> U002 R2118 C-CARBON R RN72K1J-682JE 435036824R1 <MPP, MDC> U002 R2119 C-CARBON R RN72K1J-682JE 435036824R1 <MPP, MDC> U002 R2120 C-CARBON R RN72K1J-104JE 435031044R1 U002 R2121 C-CARBON R RN72K1J-104JE 435031044R1 U002...
  • Page 68 37/83 PAGE R2360 C-CARBON R RN72K1J-103JE 435031034R1 U002 R2361 C-CARBON R RN72K1J-103JE 435031034R1 U002 R2363 C-CARBON R RN72K1J-103JE 435031034R1 U002 R2364 C-CARBON R RN72K1J-103JE 435031034R1 U002 R2400 C-CARBON R RN72K1J-222FE 435032222R1 <MPP, MDC> U002 R2401 C-CARBON R RN72K1J-222FE 435032222R1 <MPP, MDC> U002 R2402 C-CARBON R...
  • Page 69 38/83 PAGE R7103 C-CARBON R RN72K1J-471JE 435034714R1 U002 R7104 C-CARBON R RN72K1J-561JE 435035614R1 U002 R7105 C-CARBON R RN72K1J-821JE 435038214R1 U002 R7106 C-CARBON R RN72K1J-271JE 435032714R1 U002 R7107 C-CARBON R RN72K1J-331JE 435033314R1 U002 R7108 C-CARBON R RN72K1J-471JE 435034714R1 U002 R7109 C-CARBON R RN72K1J-561JE 435035614R1 U002...
  • Page 70 39/83 PAGE R7413 C-CARBON R RN72K1J-224JE 435032244R1 U002 R7414 C-CARBON R RN72K1J-104JE 435031044R1 U002 R7420 C-CARBON R RN72K1J-473JE 435034734R1 U002 R7431 C-CARBON R RN72K1J-221JE 435032214R1 U002 R7432 C-CARBON R RN72K1J-224JE 435032244R1 U002 R7433 C-CARBON R RN72K1J-473JE 435034734R1 U002 R7434 C-CARBON R RN72K1J-102JE 435031024R1 U002...
  • Page 71 40/83 PAGE P701B SOCKET NSCT-23P2441 25052544 U002 P703A SOCKET NSCT-7P2425 25052528 U002 P7201 ST JACK MSJ-064-05A SR 25045783 U002 P7302 PIN JACK NPJ-3PDB720 25045957 <MPP, MDC> U002 P7402 ST JACK MSJ-035-05C B AG SR type 25045879 U002 P7501 SOCKET 000010211-00027 25053411 U002 P901A...
  • Page 72 41/83 PAGE S7160 PUSH SW NPS-111-S681 25035718T U002 S7162 PUSH SW NPS-111-S681 25035718T U002 S7164 PUSH SW NPS-111-S681 25035718T U002 U002 [TUNER UNIT] U7041 REMO SENS KSM-603TE5B 24130019 U002 U003 HDMI PC board ass'y BAHDM-0684-1E * U003 U003 CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO.
  • Page 73 42/83 PAGE D8903 C-DIODE DA2J10100 223303R2 U003 D8903 or C-DIODE 1SS352 ( 1) 223234R2 U003 D8903 or C-DIODE 1SS355 ( 1) 223269R2 U003 D8903 or C-DIODE MA2J111 ( 1) 223279R2 U003 D8903 or C-DIODE KDS4148U ( 1) 223283R2 U003 D8904 C-DIODE DA2J10100 223303R2...
  • Page 74 43/83 PAGE Q8010 BU18TD3WG-TR 22242716R2 U003 Q8011 XC6220B151PR 22242704R2 U003 Q8012 TPS51100DGQR 22242711R2 U003 Q8030 TC7WHU04FU(TE12L) 22242231R2 U003 Q8031 NC7SZ08P5X_F042 22242482R2 U003 Q8032 SN74CB3T3306DCT 22242454R2 U003 Q8040 IC(VSP) W25Q128BVFIG(0414) 222W0116R20414A U003 Q8041 TC74LCX125FT(EL_K) 22274125BR2TO U003 Q8050 MM3404A50NRE 22242701R2 U003 Q8080 NT5CB64M16DP-CF 22242736R3 U003...
  • Page 75 44/83 PAGE L3105 CORE BLM18PG121SN1D 2350006R1 U003 L3106 CORE BLM18PG121SN1D 2350006R1 U003 L3107 CORE BLM18PG121SN1D 2350006R1 U003 L3108 CORE BLM18PG121SN1D 2350006R1 U003 L3109 CORE BLM18PG121SN1D 2350006R1 U003 L3110 CORE BLM18PG121SN1D 2350006R1 U003 L3145 CORE DLP2ADN900HL4L 230990R2 U003 L3201 CORE BLM18PG181SN1D 2350005R1 U003 L3203...
  • Page 76 45/83 PAGE L8205 CORE BLM18PG181SN1D 2350005R1 U003 L8206 CORE BLM18PG181SN1D 2350005R1 U003 L8207 CORE BLM18PG181SN1D 2350005R1 U003 L8208 CORE BLM18PG181SN1D 2350005R1 U003 L8608 EMIFIL BK1608LM182-T 230958R1 U003 L8701 CORE BLM18PG181SN1D 2350005R1 U003 L8931 CHOKE COIL BLM21PG221SN1 230949R2 U003 L8932 CHOKE COIL CDRH8D43_100 231371P100R2 U003...
  • Page 77 46/83 PAGE C3004 C-CERA C CK732B16V-106K 332071065R2 U003 C3005 C-CERA C CK725B1A-105K0 332001055R1 U003 C3006 C-CERA C CK725B1H-102K0 332031025R1 U003 C3007 C-CERA C CK725B1A-105K0 332001055R1 U003 C3008 C-CERA C CK725B1H-102K0 332031025R1 U003 C3009 C-CERA C CK725B1A-105K0 332001055R1 U003 C3010 C-CERA C CK725B1A-105K0 332001055R1 U003...
  • Page 78 47/83 PAGE C3043 C-CERA C CK725B1A-105K0 332001055R1 U003 C3100 C-CERA C CK725B1H-102K0 332031025R1 U003 C3101 C-CERA C CK732B16V-106K 332071065R2 U003 C3103 C-CERA C CK725B1H-102K0 332031025R1 U003 C3104 CHIP ELECT C CEWX16V-100M 398141017R2 U003 C3105 C-CERA C CK725B1A-105K0 332001055R1 U003 C3106 C-CERA C CK732B16V-106K 332071065R2...
  • Page 79 48/83 PAGE C3142 C-CERA C CK725B1A-105K0 332001055R1 U003 C3143 C-CERA C CK725B1A-105K0 332001055R1 U003 C3144 C-CERA C CK725B1A-105K0 332001055R1 U003 C3145 C-CERA C CK732B16V-106K 332071065R2 U003 C3148 C-CERA C CK725B1C-104K0 332011045R1 U003 C3149 C-CERA C CK725B1H-102K0 332031025R1 U003 C3150 C-CERA C CK732B16V-106K 332071065R2 U003...
  • Page 80 49/83 PAGE C8020 C-CERA C CK725B1C-104K0 332011045R1 U003 C8021 C-CERA C CK725B1C-104K0 332011045R1 U003 C8022 C-CERA C CK725B1C-104K0 332011045R1 U003 C8023 C-CERA C CK725B1C-104K0 332011045R1 U003 C8024 C-CERA C CK725B1C-104K0 332011045R1 U003 C8026 C-CERA C CK732B16V-106K 332071065R2 U003 C8027 C-CERA C CK732B16V-106K 332071065R2 U003...
  • Page 81 50/83 PAGE C8064 C-CERA C CK725B1C-104K0 332011045R1 U003 C8065 C-CERA C CK725B1C-104K0 332011045R1 U003 C8066 C-CERA C CK732B16V-106K 332071065R2 U003 C8067 C-CERA C CK732B16V-106K 332071065R2 U003 C8068 C-CERA C CK725B1A-105K0 332001055R1 U003 C8069 C-CERA C CK725B1C-104K0 332011045R1 U003 C8070 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 82 51/83 PAGE C8106 C-CERA C CK725B1A-105K0 332001055R1 U003 C8107 C-CERA C CK725B1C-104K0 332011045R1 U003 C8108 C-CERA C CK725B1C-104K0 332011045R1 U003 C8109 C-CERA C CK725B1A-105K0 332001055R1 U003 C8110 C-CERA C CK725B1A-105K0 332001055R1 U003 C8111 C-CERA C CC725CH1H-101J0 342031014R1 U003 C8112 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 83 52/83 PAGE C8163 C-CERA C CK725B1C-104K0 332011045R1 U003 C8164 C-CERA C CK725B1H-102K0 332031025R1 U003 C8165 C-CERA C CK725B1C-104K0 332011045R1 U003 C8166 C-CERA C CK732B16V-106K 332071065R2 U003 C8167 C-CERA C CK725B1A-105K0 332001055R1 U003 C8169 C-CERA C CK725B1A-105K0 332001055R1 U003 C8170 C-CERA C CK725B1A-105K0 332001055R1 U003...
  • Page 84 53/83 PAGE C8238 C-CERA C CK725B1C-104K0 332011045R1 U003 C8239 C-CERA C CK725B1H-103K0 332031035R1 U003 C8240 C-CERA C CK725B1H-103K0 332031035R1 U003 C8241 C-CERA C CK725B1H-103K0 332031035R1 U003 C8242 C-CERA C CK725B1H-103K0 332031035R1 U003 C8243 C-CERA C CK725B1H-103K0 332031035R1 U003 C8244 C-CERA C CK732B16V-106K 332071065R2 U003...
  • Page 85 54/83 PAGE C8283 C-CERA C CK725B1H-103K0 332031035R1 U003 C8284 C-CERA C CK725B1H-103K0 332031035R1 U003 C8285 C-CERA C CK725B1H-103K0 332031035R1 U003 C8286 C-CERA C CK725B1H-103K0 332031035R1 U003 C8287 C-CERA C CK725B1C-104K0 332011045R1 U003 C8288 C-CERA C CK725B1C-104K0 332011045R1 U003 C8289 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 86 55/83 PAGE C8652 C-CERA C CK725B1H-102K0 332031025R1 U003 C8701 C-CERA C CK725B1C-104K0 332011045R1 U003 C8702 C-CERA C CK725B1C-104K0 332011045R1 U003 C8703 C-CERA C CK725B1C-104K0 332011045R1 U003 C8704 C-CERA C CK725B1C-104K0 332011045R1 U003 C8705 C-CERA C CK725B1A-105K0 332001055R1 U003 C8706 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 87 56/83 PAGE C8943 C-CERA C CK725B1E-106K 332221065R2 U003 C8944 C-CERA C CK725B1E-106K 332221065R2 U003 C8945 C-CERA C CK725B1E-682K0 332026825R1 U003 C8946 C-CERA C CK732B16V-106K 332071065R2 U003 C8947 C-CERA C CK732B16V-106K 332071065R2 U003 C8948 C-CERA C CK732B16V-106K 332071065R2 U003 C8951 C-CERA C CK725B1C-104K0 332011045R1 U003...
  • Page 88 57/83 PAGE R3024 C-CARBON R RN72K1J-470JE 435034704R1 U003 R3025 C-CARBON R RN72K1J-102JE 435031024R1 U003 R3028 C-CARBON R RN72K1J-470JE 435034704R1 U003 R3029 C-CARBON R RN72K1J-102JE 435031024R1 U003 R3032 C-CARBON R RN72K1J-103JE 435031034R1 U003 R3033 C-CARBON R RN72K1J-470JE 435034704R1 U003 R3034 C-CARBON R RN72K1J-470JE 435034704R1 U003...
  • Page 89 58/83 PAGE R3113 C-CARBON R RN72K1J-103JE 435031034R1 U003 R3115 C-CARBON R RN72K1J-332JE 435033324R1 U003 R3117 C-CARBON R RN72K1J-332JE 435033324R1 U003 R3119 C-CARBON R RN72K1J-332JE 435033324R1 U003 R3121 C-CARBON R RN72K1J-103JE 435031034R1 U003 R3122 C-CARBON R RN72K1J-102JE 435031024R1 U003 R3123 C-CERA C CK725F1E-104Z1 332161040R1 U003...
  • Page 90 59/83 PAGE R3169 C-CARBON R RN72K1J-220JE 435032204R1 U003 R3170 C-CARBON R RN72K1J-391FE 435033912R1 U003 R3171 C-CARBON R RN72K1J-222FE 435032222R1 U003 R3172 C-CARBON R RN72K1J-392FE 435033922R1 U003 R3173 C-CARBON R RN72K1J-390JE 435033904R1 U003 R3174 C-CARBON R RN72K1J-390JE 435033904R1 U003 R3175 C-CARBON R RN72K1J-472JE 435034724R1 U003...
  • Page 91 60/83 PAGE R3229 C-CARBON R RN72K1J-470JE 435034704R1 U003 R3230 C-CARBON R RN72K1J-221JE 435032214R1 U003 R3232 C-CARBON R RN72K1J-221JE 435032214R1 U003 R3236 C-CARBON R RN72K1J-470JE 435034704R1 U003 R3237 C-CARBON R RN72K1J-221JE 435032214R1 U003 R3239 C-CARBON R RN72K1J-221JE 435032214R1 U003 R3240 C-CARBON R RN72K1J-103JE 435031034R1 U003...
  • Page 92 61/83 PAGE R8010 C-R NET RM7LJ510X04 43484751004R2 U003 R8011 C-R NET RM7LJ510X04 43484751004R2 U003 R8012 C-R NET RM7LJ510X04 43484751004R2 U003 R8013 C-R NET RM7LJ510X04 43484751004R2 U003 R8014 C-R NET RM7LJ510X04 43484751004R2 U003 R8015 C-CARBON R MCR03EZPF49R9(49.9_1%) 4100037R2 U003 R8016 C-CARBON R MCR03EZPF49R9(49.9_1%) 4100037R2 U003...
  • Page 93 62/83 PAGE R8079 C-CARBON R RN72K1J-473JE 435034734R1 U003 R8080 C-CARBON R RN72K1J-101JE 435031014R1 U003 R8081 C-CARBON R RN72K1J-101JE 435031014R1 U003 R8082 C-CARBON R RN72K1J-101JE 435031014R1 U003 R8083 C-CARBON R RN72K1J-101JE 435031014R1 U003 R8084 C-CARBON R RN72K1J-100JE 435031004R1 U003 R8085 C-CARBON R RN72K1J-100JE 435031004R1 U003...
  • Page 94 63/83 PAGE R8124 C-CARBON R RN72K1J-220JE 435032204R1 U003 R8125 C-CARBON R RN72K1J-220JE 435032204R1 U003 R8126 C-CARBON R RN72K1J-472JE 435034724R1 U003 R8127 C-CARBON R RN72K1J-472JE 435034724R1 U003 R8128 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8129 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8132 C-CARBON R RN72K1J-472JE 435034724R1 U003...
  • Page 95 64/83 PAGE R8223 C-CARBON R RN72K1J-820JE 435038204R1 U003 R8224 C-CARBON R RN72K1J-120JE 435031204R1 U003 R8225 C-CARBON R RN72K1J-120JE 435031204R1 U003 R8226 C-CARBON R RN72K1J-391JE 435033914R1 U003 R8227 C-CARBON R RN72K1J-120JE 435031204R1 U003 R8228 C-CARBON R RN72K1J-390JE 435033904R1 U003 R8229 C-CARBON R RN72K1J-120JE 435031204R1 U003...
  • Page 96 65/83 PAGE R8265 C-R NET RM7LJ220X04 43484722004R2 U003 R8266 C-R NET RM7LJ220X04 43484722004R2 U003 R8267 C-R NET RM7LJ220X04 43484722004R2 U003 R8268 C-R NET RM7LJ330X04 43484733004R2 U003 R8269 C-R NET RM7LJ330X04 43484733004R2 U003 R8270 C-R NET RM7LJ330X04 43484733004R2 U003 R8271 C-R NET RM7LJ330X04 43484733004R2 U003...
  • Page 97 66/83 PAGE R8704 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8705 C-R NET RM7LJ103X04 43484710304R2 U003 R8706 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8707 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8708 C-R NET RM7LJ103X04 43484710304R2 U003 R8709 C-CARBON R RN72K1J-220JE 435032204R1 U003 R8710 C-CARBON R RN72K1J-222JE 435032224R1 U003...
  • Page 98 67/83 PAGE R8901 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8902 C-CARBON R RN72K1J-393JE 435033934R1 U003 R8906 C-CARBON R RN72K1J-272JE 435032724R1 U003 R8907 C-CARBON R RN72K1J-223JE 435032234R1 U003 R8908 C-CARBON R RN72K1J-103JE 435031034R1 U003 R8909 C-CARBON R RN72K1J-334JE 435033344R1 U003 R8910 C-CARBON R RN72K1J-103JE 435031034R1 U003...
  • Page 99 68/83 PAGE P3104 or SOCKET SI-60073-F ( 1) 25053307 U003 P3104 or SOCKET EJFR0002 ( 1) 25056668 U003 P4900B SOCKET NSCT-11P2474 25052577R2 <MDC, MPP> U003 P8001B SOCKET IMSA-9111S-16L 25053258 U003 P8002B SOCKET IMSA-9111S-24L 25053259 U003 P8003B SOCKET IMSA-9111S-16L 25053258 U003 P8030 SOCKET IMSA-9618S-04A...
  • Page 100 69/83 PAGE D110 or C-DIODE 1SS355 ( 1) 223269R2 U004 D110 or C-DIODE MA2J111 ( 1) 223279R2 U004 D110 or C-DIODE KDS4148U ( 1) 223283R2 U004 D111 C-DIODE DA2J10100 223303R2 U004 D111 or C-DIODE 1SS352 ( 1) 223234R2 U004 D111 or C-DIODE 1SS355 ( 1)
  • Page 101 70/83 PAGE D701 or C-DIODE KDS4148U ( 1) 223283R2 U004 D702 C-DIODE DA2J10100 223303R2 U004 D702 or C-DIODE 1SS352 ( 1) 223234R2 U004 D702 or C-DIODE 1SS355 ( 1) 223269R2 U004 D702 or C-DIODE MA2J111 ( 1) 223279R2 U004 D702 or C-DIODE KDS4148U ( 1)
  • Page 102 71/83 PAGE Q755 or RN2407(TE85L_F) ( 1) 2216360R2 U004 Q756 KRC102S 2216190R2 U004 Q756 or RN1402 ( 1) 2214470R2 U004 Q761 KRC104S 2216210R2 <MDC, MPP> U004 Q761 or RN1404 ( 1) 2214490R2 <MDC, MPP> U004 Q762 KRA102S 2216220R2 <MDC, MPP> U004 Q762 or RN2402...
  • Page 103 72/83 PAGE L747 CORE BLM18PG181SN1D 2350005R1 U004 X171 CRYSTAL HC-49SMD24.576MHz+/-50ppm 3010494R2 U004 X501 CERA LOCK CSTCR5M00G53-B0 3010356R2 U004 X731 CRYSTAL HC-49SMD11.2896MHz 3010480R2 U004 [CAPACITOR] U004 C130 C-CERA C CK725F1E-104Z1 332161040R1 U004 C131 C-CERA C CC725CH1H-101J1 342101014R1 U004 C132 C-CERA C CC725CH1H-101J1 342101014R1 U004...
  • Page 104 73/83 PAGE C356 UTSJ C CE04W25V-47M(UTSJ) 398054707AT U004 C357 C-CERA C CK725F1E-104Z1 332161040R1 U004 C370 C-CERA C CK732B16V-106K 332071065R2 <MDC, MPP> U004 C371 C-CERA C CK725F1E-104Z1 332161040R1 <MDC, MPP> U004 C372 C-CERA C CK725F1E-104Z1 332161040R1 <MDC, MPP> U004 C373 C-CERA C CK732B16V-106K 332071065R2 <MDC, MPP>...
  • Page 105 74/83 PAGE C502 C-CERA C CK725F1E-104Z1 332161040R1 U004 C503 C-CERA C CK725F1E-104Z1 332161040R1 U004 C504 C-CERA C CK725F1E-104Z1 332161040R1 U004 C505 C-CERA C CK725F1E-104Z1 332161040R1 U004 C507 C-CERA C CK725F1E-104Z1 332161040R1 U004 C508 C-CERA C CK725F1E-104Z1 332161040R1 U004 C509 C-CERA C CK732B16V-106K 332071065R2 U004...
  • Page 106 75/83 PAGE C743 C-CERA C CK732B16V-106K 332071065R2 U004 C744 C-CERA C CK732B16V-106K 332071065R2 U004 C745 C-CERA C CK725F1E-104Z1 332161040R1 U004 C746 C-CERA C CK732B16V-106K 332071065R2 U004 C751 C-CERA C CK725B1A-105K1 332131055R1 U004 C752 C-CERA C CK732B1C-474K 337394745R1 U004 C753 VR C CE04W6.3V-470M(VR) 394624717T U004...
  • Page 107 76/83 PAGE R305 C-CARBON R RN72K1J-221JE 435032214R1 U004 R306 C-CARBON R RN72K1J-330JE 435033304R1 U004 R307 C-CARBON R RN72K1J-331JE 435033314R1 U004 R308 C-CARBON R RN72K1J-331JE 435033314R1 U004 R312 C-CARBON R RN72K1J-470JE 435034704R1 U004 R313 C-CARBON R RN72K1J-470JE 435034704R1 U004 R314 C-CARBON R RN72K1J-151JE 435031514R1 U004...
  • Page 108 77/83 PAGE R374 C-CARBON R RN72K1J-151JE 435031514R1 <MDC, MPP> U004 R375 C-CARBON R RN72K1J-151JE 435031514R1 <MDC, MPP> U004 R400 C-CARBON R RN72K1J-153JE 435031534R1 U004 R401 C-CARBON R RN72K1J-153JE 435031534R1 U004 R402 C-CARBON R RN72K1J-153JE 435031534R1 U004 R403 C-CARBON R RN72K1J-153JE 435031534R1 U004 R404...
  • Page 109 78/83 PAGE R461 C-CARBON R RN72K1J-182JE 435031824R1 <MDC, MPP> U004 R462 C-CARBON R RN72K1J-182JE 435031824R1 U004 R463 C-CARBON R RN72K1J-182JE 435031824R1 U004 R464 C-CARBON R RN72K1J-182JE 435031824R1 U004 R465 C-CARBON R RN72K1J-182JE 435031824R1 U004 R466 C-CARBON R RN72K1J-182JE 435031824R1 U004 R467 C-CARBON R RN72K1J-182JE...
  • Page 110 79/83 PAGE R511 C-CARBON R RN72K1J-473JE 435034734R1 U004 R512 C-CARBON R RN72K1J-221JE 435032214R1 U004 R514 C-CARBON R RN72K1J-470JE 435034704R1 U004 R515 C-CARBON R RN72K1J-470JE 435034704R1 U004 R516 C-CARBON R RN72K1J-470JE 435034704R1 U004 R517 C-CARBON R RN72K1J-470JE 435034704R1 U004 R518 C-CARBON R RN72K1J-103JE 435031034R1 U004...
  • Page 111 80/83 PAGE R570 C-CARBON R RN72K1J-103JE 435031034R1 <MDC, MPP> U004 R571 C-CARBON R RN72K1J-470JE 435034704R1 <MDC, MPP> U004 R573 C-CARBON R RN72K1J-221JE 435032214R1 U004 R574 C-CARBON R RN72K1J-470JE 435034704R1 U004 R575 C-CARBON R RN72K1J-470JE 435034704R1 U004 R576 C-CARBON R RN72K1J-470JE 435034704R1 U004 R578...
  • Page 112 81/83 PAGE R630 C-CARBON R RN72K1J-221JE 435032214R1 U004 R631 C-CARBON R RN72K1J-470JE 435034704R1 <MDC, MPP> U004 R632 C-CARBON R RN72K1J-470JE 435034704R1 U004 R634 C-CARBON R RN72K1J-470JE 435034704R1 U004 R636 C-CARBON R RN72K1J-470JE 435034704R1 U004 R638 C-CARBON R RN72K1J-470JE 435034704R1 U004 R639 C-CARBON R RN72K1J-103JE...
  • Page 113 82/83 PAGE R677 C-CARBON R RN72K1J-272JE 435032724R1 U004 R678 C-CARBON R RN72K1J-103JE 435031034R1 U004 R679 C-CARBON R RN72K1J-223JE 435032234R1 U004 R680 C-CARBON R RN72K1J-223JE 435032234R1 U004 R681 C-CARBON R RN72K1J-473JE 435034734R1 U004 R682 C-CARBON R RN72K1J-103JE 435031034R1 U004 R683 C-CARBON R RN72K1J-103JE 435031034R1 U004...
  • Page 114 83/83 PAGE R773 C-CARBON R RN72K1J-102JE 435031024R1 <MDC, MPP> U004 R804 C-CERA C CK725F1A-105Z1 332181050R1 <MDC, MPP> U004 R805 C-CERA C CK725F1A-105Z1 332181050R1 <MDC, MPP> U004 R810 C-CARBON R RN72K1J-000JE 435030004R1 <MDC, MPP> U004 R811 C-CARBON R RN72K1J-000JE 435030004R1 <MDC, MPP> U004 R812 C-CARBON R...
  • Page 115 ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH) The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700 ONKYO CHINA LIMITED Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
