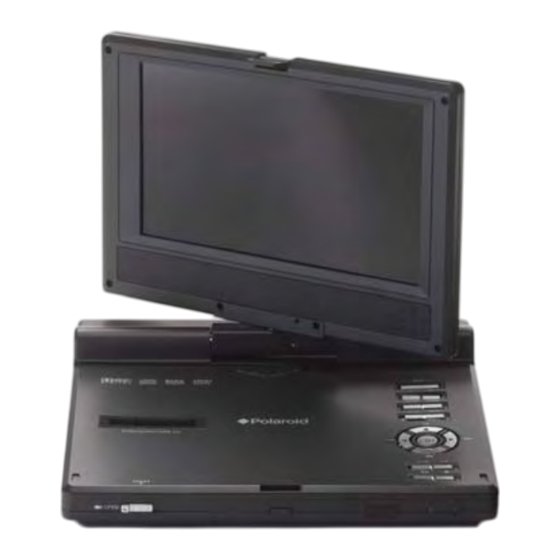

- Page 1 7” Swivel Screen Portable DVD Player DPA-00710S User’s Manual 20070105...
-
Page 2: Important Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... - Page 3 have been made. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer to service manual for servicing instructions.
- Page 4 Note: Do not touch the color TFT LCD screen by hand directly. Copyright Protection This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
-
Page 5: Features
Features High-quality audio and video Excellent Sound: Dolby Decoder delivers great sound. Advanced Playing Functions Compatibility: Compatible with DVD, CD, CD-R, CD-RW, and Picture CD. Particular Performance: Multi-speed, fast forward, fast backward and slow forward. Last Memory Playback: Memorize the stopped playback track and continue playing disk from this spot when power is restored if the disc tray is not opened. -
Page 6: Accessories
Accessories List ITEM NAME User’s Manual Rechargeable Battery Audio/Video Cable Power Adapter Car Adapter NOTE Accessories and their parts numbers are subject to modification without prior notice due to improvements. Accessories... -
Page 7: Table Of Contents
Contents Important Safety Instructions …………………………………………..1 …………………………………………...4 Features …………………………………………...5 Accessories …………………………………………...7 View of Main Unit ……………………………………………9 View of Side Panels View of Main Unit Bottom …………………………………………..10 …………………………………………..11 Revolving LCD Screen System Connections …………………………………………..12 Power Supply Preparation …………………………………………..14 About the Rechargeable Battery …………………………………………..15 Notes on Discs …………………………………………..18... -
Page 8: View Of Main Unit
LCD Screen Speaker Mode button Press to change the brightness, contrast and color level, press and hold for 1-2 seconds to change the aspect ratio. -/+ button Press to adjust the value of brightness, contrast and color. ZOOM button Press to realize various zoom effects. Setup button Press to enter the player’s system setup. -
Page 9: View Of Main Unit
View of Main Unit 11. ENT button Press to access playback, or confirm your selection. 12. ◄/ button Press to select different options, or to return to the previous list or the previous track or chapter. If it is a DVD disc, it needs to press this button twice to return to the previous track. -
Page 10: View Of Side Panels
Right Side View Volume Control Used to adjust the volume of the headphone and speaker. Headphone Jack Used to connect headphones for private listening. When the headphones are connected to this jack, the speaker will be turned off automatically. Audio Output Jack Used for audio output. -
Page 11: Rechargeable Battery
For connecting the rechargeable battery pack. Docking Jack This portable DVD player is equipped with a Docking Jack. The Docking Jack is designed for connecting to external Docking Station to get more expanded functions. Docking Station is a set of electrical connection interface that enables a portable DVD to effectively serve as a desktop DVD. -
Page 12: Revolving Lcd Screen
Revolving Steps The revolving LCD screen is one of the outstanding features about this product. We’d like to suggest you to take the following steps for proper operation. Revolving LCD Screen 1. Open the screen cover to position (A) as shown in the left figure at which the screen is vertical to the operation panel. -
Page 13: Audio/Video Cable
System Connections Always ensure that the DVD player, TV and any other electrical equipment to be connected with are switched off and unplugged from the power supply. Ensure that you observe the color coding when connecting audio and video cables. Connecting to TV Audio/Video connections Follow the drawings below to connect the DVD player to TV's Audio/Video inputs with... - Page 14 System Connections Connecting to External AV Signal Source This player can be connected to an AV signal input source such as a video cassette player, video game etc. Use the audio/video cable to connect the player and the external AV signal source. After connecting, switch the AV IN/DVD switch to AV IN. Ensure that you observe the color coding when connecting audio and video cables.
-
Page 15: Power Supply Preparation
Detach battery pack when using the AC or car adapter as power source. Disconnect the player from the Car Adapter when starting the vehicle. Your portable DVD player comes with a rechargeable lithium ion battery pack. Please see details in battery pack operation part of this user's manual. -
Page 16: About The Rechargeable Battery
About Rechargeable Battery Pack Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the rear of the DVD player. Charge the battery fully before initial use. Charging time is normally about 5 hours. A fully charged battery delivers about 3 hours of use, but playing time varies from disc to disc. -
Page 17: Power Adapter
About the Rechargeable Battery Attaching the Battery Pack Refer to the following steps to attach the Battery Pack: Place the DVD Player on a soft and smooth surface with the bottom of the unit facing up. With one hand on the DVD Player to prevent it from moving, take the battery and align the plastic tabs on the battery pack with holes on the player, and push the battery pack into the DVD Player. -
Page 18: Car Adapter
Detaching the Battery Pack If the DVD Player is not going to be used for long periods of time, the battery pack should first be fully charged and then detached. When the DVD Player is turned OFF, the DVD Player is still consuming some power in STANDBY mode. This will eventually discharge the battery. -
Page 19: Notes On Discs
Notes on Discs Compatible Disc Formats DISC LOGO JPEG Operation methods of some DVD discs are specified by the software manufacturer. Please refer to the instructions of those discs. Care of Discs Holding Discs When loading or removing discs, do not touch their playing surfaces as the right figure. -
Page 20: Playback Operation
PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING YOUR DVD PLAYER FOR THE FIRST TIME. WARNING: Do not play poor-quality discs to avoid damaging the lens. Pre-operation 1. Connect the unit to power supply through the provided AC adaptor. 2. Switch “POWER ON/OFF” to “ON” on the left panel to turn on the DVD player. 3. -
Page 21: Dvd Playback
Playback Operation DVD Playback Buttons Operation Press Play Press PAUSE/ press it again to resume normal play. button During playback, press button once to stop playing, then press playback from the stopped point. Press it button twice repeatedly to stop playback completely. Then when you press the beginning. - Page 22 DVD Playback (continued) Press TITLE button during play. The title menu will appear on the screen. Press TITLE button or disc menu item you wish to play, then press ENT button to confirm your selection. Press MENU button during play. The root menu will appear on the screen.
-
Page 23: Cd Playback
Playback Operation CD Playback When a CD disc is loaded, the player will play it automatically by the default sequence of the disc. You can use or number buttons to select a certain track to play. During playback, press PAUSE/ the playback, then press it again to resume playback. -
Page 24: Picture Cd Playback
Picture CD Playback Pre-operation 1. Load a Picture CD in the disc tray, the player will search for disc automatically. 2.The screen displays the Root Folder with several subdirectories/subfolders. Use , buttons to select a desired folder. Then press ENT button on the front panel to confirm your selection. - Page 25 Playback Operation Picture Rotate During browsing a picture, you can use direction buttons picture. Press button to rotate the current picture clockwise, as following drawings: Press button to rotate the current picture anti-clockwise, as following drawings: Press button to rotate the current picture flip vertical, as following drawings: to rotate the current...
-
Page 26: System Setup
You can change the default settings of this unit to customize its performance to your own preference. Read this section to learn how to set up the system. Note: the system should only be set up in the state that no disc is in the DVD drive or the unit is in the completely stop mode. - Page 27 System Setup 2. AUDIO This item is used to set the audio output language. Press Press to enter the setup of this item. There are several languages for you to choose. English by default. Press Language. Press ENT to confirm your selection. Press to exit from this item.
- Page 28 Preferences System Setup 1.TV DISPLAY This item is used to set TV display mode. Press button to enter the setup of this item. It includes 4:3 PS (default), 4:3 LB and 16:9,. Press button to choose the proper one. Press ENT to confirm your selection. Press to exit from this item.
- Page 29 System Setup 3. RESUME This item is used to set last memory state. Note: The last memory is referred to the state that if you press PWR button, or open the disc tray cover by accident but still keep the disc in during playback, then when you start playback again, the player will begin playing from where you are left off.
-
Page 30: Definitions
Definitions Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. -
Page 31: Troubleshooting
Troubleshooting Take steps described in the tables below to solve simple problems before contacting after-sales service. If You Suspect Something Wrong, immediately turn the power off. Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs. - Page 32 PROBLEM POSSIBLE CAUSE The LCD may be off or not be in correct video mode. The system connection may There is no picture. be not correct. The unit may be not in AV out mode. The disc may be dirty or Poor AV performance.
-
Page 33: Specifications
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories. © Confidential unpublished works. All rights reserved. "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA. For service, support and warranty information, visit www.polaroid.com. 7 inches...
