  • Page 1: Operating Instructions

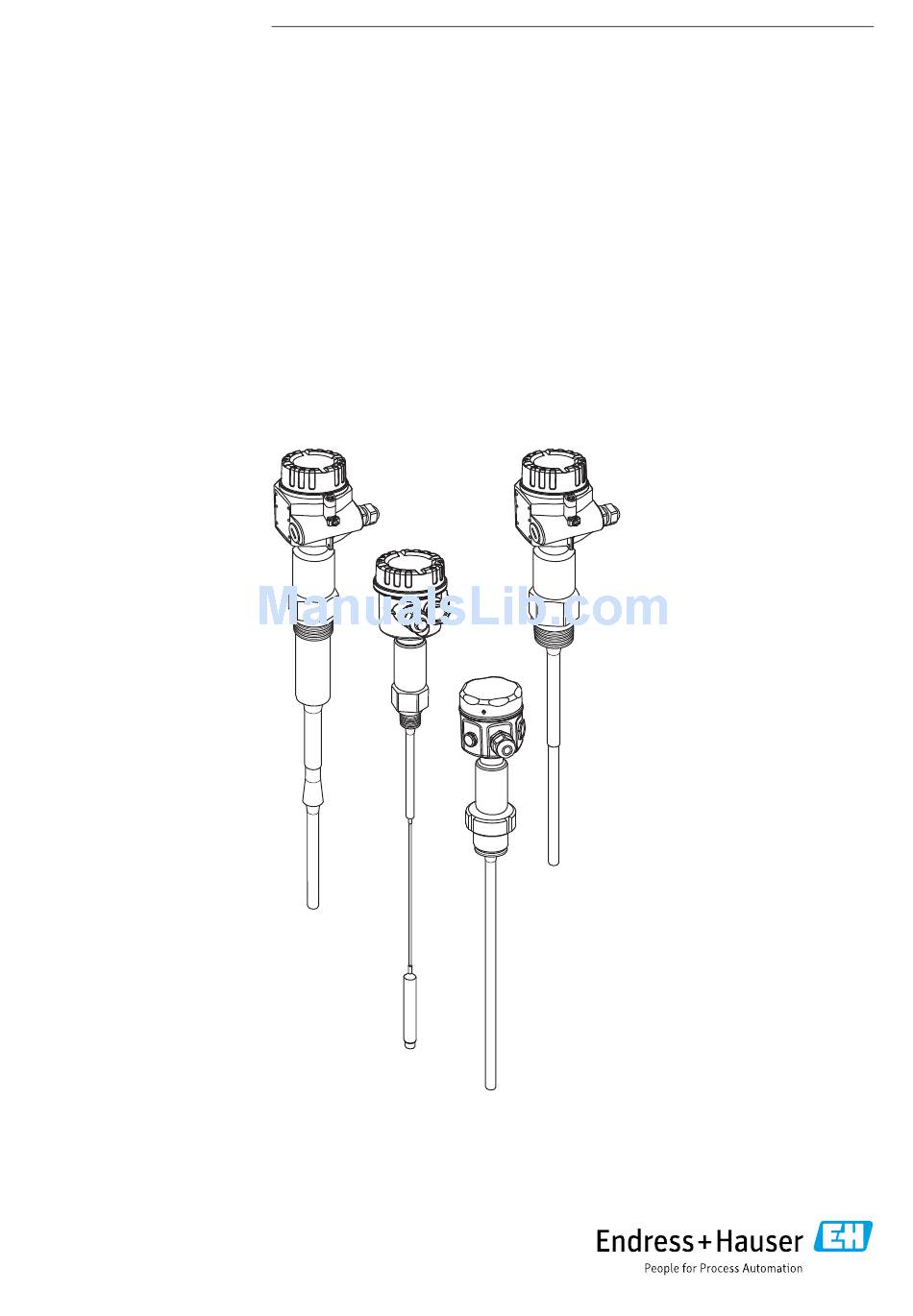

    Products Solutions Services BA00299F/00/EN/14.17 71365419 Operating Instructions Liquicap M FTI51, FTI52 Capacitance point level switch AUTHORIZED DISTRIBUTOR: InstrumentsAndControl.com Houston, Texas USA sales@InstrumentsAndControl.com 281-609-7170...
  • Page 2 The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these Instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    Installation examples ..... . 11 Contact addresses at Endress+Hauser ..69 With separate housing ..... 16 Probe without active buildup compensation .

  • Page 4: Safety Instructions

    Liquicap M FTI51, FTI52 Safety instructions Designated use The Liquicap M FTI51 and FTI52 are compact point level switches for the capacitance point level detection of liquids. Installation, commissioning and operation The Liquicap M has been safely built with state-of-the-art technology and meets all applicable standards and EU directives.

  • Page 5: Safety Conventions And Symbols

    Liquicap M FTI51, FTI52 Safety instructions Safety conventions and symbols We have defined the following safety instructions to indicate safety-related or alternative procedures. Each instruction is identified by a corresponding pictogram. Safety instructions Warning! This symbol indicates an action or procedure which, if not performed correctly, can result in serious injury, a safety hazard or the destruction of the device.

  • Page 6: Identification

    Identification Liquicap M FTI51, FTI52 Identification Device designation 2.1.1 Nameplate Refer to the nameplate of the device for the following data: Order number (see ordering structure) Active porbe length Made in Germany, D- 79689 Maulburg Liquicap M Protection class Order Code.:...
  • Page 7 Liquicap M FTI51, FTI52 Identification ® Tri-Clamp Registered trademark of Ladish & Co., Inc., Kenosha, USA Endress+Hauser...

  • Page 8: Installation

    Installation Liquicap M FTI51, FTI52 Installation Quick installation guide ½ < 80 Nm (G ) ¾ < 100 Nm (G ) < 180 Nm (G1) ½ < 500 Nm (G1 ) ... 270° L00-FMI5xxxx-17-06-xx-xx-001 1.) Screw in the device 2. a) Release the securing screw in the housing until the housing rotates easily.

  • Page 9: Installation Instructions

    Installation instructions 3.3.1 Installation Liquicap M FTI51 (rod probe) can be installed from above, from below and from the side. Liquicap M FTI52 (rope probe) can be installed vertically from above. Note! • The probe may not come into contact with the container wall! •...
  • Page 10 Installation Liquicap M FTI51, FTI52 3.3.2 Support for marine approval (GL) Fully insulated rod probes can be supported conductively or non-conductively. Partially insulated rod probes may only be supported with insulation at the uninsulated probe end. Note! Rod probes with a diameter of 10 mm and 16 mm have to be supported with a length 1 m (see drawing).

  • Page 11: Measuring Conditions

    Liquicap M FTI51, FTI52 Installation Measuring conditions Notes! • When installing in a nozzle, use inactive length (L3). • Probes with active buildup compensation must be used for high- ≥500 (19.7) viscosity liquids that tend to form off buildup. • Fully insulated rod and rope probes have to be used for pump control (S...
  • Page 12 Installation Liquicap M FTI51, FTI52 FTI51: rod probe L00-FTI5xxxx-11-06-xx-xx-004 FTI51: rod probe with ground tube Nonconductive tanks (plastic tanks) For installation in a plastic tank, use a probe with ground tube. L00-FTI5xxxx-11-06-xx-xx-005 Endress+Hauser...
  • Page 13 Liquicap M FTI51, FTI52 Installation FTI51: rod probe with inactive length (e.g. for insulated tanks) L00-FTI5xxxx-11-06-xx-xx-006 FTI51: rod probe with ground tube and inactive length (for mounting nozzles) L00-FMI5xxxx-11-06-xx-xx-007 FTI51: fully insulated probe with clad flange for aggressive media L00-FTI5xxxx-11-06-xx-xx-011...
  • Page 14 Installation Liquicap M FTI51, FTI52 3.5.2 Rope probes Note! These application examples show vertical installation of rope probes for MIN point level detection. FTI52: rope probe L00-FMI5xxxx-11-06-xx-xx-008 FTI52: rope probe with inactive length (e.g. for insulated tanks) L00-FMI5xxxx-11-06-xx-xx-009 Endress+Hauser...
  • Page 15 Liquicap M FTI51, FTI52 Installation FTI52: rope probe with fully insulated inactive length (for mounting nozzles) L00-FMI5xxxx-11-06-xx-xx-010 3.5.3 Shortening the rope Note! Refer to the operating manual for the rope shortening kit KA061F/00 3.5.4 Tensioning weight with bracing The end of the probe needs to be secured if the probe would otherwise touch the silo wall or another part in the tank.

  • Page 16: With Separate Housing

    Installation Liquicap M FTI51, FTI52 With separate housing E E X X E E X X Zone 1 Zone 1 Zone 0 Zone 0 £ £ L00-FMI5xxxx-14-00-06-xx-003 Fig. 1: Rod length L1 max. 4 m Rope length L1 max. 9.7 m (the maximum total length is 10 m.) Note! •...

  • Page 17: Wall Mounting

    Liquicap M FTI51, FTI52 Installation Polyester housing Stainless steel Aluminum housing (F16) housing (F15) (F17) B (mm) H1 (mm) H4 (mm) D (mm) Probes Ø10 mm rod Probes Ø16 mm rod or G 1/2", G 3/4", G 1", NPT 1/2", NPT 3/4", rope (without fully NPT 1", Clamp 1", Clamp 1 1/2", Universal...
  • Page 18 Installation Liquicap M FTI51, FTI52 L00-FMI5xxxx-03-05-xx-xx-010 3.6.4 Pipe mounting • Push the bracket onto the sleeve and screw it into place. • Screw the separate housing to the pipe (max. 2"). L00-FMI5xxxx-03-05-xx-xx-011 Endress+Hauser...

  • Page 19: Probe Without Active Buildup Compensation

    Liquicap M FTI51, FTI52 Installation Probe without active buildup compensation 1. Pressing screw 24. Solder the red (RD) strand with the central core of the 2. Insert seal coaxial cable (probe) GN/YE 23. Solder the yellow (YE) strand with the screening of the 3.
  • Page 20 Installation Liquicap M FTI51, FTI52 3.7.1 Shortening the connecting cable " Caution! A recalibration must be performed before commissioning Page 42ff. Note! The maximum connection length between the probe and the separate housing is 6 m. When ordering a device with a separate housing, the desired length must be specified.

  • Page 21: Probe With Active Buildup Compensation

    Liquicap M FTI51, FTI52 Installation Probe with active buildup compensation 1. Pressing screw 25. Solder the red (RD) strand with the central core of the 2. Insert seal coaxial cable (probe) GN/YE 24. Solder the yellow (YE) strand with the...
  • Page 22 Installation Liquicap M FTI51, FTI52 3.8.1 Shortening the connecting cable A recalibration must be performed before commissioning Page 42. Note! The maximum connection length between the probe and separate housing is 6 m and is indicated by dimension L4. When ordering a device with a separate housing, the connection length must be specified.

  • Page 23: Installation Conditions

    Liquicap M FTI51, FTI52 Installation Installation conditions " Caution! • Do not damage the probe insulation during installation. • Do not turn the housing while screwing in the probe, as otherwise the housing fixture can be damaged. L00-FMI5xxxx-17-00-00-xx-003 Probe with thread G ½, G ¾, G 1 or G 1½...
  • Page 24 Installation Liquicap M FTI51, FTI52 3.9.2 Aligning the housing To align the cable entry, the housing can be rotated by 270°. For protection against ingress of moisture, particularly for outdoor installation, we recommend routing the connecting cable downwards in front of the cable gland and securing it with a cable tie.

  • Page 25: Post-Installation Check

    Liquicap M FTI51, FTI52 Installation 3.10 Post-installation check After installing the measuring device, carry out the following checks: • Is the device damaged (visual inspection)? • Does the device correspond to the measuring point specifications, including process temperature and pressure, ambient temperature, measuring range, etc.? •...

  • Page 26: Wiring

    Wiring Liquicap M FTI51, FTI52 Wiring " Caution! Before connecting the supply voltage, note the following: • The supply voltage must match that specified on the nameplate (1). • Switch off the supply voltage before connecting the device. • Connect the potential equalization to the ground terminal at the sensor.

  • Page 27: Cable Entry

    Liquicap M FTI51, FTI52 Wiring 4.1.4 Connector For the version with a connector M12, the housing does not have to be opened for connecting the signal line. PIN assignment for M12 connector 2-wire-electronic insert 3-wire-electronic insert FEI55, FEI57, FEI58, FEI50H,...

  • Page 28: Wiring And Connecting

    Wiring Liquicap M FTI51, FTI52 Wiring and connecting Connection compartment Determining the degree of protection: Housing Standard EEx ia EEx d gas-tight process seal Polyester housing F16 Stainless steel housing F15 Aluminum housing F17 Aluminum housing F13 Stainless steel housing F27...
  • Page 29 Liquicap M FTI51, FTI52 Wiring a. + b. L00-FTI5xxxx-04-06-xx-xx-004 Note! • Information on the procedure for connecting shielded cables is provided in TI241F "EMC test procedures". • All further steps depend on the specific electronic inserts used, which are described on the...

  • Page 30: Connecting The Electronic Insert Fei51 (Ac 2-Wire)

    Wiring Liquicap M FTI51, FTI52 Connecting the electronic insert FEI51 (AC 2-wire) Note! Connect in series with an external load. Power supply Supply voltage: 19 to 253 V AC Power consumption: < 1.5 W Residual current consumption: < 3.8 mA...

  • Page 31: Connecting The Electronic Insert Fei52 (Dc Pnp)

    Liquicap M FTI51, FTI52 Wiring Connecting the electronic insert FEI52 (DC PNP) The three-wire DC connection should, wherever possible, be connected as follows: • To programmable logic controllers (PLCs), • to DI modules in accordance with EN 61131-2 A positive signal is present at the switch output of the electronic system (PNP).

  • Page 32: Connecting The Electronic Insert Fei53 (3-Wire)

    Connecting the electronic insert FEI53 (3–WIRE) The 3-wire DC connection is used in conjunction with the Nivotester switching device FTC325 3–WIRE from Endress+Hauser. The switching device' s communication signal operates at 3 to 12 V. The failsafe mode (MIN) / (MAX) and the point level adjustment are configured on the Nivotester.

  • Page 33: Connecting The Electronic Insert Fei54

    Liquicap M FTI51, FTI52 Wiring Connecting the electronic insert FEI54 (AC/DC with relay output) The universal voltage connection with relay output (DPDT) operates in two different voltage ranges (AC and DC). Note! When connecting devices with a high inductance, use a spark suppression system to protect the relay contacts.

  • Page 34: Connecting The Electronic Insert Fei55

    Wiring Liquicap M FTI51, FTI52 Connecting the electronic insert FEI55 (8/16 mA; SIL2/SIL3) The two-wire DC connection should, if possible, be connected as follows: • To programmable logic controllers (PLCs), • to AI modules 4 to 20 mA in accordance with EN 61131-2 The point level signal is sent via an output signal jump from 8 mA to 16 mA.

  • Page 35: Connecting The Electronic Insert Fei57S (Pfm)

    0 mA TI418F52 Frequency: 17 to 185 Hz Output signal PFM 17 to 185 Hz (Endress+Hauser) Connectable load • Floating relay contacts in the connected switching unit Nivotester FTC325 PFM, FTC625 PFM (from SW V1.4), FTC470Z, FTC471Z • For the contact load capacity, refer to the technical data of the switching device.

  • Page 36: Connecting The Electronic Insert Fei58 (Namur)

    Wiring Liquicap M FTI51, FTI52 Connecting the electronic insert FEI58 (NAMUR) The two-wire connection for a separate switching unit in accordance with NAMUR specifications (IEC 60947-5-6), e.g. FXN421, FXN422, FTL325N, FTL375N from Endress+Hauser. Change in output signal from high to low current in event of point level detection.

  • Page 37: Post-Connection Check

    Liquicap M FTI51, FTI52 Wiring 4.10 Post-connection check After wiring the measuring device, carry out the following checks: • Is the terminal assignment correct? • Is the cable gland tightly sealed? • Is the housing cover screwed on all the way? •...

  • Page 38: Operation

    Operation Liquicap M FTI51, FTI52 Operation Human interface and display elements for FEI51, FEI52, FEI54, FEI55 You can operate the electronic inserts FEI51, FEI52, FEI54 and FEI55 via the function switch (A) and the "–" (B) and "+" (C) keys.
  • Page 39 Liquicap M FTI51, FTI52 Operation Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Operation Flashes On*** Flashes On*** On/off/ Operationa (MIN-SIL) (warning/ (MAX-SIL)
  • Page 40 Operation Liquicap M FTI51, FTI52 Human interface and display elements for FEI53, FEI57S The electronic inserts FEI53 and FEI57S are used in conjunction with Nivotester switching devices. The functions of the DIP switches (A and B) and the LEDs (1 and 2) are described in the table below.

  • Page 41: Human Interface And Display Elements For Fei58

    Liquicap M FTI51, FTI52 Operation Human interface and display elements for FEI58 FEI58 NAMUR IEC 60947-5-6 flashing D E F BA299Fen016 Green LED 1 ( ready for operation), red LED 2 ( error indicated), yellow LED 3 (R switching state)

  • Page 42: Commissioning

    Commissioning Liquicap M FTI51, FTI52 Commissioning Installation and function check Make sure that the post-installation check and final check have been completed before you start your measuring point: • For the "Post-installation" checklist, refer to Page 25. • For the "Post-connection" checklist, refer to Page 37.
  • Page 43 Liquicap M FTI51, FTI52 Commissioning 6.2.2 Setting the measuring range Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Measuring range Press for <...
  • Page 44 Commissioning Liquicap M FTI51, FTI52 6.2.3 Carrying out empty calibration Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Empty calibration Press (present) ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.
  • Page 45 Liquicap M FTI51, FTI52 Commissioning 6.2.4 Carrying out full calibration Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Full calibration Press (present) ** Switch status signaling (on/off/flashing) depends on the mounting location selected and the failsafe mode (MIN/MAX) set.
  • Page 46 Commissioning Liquicap M FTI51, FTI52 6.2.5 Carrying out empty and full calibration Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Empty calibration Press...
  • Page 47 Liquicap M FTI51, FTI52 Commissioning 6.2.6 Reset: Calibration and switchpoint adjustment Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Reset: Press both keys for –>...
  • Page 48 Commissioning Liquicap M FTI51, FTI52 6.2.7 Setting the switch point adjustment Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Switch point Press for <...
  • Page 49 Liquicap M FTI51, FTI52 Commissioning 6.2.8 Configuring two-point control and buildup mode Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Two-point control s...
  • Page 50 Commissioning Liquicap M FTI51, FTI52 6.2.9 Setting the switching delay Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Switching delay Press for <...
  • Page 51 Liquicap M FTI51, FTI52 Commissioning 6.2.10 Activating the self-test (function test) " Caution! Make sure that you do not accidentally activate any processes with the self-test! This could result, for example, in overflowing of the tank. Function switch Function – key...
  • Page 52 Commissioning Liquicap M FTI51, FTI52 6.2.11 Setting the MIN/MAX and SIL failsafe mode Note! The SIL mode function is only available in conjunction with electronic insert FEI55. Function switch Function – key + key Light emitting diodes (LED signals) position...
  • Page 53 Liquicap M FTI51, FTI52 Commissioning • Active locking is indicated as follows: – With "MIN-SIL", active locking is indicated by the green LED 2 lighting up. The LED 1 that is lit goes out. – With "MAX-SIL", active locking is indicated by the green LED 4 lighting up. The LED 5 that is lit goes out.
  • Page 54 Commissioning Liquicap M FTI51, FTI52 6.2.12 Upload/download sensor DAT (EEPROM) Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Upload/download Press for Press for...

  • Page 55: Restoring Factory Settings

    Liquicap M FTI51, FTI52 Commissioning 6.2.13 Restoring factory settings Function switch Function – key + key Light emitting diodes (LED signals) position 1 (green) 2 (green) 3 (red) 4 (green) 5 (green) 6 (yellow) Operation Flashes On*** Flashes On*** On/off/...
  • Page 56 Commissioning Liquicap M FTI51, FTI52 6.2.14 Output signals Output signal FEI51 Safety mode Level Output signal LEDs gn gn rd gn gn ye < 3,8 mA < 3,8 mA Maintenance < 3,8 mA required Instrument failure < 3,8 mA BA300Fen017 * See Page 67, "Troubleshooting"...
  • Page 57 Liquicap M FTI51, FTI52 Commissioning Output signal FEI54 Safety mode Level Output signal LEDs gn gn rd gn gn ye Maintenance required Instrument failure TI418Fen48 * See Page 67, "Troubleshooting" Output signal FEI55 Safety mode Level Output signal LEDs gn gn rd gn gn ye...

  • Page 58: Commissioning With Electronic Inserts

    Commissioning Liquicap M FTI51, FTI52 Commissioning with electronic inserts FEI53 or FEI57S This chapter describes the process for commissioning the device with electronic insert versions FEI53 and FEI57S. Note! The measuring system is not operational until you have carried out a calibration at the switching unit.
  • Page 59 Liquicap M FTI51, FTI52 Commissioning 6.3.2 Setting the measuring range DIP switch Function Measuring range: The measuring range is between 0 and 500 pF Span: The span is between 5 and 500 pF. 0..500pF Measuring range: The measuring range is between 0 and 1600 pF 0...1600pF...

  • Page 60: Commissioning With The Electronic Insert Fei58

    Commissioning Liquicap M FTI51, FTI52 Output signal FEI57S Output signal Output signal LEDs LEDs Mode Mode green green Normal operation Normal operation 60...185 Hz 60...185 Hz Maintenance Maintenance 60...185 Hz 60...185 Hz required * required * Instrument Instrument failure failure <...
  • Page 61 Liquicap M FTI51, FTI52 Commissioning 6.4.2 Performing calibration Note! • An empty and full calibration provides the greatest possible operational security. This is particularly recommended for critical applications. • The empty and full calibration measures the capacitance values of the probes when the tank is full and when it is empty.
  • Page 62 Commissioning Liquicap M FTI51, FTI52 6.4.3 Setting the switch point adjustment Note the following when selecting switch point adjustment: • If only one calibration (empty or full) was carried out, and if buildup forms on the rod probe while the probe is in operation, the device may no longer respond to changes in level. A switch point adjustment compensates for this condition and ensures that you obtain a constant switch point again.
  • Page 63 Liquicap M FTI51, FTI52 Commissioning 6.4.5 MIN/MAX failsafe mode Note! By selecting the failsafe mode correctly, you ensure that the output always operates safely with quiescent current. • Minimum failsafe mode (MIN): The output switches if the switch point is undershot (rod/ rope uncovered), a fault occurs or the line voltage fails.
  • Page 64 Pressing test key C disconnects the supply voltage. If the power supply is disconnected, a supply unit such as Nivotester FTL325N from Endress+Hauser reacts in such a way that the alarm relay outputs an error and appropriate responses are triggered in any slave devices connected.

  • Page 65: Maintenance

    Spare parts are grouped logically into kits along with the respective replacement instructions. The "Spare parts" section lists all spare part kits, with their order numbers, that you can order from Endress+Hauser for repair of the Liquicap M. For more information about service and spare parts, contact Endress+Hauser Service.

  • Page 66: Accessories

    Surge arrester for limiting overvoltage in signal lines and components: see Technical Information TI00417F Page 75. Weld-in adapter All the weld-in adapters available are described in the document TI00426F. This is available in the Download Area of the Endress+Hauser web site: www.endress.com → Download Endress+Hauser...

  • Page 67: Troubleshooting

    Liquicap M FTI51, FTI52 Troubleshooting Troubleshooting Fault diagnostics in the electronic insert Note! In the event of faults during commissioning or operation of the device, you have the ability to carry out fault diagnostics on the electronic insert. This function is supported by the electronic inserts FEI51, FEI52, FEI54, FEI55 (see error table 1 and 2 below).

  • Page 68: Spare Parts

    The measuring device must be returned if it is need of repair or a factory calibration, or if the wrong measuring device has been delivered or ordered. Legal specifications require Endress+Hauser, as an ISO-certified company, to follow certain procedures when handling products that are in contact with the medium.

  • Page 69: Disposal

    Original software Contact addresses at Endress+Hauser On the back page of these Operating Instructions, you can find an internet address for Endress+Hauser. The web site provides contact addresses that you can use in case of any questions. Technical data 10.1 Capacitance values of the probe Basic capacitance: approx.

  • Page 70: Input

    Technical data Liquicap M FTI51, FTI52 10.2 Input 10.2.1 Measuring range • Measuring frequency: 500 kHz • Span: C = 5 to 1600 pF C = 5 to 500 pF (with FEI58) • Final capacitance: = max. 1600 pF • Adjustable initial capacitance: = 5 to 500 pF (range 1 = factory setting) = 5 to 1600 pF (range 2;...

  • Page 71: Performance Characteristics

    Liquicap M FTI51, FTI52 Technical data FEI53, FEI55, FEI57S, FEI58 see connected switching device (functional galvanic isolation in the electronic insert) 10.4 Performance characteristics Uncertainty: DIN 61298-2: max ±0.3% Non-repeatability (reproducibility): DIN 61298-2: max. ±0.1 % 10.4.1 Ambient temperature effect Electronic insert <...

  • Page 72: Operating Conditions: Process

    Technical data Liquicap M FTI51, FTI52 10.5.6 Degree of protection IP66* IP67* IP68* NEMA4X* Polyester housing F16 Stainless steel housing F15 Aluminum housing F17 Aluminum housing F13 – X*** with gas-tight process seal Stainless steel housing F27 X*** Aluminum housing T13 –...
  • Page 73 Liquicap M FTI51, FTI52 Technical data With compact housing °C +80/ +200/ °C –80 160 180 –60 –40 –20 –20 –80/ –25 –40 –40/ –40 +20/ –60 –50 L00-FMI5xxxx-05-05-xx-xx-013 : Ambient temperature : Process temperature With separate housing +170 °C...
  • Page 74 Technical data Liquicap M FTI51, FTI52 10.6.3 Process pressure limits Probe ø10 mm, ø14 mm (including insulation) –1 to 25 bar Probe ø16 mm (including insulation) • –1 to 100 bar • In the event of an inactive length, the maximum permitted process pressure is 63 bar •...

  • Page 75: Documentation

    : Process pressure : Process temperature 10.7 Documentation Note! This documentation is available on the product pages at www.endress.com. 10.7.1 Technical Information • Nivotester FTL325N TI00353F/00/en • Nivotester FTL375N TI00361F/00/en • Liquicap M FTI51, FTI52 TI00417F/00/en • EMC test procedures TI00241F/00/en Endress+Hauser...
  • Page 76 Liquicap M FTI51, FTI52 10.7.2 Certificates ATEX safety instructions • Liquicap M FTI51, FTI52 ATEX II 1/2 G EEx ia IIC/IIB T3 to T6, II 1/2 D IP65 T 85 °C XA00327F/00/a3 • Liquicap M FTI51, FTI52 ATEX II 1/2 G Ex d [ia] IIC/IIB T3...T6, Ex de [ia Ga] IIC/IIB T3...T6 Ga/Gb, Ex iaD 20 Txx°C/Ex tD A21 IP6x Txx°C...

  • Page 77: Index

    Liquicap M FTI51, FTI52 Index Pipe mounting ........18 Post-installation check .
  • Page 78 Index...
  • Page 79 Index...
