Key

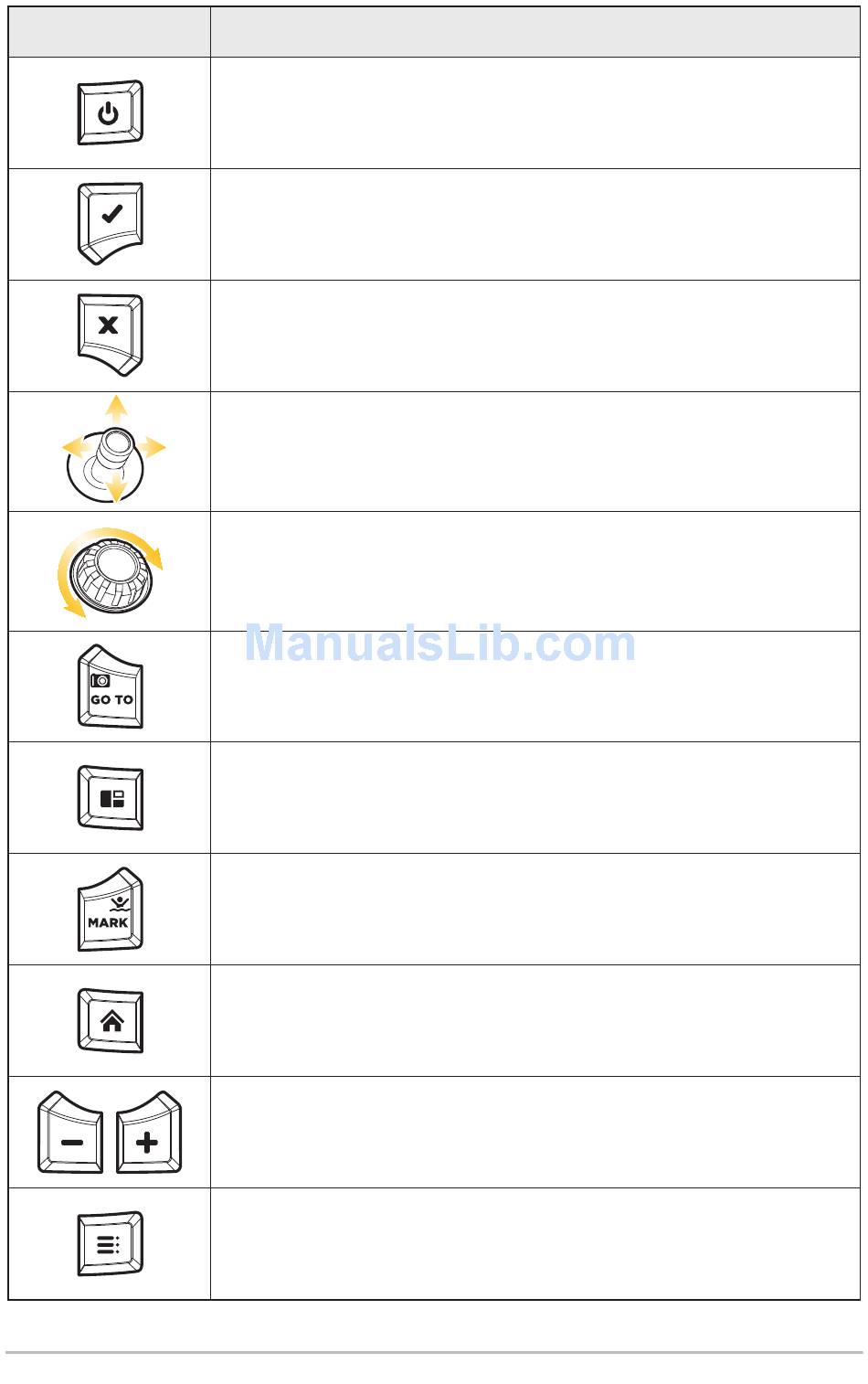

Key Functions
Press the POWER key to power on the control head. Press and hold
the power key to power off.
Press the ENTER key to start a command or turn on a setting. The
ENTER key also opens the Info menu and the Cursor menu.
Press the EXIT key once to close a menu, close a dialog box, turn off an
alarm, or exit Cursor mode. Press and hold the EXIT key to close all
menus at once.
Move the Joystick to select a view, tool, or menu. Press the Joystick to
open your selection. The Joystick is also used to move the cursor
across the view and pan 2D/3D chart views.
Turn the Rotary dial to adjust menu settings. With a view displayed
on-screen, press the Rotary dial to select a view to display.
GO TO/Screen Snapshot key: Press this key once to open the Go To
menu for navigation functions. Press and hold this key to save the
screen image.
Press the PANE key to open the View Options menu or to select a pane
in a multi-pane view.
MARK/MAN OVERBOARD key: Press and hold this key to start Man
Overboard Navigation. To mark waypoints, press this key twice.
Press the HOME key to display the Home screen. The Home screen
allows you to access settings, alarms, views, and tools for the control
head.
For a closer view, press the ZOOM IN (+) key. For a wider view, press the
ZOOM OUT (-) key. Press and hold the ZOOM OUT (–) key to zoom out
all the way.
MENU key: To open the X-Press Menu for the on-screen view and
operation mode, press the MENU key once. To open the Main Menu
(Settings tool), press the MENU key twice.
