Shure PSM 700 User Manual

Wireless personal stereo monitor system
Hide thumbs Also See for PSM 700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Shure Brothers Incorporated
222 Hartrey Avenue
Evanston IL 60202-3696 U.S.A.

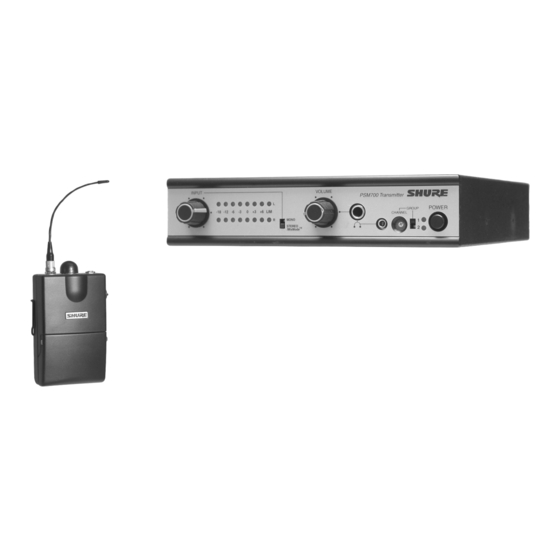

Shure PSM700
Personal Stereo Monitor System
PSM 700
Wireless Personal Stereo Monitor System
User Guide
Système de retour stéréo personnel sans fil
Guide de l'utilisateur
Drahtloses individuelles Stereomonitorsystem
Bedienungsanleitung
Sistema inalámbrico de monitor estereofónico personal
Guía del usuario
Sistema di controllo stereo personale senza fili
Guida d'uso
1998, Shure Brothers Inc.
27A???? (QJ)
Printed in U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Shure PSM 700

Summary of Contents for Shure PSM 700

  • Page 1 Système de retour stéréo personnel sans fil Guide de l’utilisateur Drahtloses individuelles Stereomonitorsystem Bedienungsanleitung Sistema inalámbrico de monitor estereofónico personal Guía del usuario Sistema di controllo stereo personale senza fili Guida d’uso 1998, Shure Brothers Inc. 27A???? (QJ) Printed in U.S.A.
  • Page 2 Licensing Statement. Changes or modifications not expressly approved by Shure Brothers Inc. could void your authority to operate the equipment. Licensing of Shure wireless equipment is the user’s responsibility, and licensability depends on the user’s classification and application.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Getting Started with the PSM700 ..............Introduction .

  • Page 4: Getting Started With The Psm700

    GETTING STARTED WITH THE PSM700 SYSTEM Thank you for purchasing the PSM700 Personal Stereo Monitor System. The PSM700 is a revolutionary new product family designed to meet the diverse audio monitoring needs of musicians, engineers, and stage performers. The following are step-by-step instructions showing how to connect your PSM700 wireless system to an audio source while introducing you to some of its features.

  • Page 5: Introduction

    INTRODUCTION Description The Shure PSM700 Personal Stereo Monitor System is a frequency-agile, UHF wireless, two-channel stereo, monitor system designed for onstage applications. The PSM has several advantages over onstage loudspeaker monitors: it is less visible, has better sound, allows freedom of movement, and reduces the chances of feedback. It is a versatile system, designed for use in many different sound reinforcement applications: public address, live music, theater, and electronic news gathering (ENG).

  • Page 6: Overview

    OVERVIEW P7T Transmitter Front Panel INPUT Control. This controls the signal level to the Headphone Connectors — -in. phone and 3.5 transmitter modulator. For optimum sound, the input mm ( -in) mini. Each connector is configured as level should be set in the –3 dB to +3 dB range. left=tip, right=ring, ground=sleeve.

  • Page 7: P7R Receiver

    P7R Receiver Controls and Connectors Balance Control. In stereo mixes, this controls the Antenna and Connector. An easily removable left/right balance. In MixMode , this controls the antenna connects to the P7R to receive RF signals mix level of two transmitter inputs. from the P7T Transmitter.

  • Page 8: Dip Switches

    Selecting Frequencies The Shure PSM700 Personal Stereo Monitor System is frequency-agile, with two groups of 16 channels for a total of 32 different possibe operating frequencies. The P7T transmitter and the P7R receiver each has a switch for selecting between the two groups, and a rotary dial for selecting the channel.

  • Page 9: Installation And Applications

    INSTALLATION AND APPLICATIONS The flexible design of the PSM700 Personal Stereo Monitor System makes configuring a monitor mix very simple. In addition, the unique MixMode circuitry enables you to customize your own individual mix in a multiple mix environment. To help you install the PSM700 into your sound system, the tables and diagrams in this section describe three distinct modes of operating the system.

  • Page 10: Mixmode Control

    MixMode Control This diagram shows how to connect the PSM700 system with two monitor mixes combined at the receiver. This allows you to vary the level between the two mixes to create a custom mix. VOICE MIX FULL LEFT FULL RIGHT Ñ...

  • Page 11: Loop Applications

    LOOP Applications The LOOP OUT L (left) and R (right) outputs allow the signal going through the P7T to be run to other devices. The LOOP feature of the P7T can be used for any number of applications. Shown here are only a few examples of how it can be used. NOTE: The LOOP connectors act as either inputs or outputs.

  • Page 12: Running A Recording Device Through A P7T Transmitter

    Running Multiple PSM Wireless Systems Under MixMode Control A main mono monitor mix can be sent to multiple P7T transmitters, then independent monitor mixes can be sent to the second channel of each. This will allow an entire band to hear the same monitor mix, while giving each individual player a separate mix of their own.

  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION No sound at the Receiver Check the power cord on the Transmitter and make sure it is powered on. Make sure both the transmitter and the receiver are set to the same frequency. Make sure the earpiece is plugged in to the receiver. Make sure receiver is on and the battery is good.

  • Page 14: Appendix A. Specifications

    APPENDIX A. TECHNICAL SPECIFICATIONS SYSTEM Dimensions 44.5 mm X 197.4 mm X 238.1 mm (1 in. X 7 in. X 9 rf Carrier Frequency Range in.) 722 to 862 MHz (country dependent) Net Weight Operating Range 3.30 kg (3 lbs., 4.8 oz.) 300 ft.

  • Page 15: Voltage Selection

    For 120 V operation, use an IEC appliance connector on factory setting. the equipment end and a mains connector suitable for 115 V operation on the other.* (Shure part #95A8389.) To change the operating voltage, follow these steps. For 230 V operation, use an IEC appliance connector on 1.
