Summary of Contents for ATEN VS0801A

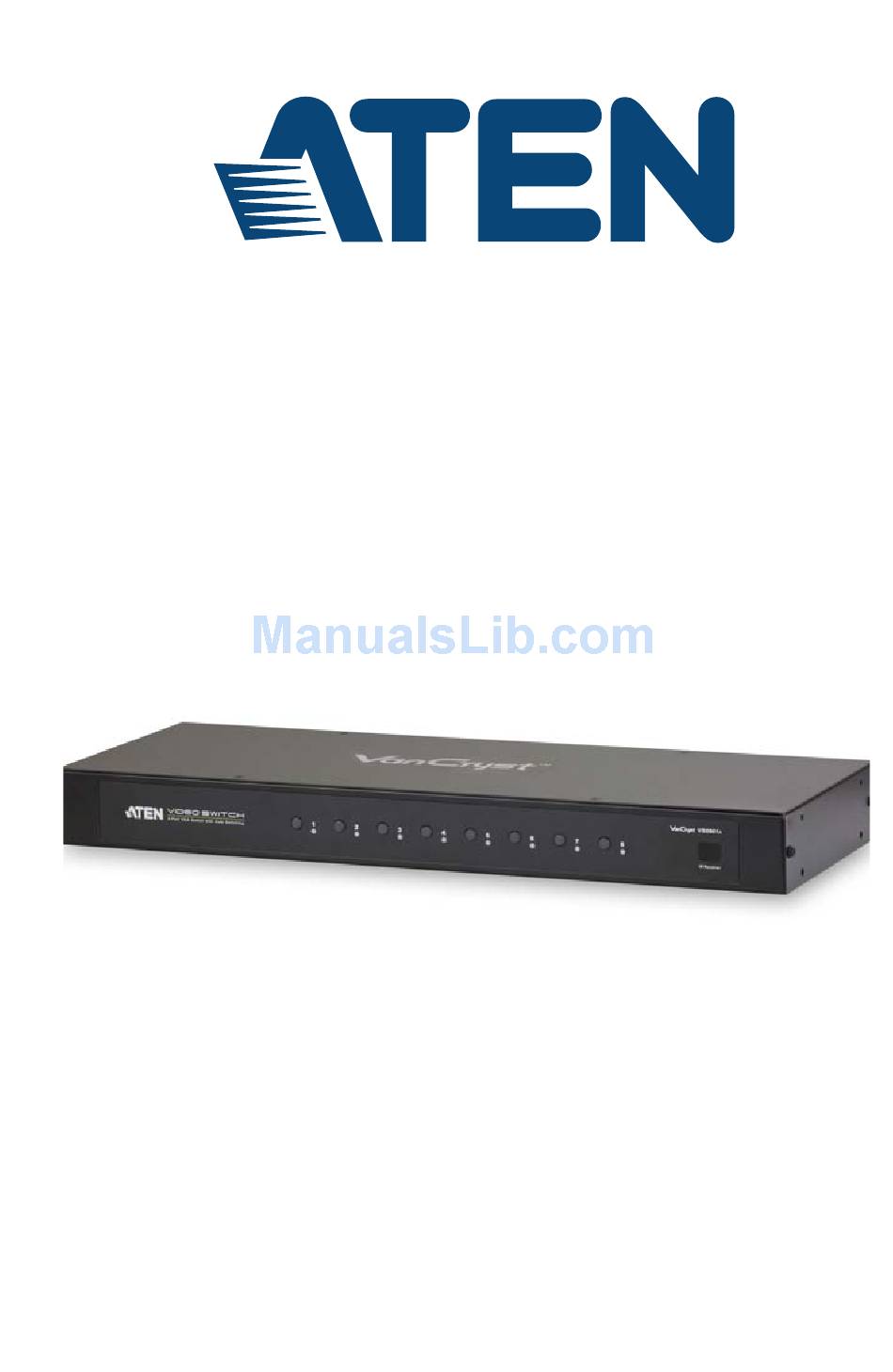

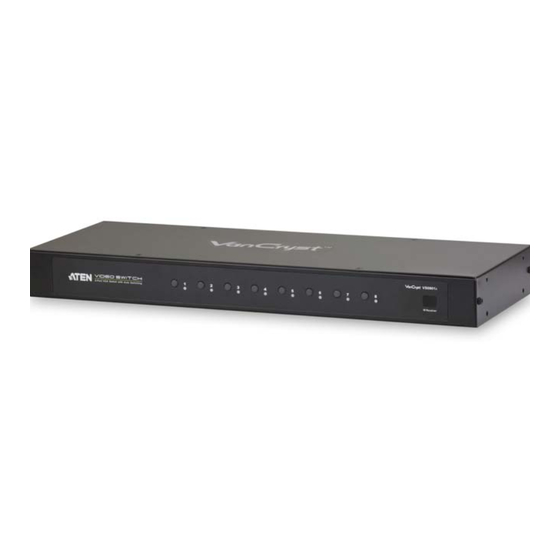

- Page 1 8-Port VGA Switch with Auto Switching VS0801A User Manual www.aten.com...
-
Page 2: Fcc Information
VS0801A User Manual FCC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Sj/T 11364-2006
VS0801A User Manual SJ/T 11364-2006 The following contains information that relates to China. -
Page 4: User Information
VS0801A User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America... -
Page 5: Package Contents
© Copyright 2015 ATEN® International Co., Ltd. Manual Date: 2017-07-03 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 6: Table Of Contents
VS0801A Front View........ - Page 7 VS0801A User Manual RS-232 Serial Interface........18 Configuring the Serial Port .
-
Page 8: About This Manual
Chapter 1, Introduction, introduces you to the VS0801A system. Its purpose, features and benefits are presented, and its front and back panel components are described. Chapter 2, Hardware Setup, describes how to set up your VS0801A installation. Chapter 3, Operation, explains the fundamental concepts involved in operating the VS0801A manually, remotely, and using RS-232 commands. -
Page 9: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 10: Introduction
Audio allows you to conveniently display the video output of eight separate computer systems on a VGA monitor or multimedia projector. Rack mountable in only 1U of space, and with full audio support, the VS0801A is perfect for server room applications that require monitoring via high quality audio and video, allowing you to monitor harsh work environments from a safe location. -
Page 11: Features
All-metal casing provides durability and protection Designed for server rooms, meeting rooms, industrial, commercial, and media applications Rack Mountable Note: 1. Port Switching VGA Cables are sold separately. 2. The VS0801A RS-232 GUI and instructions can be downloaded from the ATEN website: www.aten.com. -
Page 12: Requirements
1 VGA/Audio cable for your display and audio device Note: Port Switching VGA Cables (Part No. 2L-5203B) are available and sold through authorized ATEN dealers. We strongly recommend that you purchase high-quality cables of appropriate length since this will affect... -
Page 13: Components
Chapter 1. Introduction Components VS0801A Front View Component Function Port Selection Pressing a port selection pushbutton routes the Pushbuttons VGA/Audio source from the corresponding input port to the output port for display. Port LEDs There is one port LED next to each port selection pushbutton. -
Page 14: Vs0801A Rear View
VS0801A User Manual VS0801A Rear View VIDEO / AUDIO OUT Component Function Grounding Terminal The grounding wire used to ground the unit attaches here. RS-232 Port This is the serial port for input source selection and high-end system control. Video / Audio Input Each input section is comprised of a VGA connector and stereo audio jack. -
Page 15: Ir Remote Control
Chapter 1. Introduction IR Remote Control ON / OFF Component Function Port Up / Port Down Press the Port Up button to cycle forward through Buttons the source devices (1 to 2; 2 to 3; ... 8 to 1). Press the Port Down button to cycle backward through the source devices.(8 to 7;... -
Page 16: Hardware Setup
Stacking and Rack Mounting The VS0801A can be stacked on a desktop or rack mounted in a variety of ways. The following sections take you through the procedures for each method. - Page 17 Chapter 2. Hardware Setup Note: To ensure adequate ventilation, allow at least 5.1 cm on each side, and 12.7 cm behind the unit for power cord and cable clearance.
-
Page 18: Rack Mounting
VS0801A User Manual Rack Mounting The VS0801A can be mounted in a 19" (1U) rack. The mounting brackets can screw into either the front or the back of the unit so that it can attach to the front or the back of the rack. - Page 19 Chapter 2. Hardware Setup 3. Position the device in the front of the rack and align the holes in the mounting brackets with the holes in the rack. 4. Screw the mounting brackets to the rack. Note: Cage nuts are provided for racks that are not prethreaded.
-
Page 20: Rack Mounting - Rear
VS0801A User Manual Rack Mounting - Rear To mount the unit from the rear, do the following: 1. Remove the two screws at the rear of the unit. 2. Use the M3 x 8 Phillips head hex screws supplied with the rack mounting kit to screw the rack mounting brackets into the rear of the unit. - Page 21 Chapter 2. Hardware Setup 4. Screw the mounting brackets to the rack. Note: Cage nuts are provided for racks that are not prethreaded.
-
Page 22: Installation
1. Use a VGA cable to connect the VGA input port on the video display device to the VGA output port on the rear of the VS0801A, and connect the speakers to the Audio output port. -
Page 23: Installation Diagram
VGA cable with port switching button to switch the VS0801A to the source device it is connected to when pressed. This optional accessory is installed between the VS0801A and a source device, as shown in step 2. The Port Switching VGA Cable can be purchased separately from your local ATEN... -
Page 24: Operation
Chapter 3 Operation Overview The VS0801A 8-Port VGA Switch with Audio offers easy operational control via Front Panel Pushbuttons, Remote Control, Port Switching VGA Cable, or RS-232 Serial Control. All operational functions are discussed in this chapter including; Source Selection, Pushbutton Lock, Auto Switch, RS-232 serial configuration and commands, and Power Off/Restarting. -
Page 25: Ir Code
An optional Port Switching VGA Cable can be purchased separately which provides a high quality VGA connection that allows you to use a port switching button to switch the VS0801A to the connected device. This optional accessory is installed between the VS0801A and a source device (See Installation Diagram, page 14, for details). -
Page 26: Auto Switch
VS0801A User Manual Pushbutton Lock The pushbutton lock allows you to secure the VS0801A by locking use of the front panel pushbuttons. To lock/unlock the front panel pushbuttons, do the following: Press and hold both the 1 and 8 port selection buttons for 3 seconds, then release. -
Page 27: Rs-232 Serial Interface
Chapter 3. Operation RS-232 Serial Interface The VS0801A’s built-in bi-directional RS-232 serial interface allows system control through a high-end controller, PC, and/or home automation / home theater software package. Configuring the Serial Port The controller’s serial port should be configured as follows:... -
Page 28: Switch Port Commands
VS0801A User Manual Switch Port Commands The formulas for Switch Port commands are as follows: 1. Switch Command + Input Command + Port Number [Enter] For example, to switch to input port 02, type the following: sw i02 [Enter] 2. Switch Command + Control [Enter]... -
Page 29: Auto Switch Commands
The Auto Switch command places priority on a port, so that when a source is connected to that port the VS0801A will automatically switch to it. There are two types of auto switching- Auto: switch priority is placed on a particular port, and Next: switch priority is placed on the next port that has a new source device connected to it. - Page 30 VS0801A User Manual The following table shows the available command list: Command Input Port Control Enter Description swmode auto [Enter] Enable Auto Switching for port xx swmode next [Enter] Enable Auto Switch Next swmode default [Enter] Disable Auto Switching Note: 1. Each command string can be separated with a space.
-
Page 31: Power On Detection Commands
Automatically switches to the next port with a powered on source device, when the current active port device is powered off. When the VS0801A is turned on, the last port connected when the device was turned off will be automatically selected. -
Page 32: Dynamic Ddc Commands
VS0801A User Manual Dynamic DDC Commands The Dynamic DDC command is used to monitor the connected display and provide the correct updated EDID information to the source devices so that the display is optimized. With Dynamic DDC off, source devices do not receive updated EDID data which can cause display issues. -
Page 33: Pushbutton Lock Commands
Chapter 3. Operation Pushbutton Lock Commands The Pushbutton Lock command allows you to secure your device by locking use of the front panel pushbuttons. The formula for the Pushbutton Lock command is as follows: 1. Button Command + Control Command [Enter] For example, to lock the front panel pushbuttons, type the following: button off [Enter] The following tables show the possible values for the Button and Control... -
Page 34: Cable Button Commands
VS0801A User Manual Cable Button Commands The Cable Button command allows you to turn on and off the Port Switching VGA Cable button function (see VGA Cable Source Selection, page 16) for the VS0801A. The formula for the Cable Button command is as follows: 1. -
Page 35: Ir Code Commands
Chapter 3. Operation IR Code Commands If you purchased a new IR remote control you may need to change the IR code of the switch to match that of the new remote. Try all three codes until the IR remote control works with the switch. The formula for the IR Code command is as follows: 1. -
Page 36: Read Firmware Command
VS0801A User Manual Read Firmware Command The Read Firmware command allows you to read the firmware information. The formula for the Read Firmware command is as follows: 1. Read Command + Control Command [Enter] For example, to display the firmware information, type the following:... -
Page 37: Reset Command
Chapter 3. Operation Reset Command The Reset command sets the device back to the factory default settings. The formula for the Rest commands is as follows: 1. Reset Command [Enter] For example, to reset the device, type the following: reset [Enter] The following tables show the possible values for the Reset command: Command Description... -
Page 38: Powering Off And Restarting
VS0801A User Manual Powering Off and Restarting If you power off the VS0801A, follow these steps before powering it on again: 1. Power off the attached devices. 2. Unplug the power adapter cable from the VS0801A. 3. Wait 10 seconds, and then plug the power adapter cable back in. -
Page 39: The Firmware Upgrade Utility
Introduction The purpose of the Windows-based Firmware Upgrade Utility is to provide an easy process for upgrading the VS0801A. The program comes as part of a Firmware Upgrade Package that is specific for each device. As new firmware versions become available, new firmware upgrade packages are posted on our website. -
Page 40: Preparation
To prepare for the firmware upgrade, do the following: 1. Use an RS-232 cable to connect a COM port on your computer to the RS- 232 Serial Port of your VS0801A. VIDEO / AUDIO OUT 2. Unplug the VS0801A’s power adapter. -
Page 41: Starting The Upgrade
Chapter 4. The Firmware Upgrade Utility Starting the Upgrade To upgrade the firmware: 1. Run the downloaded firmware upgrade package file either by double- clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility welcome screen appears: Note: The screens shown in this section are for reference only. - Page 42 VS0801A User Manual (Continued from previous page.) 3. Click Next to continue. The Firmware Upgrade Utility main screen appears. The devices capable of being upgraded are listed in the Device List panel: 4. Click Next to perform the upgrade. The Port LEDs 1, 3, and 4 will flash while the upgrade is in process.
-
Page 43: Upgrade Succeeded
Chapter 4. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, all port LEDs will stop flashing and a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Upgrade Failed If the Upgrade Succeeded screen doesn't appear, it means that the upgrade failed to complete successfully. -
Page 44: Firmware Upgrade Recovery
VS0801A User Manual Firmware Upgrade Recovery There are three conditions that call for firmware upgrade recovery: When a firmware upgrade is manually aborted. When the mainboard firmware upgrade fails. When the I/O firmware upgrade fails. To perform a firmware upgrade recovery, do the following: 1. -
Page 45: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 46 VS0801A User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 47: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, Telephone Support, page iv North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 48: Specifications
VS0801A User Manual Specifications Function VS0801A Display Connections Connectors Device Video In 8 x HDB-15 Male (Blue) Audio In 8 x Stereo Jack Female (Green) Display Video Out 1 x HDB-15 Female (Blue) Audio Out 1 x Stereo Jack Female (Green) -
Page 49: Limited Warranty
Appendix Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
