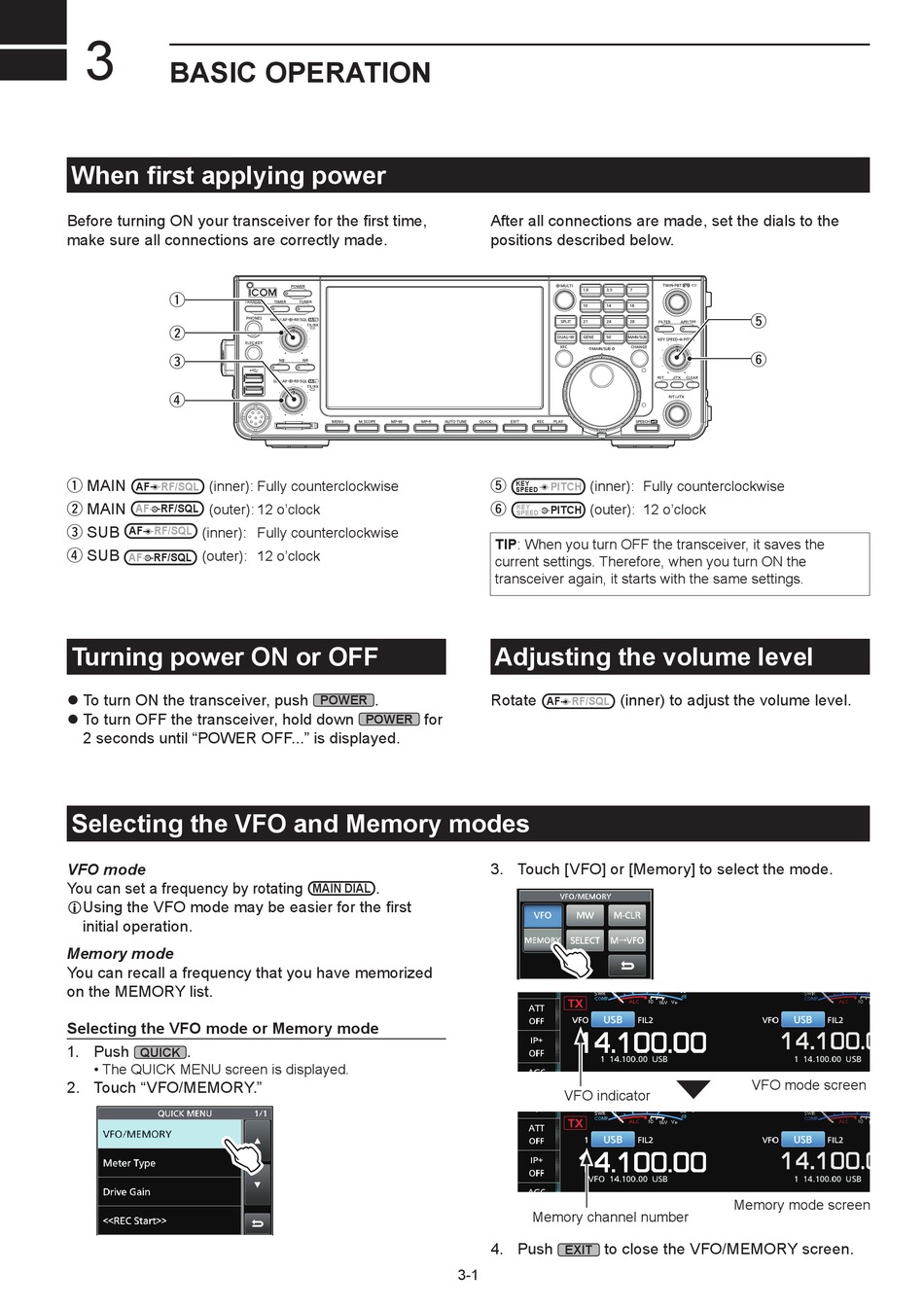

BASIC OPERATION

When first applying power

Before turning ON your transceiver for the first time,
make sure all connections are correctly made.
q
w
e
r
q MAIN
(inner): Fully counterclockwise
AF RF/SQL
w MAIN
(outer): 12 o'clock
AF RF/SQL
e SUB
AF RF/SQL (inner): Fully counterclockwise
r SUB
(outer): 12 o'clock
AF RF/SQL

Turning power ON or OFF

z To turn ON the transceiver, push
z To turn OFF the transceiver, hold down
2 seconds until "POWER OFF..." is displayed.

Selecting the VFO and Memory modes

VFO mode
You can set a frequency by rotating
L Using the VFO mode may be easier for the first
initial operation.
Memory mode
You can recall a frequency that you have memorized
on the MEMORY list.
Selecting the VFO mode or Memory mode
1. Push .
QUICK
• The QUICK MENU screen is displayed.
2. Touch "VFO/MEMORY."
.
POWER
for
POWER
.
MAIN DIAL
3-1
After all connections are made, set the dials to the
positions described below.
(inner): Fully counterclockwise
t
KEY
PITCH
SPEED
(outer): 12 o'clock
y
KEY
PITCH
SPEED
TIP: When you turn OFF the transceiver, it saves the
current settings. Therefore, when you turn ON the
transceiver again, it starts with the same settings.

Adjusting the volume level

Rotate (inner) to adjust the volume level.
AF RF/SQL
3. Touch [VFO] or [Memory] to select the mode.
VFO indicator
Memory channel number
4. Push to close the VFO/MEMORY screen.
EXIT
t
y
VFO mode screen
Memory mode screen
