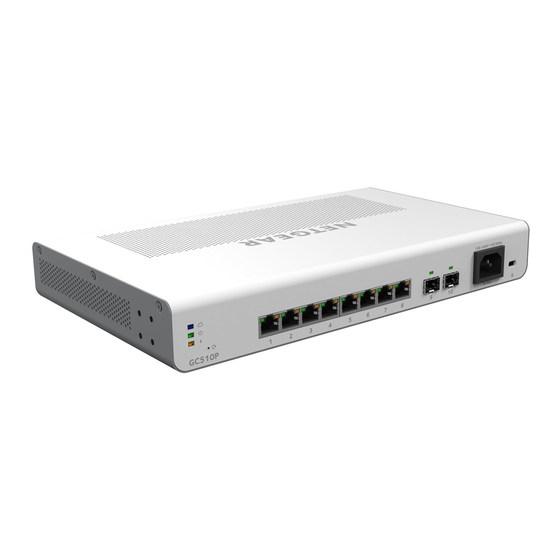

Page 1 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports M od els G C 1 1 0 , GC 1 1 0 P, G C5 1 0 P, a nd G C5 1 0PP Us e r Manual September 2017 202-11745-01 350 East Plumeria Drive...
Page 2 Thank you for purchasing this NETGEAR product. You can visit to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources. Conformity For the current EU Declaration of Conformity, visit http://kb.netgear.com/app/answers/detail/a_id/11621.
Page 3: Table Of Contents
Change the Management Mode to PC Web-Browser....18 Change the Management Mode Back to NETGEAR Insight App ..19 Register the Switch .
Page 4 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Chapter 3 Configure Switching Configure Port Settings ..........91 Configure Link Aggregation Groups .
Page 5 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Layer 2 Loop Protection on a Port......164 Chapter 4 Configure Quality of Service Manage Class of Service .
Page 6 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Use the ACL Wizard to Create a Simple ACL......243 Configure a Basic MAC ACL.
Page 7 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete a PoE Timer Schedule Entry ....... . . 319 Delete a PoE Timer Schedule.
Page 8: Chapter 1 Getting Started
This manual describes how you can configure and monitor the following NETGEAR Insight managed switches by using the local browser–based management interface: • GC110. 8-Port Gigabit Ethernet Insight Managed Smart Cloud Switch with 2 SFP Fiber Ports • GC110P. 8-Port Gigabit Ethernet PoE Insight Managed Smart Cloud Switch with 2 SFP Fiber Ports •...
Page 9: Available Publications
NETGEAR Insight app. By default, the management mode for the switch is Insight and you can use the NETGEAR Insight app to change the default network information on the switch. For information about the NETGEAR Insight app, see the NETGEAR knowledge base articles at netgear.com/support.
Page 10: User-Defined Fields
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Chrome version 45 • Safari on Mac OS 8.0 versions 5.1, 6.0 User-Defined Fields In the local browser interface, user-defined fields can contain 1 to 159 characters, unless otherwise noted in the field label on the configuration page.
Page 11: Access The Switch
You can use a WiFi or wired network connection. Open Windows Explorer. Click the Network link. If prompted, enable the Network Discovery feature. Under Network Infrastructure, locate the switch model number. The model number can be GC110, GC110P, GC510P, or GC510PP. Getting Started...
Page 12 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Double-click GCmodel (xx:xx:xx:xx:xx:xx) (where GCmodel is the model number of your switch and xx:xx:xx:xx:xx:xx is the MAC address of the switch). The login page of the local browser interface opens. Enter the password.
Page 13 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Advanced page displays. Select the Include Bonjour in the Bookmarks Menu check box. Close the Advanced page. Select Bookmarks > Bonjour > GCmodel (xx:xx:xx:xx:xx:xx) (where GCmodel is the model number of your switch and xx:xx:xx:xx:xx:xx is the MAC address of the switch), or Bookmarks >...
Page 14 Determine the Switch IP Address Using the NETGEAR Insight App and Access the Switch On-Network To use the NETGEAR Insight app and a web browser to access the switch that is  connected to a network: On your iOS or Android mobile device, go to the app store, search for NETGEAR Insight, and download the app.
Page 15 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select LOG IN to log in to your existing NETGEAR account or tap the CREATE NETGEAR ACCOUNT button to create a new account. After you log in to your account, name your network and specify a device admin password that applies to all devices that you add to this network.
Page 16 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Because you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 17: Access The Switch Off-Network
IP address of 192.168.0.210 and 255.255.255.0 as the subnet mask. Note: If you are unsure how to do this, visit netgear.com/search-support.aspx and search for the following: How to set a static IP address in Windows Setting a static IP address on your network adapter in Mac OS Plug the switch into a power outlet and then connect your computer to the switch using an Ethernet cable.
Page 18: Change The Management Mode Of The Switch
Change the Management Mode of the Switch By default, the management mode on the switch is NETGEAR Insight app so that you can manage the switch using the Insight app on a smartphone. The first time that you log in to the switch’s local browser interface, you must change the management mode to PC...
Page 19: Change The Management Mode Back To Netgear Insight App
The System Information page displays and the full local browser interface is now available. Change the Management Mode Back to NETGEAR Insight App To change the management mode of the switch back to NETGEAR Insight app:  Connect your computer to the same network as the switch.
Page 20: Register The Switch
If you use the Insight app, after the app discovers the switch and you add it to a network using the NETGEAR Insight app, the switch is automatically registered to your MyNETGEAR account. This registration process is also referred to as claiming. For information about the NETGEAR Insight app, see the NETGEAR knowledge base articles at netgear.com/support.
Page 21: How To Configure Interface Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports A NETGEAR web page opens. Follow the prompts online. How to Configure Interface Settings For some features you can apply the same settings simultaneously to any of the following: •...
Page 22: Local Browser Interface Device View
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the desired settings. Click the Apply button. Your settings are saved. To configure multiple ports and LAGs:  Click the All link to display all ports and LAGs. Select the check box next to each port and LAG to configure.
Page 23 Solid amber The port is operating at below its maximum speed. • Blinking amber. The port is transmitting or receiving traffic below its maximum speed. The right port LED indicates the PoE status (does not apply to model GC110): • Off. The port is not delivering PoE power. •...
Page 24 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Blinking amber. At least once during the previous two minutes, less than 7W of PoE power was available. • Fan LED (model GC510PP only): Solid green. The fan is operating normally. Solid amber.
Page 25: Chapter 2 Configure System Information
Configure System Information This chapter covers the following topics: • View and Configure the Switch Management Settings • Use the Device View • Configure Power over Ethernet • Configure Link Layer Discovery Protocol • Configure DHCP L2 Relay and DHCP Snooping •...
Page 26: View And Configure The Switch Management Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View and Configure the Switch Management Settings This section describes how to display the switch status and specify some basic switch information, such as the management interface IP address, system clock settings, and DNS information.
Page 27 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Define the following fields: • System Name. Enter the name to identify this switch. You can use up to 255 alphanumeric characters. • System Location. Enter the location of this switch. You can use up to 255 alphanumeric characters.
Page 28 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View the Temperature Sensor Information You can view the current temperature of the temperature sensors. The temperature is instant and can be updated with the latest information about the switch when you click the Refresh button.
Page 29 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View the Fan Status Note: The fan status information is available for model GC510PP only. You can view the status of the fans in all units. These fans remove the heat generated by the power, CPU, and other components, and allow the switch to function normally.
Page 30 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View the Power Supplies You can view s the status of the power supplies. To view the power supplies status:  Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable.
Page 31: View The Switch Cpu Status
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 32 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If you do not know the IP address of the switch, see Access the Switch on page 11. The login window opens. Enter the switch’s password in the password field. The default password is password.
Page 33: Configure The Cpu Thresholds
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the CPU Thresholds The CPU utilization threshold notification feature allows you to configure thresholds that, when exceeded, trigger a notification. The notification occurs through SNMP trap and syslog messages.
Page 34: Configure The Ipv4 Address For The Network Interface And Management Vlan
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the IPv4 Address for the Network Interface and Management VLAN You can configure network information for the network interface, which is the logical interface used for in-band connectivity with the switch through any of the switch’s ports. You also use the IPv4 address of the network interface to connect to the switch through the local browser interface.
Page 35: Configure The Ipv6 Address For The Network Interface
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Default Gateway. The default gateway for the IP interface. The default value is 192.168.0.254. Specify the VLAN ID for the management VLAN. The management VLAN is used to establish an IP connection to the switch from a computer that is connected to a port in the same VLAN.
Page 36 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports When in-band connectivity is established, you can change the IPv6 information through the local browser interface. To configure the IPv6 address for the network interface:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 37: View The Ipv6 Network Neighbor
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports b. In the EUI64 menu, select True to enable the Extended Universal Identifier (EUI) flag for IPv6 address, or select False to omit the EUI flag. c. Click the Add button. Click the Apply button.
Page 38: Configure The Time Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 9. IPv6 network interface neighbor table information (continued) Field Description Neighbor State The state of the neighboring switch: • reachable (1). The neighbor is reachable from the switch. •...
Page 39 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Note: If you do not enter a date and time, the switch calculates the date and time using the CPU’s clock cycle. Click the Apply button. Your settings are saved. Configure the Time Settings With SNTP To configure the time by using SNTP: ...
Page 40 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Broadcast. SNTP operates in the same manner as multicast mode but uses a local broadcast address instead of a multicast address. The broadcast address provides a single-subnet scope while a multicast address provides an Internet-wide scope.
Page 41 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports See the description for Time Zone Name in Step 14 for more information. The allowed range is 0 to 59. The default value is 0. Click the Apply button. Your settings are saved.
Page 42 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The allowed range is 1025 to 65535 and the value 123. The default value is 123. When the default value is configured, the actual client port value used in SNTP packets is assigned by the operating system.
Page 43 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View SNTP Global Status When you select the SNTP option as the clock source, the SNTP global status is displayed below the SNTP Global Configuration section of the page. The SNTP Global Status table displays information about the system’s SNTP client.
Page 44 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 10. SNTP Global Status information (continued) Field Description Last Attempt Status The status of the last SNTP request or unsolicited message for both unicast and broadcast modes. If no message was received from a server, a status of Other is displayed.
Page 45 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following is an example of strata: • Stratum 0. A real-time clock is used as the time source, for example, a GPS system. • Stratum 1. A server that is directly linked to a Stratum 0 time source is used. Stratum 1 time servers provide primary network time standards.
Page 46 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 47 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The SNTP Server Status table displays status information about the SNTP servers configured on your switch. The following table describes the SNTP Server Global Status information. Table 11. SNTP Server Status information Field Description Address...
Page 48 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 49 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To configure the daylight saving time settings:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 50 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • If you select the DayLight Saving (DST) Recurring, Recurring EU, or Recurring USA radio button, configure the settings that are shown in the following table. Field Description Begins At These fields are used to configure the start values of the date and time.
Page 51 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View the DayLight Saving Time Status The Daylight Saving (DST) Status section shows information about the summer time settings and whether the time shift for summer time is currently in effect. To view the daylight saving time status: ...
Page 52: Configure Denial Of Service Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 12. Daylight Saving (DST) Status information (continued) Field Description Zone The zone acronym. This field is not displayed when daylight saving time is disabled. Daylight Saving (DST) in Effect Indicates whether daylight saving time is in effect.
Page 53 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Denial of Service The Denial of Service Configuration page allows you to select which types of DoS attacks the switch monitors and blocks. To configure individual DoS settings: ...
Page 54: Configure Dns Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Denial of Service ICMP Fragment. Enabling ICMP Fragment DoS prevention causes the switch to drop ICMP fragmented packets. • Denial of Service SIP=DIP. Enabling SIP=DIP DoS prevention causes the switch to drop packets with a source IP address equal to the destination IP address.
Page 55 When the system is performing a lookup on an unqualified host name, this field is provides the domain name (for example, if default domain name is netgear.com and the user enters test, then test is changed to test.netgear.com to resolve the name). The name must not be longer than 255 characters.
Page 56 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table displays DNS Server Configuration information. Table 13. DNS Server Configuration information Field Description The identification of the DNS Server. Preference Shows the preference of the DNS server. The preferences are determined by the order in which they were entered.
Page 57 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Remove an Entry From the Dynamic Host Mapping Table To remove an entry from the dynamic host mapping table:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 58: Configure Green Ethernet Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select System > Management > DNS > Host Configuration. The DNS Host Configuration page display. Select the check box next to the entry to update. Enter the new information in the appropriate field. Click the Apply button.
Page 59 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Green Ethernet Configuration page displays. Select the Auto Power Down Mode Disable or Enable radio button. By default, this mode is disabled. When a port link is down, the underlying physical layer goes down for a short period and then checks for port link pulses again so that autonegotiation remains possible.
Page 60 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Do one of the following: • In the Go To Interface field, enter the port using the respective naming convention (for example, g1 or l1), and click the Go button. The entry corresponding to the specified interface is selected.
Page 61 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 62 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 15. Green Ethernet Local Device Information (continued) Field Description Tw_sys_tx (uSec) Integer that indicates the value of Tw_sys that the local system can support. Tw_sys_tx Echo (uSec) Integer that indicates the remote system’s Transmit Tw_sys that was used by the local system to compute the Tw_sys that it wants to request from the remote system.
Page 63 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select System > Management > Green Ethernet > Green Ethernet Details.  The Green Ethernet Details page displays. Scroll down to the Remote Device Information section. Select the interface.
Page 64 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select System > Management > Green Ethernet > Green Ethernet Summary. The Green Ethernet Statistics Summary page displays. To refresh the page, click the Refresh button. The following table describes the nonconfigurable fields. Table 17.
Page 65: Use The Device View
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The login window opens. Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 66: Configure Power Over Ethernet
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Power over Ethernet For information about Power over Ethernet (PoE), see Chapter 7, Manage Power over Ethernet. Configure Link Layer Discovery Protocol The IEEE 802.1AB-defined standard, Link Layer Discovery Protocol (LLDP), allows stations on an 802 LAN to advertise major capabilities and physical descriptions.
Page 67: Configure Lldp Global Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure LLDP Global Settings You can specify the global LLDP and LLDP-MED parameters that are applied to the switch. To configure global LLDP settings:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 68: Configure Lldp Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure LLDP Port Settings You can specify per-interface LLDP settings. To configure the LLDP interface:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 69: View The Lldp-Med Network Policy
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Auto Advertise. Advertise the current IP address of the device as the management IP address. The default is Auto Advertise. • Notification. When notifications are enabled, LLDP interacts with the trap manager to notify subscribers of remote data change statistics.
Page 70: Configure The Lldp-Med Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The page refreshes and displays the data transmitted in the network policy TLVs for the interface. The following table describes the LLDP-MED network policy information that displays on the page.
Page 71: Lldp-Med Neighbors Information
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 72 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select System > LLDP > Advanced > LLDP-MED Neighbors Information. The page that displays shows multiple sections with information about LLDP-MED neighbors. From the Interface menu, select an interface.
Page 73 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description Hardware Revision Specifies the hardware version of the remote device. Firmware Revision Specifies the firmware version of the remote device. Software Revision Specifies software version of the remote device. Serial Number Specifies the serial number of the remote device.
Page 74: View Local Lldp Information
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View Local LLDP Information You can view the data that each port advertises through LLDP. To view local LLDP information:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 75 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description Port Description The user-defined description of the port. For information about how to configure the port description, see Configure Port Settings on page 91. Advertisement The TLV advertisement status of the port.
Page 76: View Lldp Neighbors Information
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description User Priority The priority associated with the policy. DSCP The DSCP associated with a particular policy type. View LLDP Neighbors Information You can view the data that a specified interface received from other LLDP-enabled systems. To view LLDP information received from a neighbor device: ...
Page 77 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description Port ID The physical address of the port on the remote system from which the data was sent. System Name The system name associated with the remote device. If the field is blank, the name might not be configured on the remote system.
Page 78 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description MAC/PHY Details Auto-Negotiation Supported Specifies whether the remote device supports port-speed autonegotiation. The possible values are True or False. Auto-Negotiation Enabled The port speed autonegotiation support status. The possible values are True and False.
Page 79: Configure Dhcp L2 Relay And Dhcp Snooping
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description Location Information Civic The physical location, such as the street address, that the remote device advertised in the location TLV, for example, 123 45th St. E. The field value length range is 6–160 characters.
Page 80 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports devices and are referred to as Layer 3 relay agents. In some network configurations, a need might exist for Layer 2 devices to append the Relay Agent Information option as they are closer to the end hosts.
Page 81 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 82 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 83: Configure Dhcp Snooping
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 84 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports DHCP snooping acts like a firewall between untrusted hosts and DHCP servers. It also provides way to differentiate between untrusted interfaces connected to the end user and trusted interfaces connected to the DHCP server or another switch.
Page 85 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 86 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the port, or type the port number in the Go To Interface field and click the Go button.
Page 87 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 88 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the Persistent Location of the DHCP Snooping Bindings Database You can configure the persistent location of the DHCP snooping bindings database. The bindings database can be stored locally on the device or on a remote system somewhere else in the network.
Page 89: Set Up Poe Timer Schedules
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View or Clear the DHCP Snooping Statistics You can view and clear per-interface statistics about the DHCP messages filtered by the DHCP snooping feature on untrusted interfaces. To view or clear the DHCP snooping statistics: ...
Page 90: Chapter 3 Configure Switching
Configure Switching This chapter covers the following topics: • Configure Port Settings • Configure Link Aggregation Groups • Configure VLANs • Configure Auto-VoIP • Configure Spanning Tree Protocol • Configure Multicast • Configure Layer 2 Loop Protection...
Page 91: Configure Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Port Settings You can view, configure, and monitor the physical port information for the ports (that is, the physical interfaces) on the switch. To configure port settings: ...
Page 92 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Speed field, specify the speed value for the selected port. Auto. All supported speeds. If you select Auto, the duplex mode and speed are set by the autonegotiation process. The port’s maximum capability (full duplex and 1000 Mbps) are advertised.
Page 93: Configure Link Aggregation Groups
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports frame to stop traffic on the port if the amount of memory used by the packets on the port exceeds a preconfigured threshold and responds to pause requests from partner devices.
Page 94: Configure Lag Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports A LAG interface can be either static or dynamic, but not both. All members of a LAG must participate in the same protocols. A static port channel interface does not require a partner system to be able to aggregate its member ports.
Page 95 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • 2 Dest MAC, VLAN, EType, incoming port. This mode uses the destination MAC address, VLAN, EtherType, and incoming port that are associated with the packet. • 3 Src/Dest MAC, VLAN, EType, incoming port.
Page 96: Configure Lag Membership
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure LAG Membership You can select two or more full-duplex Ethernet links to be aggregated together to form a link aggregation group (LAG), which is also known as a port channel. The switch can treat the port channel as a single link.
Page 97: Set The Lacp System Priority
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Set the LACP System Priority The LACP configuration page is used to set the LACP system priority. To configure LACP:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 98: Configure Vlans
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The login window opens. Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 99: Manage Basic Vlans
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports can either reject it or insert a tag using its default VLAN ID. A given port can handle traffic for more than one VLAN, but it can support only one default VLAN ID. You can define VLAN groups stored in the VLAN membership table.
Page 100 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The VLAN is added to the switch. Click the Apply button. Your settings are saved. Delete a VLAN To delete a VLAN from the switch:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 101: Configure Vlan Trunking
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 102 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The login window opens. Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 103: Configure Vlan Membership
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Note the following: • Use a dash (–) to specify a range. • Use a comma (,) to separate VLANs in a list. Spaces are not permitted. •...
Page 104 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the VLAN ID menu, select the VLAN ID. In the Group Operation menu, select one of the following options, which applies to all ports in the VLAN: •...
Page 105: View The Vlan Status
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Your settings are saved. The following table describes the nonconfigurable information displayed on the page. Table 25. Advanced VLAN membership Field Definition VLAN Name The name for the VLAN that you selected. It can be up to 32 alphanumeric characters long, including blanks.
Page 106: Configure Port Pvid Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the nonconfigurable information displayed on the page. Table 26. VLAN status Field Definition VLAN ID The VLAN identifier (VID) of the VLAN. The range of the VLAN ID is 1 to 4093.
Page 107 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To display information for all ports and LAGs, click the All link. Select one or more interfaces (ports, LAGs, or both) by taking one of the following actions: •...
Page 108: Configure A Mac-Based Vlan
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Your settings are saved. The following table describes the nonconfigurable fields. Table 27. Nonconfigurable fields on the PVID Configuration page Field Description Current Ingress Filtering Indicates whether ingress filtering is enabled for the interface. Untagged VLANs The number of untagged VLANs for the interface.
Page 109 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 110: Configure Protocol-Based Vlan Groups
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Protocol-Based VLAN Groups You can use a protocol-based VLAN to define filtering criteria for untagged packets. By default, if you do not configure any port-based (IEEE 802.1Q) or protocol-based VLANs, untagged packets are assigned to VLAN 1.
Page 111: Configure Protocol-Based Vlan Group Membership
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can enter keywords such as arp, ip, and ipx. Separate keywords with a comma. You can also enter hexadecimal or decimal values in the range of 0x0600 (1536) to 0xFFFF (65535).
Page 112: Configure A Voice Vlan
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Ports table and LAG table, click each port and LAG that you want to include in the protocol-based VLAN group. A protocol-based VLAN group can include both port and LAGs. A selected port or LAG is displayed by a check mark.
Page 113: Configure Auto-Voip
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • To configure all interfaces with the same settings, select the check box in the heading row. From the Interface Mode menu, select the voice VLAN mode for selected interfaces: •...
Page 114: Configure Protocol-Based Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Protocol-Based Port Settings To prioritize time-sensitive voice traffic over data traffic, protocol-based Auto-VoIP checks for packets carrying the following VoIP protocols: • Session Initiation Protocol (SIP) •...
Page 115: Configure Auto-Voip Oui-Based Properties
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the Auto VoIP Mode menu, select Disable or Enable. Auto-VoIP is disabled by default. The Operational Status field displays the current operational status of each interface. Click the Apply button.
Page 116: Configure Oui-Based Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure OUI-Based Port Settings The port settings page allows you to configure the OUI port settings. To configure OUI-based port settings:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 117: Manage The Oui Table
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Manage the OUI Table Device hardware manufacturers can include an OUI in a network adapter to help identify a hardware device. The OUI is a unique 24-bit number assigned by the IEEE registration authority.
Page 118 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Telephony OUI(s) field, specify the VoIP OUI prefix to be added in the format AA:BB:CC. Up to 128 OUIs can be configured. In the Description field, enter the description for the OUI. The maximum length of description is 32 characters.
Page 119: Display The Auto-Voip Status
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select the check box next to each OUI prefix to be removed. Click the Delete button. The telephony OUI entries are removed. Display the Auto-VoIP Status You can display the Auto-VoIP status. To view the Auto-VoIP status: ...
Page 120: Spanning Tree Protocol Overview
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Spanning Tree Protocol Overview Classic STP provides a single path between end stations, avoiding and eliminating loops. For information on configuring Common STP, see Configure CST Port Settings on page 123.
Page 121 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Global Settings page displays. Configure the following options: • Spanning Tree State. Enable or disable the spanning tree operation on the switch. • STP Operation Mode. Specify the STP version for the switch. The options are STP, RSTP, and MSTP.
Page 122: Configure Cst Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 30. STP configuration status (continued) Field Description Forward Delay (secs) The derived value of the Root Port Bridge Forward Delay parameter. Hold Time (secs) Minimum time in seconds between the transmission of configuration BPDUs.
Page 123: Configure Cst Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Bridge Max Age (secs). The bridge maximum age time for the Common and Internal Spanning Tree (CST), which indicates the time in seconds a bridge must wait before implementing a topological change.
Page 124 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 125: View Cst Port Status
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Specify a value in the range of 0 to 200000000. The default is 0. When the path cost is set to 0, the value is updated with the external path cost from a received STP packet. In the Priority field, specify the priority for a particular port within the CST.
Page 126 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select Switching > STP > Advanced > CST Port Status. The CST Port Status page displays. To refresh the page with the latest information about the switch, click the Refresh button. The following table describes the CST Status information displayed on the page.
Page 127: View Rapid Stp Information
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View Rapid STP Information You can view information about the Rapid Spanning Tree (RSTP) port status. To view information about RSTP:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 128: Manage Mst Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Manage MST Settings You can configure a multiple spanning tree (MST) on the switch. Configure an MST Instance To configure an MST instance:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 129 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports For each configured instance, the information described in the following table displays on the page. Table 35. MST configuration Field Description Bridge Identifier The bridge identifier for the selected MST instance. It is made up using the bridge priority and the base MAC address of the bridge.
Page 130: Configure Mst Port Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Click the Apply button. Your settings are saved. Delete an MST Instance To delete an MST instance:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 131 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 132 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the read-only MST port configuration information displayed on the Spanning Tree CST Configuration page. Table 36. MST port status information Field Description Operational Port Path Cost The operational path cost for the port in the MST instance.
Page 133: View Stp Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View STP Statistics You can view information about the number and type of bridge protocol data units (BPDUs) transmitted and received on each port. To view Spanning Tree statistics: ...
Page 134: Configure Multicast
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Multicast Multicast IP traffic is traffic that is destined to a host group. Host groups for IPv4 multicast are identified by class D addresses, which range from 224.0.0.0 to 239.255.255.255. Host groups for IPv6 multicast are identified by the prefix ff00::/8.
Page 135: View The Mfdb Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the information in the MFDB table. Table 38. MFDB table information Field Description MAC Address The multicast MAC address for which you requested data. VLAN ID The VLAN ID to which the multicast MAC address is related.
Page 136: Configure The Auto-Video Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the MFDB Statistics fields. Table 39. MFDB Statistics information Field Description Max MFDB Table Entries The maximum number of entries that the Multicast Forwarding Database table can hold.
Page 137: Configure Igmp Snooping
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure IGMP Snooping Internet Group Management Protocol (IGMP) snooping is a feature that allows a switch to forward multicast traffic intelligently. Multicast IP traffic is traffic that is destined to a host group.
Page 138 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure IGMP Snooping Globally You can configure the parameters for IGMP snooping, which is used to build forwarding lists for multicast traffic. To configure IGMP snooping globally: ...
Page 139 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 40. IGMP Snooping Configuration information (continued) Field Description VLAN IDs Enabled For IGMP The IDs of the VLANs that are enabled for IGMP snooping. Snooping VLAN IDs Enabled For IGMP The IDs of the VLANs that are enabled for IGMP snooping querier.
Page 140 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter a value between 1 and 3600 seconds. The default is 260 seconds. In the Max Response Time field, specify the time that the switch must wait after sending a query on an interface because it did not receive a report for a particular group on that interface.
Page 141 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter six two-digit hexadecimal numbers separated by colons, for example 00:01:23:43:45:67. Click the Go button. If the address exists, the entry is displayed. An exact match is required. To refresh the page with the latest information about the switch, click the Refresh button.
Page 142 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The IGMP Snooping VLAN Configuration page displays. To enable IGMP snooping on a VLAN, in the VLAN ID field, enter the VLAN ID. Configure the IGMP snooping values: •...
Page 143 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 144 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports accordingly. It is required only if you want to make sure that the multicast router always receives IGMP packets from the switch in a complex network. To configure multicast router interfaces: ...
Page 145: Configure An Igmp Snooping Querier
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To configure a multicast router VLAN:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 146 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the Global IGMP Snooping Querier Settings You can configure the global settings for an IGMP snooping querier. To configure the global IGMP snooping querier settings:  Connect your computer to the same network as the switch.
Page 147 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure an IGMP Snooping Querier for a VLAN You can configure an IGMP snooping querier for use with a VLAN on the network. To configure an IGMP querier snooping for a VLAN: ...
Page 148 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 149: Configure Mld Snooping
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the nonconfigurable information displayed on the page. Table 42. Querier VLAN Status information Field Description VLAN ID The VLAN ID on which IGMP snooping querier is enabled. Operational State The operational state of the IGMP snooping querier on a VLAN.
Page 150 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The switch can snoop on both MLDv1 and MLDv2 protocol packets and bridge IPv6 multicast data based on destination IPv6 Multicast MAC Addresses. The switch can be configured to perform MLD snooping and IGMP snooping simultaneously.
Page 151 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the nonconfigurable MLD Snooping Configuration fields. Table 43. MLD Snooping Configuration information Field Definition Multicast Control Frame Count The number of multicast control frames that were processed by the CPU. Interfaces Enabled for MLD The interfaces on which MLD snooping is administratively enabled.
Page 152 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default is Disable. In the Membership Interval field, specify the time that the switch must wait for a report for a particular group on a particular interface before it deletes that interface from the group. The valid range is from 2 to 3600 seconds.
Page 153 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Switching> Multicast > MLD Snooping > MLD VLAN Configuration. The MLD VLAN Configuration page displays. In the VLAN ID field, specify the VLAN IDs for which MLD snooping must be enabled. From the Fast Leave menu, select to enable or disable the MLD snooping Fast Leave mode for the specified VLAN ID.
Page 154 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Click the Delete button. Your settings are saved. MLD snooping is no longer supported on the VLAN. The VLAN itself is not deleted. Configure a Multicast Router Interface for MLD Snooping To configure a multicast router interface for MLD snooping: ...
Page 155 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure a Multicast Router VLAN for MLD Snooping To configure a multicast router VLAN for MLD snooping:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 156 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 157 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 158: View, Search, And Configure The Mac Address Table
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Remove an MLD Snooping Querier From a VLAN You can remove an MLD snooping querier from a VLAN. To remove an MLD snooping querier from a VLAN: ...
Page 159 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 160: Set The Dynamic Address Aging Interval
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 45. MAC Address Table information (continued) Field Description Interface The interface on which the address was learned. Status The status of this entry, which can be one of the following: •...
Page 161: Add A Static Mac Address
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Add a Static MAC Address You can manually add MAC addresses to the MAC address table. Such MAC addresses are static MAC addresses. To add a static MAC address: ...
Page 162: Configure Layer 2 Loop Protection
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The login window opens. Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 163: Configure Global Layer 2 Loop Protection
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports enable loop protection globally before you can enable and configure it at the interface level. Loop protection is supported on physical interfaces and static LAG interfaces, but not on dynamic LAG interfaces.
Page 164: Configure Layer 2 Loop Protection On A Port
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The range is from 0 to 604800 seconds. The default is 0 seconds. Click the Apply button. Your settings are saved. Configure Layer 2 Loop Protection on a Port To configure Layer 2 loop protection on a port: ...
Page 165 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • To display all ports and LAGs, click the All link. • In the Go To Port field, type the port number, for example g18, and click the Go button.
Page 166: Chapter 4 Configure Quality Of Service
Configure Quality of Service In a switch, each physical port consists of one or more queues for transmitting packets on the attached network. Multiple queues per port are often provided to give preference to certain packets over others based on user-defined criteria. When a packet is queued for transmission in a port, the rate at which it is serviced depends on how the queue is configured and possibly the amount of traffic present in the other queues of the port.
Page 167: Manage Class Of Service
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Manage Class of Service The Class of Service (CoS) queueing feature lets you directly configure certain aspects of switch queueing. This provides the desired QoS behavior for different types of network traffic when the complexities of DiffServ are not required.
Page 168 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 169: Configure Cos Interface Settings For An Interface
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure CoS Interface Settings for an Interface You can configure the trust mode for one or more interfaces and apply an interface shaping rate to all interfaces or to a specific interface. To configure CoS settings for an interface: ...
Page 170: Configure Cos Queue Settings For An Interface
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • To configure all interfaces with the same settings, select the check box in the heading row. From the Interface Trust Mode menu, select one of the following trust mode options for ingress traffic on the selected interfaces: •...
Page 171 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 172: Map 802.1P Priorities To Queues
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Map 802.1p Priorities to Queues You can view or change which internal traffic classes are mapped to the 802.1p priority class values in Ethernet frames that the device receives. The priority-to-traffic class mappings can be applied globally or per interface.
Page 173: Map Dscp Values To Queues
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The values in the menu under each priority represent the traffic class. The traffic class is the hardware queue for a port. Higher traffic class values indicate a higher queue position.
Page 174: Manage Differentiated Services
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The traffic class is the hardware queue for a port. Higher traffic class values indicate a higher queue position. Before traffic in a lower queue is sent, it must wait for traffic in higher queues to be sent.
Page 175: Configure Diffserv Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure DiffServ Settings Packets are filtered and processed based on defined criteria. The filtering criteria is defined by a class. The processing is defined by a policy's attributes. Policy attributes can be defined on a per-class instance basis, and it is these attributes that are applied when a match occurs.
Page 176: Configure A Diffserv Class
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select the administrative mode for DiffServ: • Enable. Differentiated services are active. This is the default setting. • Disable. The DiffServ configuration is retained and can be changed but is not active. Click the Apply button.
Page 177 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports logic is a Boolean logical AND for this criteria. After creating a class, click the class link to the Class page. Create and Configure a DiffServ Class To create and configure a DiffServ class: ...
Page 178 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The class name is a hyperlink to the page on which you can define the class configuration. Define the criteria that must be associated the DiffServ class: •...
Page 179 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Source MAC. Select this radio button to require a packet’s source MAC address to match the specified MAC address. After you select this radio button, use the following fields to configure the source MAC address match criteria: Address.
Page 180 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Destination L4 Port. Select this radio button to require a packet’s TCP/UDP destination port to match the specified protocol, which you must select from the menu. The range is 0 to 65535.
Page 181 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 182: Configure Diffserv Ipv6 Class Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete a DiffServ Class To delete a DiffServ class:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 183 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Packets that match an IPv6 classifier are allowed to be marked using only the 802.1p (CoS) field or the IP DSCP field in the traffic Class octet. IP precedence is not defined for IPv6. This is not an appropriate type of packet marking.
Page 184 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports After creating the class, click the class name. The class name is a hyperlink to the page on which you can define the class configuration. Define the criteria that must be associated the IPv6 DiffServ class: •...
Page 185 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Destination Prefix/Length. Select this radio button to require a packet’s destination prefix and prefix length to match the specified source IPv6 prefix and prefix length. Prefix must always be specified with the prefix length. The prefix can be in the hexadecimal range from 0 to FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF and the prefix length can be in the range from 0 to 128.
Page 186 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 187: Configure A Diffserv Policy
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete an IPv6 DiffServ Class To delete an IPv6 DiffServ class:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 188 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 189 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the Assign Queue menu, select the queue to which packets of this policy class must be assigned. This is an integer value in the range 0 to 7. Configure the policy attributes: •...
Page 190 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Simple Policy. Select this radio button to define the traffic policing style for the class. A simple policy uses a single data rate and burst size, resulting in one of two outcomes: conform or violate.
Page 191 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Click the Apply button. Your settings are saved. The following table describes the nonconfigurable information displayed on the page. Table 50. DiffServ policy configuration policy attribute Field Description Policy Name The name of the DiffServ policy.
Page 192 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 193: Configure The Diffserv Service Interface
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select the check box next to the policy name. From the Member Class menu, select None. Click the Apply button. The class is removed from the policy. Delete a DiffServ Policy To delete a DiffServ policy: ...
Page 194 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If you do not know the IP address of the switch, see Access the Switch on page 11. The login window opens. Enter the switch’s password in the password field. The default password is password.
Page 195: View Diffserv Service Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 196 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select QoS > DiffServ > Advanced > Service Statistics. To refresh the page with the latest information about the switch, click the Refresh button. The following table describes the information available on the Service Statistics page. Table 52.
Page 197: Chapter 5 Manage Device Security
Manage Device Security This chapter covers the following topics: • Management Security Settings • Configure Management Access • Configure Port Authentication • Set Up Traffic Control • Configure Access Control Lists...
Page 198: Management Security Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Management Security Settings You can configure the login password, Remote Authorization Dial-In User Service (RADIUS) settings, Terminal Access Controller Access Control System (TACACS) settings, and authentication lists. Change the Password You can change the login password.
Page 199: Reset The Password To The Default Password
If you added the switch to a network on the Insight app before and you change the management mode back to NETGEAR Insight app, all Insight-manageable device settings are returned to the last configuration saved on the cloud server, including the switch password (that is, the password is reset to the Insight network password).
Page 200: Radius Overview
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports RADIUS Overview RADIUS servers provide additional security for networks. The RADIUS server maintains a user database, which contains per-user authentication information. The switch passes information to the configured RADIUS server, which can authenticate a user name and password before authorizing use of the network.
Page 201 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports is the server configured as the primary server. If no servers are configured as the primary server, the current server is the most recently added RADIUS server. In the Max Number of Retransmits field, specify the maximum number of times a request packet is retransmitted to the RADIUS server.
Page 202 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure a RADIUS Authentication Server on the Switch Use the RADIUS Server Configuration page to view and configure various settings for a RADIUS server configured on the switch. Add a Primary RADIUS Authentication Server to the Switch To add a primary RADIUS authentication server to the switch and view the RADIUS ...
Page 203 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The message authenticator adds protection to RADIUS messages by using an MD5 hash to encrypt each message. The shared secret is used as the key, and if the message fails to be verified by the RADIUS server, it is discarded.
Page 204 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Modify the Settings for a RADIUS Authentication Server on the Switch To modify the settings for a RADIUS authentication server on the switch:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 205 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Security > Management Security > RADIUS > Server Configuration. The Server Configuration page displays. Select the check box next to the IP address of the server to remove. Click the Delete button.
Page 206 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Secret field, type the shared secret to use with the specified accounting server. From the Accounting Mode menu, select Enable to enable the RADIUS accounting mode. Click the Add button.
Page 207 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Modify the Settings for a RADIUS Accounting Server on the Switch To modify the settings for a RADIUS accounting server on the switch:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 208: Configure Tacacs
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Security > Management Security > RADIUS > Accounting Server Configuration. The Accounting Server Configuration page displays. Select the check box next to the IP address of the server to remove. Click the Delete button.
Page 209 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The TACACS+ Configuration page displays. In the Key String field, specify the authentication and encryption key for TACACS+ communications between the switch and the TACACS+ server. The valid range is 0–128. The key must match the key configured on the TACACS+ server.
Page 210: Configure Authentication Lists
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Key String field, specify the authentication and encryption key for TACACS+ communications between the device and the TACACS+ server. The valid range is 0–128. The key must match the key used on the TACACS+ server. In the Connection Timeout field, specify the time that passes before the connection between the device and the TACACS+ server times out.
Page 211 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the menu in the 1 column, select the authentication method that must be used first in the selected authentication login list. If you select a method that does not time out as the first method, such as Local, no other method is tried, even if you specified more than one method.
Page 212 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 213 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure the Dot1x Authentication List The Dot1x authentication list defines the IEEE 802.1X authentication method used for the default list. The default list is dot1xList. To configure the dot1x authentication list: ...
Page 214: Configure Management Access
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Management Access You can configure HTTP and secure HTTP access to the switch management interface. You can also configure access control profiles and access rules. Configure HTTP Settings You can configure the settings for HTTP access to the switch.
Page 215: Https Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports HTTPS Configuration Secure HTTP enables the transmission of HTTP over an encrypted Secure Sockets Layer (SSL) or Transport Layer Security (TLS) connection. When you manage the switch by using a web interface, Secure HTTP can help ensure that communication between the management system and the switch is protected from eavesdroppers and man-in-the-middle attacks.
Page 216: Manage Certificates
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the HTTPS Session Soft Timeout (Minutes) field, enter the inactivity time-out for HTTPS sessions. The value must be in the range of 1 to 60 minutes. The default value is 5 minutes. The configured value is displayed.
Page 217: Download Certificates
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Certificate Present field displays whether a certificate is present on the switch. In the Certificate Management area, select Generate Certificates. Click the Apply button. The switch generates an SSL certificate. The Certificate Generation Status field shows information about the progress.
Page 218 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • The switch contains a path to the TFTP server. To configure the certificate download settings for HTTPS sessions:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 219: Access Control
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select the Start File Transfer check box. Click the Apply button. The file transfer starts. A status message displays during the transfer and upon successful completion of the transfer. Access Control Access control allows you to configure a profile and set access rules.
Page 220: Configure Access Rule Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To refresh the page with the latest information about the switch, click the Refresh button. The following table describes the nonconfigurable data that is displayed. Table 56. Access profile configuration profile summary Field Description Rule Type...
Page 221: Configure Port Authentication
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Access Rule Configuration page displays. From the Rule Type menu, select Permit or Deny to permit or deny access when the selected rules are matched. A Permit rule allows access by traffic that matches the rule criteria. A Deny rule blocks traffic that matches the rule criteria.
Page 222: Configure Global 802.1X Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure Global 802.1X Settings You can configure global port access control settings on the switch. To globally enable all 802.1X features:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 223: Manage Port Authentication
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If RADIUS-assigned VLANs are enabled, the RADIUS server is includes the VLAN ID in the 802.1X tunnel attributes of its response message to the device. If dynamic VLAN creation is enabled on the device and the RADIUS-assigned VLAN does not exist, then the assigned VLAN is dynamically created.
Page 224 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Specify the following settings: • Port Control. Defines the port authorization state. The control mode is set only if the link status of the port is link up. Select one of the following options: Auto.
Page 225 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Supplicant Timeout. Specify the supplicant time-out for the selected port. The supplicant time-out is the value, in seconds, after which the supplicant times out. • Server Timeout. Specify the time that elapses before the switch resends a request to the authentication server.
Page 226 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Initialize 802.1X on a Port To initialize 802.1X on a port:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 227: View The Port Summary
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select Security > Port Authentication > Advanced > Port Authentication. The Port Authentication page displays. Select the check box associated with the port to reauthenticate. Click the Reauthenticate button.
Page 228: View The Client Summary
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 58. Port summary (continued) Field Description Control Mode Indicates the configured control mode for the port. Possible values are as follows: • Auto. The switch sets the port mode based on the authentication exchanges between the supplicant, authenticator, and the authentication server.
Page 229: Set Up Traffic Control
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 230 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 231: View The Mac Filter Summary
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete a MAC FIlter To delete a MAC filter:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 232: Configure Storm Control
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select Security > Traffic Control > MAC Filter > MAC Filter Summary. The MAC Filter Summary page displays. The following table describes the information displayed on the page. Table 60.
Page 233 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Storm Control section, from the Ingress Control Mode menu, select the mode of broadcast affected by storm control: • Disabled. Storm control is disabled. This is the default setting. •...
Page 234: Configure Port Security
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports d. In the Port Settings section, from the Control Action mode menu in the table heading, select one of the following options: • None. This is the default setting. •...
Page 235 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Port Security Violations table shows information about violations that occurred on ports that are enabled for port security. The following table describes the fields in the Port Security Violations table. Table 61.
Page 236 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To display information for all ports and LAGs, click the All link. Select one or more interfaces by taking one of the following actions: • To configure a single interface, select the check box associated with the port, or type the port number in the Go To Interface field and click the Go button.
Page 237: Configure Protected Ports
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 238: Configure A Private Vlan
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To configure protected ports:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 239 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 240 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Secondary VLAN(s) field, enter the VLAN that you want to associate with the primary VLAN. Click the Apply button. Your settings are saved. The following table describes the nonconfigurable information displayed on the page. Table 62.
Page 241 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • General. Sets the interfaces in general mode, which is the default selection. • Host. Sets the interfaces in host mode, which is used for private VLAN configurations.
Page 242 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The range of the VLAN ID is 2–4093. Click the Apply button. Your settings are saved. The Operational VLAN(s) field displays the operational VLANs. Configure a Private VLAN Promiscuous Interface To configure a private VLAN promiscuous interface: ...
Page 243: Configure Access Control Lists
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can specify the VLAN range values separated by a hyphen, for example, 10-13. You can specify the combination of both separated by commas, for example, 12,15,40-43,1000-1005, 2000. The range of VLAN IDs is 2–4093. Note: The VLAN ID list that you specify replaces the configured secondary VLAN list in the association.
Page 244 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Use the ACL Wizard to create an ACL To use the ACL Wizard to create an ACL:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 245 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can select from the following ACL types: • ACL Based on Destination MAC. Creates an ACL based on the destination MAC address, destination MAC mask, and VLAN. •...
Page 246 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The rest of the rule match criteria fields available for configuration depend on the selected ACL type. For information about the possible match criteria fields, see the following table. ACL Based On Fields Destination MAC...
Page 247 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports b. In the Destination MAC Mask field, specify the destination MAC address mask that must be compared against the information in an Ethernet frame. The valid format is xx:xx:xx:xx:xx:xx. The BPDU keyword can be specified using a destination MAC mask of 00:00:00:ff:ff:ff.
Page 248 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Your settings are saved. Delete an ACL Rule To delete an ACL rule:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 249: Configure A Basic Mac Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports For information about the ACL Wizard, see Use the ACL Wizard to Create a Simple ACL page 243. Configure a Basic MAC ACL A MAC ACL consists of a set of rules that are matched sequentially against a packet. When a packet meets the match criteria of a rule, the specified rule action (Permit or Deny) is taken, and the additional rules are not checked for a match.
Page 250 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Add a MAC ACL To add a MAC ACL:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 251 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 252: Configure Mac Acl Rules
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Configure MAC ACL Rules You can define rules for MAC-based ACLs. The access list definition includes rules that specify whether traffic matching the criteria is forwarded normally or discarded. A default deny all rule is the last rule of every list.
Page 253 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The valid range of queue IDs is 0 to 7. From the Mirror Interface menu, select the specific egress interface to which the matching traffic stream must be copied, in addition to being forwarded normally by the switch. This field cannot be set if a redirect interface is already configured for the ACL rule.
Page 254 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • • MPLS multicast • MPLS unicast • NetBios • Novell • PPPoE • RARP • User Value If you select User Value from the EtherType menu, in the EtherType User Value field, specify the customized EtherType value that must be used when you select User Value from the EtherType Key menu.
Page 255 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Change the Match Criteria for a MAC Rule To change the match criteria for a MAC rule:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 256: Configure Mac Bindings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Security > ACL > Basic > MAC Rules. The MAC Rules page displays. Select the check box that is associated with the rule. Click the Delete button. The rule is removed.
Page 257 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the ACL ID menu, select an ACL. The fixed selection from the Direction menu is Inbound, which means that MAC ACL rules are applied to traffic entering the interface. In the Sequence Number field, optionally specify a number to indicate the order of the access list relative to other access lists already assigned to the interface and direction.
Page 258: View Or Delete Mac Acl Bindings In The Mac Binding Table
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the information displayed in the Interface Binding Status table. Table 63. Interface Binding Status table Field Description Interface The interface of the ACL assigned. Direction The selected packet filtering direction for the ACL.
Page 259: Configure An Ip Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the information that is displayed in the MAC Binding Table. Table 64. MAC Binding Table Field Description Interface The interface of the ACL assigned. Direction The selected packet filtering direction for the ACL.
Page 260 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Current Number of ACL field displays the current number of all ACLs configured on the switch. The Maximum ACL field displays the maximum number of IP ACLs that can be configured on the switch.
Page 261: Configure Rules For A Basic Ip Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select the check box that is associated with the IP ACL. Click the Delete button. The IP ACL is removed. Configure Rules for a Basic IP ACL You can define rules for IP-based standard ACLs (basic ACLs).
Page 262 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If no rules exist, the Basic ACL Rule Table shows the message No rules have been configured for this ACL. If one or more rules exist for the ACL, the rules display in the Basic ACL Rule Table.
Page 263 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Mirror Interface. From the Mirror Interface menu, select the specific egress interface to which the matching traffic stream must be copied, in addition to being forwarded normally by the switch. This field cannot be set if a redirect interface is already configured for the IP ACL rule.
Page 264: Configure Rules For An Extended Ip Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the ACL ID menu, select the ACL that includes the rule that you want to modify. In the Basic ACL Rule Table, click the rule. The rule is a hyperlink. The Standard ACL Rule Configuration page displays. Modify the basic IP ACL rule criteria.
Page 265 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Add a Rule for an Extended IP ACL To add a rule for an extended IP ACL:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 266 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The previous figure does not show the rightmost fields. Configure the following match criteria for the rule: • Sequence Number. Enter a whole number in the range of 1 to 2147483647 that is used to identify the rule.
Page 267 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Interface. For a Permit action, use either a mirror interface or a redirect interface: Select the Mirror Interface radio button and use the menu to specify the egress interface to which the matching traffic stream is copied, in addition to being forwarded normally by the device.
Page 268 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The relevant matching conditions for L4 port numbers are as follows: • Equal. IP ACL rule matches only if the Layer 4 source port number is equal to the specified port number or port protocol.
Page 269 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Dst L4. The options are available only when the protocol is set to TCP or UDP. Use the destination L4 port option to specify relevant matching conditions for L4 port numbers in the extended ACL rule.
Page 270 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The wildcard mask determines which bits are used and which bits are ignored. A wildcard mask of 0.0.0.0 indicates that none of the bits are important. A wildcard of 255.255.255.255 indicates that all of the bits are important.
Page 271 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports IP TOS. This is an optional configuration. The IP ToS field in a packet is defined as all 8 bits of the service type octet in the IP header. The ToS bits value is a hexadecimal number that is composed of numbers 00 to 09 and AA to FF.
Page 272: Configure An Ipv6 Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete an Extended IP ACL Rule To delete an extended IP ACL rule:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 273 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 274: Configure Rules For An Ipv6 Acl
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Security > ACL > Advanced > IPv6 ACL. The IPv6 Configuration page displays. Select the check box that is associated with the IPv6 ACL. Click the Delete button. The IPv6 ACL is removed.
Page 275 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The previous figure does not show all columns. If no rules exists, the IPv6 ACL Rule Table shows the message No rules have been configured for this ACL. If one or more rules exist for the ACL, the rules display in the IPv6 ACL Rule Table.
Page 276 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Action. Select the ACL forwarding action by selecting one of the following radio buttons: Permit. Forward packets that meet the ACL criteria. Deny. Drop packets that meet the ACL criteria. •...
Page 277 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Src L4. The options are available only when the protocol is set to TCP or UDP. Use the source L4 port option to specify relevant matching conditions for L4 port numbers in the extended ACL rule.
Page 278 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Dst. In the Dst field, enter a destination IPv6 address to be compared to a packet’s destination IPv6 address as a match criterion for the selected IPv6 ACL rule: If you select the IPv6 Address radio button, enter an IPv6 address to apply this criteria.
Page 279 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can either enter the port range yourself or select one of the following protocols from the menu: • The destination IP TCP port protocols are domain, echo, ftp, ftpdata, www-http, smtp, telnet, pop2, pop3, and bgp.
Page 280 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports that is used by end stations to signify Quality of Service handling in routers. The flow label can specified within the range 0 to 1048575. • IPv6 DSCP Service. Specify the IP DiffServ Code Point (DSCP) field. This is an optional configuration.
Page 281: Configure Ip Acl Interface Bindings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Delete an IPv6 ACL Rule To delete an IPv6 ACL rule:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 282 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 283: View Or Delete Ip Acl Bindings In The Ip Acl Binding Table
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Ports and LAG tables display the available and valid interfaces for ACL binding. All nonrouting physical interfaces, VLAN interfaces, and interfaces participating in LAGs are listed. Click the Apply button.
Page 284: Configure Vlan Acl Bindings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports a. Select the check box next to the interface. b. Click the Delete button. The binding is removed. The following table describes the information displayed in the IP ACL Binding Table. Table 67.
Page 285 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports From the Direction menu, select the packet filtering direction. In the Sequence Number field, enter an optional sequence number. You can specify an optional sequence number to indicate the order of this access list relative to other access lists that are already assigned to the VLAN ID and selected direction.
Page 286: Chapter 6 Perform Maintenance Tasks
Perform Maintenance Tasks This chapter covers the following topics: • Reboot the Switch • Reset the Switch to Its Factory Default Settings • Export a File From the Switch • Download a File to the Switch • Manage Software Images •...
Page 287: Reboot The Switch
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Reboot the Switch You can reboot the switch from the local browser interface. Note: The switch provides a recessed multi-function Reset button on the back panel that lets you reboot (power-cycle) the switch. To reboot the switch, press the Reset button for about two seconds.
Page 288 Reset button is available only after you use the NETGEAR Insight app to remove the switch from your network. After you use the NETGEAR Insight app to remove the switch from your network, press the Reset button for at least five seconds. The switch restarts and returns to its factory default settings.
Page 289: Export A File From The Switch
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Export a File From the Switch You can export configuration (ASCII or log ASCII) files from the switch to a file server by using TFTP or HTTP. The following sections describe how you can export a file from the switch: •...
Page 290: Use An Http Sessions To Export A File
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Tech Support. The tech support file is a text-base file that contains a variety of hardware, software, and configuration information that can assist in device and network troubleshooting.
Page 291: Download A File To The Switch
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 292 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To download a file to the switch from a TFTP server:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 293: Download A File To The Switch Using Http
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Note: We recommended that you do not overwrite the active image. If you do so, the switch displays a warning that you are trying to overwrite the active image.
Page 294 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 295: Manage Software Images
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Note: After a file transfer is started, wait until the page refreshes. When the page refreshes, the option to select a file option is no longer available, indicating that the file transfer is complete.
Page 296: Configure Dual Image Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 297 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Current-active field displays the name of the active image. To specify a name for the selected image, enter one in the Image Description field. Select the Activate Image check box. Click the Apply button.
Page 298: View The Dual Image Status
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports View the Dual Image Status You can view information about the active and backup images on the switch. To view dual image status information:  Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.
Page 299: Perform Troubleshooting Tasks
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Perform Troubleshooting Tasks You can send a ping or a traceroute. The following sections describe how you can troubleshoot the switch and the network: • Send an IPv4 Ping on page 299 •...
Page 300: Send An Ipv6 Ping
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The Ping Details page displays. In the IP Address/Host Name field, enter the IP address or host name of the device that must be pinged. In the Count field, enter the number of echo requests that must be sent. The default value is 3.
Page 301 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 302: Send An Ipv4 Traceroute
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Send an IPv4 Traceroute You can configure the switch to send a traceroute request to a specified IP address or host name. You can use this to discover the paths that packets take to a remote destination. Once you click the Apply button, the switch sends a traceroute and the results are displayed below the configurable data.
Page 303: Send An Ipv6 Traceroute
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports In the Interval field, enter the time between probes in seconds. The default value is 3. The range is 1 to 60. In the Port field, enter the UDP destination port for the probe packets. The default value is 33434.
Page 304 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 305: Enable Remote Diagnostics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Enable Remote Diagnostics You can enable or disable the option to access the switch remotely. When remote access is enabled, you can perform diagnostics services. To enable remote diagnostics: ...
Page 306: Chapter 7 Manage Power Over Ethernet
Manage and View the PoE Port Configuration • Reset One or More PoE or PoE+ Ports • Set Up PoE Timer Schedules Note: This chapter applies to models GC110P, GC510P, and GC510PP. Model GC110 does not support Power over Ethernet.
Page 307: Poe Overview
Table 69. PoE capacities for each model Model Maximum PoE Power Maximum Power Budget Per Port Across All Active PoE Ports GC110 PoE is not supported PoE is not supported GC110P 15.4W PoE (IEEE 802.3af) GC510P 30W PoE+ (IEEE 802.3at)
Page 308: Power Allocation And Power Budget
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table shows the device classes for PoE+ devices adhering to the IEEE 802.3at standard. The device classes for PoE devices adhering to the IEEE 802.3af standard are identical with the exception that Device Class 4 is not supported.
Page 309: Configure The Global Poe Settings
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To determine the delivered power by PoE or PoE+ ports:  Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable.
Page 310 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 311: Manage And View The Poe Port Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Manage and View the PoE Port Configuration Depending on the model, the switch includes eight PoE or PoE+ ports. To configure and view the PoE or PoE+ port settings: ...
Page 312 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The settings that you configure apply to all selected PoE or PoE+ ports. Menu Item Description Port Power Select the administrative mode of the port: • Enable. The port’s capacity to deliver power is enabled. This is the default setting.
Page 313 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Menu Item Description Detection Type The detection type specifies how the port detects the attached PD. Select one of the following types: • IEEE 802. The port performs a 4-point resistive detection. This is the default setting.
Page 314: Reset One Or More Poe Or Poe+ Ports
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Field Description Fault Status The error description when the PoE port is in a fault state. The possible values are as follows: • No Error. The port is not in any error state and can provide power. •...
Page 315: Set Up Poe Timer Schedules
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Set Up PoE Timer Schedules The switch lets you define multiple timer schedules that you can use for PoE power delivery to attached PDs. After you create a timer schedule, you can associate it with one or more PoE ports (see Manage and View the PoE Port Configuration on page 311).
Page 316: Specify The Settings For An Absolute Poe Timer Schedule
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Specify the Settings for an Absolute PoE Timer Schedule An absolute timer schedule applies to specific dates and times. The schedule is executed once only. To specify the settings for a PoE timer schedule that uses specific dates and times: ...
Page 317: Specify The Settings For A Recurring Poe Timer Schedule
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports d. Next to the Date End field, click the calendar icon and use the menus in the pop-up window to enter the date in the DD-Mon-YYYY format to specify when the timer schedule must stop.
Page 318: Change The Settings For A Recurring Poe Timer Schedule Entry
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Selecting an existing entry lets you make changes to that entry. In the Timer Schedule Configuration section, specify the recurrence pattern: a. In the Time Start field, enter the time of day in the HH:MM format to specify when the timer schedule must start.
Page 319: Delete A Poe Timer Schedule Entry
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable. Launch a web browser.
Page 320: Delete A Poe Timer Schedule
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 321: Chapter 8 Monitor The System
Monitor the System This chapter contains the following sections. • Monitor the Switch and the Ports • Configure and View Logs • Configure Port Mirroring...
Page 322: Monitor The Switch And The Ports
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Monitor the Switch and the Ports The following sections describe how you can view a variety of information about the amount and type of traffic that is transmitted from and received on the switch: •...
Page 323 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the switch statistics displayed on the page. Table 72. Switch statistics Field Description ifIndex The interface index of the interface table entry associated with the processor of this switch.
Page 324: View Or Clear Port Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 72. Switch statistics (continued) Field Description Static VLAN Entries The number of active VLAN entries that were created statically on the switch. VLAN Deletes The number of VLANs that were created and then deleted on the switch since the last reboot.
Page 325 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the per-port statistics displayed on the page. Table 73. Port statistics Field Description Interface The interface for which the statistics are displayed. Total Packets Received The total number of packets received that were without errors.
Page 326: View Or Clear Detailed Port Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Click the Clear button. All counters are reset to 0. Reset Counters for a Specific Interface To reset the counters for a specific interface:  Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable.
Page 327 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If you do not know the IP address of the switch, see Access the Switch on page 11. The login window opens. Enter the switch’s password in the password field. The default password is password.
Page 328 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 74. Detailed port statistics (continued) Field Description STP State The port's current Spanning Tree state. This state controls what action a port takes on receipt of a frame. If the bridge detects a malfunctioning port, it places that port into the broken state.
Page 329 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 74. Detailed port statistics (continued) Field Description Packets RX and TX 512-1023 The total number of packets (including bad packets) received and transmitted Octets that were between 512 and 1023 octets in length inclusive (excluding framing bits but including FCS octets).
Page 330 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 74. Detailed port statistics (continued) Field Description Unicast Packets Received The number of subnetwork-unicast packets delivered to a higher-layer protocol. Multicast Packets Received The total number of well-formed packets received that were directed to a multicast address.
Page 331 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 74. Detailed port statistics (continued) Field Description Total Packets Transmitted The total number of octets of data (including those in bad packets) transmitted (Octets) on the network (excluding framing bits but including FCS octets). This object can be used as a reasonable estimate of Ethernet utilization.
Page 332: View Or Clear Eap Statistics
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 74. Detailed port statistics (continued) Field Description Total Transmit Errors The sum of single, multiple, and excessive collisions. Total Transmit Packets The sum of single collision frames discarded, multiple collision frames Discarded discarded, and excessive frames discarded.
Page 333 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If you do not know the IP address of the switch, see Access the Switch on page 11. The login window opens. Enter the switch’s password in the password field. The default password is password.
Page 334: Perform A Cable Test
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 75. EAP statistics Field Description EAP Request/ID Frames The number of transmitted EAP request/identity frames. Transmitted EAP Request Frames The number of transmitted EAP request frames (other than request/identity Transmitted frames).
Page 335: Configure And View Logs
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the nonconfigurable information displayed on the page. Table 76. Cable Test information Field Description Cable Status Indicates the cable status: • Normal. The cable is working correctly. •...
Page 336 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports If you do not know the IP address of the switch, see Access the Switch on page 11. The login window opens. Enter the switch’s password in the password field. The default password is password.
Page 337: Message Log Format
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports console log. Messages logged to a collector or relay through syslog support the same format as well. The following example shows the standard format for a log message: <14>2017-09-02 16:35:40 10.131.12.183-1 UNKN[2176789276]: main_login.c(179) 3855 %% HTTP Session 19 initiated for user admin connected from 10.27.64.122...
Page 338: Manage The Flash Log
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports message logged. Messages logged to a collector or relay through syslog use a format identical to the previous message. Manage the Flash Log The flash log is a persistent log, that is, is a log that is stored in persistent storage. Persistent storage survives across platform reboots.
Page 339: Manage The Server Log
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Alert (1). The second-highest warning level. An alert log message is saved if a serious device malfunction occurs, such as all device features being down. Action must be taken immediately. Critical (2).
Page 340 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Launch a web browser. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch on page 11.
Page 341 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The login window opens. Enter the switch’s password in the password field. The default password is password. If you added the switch to a network on the Insight app before and you did not yet change the password through the local browser interface, enter your Insight network password.
Page 342 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Modify the Settings for a Remote Syslog Server To modify the settings for a remote syslog server:  Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that is off-network using an Ethernet cable.
Page 343: View Or Clear The Trap Logs
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Select Monitoring > Logs > Server Log. The Server Log Configuration page displays. Select the check box that is associated with the server. Click the Delete button. The server is removed.
Page 344: View Or Clear The Event Log
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 77. Trap Logs information (continued) Field Description Number of Traps since log The number of traps that occurred since the traps were last displayed. last viewed Displaying the traps by any method (terminal interface display, web display, upload file from switch, and so on) causes this counter to be cleared to 0.
Page 345: Configure Port Mirroring
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The following table describes the event log information that is displayed on the page. Table 78. Event Logs information Field Description Entry The sequence number of the event. Type The type of the event.
Page 346 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The System Information page displays. Select Monitoring > Mirroring > Port Mirroring. The Global Configuration page displays. Select an Admin Mode radio button: • True. Port mirroring is enabled. •...
Page 347: Appendix A Configuration Examples
Configuration Examples This appendix contains information about how to configure the following features. The appendix covers the following topics: • Virtual Local Area Networks (VLANs) • Access Control Lists (ACLs) • Differentiated Services (DiffServ) • 802.1X • Multiple Spanning Tree Protocol (MSTP)
Page 348: Virtual Local Area Networks (Vlans)
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Virtual Local Area Networks (VLANs) A local area network (LAN) can generally be defined as a broadcast domain. Hubs, bridges, or switches in the same physical segment or segments connect all end node devices. End nodes can communicate with each other without the need for a router.
Page 349: Vlan Configuration Examples
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Packets leaving the switch are either tagged or untagged, depending on the setting for that port’s VLAN membership properties. A U for a given port means that packets leaving the switch from that port are untagged.
Page 350: Access Control Lists (Acls)
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports untagged packet as it leaves port 6. For port 5, the outgoing packet leaves as a tagged packet with VLAN ID 20. Access Control Lists (ACLs) ACLs ensure that only authorized users can access specific resources while blocking off any unwarranted attempts to reach network resources.
Page 351: Standard Ip Acl Sample Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Assign Queue ID. 0 • Match Every. False • CoS. 0 • Destination MAC. 01:02:1A:BC:DE:EF • Destination MAC Mask. 00:00:00:00:FF:FF • EtherType. User Value. • Source MAC. 02:02:1A:BC:DE:EF •...
Page 352: Differentiated Services (Diffserv)
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports On the IP Rules page (see Configure Rules for a Basic IP ACL on page 261), create a second rule for IP ACL 1 with the following settings: •...
Page 353: Class
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports The switch supports DiffServ. The DiffServ feature contains a number of conceptual QoS building blocks that you can use to construct a differentiated service network. Use these same blocks in different ways to build other types of QoS architectures.
Page 354: Creating Policies
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports To configure DiffServ, you must define service levels, namely the forwarding classes/PHBs identified by a given DSCP value, on the egress interface. You define these service levels by configuring BA classes for each.
Page 355: Diffserv Example Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Policing with color mode awareness. Policing in the DiffServ feature uses either color blind or color aware mode. Color blind mode ignores the coloration (marking) of the incoming packet.
Page 356: 356
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports On the Policy Configuration page (see Create and Configure a DiffServ Policy page 187), create a new policy with the following settings: • Policy Selector. Policy1 • Member Class.
Page 357 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports LAN port with point-to-point connection characteristics. If the authentication and authorization process fails, access control prevents access to that port. In this context, a port is a single point of attachment to the LAN, such as a port of a MAC bridge and an association between stations or access points in IEEE 802.11 wireless LANs.
Page 358: 802.1X Example Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports the information received from the supplicant to the authentication server for the credentials to be checked, which determines the authorization state of the port. The authenticator PAE controls the authorized/unauthorized state of the controlled port depending on the outcome of the RADIUS-based authentication process.
Page 359: Multiple Spanning Tree Protocol (Mstp)
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports This example uses the default values for the port authentication settings, but you can configure several additional settings. For example, the EAPOL Flood Mode field allows you to enable the forwarding of EAPoL frames when 802.1X is disabled on the device. On the Server Configuration page (see Configure a RADIUS Authentication Server on the Switch...
Page 360 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports maximum possible extent. The connectivity calculated for the CIST provides the CST for interconnecting these regions, and an Internal Spanning Tree (IST) within each region. MSTP ensures that frames with a given VLAN ID are assigned to one and only one of the MSTIs or the IST within the region, that the assignment is consistent among all the networking devices in the region, and that the stable connectivity of each MSTI and IST at the boundary of the region matches that of the CST.
Page 361: Mstp Example Configuration
Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports kind outside the region. In other words, connectivity within the region is independent of external connectivity. MSTP Example Configuration This example shows how to create an MSTP instance from the switch. The example network includes three different switches that serve different locations in the network.
Page 362 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports • Switch 3. 20480 Note: Bridge priority values are multiples of 4096. If you do not specify a root bridge and all switches are assigned the same bridge priority value, the switch with the lowest MAC address is elected as the root bridge.
Page 363: Appendix B Hardware Specifications And Default Values
Hardware Specifications and Default Values The appendix covers the following topics: • Switch Specifications • Switch Features and Defaults...
Page 364: Switch Specifications
The switch conforms to the TCP/IP, UDP, HTTP, ICMP, TFTP, DHCP, IEEE 802.1D, IEEE 802.1p, and IEEE 802.1Q standards. Table 79. Switch Specifications and Performance Feature Value GC110 Eight 10/100/1000Mbps Two 10G/1G SFP+ ports GC110P Eight PoE 10/100/1000Mbps Two 10G/1G SFP+ ports...
Page 365 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default Interface Admin Mode Disabled 82 Option Trust Mode Disabled Global System Usage Threshold Power Management Mode Dynamic Traps Enabled...
Page 366 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default 802.1X Port Based Authentication State Disabled VLAN Assignment Mode Disabled Dynamic VLAN Creation Mode Disabled EAPOL Flood Mode Disabled Port Control...
Page 367 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default MST Instance 0 Priority 32768 MST Instance 0 VLAN IDs 1,2,3 PV(R)STP UplinkFast Rate Interface CST STP Status Enabled CST Auto Edge...
Page 368 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default Notification Disabled Optional TLVs Enabled DHCP Snooping Global Admin Mode Disabled MAC Address Validation Enabled Interface Trust Mode Disabled...
Page 369 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default 802.1p to Queue Mapping (802.1p -> Queue) 0 -> 1 1 -> 0 2 -> 0 3 ->...
Page 370 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default DSCP to Queue Mapping (DSCP -> Queue) Other: (continued) (1) 000001 -> 1 (2) 000010 -> 1 (3) 000011 ->...
Page 371 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 80. Feature Default Values and Default State (continued) Feature Name/Parameter Default Interface Trust Mode 802.1p Interface Shaping Rate 802.1p to Queue Mapping (802.1p –> Queue) 0 -> 1 1 ->...
Page 372 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 81. Port characteristics Feature Sets Supported Default Static 802.1Q tagging VID = 1 Max member ports are equal to the number of ports on the switch. Learning process Supports static and dynamic MAC Dynamic learning is enabled by...
Page 373 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 84. Security Feature Sets Supported Default Management security 1 profile with 20 rules for All IP addresses allowed HTTP/HTTPS access to allow/deny an IP address/subnet Port MAC lock down All ports Disabled Table 85.
Page 374 Insight Managed 8-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP Fiber Ports Table 87. Other features (continued) Feature Sets Supported Default IGMP snooping v1/v2/v3 All ports Enabled on VLAN 1 Configurations upload/download EAPoL flooding All ports Disabled BPDU flooding All ports Disabled Static multicast groups...

This manual is also suitable for:

Gc110p Gc510p Gc510pp

NETGEAR GC110 User Manual

Chapter 1 Getting Started

Chapter 2 Configure System Information

Chapter 3 Configure Switching

Chapter 4 Configure Quality of Service

Chapter 5 Manage Device Security

Chapter 6 Perform Maintenance Tasks

Chapter 7 Manage Power over Ethernet

Chapter 8 Monitor the System

Appendix A Configuration Examples

Appendix B Hardware Specifications and Default Values

Quick Links

Related Manuals for NETGEAR GC110

Summary of Contents for NETGEAR GC110
