Summary of Contents for VIETA La-8 plus A

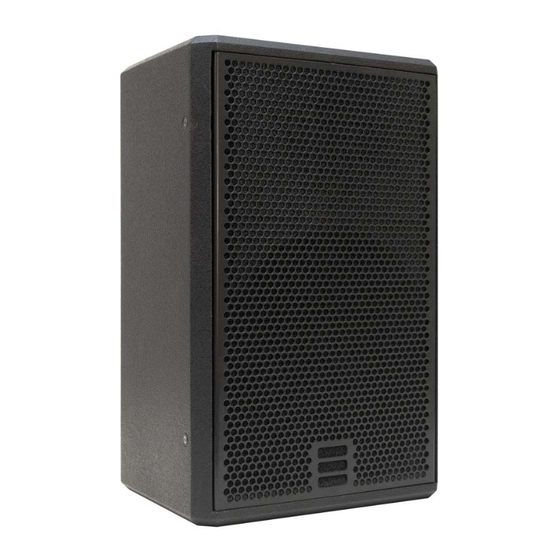

- Page 1 La-8 plus A...
-
Page 2: Table Of Contents
INDEX SAFETY PRECAUTIONS WARRANTY DECLARATION OF CONFORMITY 4,5,6 DESCRIPTION La-plus series La-8 plus A y La-8 plus P description Amplifier description La-8 plus A Presets Technical specifications 12,13 Accessories for La-8 plus SAFETY RECOMMENDATIONS APPLICATIONS: Option 1 Option 2 DIMMENSIONS La-8 plus A y La-8 plus P... -
Page 3: Safety Precautions
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. • Vieta accepts no responsibility for accidents arising from any use of the appliance not in accordance with these instructions. -
Page 4: Warranty
WARRANTY VIETA Warranty covers a period of one year from the date of receipt of this equipment, to cover all repairs made by the Technical Service. WARRANTY EXCLUSIONS: The following are not covered by warranty, and therefore the total repair cost will... - Page 5 DECLARATION OF EC CONFORMITY SeeSound, S.L. C/Vico, 30 - 08021 Barcelona (Spain) Declara que la serie La-8 plus: Declares that La-8 plus series: Cumple con los objetivos de las siguientes directivas: Abide essential objectives relating directives: o Directiva de baja tension (Low Voltage Directive) 2006/95/CE o Directiva de compatibilidad Electromagnética (EMC) 2004/108/CE...
-
Page 8: La-Plus Series
Description La-plus series This series consists of self-powered models: La-8 plus A, La-12 plus A and La-115S plus A and the passive models: La-8 plus P, La-12 plus P and La-115S plus P. The two versions share the same Dual-Driver technology for better phase coherence, as well as Carbon-Fiber membrane speakers. - Page 9 Why use a Carbon-Fiber membrane? We have used the Carbon Fiber membrane in the La-8 series plus and LA-12 plus because it is more rigid than other materials, it is extremely clean during the whole production process and it provides outstanding clarity to the low and medium-low frequencies.
- Page 10 4 presets selectable from a switch. Highly accurate frequency response, combined with an accurate restoration of the sound image, as well as a SPL high output. La-8 plus A is ideal for high performance, PA systems with or without subwoofers, stage monitors, theaters, audiovisual applications and fixed installations.
-
Page 11: Amplifier Description
AMPLIFIER DESCRIPTION La-8 plus A Amplifier 1) AC INPUT: 70V – 265V Mains Connector type IEC-60320. Use only the appropriate mains cable. 2) FUSE: Do not use a different fuse from the recommended value (3,15A 250V 5 x 20 Fast) 3) POWER: Mains switch. - Page 12 PRESETS La-8 Plus A Front : Applications: FOH (no subs) NEAR FIELD: This preset slightly attenuates the mid-range frequencies for a more natural listening experience when listener is in a close position to the speakers. MONITOR: For stage monitor applications. The Frequency response is corrected to...
-
Page 13: Technical Specifications
X’OVER: This preset is to use the La-8 Plus A together with a subwoofer. TECHNICAL SPECIFICATIONS La-8 plus A Frequency Response: 75 – 20 KHz (Front preset) Frequency Range: 60 – 22 KHz Directivity (-6 dB) symmetrical: 70º (conical) Maximum SPL:... -
Page 14: Technical Specifications
Impedance: 6 Ω Power handling RMS/Prog./Peak 200 W/ 350W/ 700 W Components: Vieta Dual-Driver Speaker, Carbon fiber 8” speaker. 2” coil (51,7 mm) 1” compression driver (polyester). 1,75” coil (44,4 mm) Neodymium magnet Filter: Passive third order Important: Use an external crossover with HPF @ 60 Hz, 24 dB/oct. Butt. - Page 15 Accessories for the La-8 plus A and La-8 plus P Wall Bracket Horizontal U-Bracket Flying adaptor Rigging Examples Horizontal Bracket Horizontal Bracket in Flying adaptor Vertical configuration Pole mount on tripod La-115S + La-8 Vertical Array With a M20 telescopic mount...
-
Page 16: Safety Recommendations
Always ensure that the structure to be used to suspend, mount or rig the ● speaker has been designed to support a weight greater than the entire speaker system. VIETA cannot be held responsible for damage or injury caused by the lack of stability of the supporting structures or by improper installation. -
Page 17: Option 1
Applications USE WITH A SUBWOOFER Option 1 Basic configuration including two La-8 plus A o La-8 plus P and one La-115S plus A or La-115S plus P Sub. This combination is suitable for small applications (presentations, AV, etc.) Presets in both systems for this configuration:... -
Page 18: Option 2
Option 2 Basic configurations including two La-8 plus A or La-8 plus P and two La-115S plus A or La-115S plus P Subs. This configuration delivers more sound pressure in the frequency range corresponding to the subs. Presets in both systems for this configuration:... - Page 19 Dimensions...
-
Page 20: Flying Adapter
Brackets Flying adapter Please check that all parts for assembly are inside the box before installing the system. Mounting instructions The rigging adapter can be mounted in two positions. As shown in Fig. 2. and 180º rotated. Fig. 1 Fig. 2 Remove the screws according to Fig. - Page 21 Direction 1 Hole Angle Fig.3 Direction 2 Hole Angle Fig. 4...
-
Page 22: Mounting Instructions
U-Bracket Check the correct quantity and condition of the items. Mounting instructions 1.- Remove the top-hat screws located at the 2.- Remove the plastic cap from the top of the bottom of the box. box. 3.- Place the U-bracket onto the box and screw 4.- Screw the M10 clamping handle to the top of into the available top-hat screw holes located at the box, and when the it is positioned correctly,...
