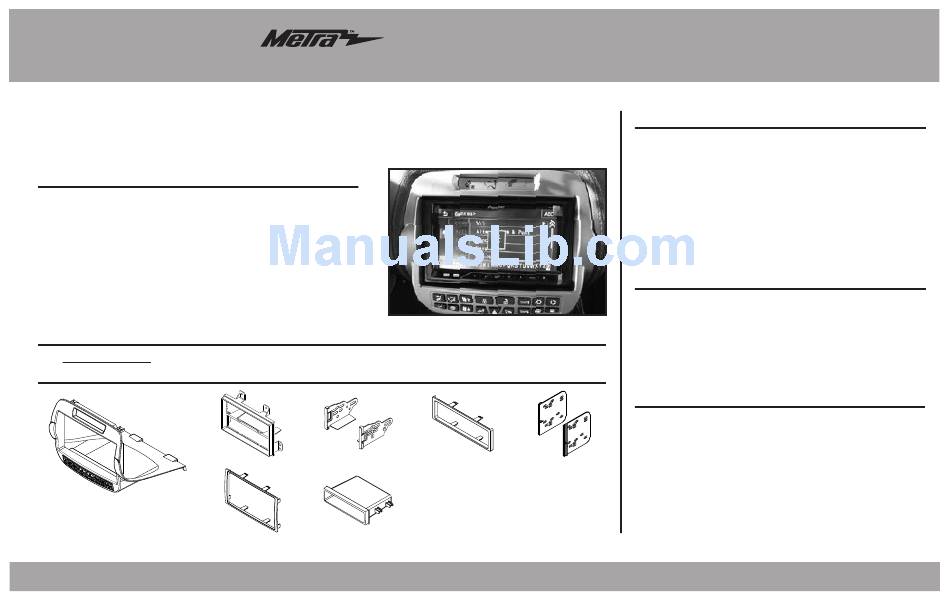

Installation instructions for 99-3010S
Chevrolet Camaro 2010-up

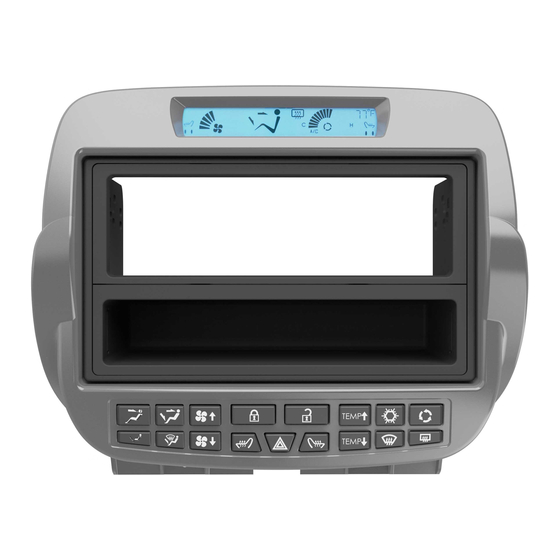

KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• Double DIN radio provision
• Painted silver to match factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio housing • C) ISO brackets • D) ISO trim plate • E) Double DIN brackets
• F) Double DIN trim plate • G) Pocket
A
B
F
99-3010S
C
D
G
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Axxess interface included
Antenna Adapter:
• 40-EU55 - Amplified antenna adapter
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
E
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.

Advertisement

Table of Contents
loading

Related Manuals for Metra Electronics 99-3010S

Summary of Contents for Metra Electronics 99-3010S

  • Page 1 Installation instructions for 99-3010S Chevrolet Camaro 2010-up WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: 99-3010S • Axxess interface included Antenna Adapter: KIT FEATURES • 40-EU55 - Amplified antenna adapter • DIN radio provision with pocket • ISO DIN radio provision with pocket •...
  • Page 2 99-3010S Dash Disassembly 99-3010S Chevrolet Camaro 2010-up 1. Unclip and remove the (2) side trim panels running the length of the center console. (Figure A) 2. Remove (1) 9/32” screw from each side of the front of the center console. (Figure B) 3.

  • Page 3: Kit Preparation

    Dash Disassembly 99-3010S 99-3010S Chevrolet Camaro 2010-up Kit Preparation 5. Lift up on the rear of the console 1. Cut and remove the sub dash and slide toward the back of the radio support to make room for the vehicle then unclip and remove the interface and harnesses.

  • Page 4: Iso Din Radio Provision With Pocket

    (Figure B) 4. Reassemble dash in reverse order 4. Snap the trim plate into the (Figure A) of disassembly using the 99-3010S radio housing. (Figure C) radio trim panel instead of the 5. Reassemble dash in reverse order factory panel.

  • Page 5: Double Din Radio Provision

    (Figure B) order of disassembly using the • 3010S interface • 3010S harness • HVAC harness • 16-pin harness with 99-3010S radio trim panel instead stripped leads • 4-pin to 4-pin resistor pad harness of the factory panel. Continue to Axxess interface TOOLS REQUIRED installation and then reassemble.

  • Page 6: Connections To Be Made

    Axxess interface installation 99-3010S Connections to • Connect the Gray wire to the right • Connect the Pink wire to the Pink rear positive wire. be made front positive speaker output. wire located in the HVAC harness • Connect the Green/Black wire to (ignore the writing on this wire, this is •...
  • Page 7 Axxess interface installation 99-3010S Initializing the Vehicle customization conjunction with the optional ASWC-1 (all the way left). Turn clockwise Axxess interface with the optional (not included) to retain steering wheel to raise the chime level, and AX-LCD controls. If the ASWC-1 is not being...

  • Page 8: Changing Display Backlight Color

    Installation instructions for 99-3010S Changing display • Press and hold the “Face/Foot” button to backlight color increase Green. • Press and hold the “Def/Foot” button to 1. Press the front defrost button for 5 seconds, decrease Green. this will engage the “Configure Backlight •...
