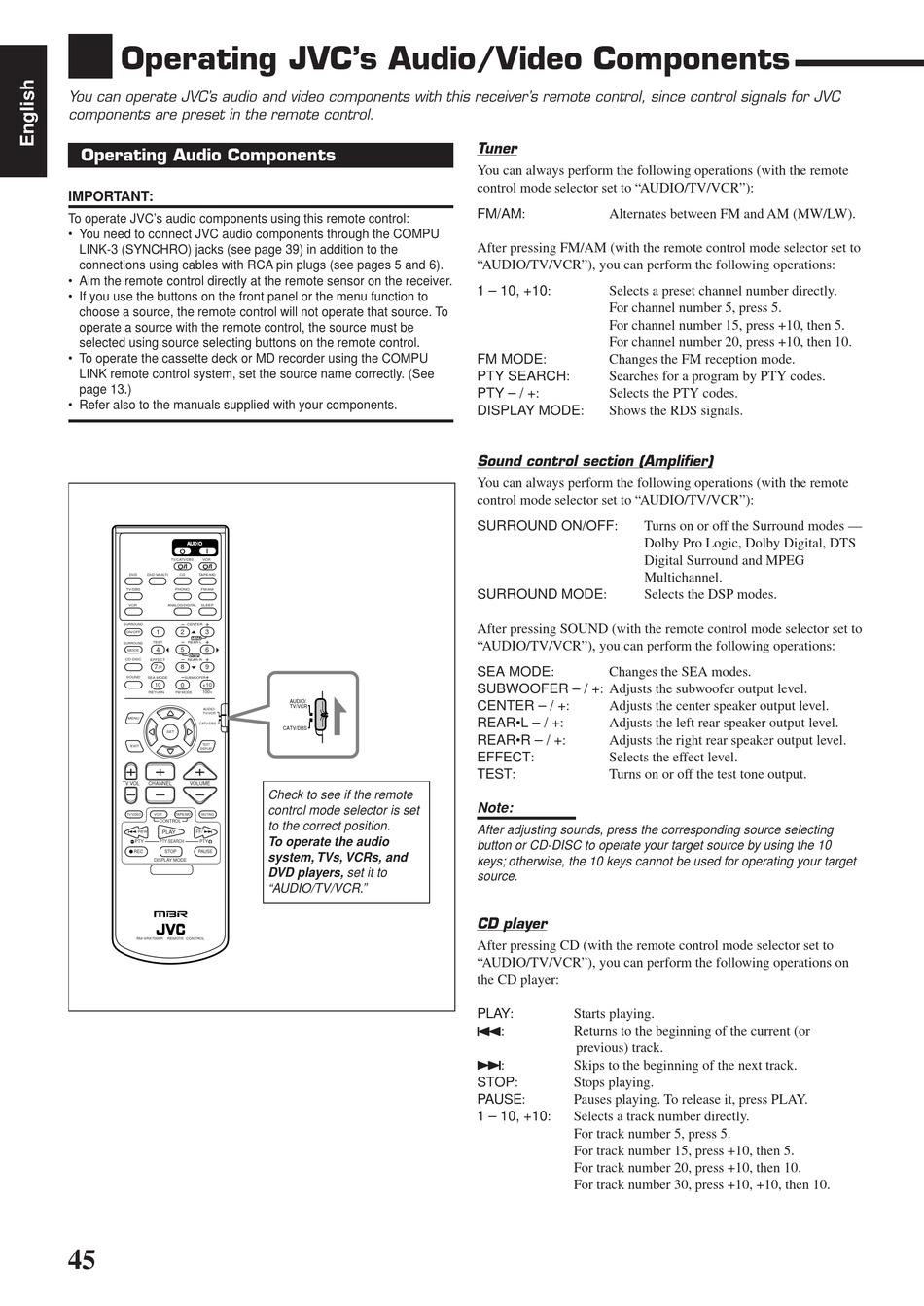

Operating JVC's Audio/Video Components

You can operate JVC's audio and video components with this receiver's remote control, since control signals for JVC
components are preset in the remote control.

Operating Audio Components

IMPORTANT:
To operate JVC's audio components using this remote control:
• You need to connect JVC audio components through the COMPU
LINK-3 (SYNCHRO) jacks (see page 39) in addition to the
connections using cables with RCA pin plugs (see pages 5 and 6).
• Aim the remote control directly at the remote sensor on the receiver.
• If you use the buttons on the front panel or the menu function to
choose a source, the remote control will not operate that source. To
operate a source with the remote control, the source must be
selected using source selecting buttons on the remote control.
• To operate the cassette deck or MD recorder using the COMPU
LINK remote control system, set the source name correctly. (See
page 13.)
• Refer also to the manuals supplied with your components.
TV/CATV/DBS VCR
DVD DVD MUILTI CD TAPE/MD
TV/DBS PHONO FM/AM
VCR ANALOG/DIGITAL SLEEP
SURROUND CENTER
1 2 3
ON/OFF
MENU MENU
TEST REAR-L
SURROUND
4 5 6
MODE
ENTER ENTER
CD-DISC
EFFECT REAR-R
7 8 9
/P
SOUND
SEA MODE SUBWOOFER
0 +10
10
RETURN FM MODE 100+
AUDIO/
TV/VCR
MENU
CATV/DBS
SET
TEXT
EXIT
DISPLAY
TV VOL CHANNEL VOLUME
TV/VIDEO VCR MUTING
TAPE/MD
CONTROL
/REW PLAY
FF/
PTY PTY SEARCH PTY
REC STOP PAUSE
DISPLAY MODE
RM-SRX7000R REMOTE CONTROL
45
AUDIO/
TV/VCR
CATV/DBS
Check to see if the remote
control mode selector is set
to the correct position.
To operate the audio
system, TVs, VCRs, and
DVD players, set it to
"AUDIO/TV/VCR."
Tuner
You can always perform the following operations (with the remote
control mode selector set to "AUDIO/TV/VCR"):
FM/AM: Alternates between FM and AM (MW/LW).
After pressing FM/AM (with the remote control mode selector set to
"AUDIO/TV/VCR"), you can perform the following operations:
1 – 10, +10: Selects a preset channel number directly.
For channel number 5, press 5.
For channel number 15, press +10, then 5.
For channel number 20, press +10, then 10.
FM MODE:
Changes the FM reception mode.
PTY SEARCH: Searches for a program by PTY codes.
PTY – / +:
Selects the PTY codes.
DISPLAY MODE: Shows the RDS signals.
Sound control section (Amplifier)
You can always perform the following operations (with the remote
control mode selector set to "AUDIO/TV/VCR"):
SURROUND ON/OFF: Turns on or off the Surround modes —
Dolby Pro Logic, Dolby Digital, DTS
Digital Surround and MPEG
Multichannel.
SURROUND MODE:
Selects the DSP modes.
After pressing SOUND (with the remote control mode selector set to
"AUDIO/TV/VCR"), you can perform the following operations:
SEA MODE:
Changes the SEA modes.
SUBWOOFER – / +: Adjusts the subwoofer output level.
CENTER – / +:
Adjusts the center speaker output level.
REAR•L – / +:
Adjusts the left rear speaker output level.
REAR•R – / +: Adjusts the right rear speaker output level.
EFFECT:
Selects the effect level.
TEST: Turns on or off the test tone output.
Note:
After adjusting sounds, press the corresponding source selecting
button or CD-DISC to operate your target source by using the 10
keys; otherwise, the 10 keys cannot be used for operating your target
source.
CD player
After pressing CD (with the remote control mode selector set to
"AUDIO/TV/VCR"), you can perform the following operations on
the CD player:
PLAY:
Starts playing.
4 4
4 4 4 :
Returns to the beginning of the current (or
previous) track.
¢ ¢
¢ ¢ ¢ :
Skips to the beginning of the next track.
STOP: Stops playing.
PAUSE:
Pauses playing. To release it, press PLAY.
1 – 10, +10: Selects a track number directly.
For track number 5, press 5.
For track number 15, press +10, then 5.
For track number 20, press +10, then 10.
For track number 30, press +10, +10, then 10.
