JDS Uniphase HST-3000 Product Manual

HST-3000
Option for Datacom Testing
:
www.jdsu.com/test
WEBSITE
COMMUNICATIONS TEST & MEASUREMENT SOLUTIONS
Key Features • Isolates and troubleshoots Datacom networks and
Customer Premises Equipment (CPE)
• Supports RS232/V.24, RS449/V.36, V.35, EIA530, and
X.21 interfaces
• Provides DTE/DCE emulation and bidirectional
monitoring
• Contains a full suite of BERT patterns with data rate
support up to 10 Mbps
• Verifies Frame Relay service over Datacom interfaces

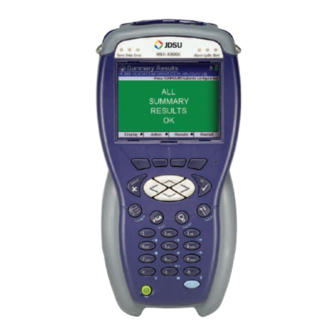

The JDSU HST-3000 Datacom Service Interface Module (SIM) is designed for
field technicians who install and maintain data communications circuits and
network elements over RS232/V.24, RS449/V.36, V.35, EIA530, and X.21
interfaces. Technicians can verify end-to-end connectivity, identify clocking
errors, and measure throughput with the bidirectional monitoring, data
terminating equipment (DTE) emulation, and data communications equipment
(DCE) emulation features.
When using the HST-3000 for network troubleshooting, technicians can quickly
and easily isolate circuit problems to a specific direction by analyzing the
performance of the entire digital link in both directions. The HST-3000 can also
verify operation or locate network problems by generating bit error rate test
(BERT) patterns and testing frame relay service.
Rugged, versatile, and portable, the HST-3000 is the ideal instrument for
technicians to test the entire circuit, from the customer premises and throughout
the network. It can be built to order and quickly and easily upgraded in the field
with new modules as application and technology needs change.
Programmed with highly integrated applications for in-service and out-of-service
testing, the HST-3000 examines both the physical layer and service levels to ensure
that the network is performing properly.
