Radio Specifications - Huawei AP5030DN Product Description

Huawei AP5030DN Access Points
Product Description
Item

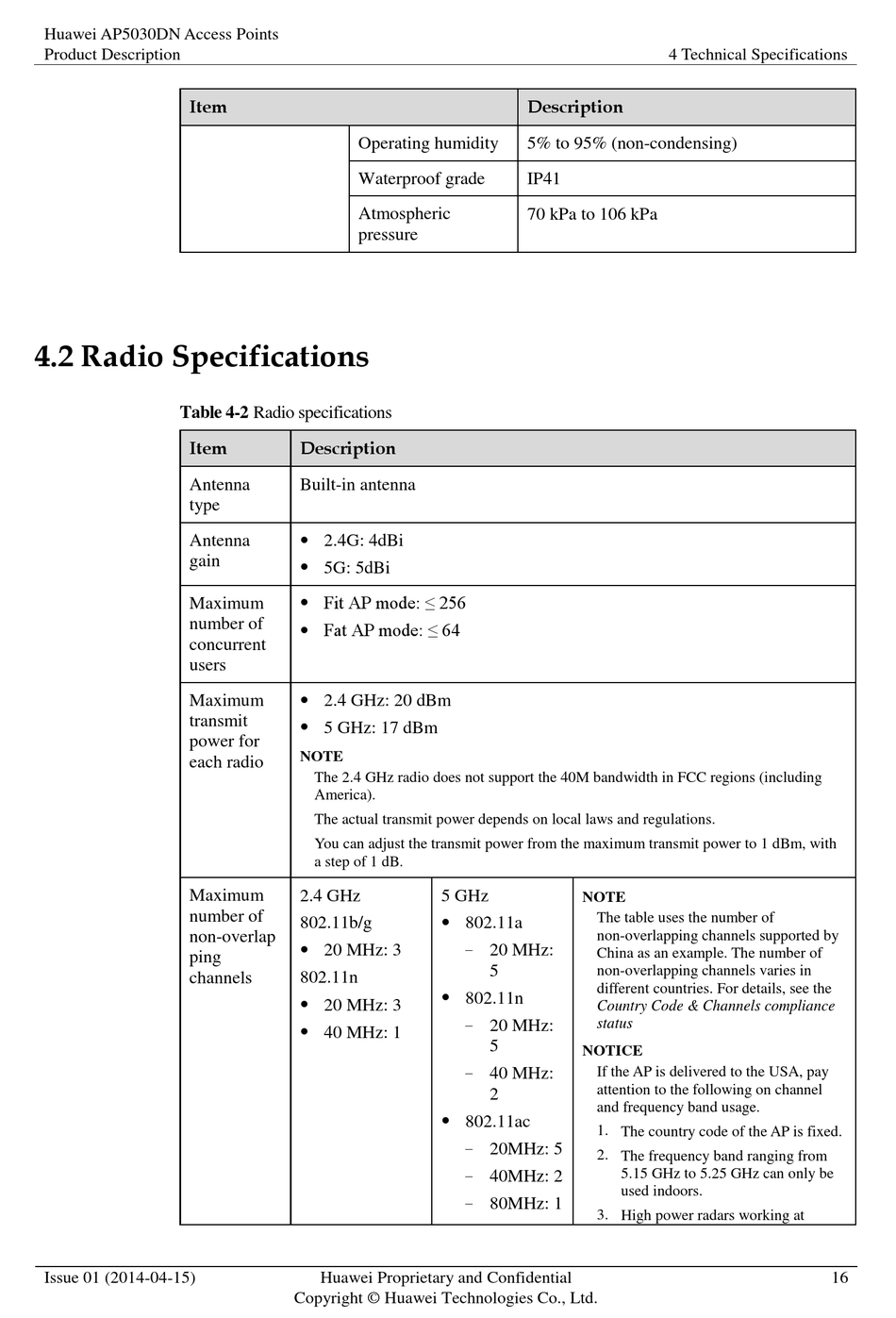

4.2 Radio Specifications

Table 4-2 Radio specifications
Item
Antenna
type
Antenna
gain
Maximum
number of
concurrent
users
Maximum
transmit
power for
each radio
Maximum
number of
non-overlap
ping
channels
Issue 01 (2014-04-15)
Operating humidity
Waterproof grade
Atmospheric
pressure
Description
Built-in antenna
 2.4G: 4dBi
 5G: 5dBi
Fit AP mode: ≤ 256

Fat AP mode: ≤ 64

 2.4 GHz: 20 dBm
 5 GHz: 17 dBm
NOTE
The 2.4 GHz radio does not support the 40M bandwidth in FCC regions (including
America).
The actual transmit power depends on local laws and regulations.
You can adjust the transmit power from the maximum transmit power to 1 dBm, with
a step of 1 dB.
2.4 GHz 5 GHz
802.11b/g 
 20 MHz: 3
802.11n


20 MHz: 3

40 MHz: 1

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Description
5% to 95% (non-condensing)
IP41
70 kPa to 106 kPa
NOTE
The table uses the number of
802.11a
non-overlapping channels supported by
− 20 MHz:
China as an example. The number of
5
non-overlapping channels varies in
different countries. For details, see the
802.11n
Country Code & Channels compliance
status
− 20 MHz:
5
NOTICE
40 MHz: If the AP is delivered to the USA, pay
−
attention to the following on channel
2
and frequency band usage.
802.11ac
1. The country code of the AP is fixed.
− 20MHz: 5
2. The frequency band ranging from
5.15 GHz to 5.25 GHz can only be
− 40MHz: 2
used indoors.
− 80MHz: 1
3. High power radars working at
4 Technical Specifications
