User Manual
MOBILE AUDIO SYSTEM
•
PLL Synthesizer Stereo Radio
•
Automatic Memory Storing
•
DVD/CD-R/RW and MP3 Compatible
•
Alarm Clock
•
Auxiliary Audio/Video Input
•
USB Interface
PLRVST300
USER MANUAL
•
Headphone Output
•
6 Speaker Output
•
Bluetooth for A2DP (Advanced Audio
Distribution Pro le) Stereo Audio Transmission
•
Electronic Shockproof (ESP) Function
Advertisement
Table of Contents
Related Manuals for Pyle PLRVST300
Summary of Contents for Pyle PLRVST300
-

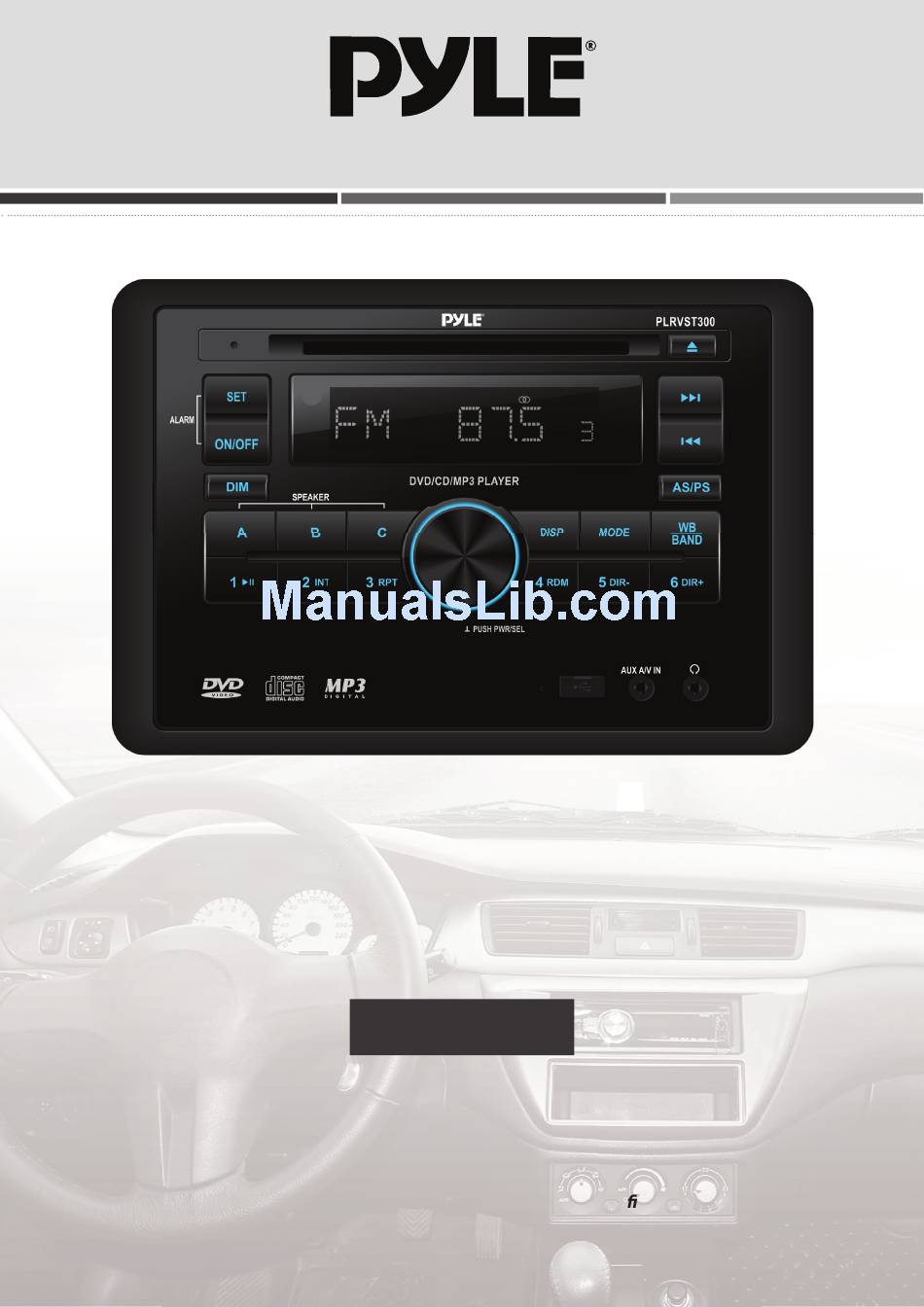

Page 1: User Manual
MOBILE AUDIO SYSTEM PLRVST300 USER MANUAL • PLL Synthesizer Stereo Radio • Headphone Output • Automatic Memory Storing • 6 Speaker Output • DVD/CD-R/RW and MP3 Compatible • Bluetooth for A2DP (Advanced Audio • Alarm Clock Distribution Pro le) Stereo Audio Transmission •... -
Page 2: Table Of Contents
CONTENT Installation ..........3 DIN Front-Mount Rear-Mount ....3 Pausing playing ......9 Mounting ..........4 Previewing all tracks ..... 9 Wiring Connection ........ 5 Repeating the same track ..... 9 Operation ..........6 Playing all tracks in random ..9 Location of keys ........ -
Page 3: Installation
INSTALLATION Notes: ATTENTIONS OF INSTALLATION Choose the mounting location where the 1. This player should be installed by unit will not interfere with the normal driving professional technician. function of the driver. 2. Please read the instruction and operation Before finally installing the unit, connect the of equipment carefully before installing. -
Page 4: Mounting
INSTALLATION... -
Page 5: Wiring Connection
WIRING CONNECTION ISO CONNECTION... -
Page 6: Operation
OPERATION LOCATION OF KEYS 17. DISP VOL/PWR/SEL DISC SLOT (Eject) ALARM SET 21. EARPHNE OUTPUT ALARM ON/OFF 22. AUX IN Jack DIM (Dimmer) 23. USB INTERFACE SPEAKER A/B/C 24. RESET button 1 PAU 2 INT 10. 3 PRT 11. 4 RDM 12. -
Page 7: Turn On/Off The Unit
OPERATION can receive more stations. TRUN ON/OFF THE UNIT Press PWR button (1) to turn on the unit. When STEREO/MONO function the unit is on. Press and hold PWR button (1) for In STEREO item rotating the audio knob 2 seconds to turn the unit off. (1) to choose STEREO or MONO mode. -
Page 8: Brightness Of The Lcd
OPERATION RADIO OPERATION BRIGHTNESS OF THE LCD SWITCHING TO RADIO MODE Press the DIM button (6) to adjust the Press MODE button (15) to select LCD brightness from “DIMMER radio mode, the radio mode appears in 1” (brightest) to “DIMMER 2”(less bright) the display together with the memory band and frequency. -
Page 9: Manually Store Station& Recall Preset Station
OPERATION SELECTING TRACKS searching stations in 2 cycle in Press button (18) or button (19) LOCAL OFF mode. to move to the previous track/file or the following track/file. Track/file Program scanning number shows on display. Press AS/PS button (16) shortly to Hold button (18) or button (19) -
Page 10: Searching File Number
OPERATION When pressed, it is activated the M, N, O, 5/Directory selecting each mode as below: DOWN Search file number => Search File P, Q, R, 6/Directory UP Name=>Search from folder. S, T, U, 7 Searching File number Press AS/PS button for one time. It TUNE/SEEK/TRACK V, W, X, 8 enters into “Searching file number”... -
Page 11: Supported Mp3/Wma Decoding Modes
OPERATION wrong operation may cause files loss. And MODE button (15) to select USB mode. our company assumes no responsibility The USB operation is the same with the for this. CD/MP3/WMA operation described above. DISC NOTES Note： A. Notes on discs: ... -
Page 12: Dvd Video Menu Play
been written for more than 5 times. OPERATION C. Notes on MP3 files (MP3 Version 1) Item: TT Only): 1. The disc must be in the ISO9660 level Function: Display the current title number and total title or level 2 format, or Joliet or Romeo number. - Page 13 OPERATION soundtrack language. You can input the Track and Time then FREQUENTLY ASKED QUESTIONS press ENTER key to confirm. • When inserting a DVD disc, why it can’t be played, just showing “region error”? It ZOOM FUNCTION is because that the DVD player and the Allows the picture to be increased in size.
- Page 14 OPERATION A section of the disc can have several • After you have programmed the tracks, different sequences that vary in parental press PROGRAM button can switch control level. In the above example of a between program play and normal play. disc with parental control, the player will •...
- Page 15 OPERATION 1) When insert USB drive into the USB change your selection. interface, the unit will read the USB SYSTEM SETUP automatically. When you open the setup menu, you will 2) If the USB have been inserted into the see the system setup page at first, see unit.
-
Page 16: Bluetooth Operation
OPERATION PORTUGUESE/ITALIAN/ (RUSSIAN) (R PAIRING USSIAN only for MENU LANG) 1) On the mobile phone, select the Bluetooth set up. (Please refer to the AUDIO SETUP instruction manual of your mobile • When you open the AUDIO menu, you phone on how to operate Bluetooth.) will see the following picture: 2) “CAR KIT”... -
Page 17: Remote Control
REMOTE CONTROL... - Page 18 REMOTE CONTROL 1. MUTE Press to mute the sound. Press again to recover the sound. 2. POWER Press it to turn the unit ON or OFF Inputs the corresponding number. 3. 0-9 4. LOUD/EQ Press and hold to turn on/off Loudness. Press it to select desired audio equalization 5.
-
Page 19: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 160 (D) x 100 (H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power : 4x40 watts Current Drain : 10 Ampere (max.) (For Normal Power Version) -
Page 20: Trouble Shooting
Insert the antenna cable firmly. not Work. The connected. radio station The signals are too weak. Select a station manually. automatic selection does not work. Shop for quality Pyle products on our website. Discover other marine electronics and navigation on our website.
