Shure AXT100 User Manual

Shure AXT100 User Manual

Axient bodypack transmitter
Hide thumbs Also See for AXT100:

Advertisement

Quick Links

AXT100 Bodypack Transmitter
©2011 Shure Incorporated
Printed in USA
27A15017 (Rev. 1)

Advertisement

loading

Summary of Contents for Shure AXT100

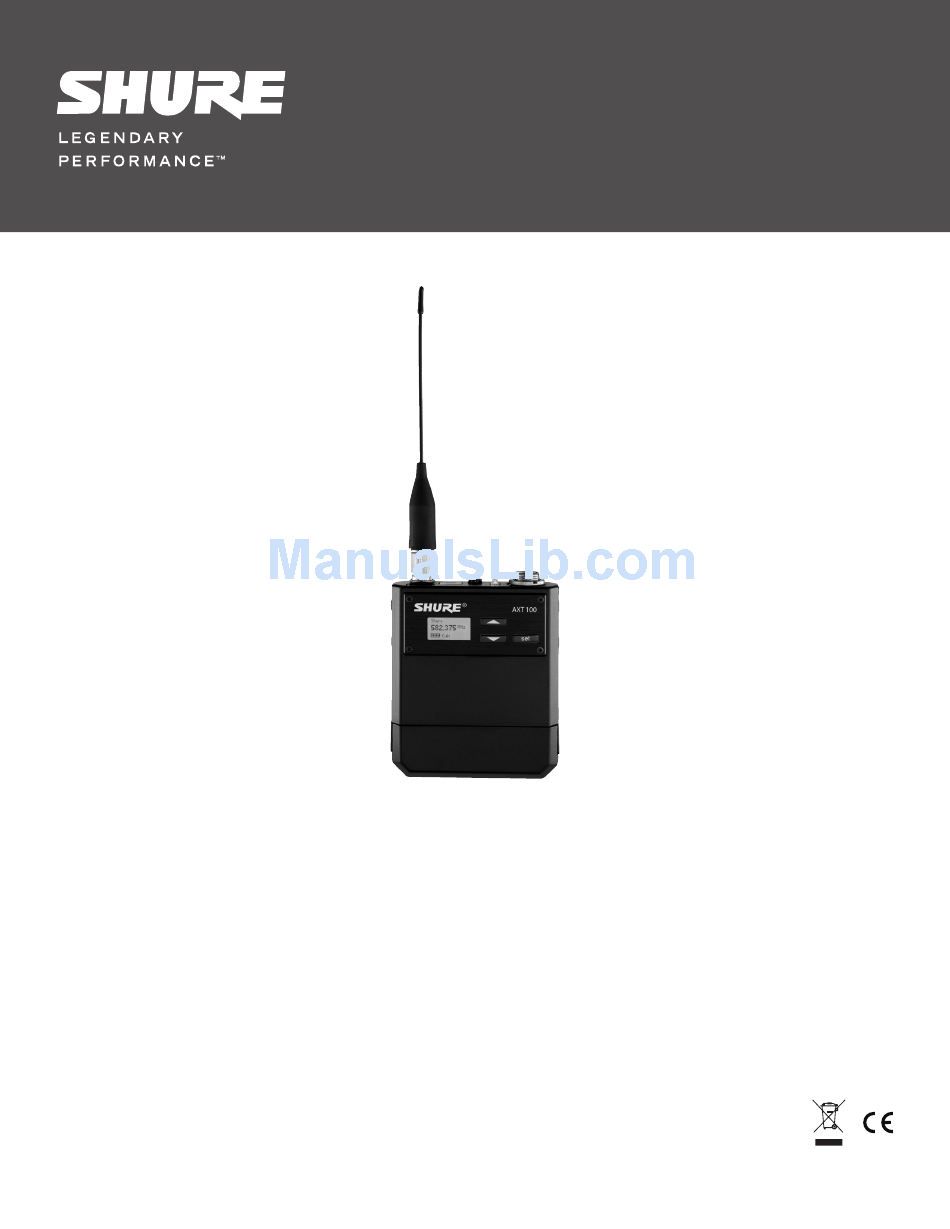

  • Page 1 AXT100 Bodypack Transmitter ©2011 Shure Incorporated Printed in USA 27A15017 (Rev. 1)
  • Page 3: Important Safety Instructions

    • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs with other than specified Shure products • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs...
  • Page 5 AXT100 Axient Bodypack Transmitter The AXT100 transmitter delivers superior audio performance in a compact, lightweight package. Efficient, ultra-linear RF performance maximizes the number of channels on-air in crowded RF environments. Advanced power management provides extended, rechargeable battery life and highly accurate status metering.
  • Page 6 The IR Sync function forms a Link and sets the frequency between the transmitter and an AXT400 Receiver. Two AXT100 transmitters can be connected to two lavalier microphones using an AXT652 “Y” cable to operate in Frequency Diversity mode with an AXT400 Receiver.
  • Page 7: Troubleshooting

    Firmware is embedded software used to control features and the user interface. Periodically, new versions of firmware are available for download from www.shure.com/wwb to incorporate additional features and enhancements. New versions of the firmware can be downloaded to AXT400 Receiver using the Firmware Update Manager tool available in WWB6 software and installed on the transmitter using the infrared ports on the transmitter and receiver.
  • Page 8: Audio Input

    Specifications- AXT100 Bodypack Transmitter RF Output RF Carrier Frequency 470–814 MHz Range Note: varies by region Connector SMA (UHF and ShowLink); Shell=Ground, Working Range Under typical conditions: 150 m Center=Signal (500 ft) Antenna Type AXT642 Bodypack Dual Band Line of Sight, outdoors...
  • Page 9: Licensing Information

    B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential The CE Declaration of Conformity can be obtained from Shure Incorporated or any installation. This equipment generates uses and can radiate radio frequency energy of its European representatives.
  • Page 12 Europe, Middle East, Africa: United States, Canada, Latin Asia, Pacific: Shure Europe GmbH America, Caribbean: Shure Asia Limited Wannenäckestr. 28, Shure Incorporated 22/F, 625 King’s Road 74078 Heilbronn, Germany 5800 West Touhy Avenue North Point, Island East Niles, IL 60714-4608 USA...
