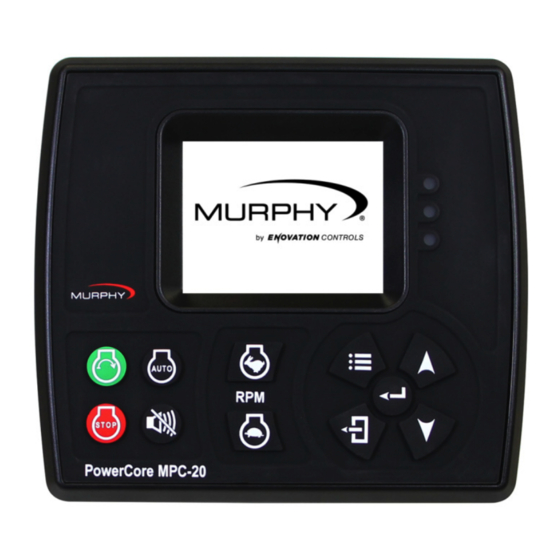

Model MPC-20
Installation Manual
*Approved by CSA for non-hazardous locations (Group Safety Publication IEC 61010-
1 Third Edition).
Products covered in this document comply with European Council electromagnetic
compatibility directive 2004/108/EC and electrical safety directive 2006/95/EC.
PowerCore
00-02-0897
2015-10-22
Section 40
Advertisement
Table of Contents
Related Manuals for Murphy PowerCore MPC-20
Summary of Contents for Murphy PowerCore MPC-20

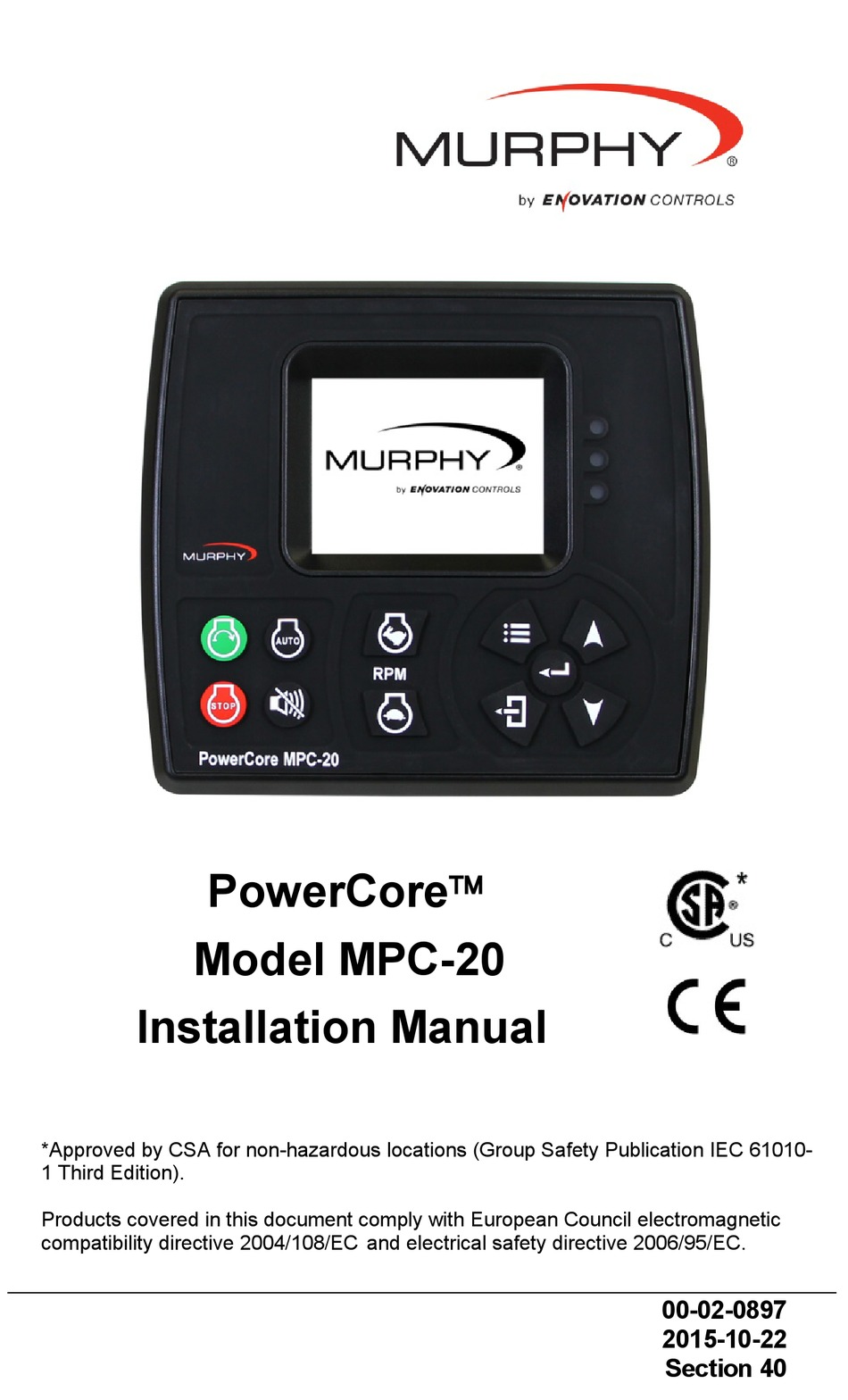

- Page 1 PowerCore Model MPC-20 Installation Manual *Approved by CSA for non-hazardous locations (Group Safety Publication IEC 61010- 1 Third Edition). Products covered in this document comply with European Council electromagnetic compatibility directive 2004/108/EC and electrical safety directive 2006/95/EC. 00-02-0897 2015-10-22 Section 40...
- Page 2 In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time. The latest version of this manual can be found at www.fwmurphy.com. BEFORE BEGINNING INSTALLATION OF THIS MURPHY PRODUCT: • Read and follow all installation instructions.
-
Page 3: Table Of Contents
Table of Contents Operations Manual Location ..........1 Hardware Installation ............1 Inspecting Package Contents ........1 Tools Needed ............. 1 Installation ..............2 Dimensions for Installation ..........4 Wiring Instructions ...............6 PIN Specifications for FCI Connection ....... 6 Connector ..............7 Accessories ................8 Specifications ................9 Electrical .............. - Page 4 -NOTES- LENS CLEANING PROCEDURES The lens on the MPC-20 is composed of Polycarbonate materials. Use only mild soap and water to clean the lens/display window. Evidence of improper cleaning techniques or chemicals includes cracks, smear marks, scratches, or fogged/hazy lenses.
-
Page 5: Operations Manual Location
Operations Manual Location After installation, please review the MPC-20 Operations Manual prior to placing the controller into service. In order to access the MPC-20 Operation Manual please visit the MPC-20 product page to download or print a copy located under the literature tab. www.fwmurphy.com/mpc-20 Hardware Installation The following instructions will guide you through installing the... -
Page 6: Installation
Installation Preparing the Enclosed Panel Determine the location of the MPC-20 on the customer-supplied flat or enclosed panel. The suitability of the enclosure is subject to investigation by the local authority having jurisdiction at the time of the installation. Use the Installation Template measurements (included at the end of the manual) as a guideline to cut a hole to the specified dimensions. - Page 7 Installing the Display Place the back side of the display through the opening in the panel. 1. Use the 4 screws to line up the unit with the drilled holes. 2. Ensure that the back of the case is flush. 3.
-
Page 8: Dimensions For Installation
Dimensions for Installation Front Inches [mm] Section 40 00-02-0897 2015-10-22 - 4 -... - Page 9 Back Side View Section 40 00-02-0897 2015-10-22 - 5 -...
-
Page 10: Wiring Instructions
Wiring Instructions PIN Specifications for FCI Connection Wiring of this device must meet all applicable electrical codes. Battery lines to the unit must all come through a single 10 Amp or less fuse or circuit breaker to retain the controller’s CSA rating. Section 40 00-02-0897 2015-10-22... -
Page 11: Connector
Connector Locking Cam Delphi, SICMA 90 Position Connector Terminal Protective Cover Section 40 00-02-0897 2015-10-22 - 7 -... -
Page 12: Accessories
Accessories Component Part # PowerCore 90 Position Conn Kit 40-70-0496 PowerCore 90 Position Conn Whip 40-00-0554 Harness 3’ IP66 Panel Gasket 40-05-1031 Section 40 00-02-0897 2015-10-22 - 8 -... -
Page 13: Specifications
Specifications Electrical Display: 3.8” Monochrome, Transflective, White Backlight LCD Operating Voltage: 8-32 VDC, protected against reverse battery polarity and load-dump Power Consumption: 18W max without 2 2A High-sides active, 146W max with 2 2A High-sides active Communications 2-CAN: J1939 USB: 2.0B (Only supported for programming) Ethernet: (Not supported in initial release) RS485: Modbus RTU Connection: Delphi SICMA 90 way connector, 1.5mm... -
Page 14: Environmental
Environmental Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +85°C Protection: IP67 front and back, when using accessory gasket and properly mounted the panel seal retains IP66. Emissions: SAE J1113 Immunity: SAE J1113 Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axis Shock: ±... -
Page 15: Mounting Template
Mounting Template Panel Opening Cutout Note: This template is for reference dimensions only. Inches [mm]...
