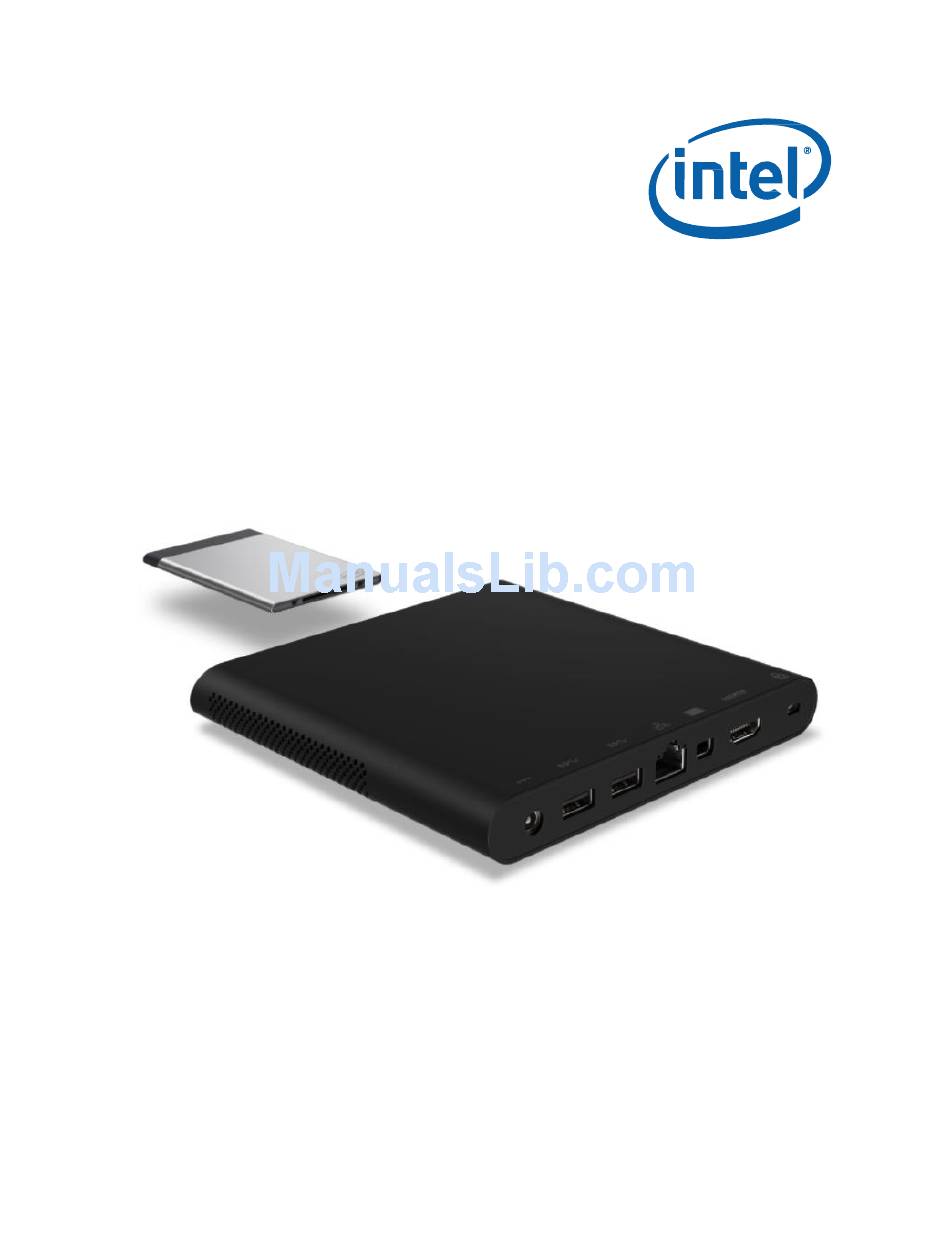

Intel Compute Card User Guide – v1.0
Intel® Compute Card
User Guide
1

Advertisement

Table of Contents
loading

Related Manuals for Intel Compute Card

Summary of Contents for Intel Compute Card

  • Page 1 Intel Compute Card User Guide – v1.0 Intel® Compute Card User Guide...

  • Page 2: Before You Begin

    Intel Compute Card User Guide – v1.0 Before You Begin CAUTIONS The procedures in this user guide assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.
  • Page 3 Intel Compute Card User Guide – v1.0 This user guide includes setup and usage information for Intel® Compute Cards when used with the Intel® Compute Card Dock DK132EPJ. Topics Product descriptions • Connect keyboard and mouse • Connect to a network •...
  • Page 4 Intel Compute Card User Guide – v1.0 Product Description (Cards) Top-front view The two wireless antennas are located inside the black plastic end of the card. Bottom-back view...

  • Page 5: Connect A Keyboard And Mouse

    Bluetooth* keyboard and mouse. (Follow the instructions that came with the keyboard and mouse to pair them to the Intel Compute Card’s onboard Bluetooth device. You may need to temporarily connect a wired mouse/keyboard to the dock in order to pair Bluetooth devices.

  • Page 6: Connect To A Display

    Intel Compute Card User Guide – v1.0 Connect to a display The Intel Compute Card Dock connects to the display using either the DisplayPort or HDMI connector on the back panel. Connect Power Country-specific power plug attachments are included in the Intel Compute Card Dock box.
  • Page 7 Intel Compute Card User Guide – v1.0 2. Slide the attachment (B) onto the power plug, locking it into place (A). 3. Connect to AC power.
  • Page 8 Intel Compute Card User Guide – v1.0 Insert Intel Compute Card Insert the card into the dock slot, with the Intel logo facing up. Eject a Card There are two ways to eject a card from the dock. Hardware eject button on the dock front panel: After pressing the eject button, the fan in the Dock will cool the Card to a safe temperature level before ejecting it.

  • Page 9: Install An Operating System

    Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well as versions of Linux that have been reported as compatible by Intel NUC owners. Refer to Operating System Installation for system requirements and installation steps.
  • Page 10 Intel Compute Card User Guide – v1.0 Attach the VESA Bracket (Optional) Follow these instructions to attach and use the VESA mount bracket with the Dock. 1. Attach the VESA bracket to the back of the monitor or display, using the four small black screws.
  • Page 11 Intel Compute Card User Guide – v1.0 3. Slide the Dock onto the VESA mount bracket. Secure Dock with a Cable Lock (optional)
